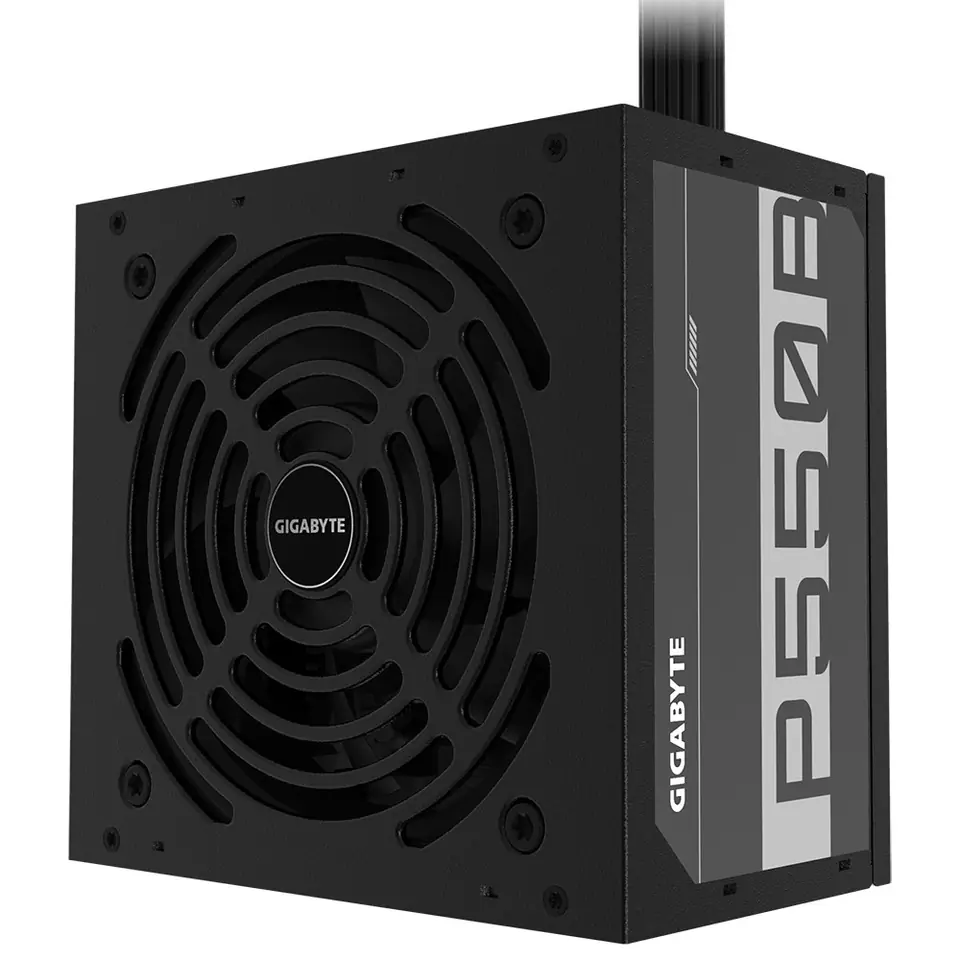

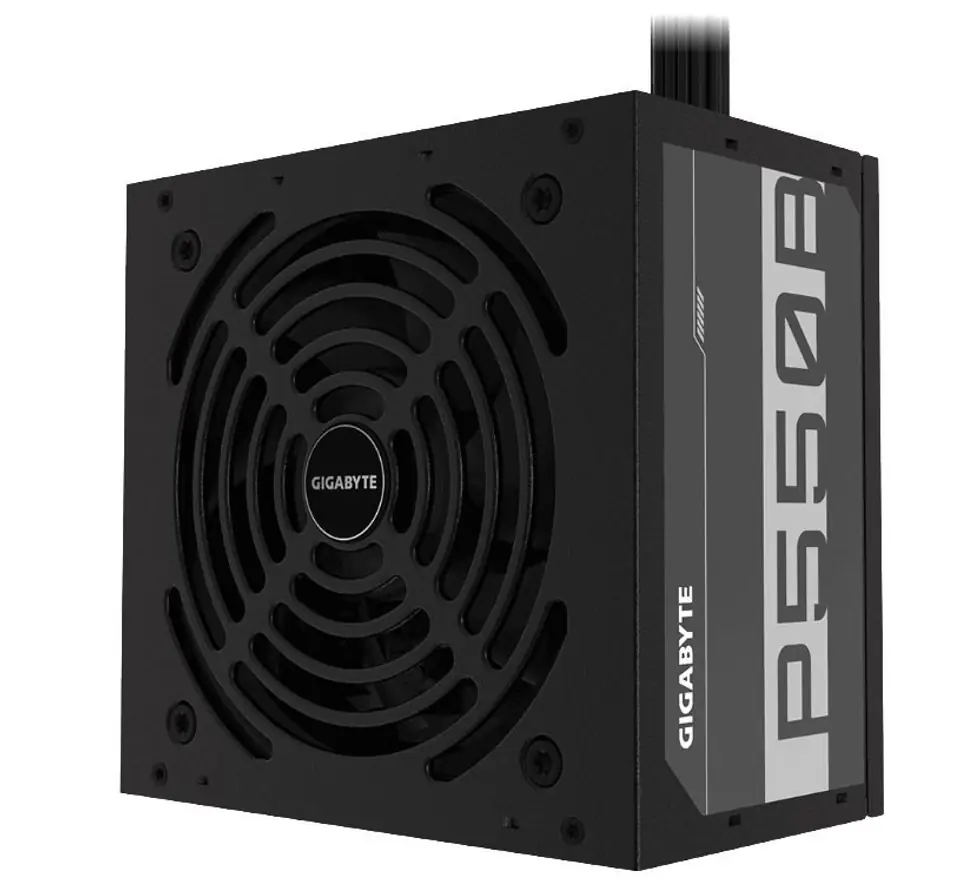

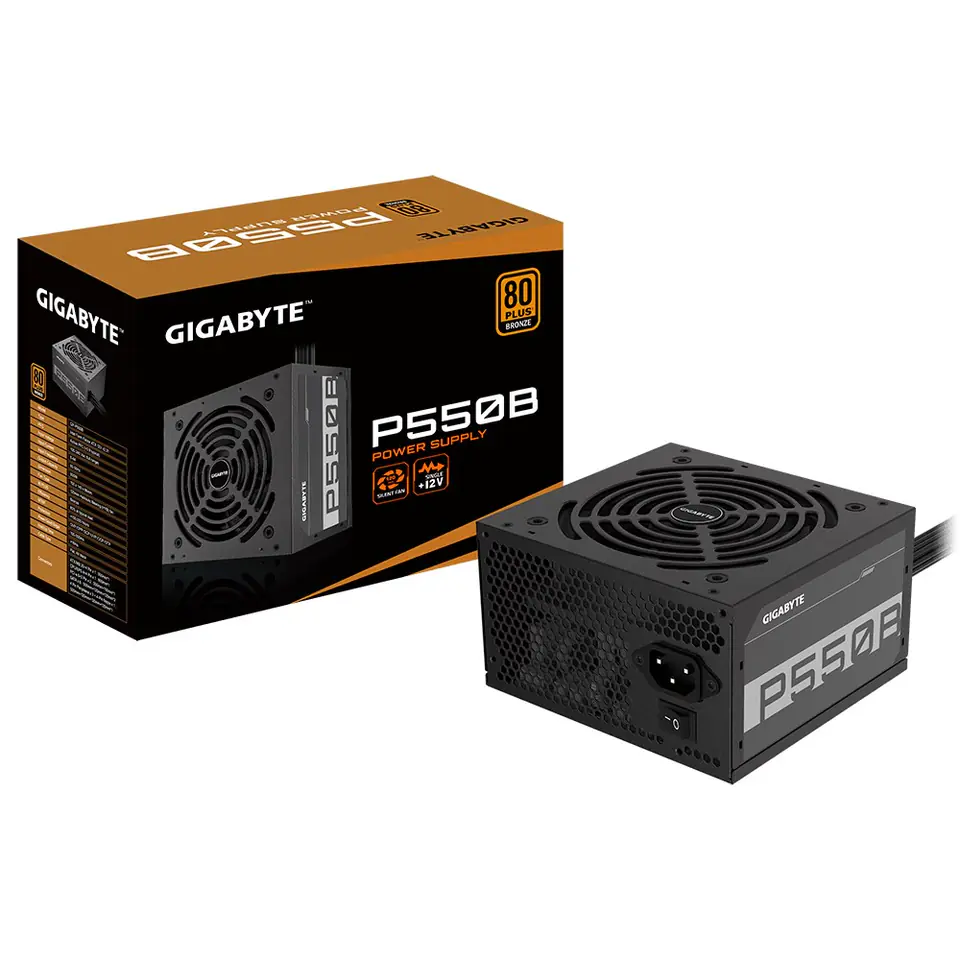

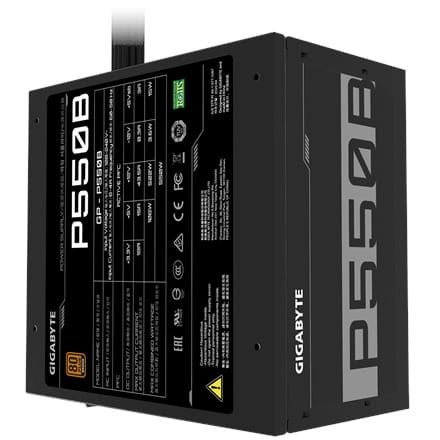

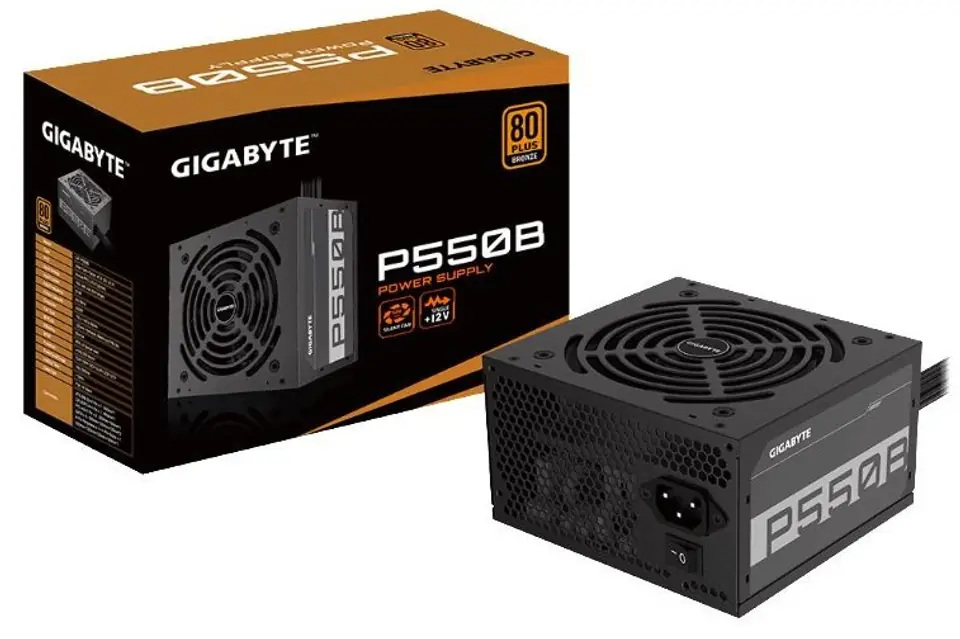

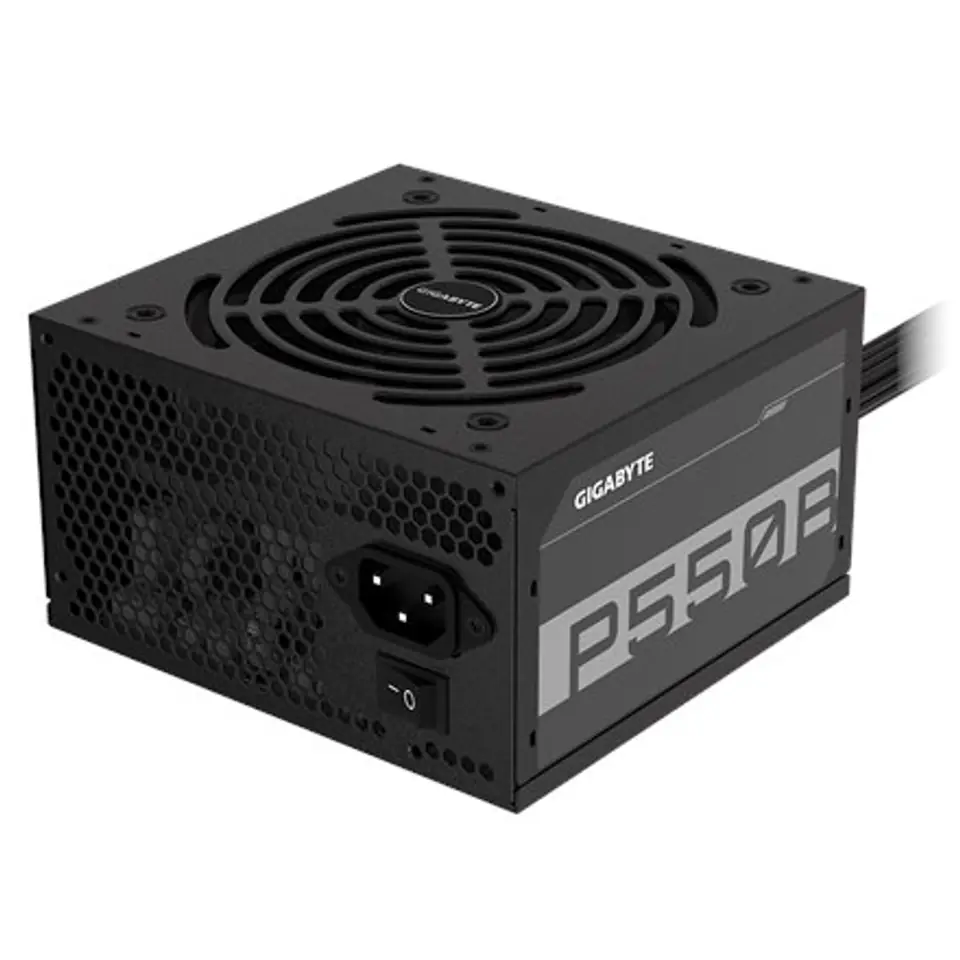

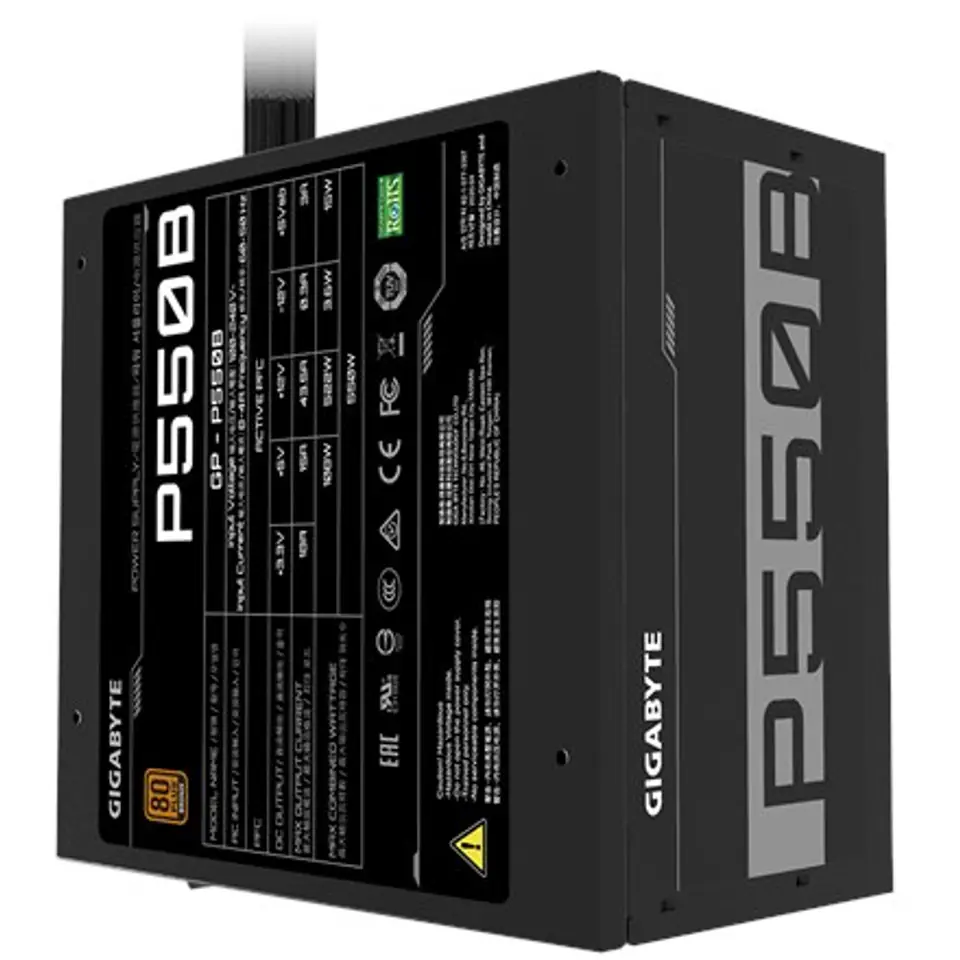

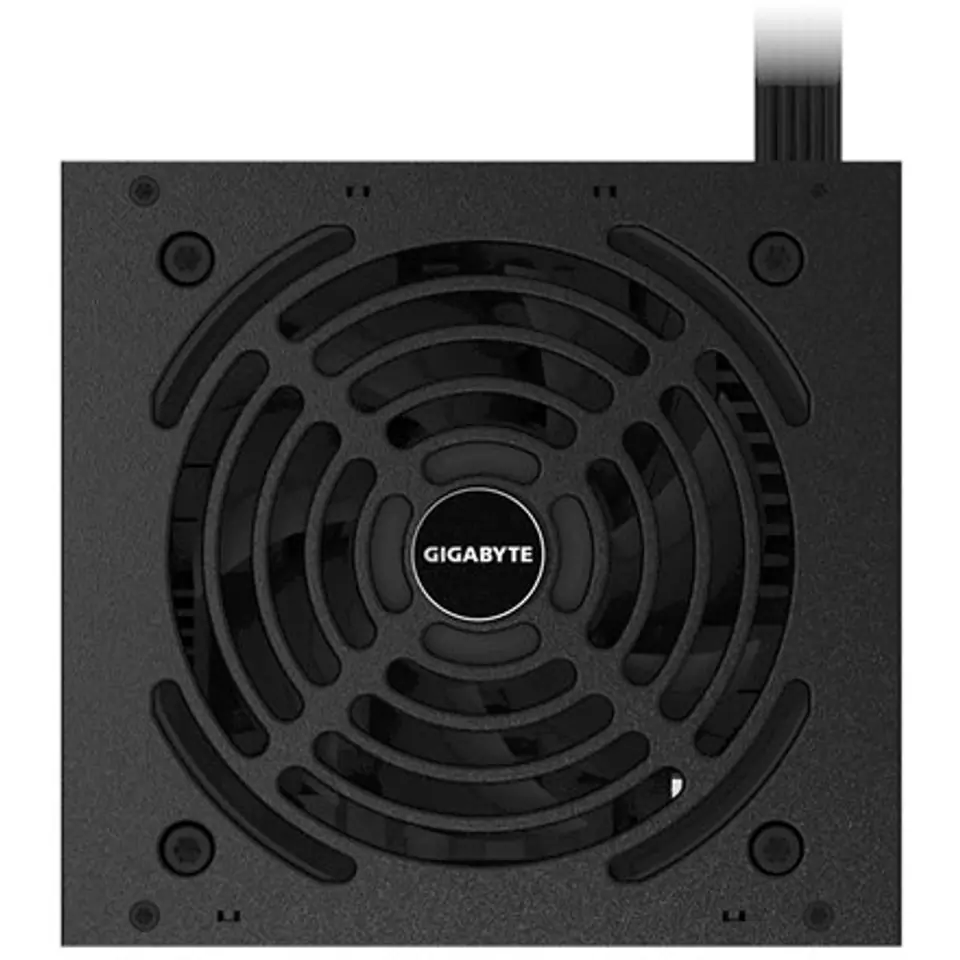

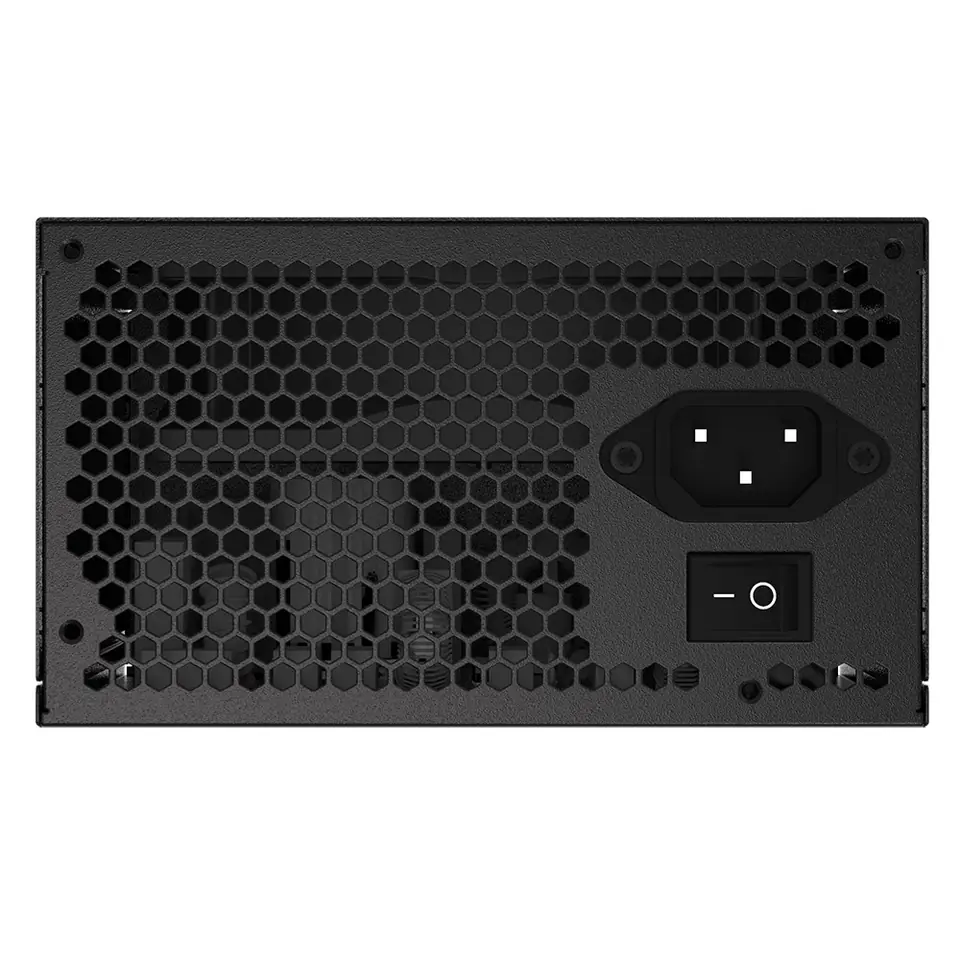

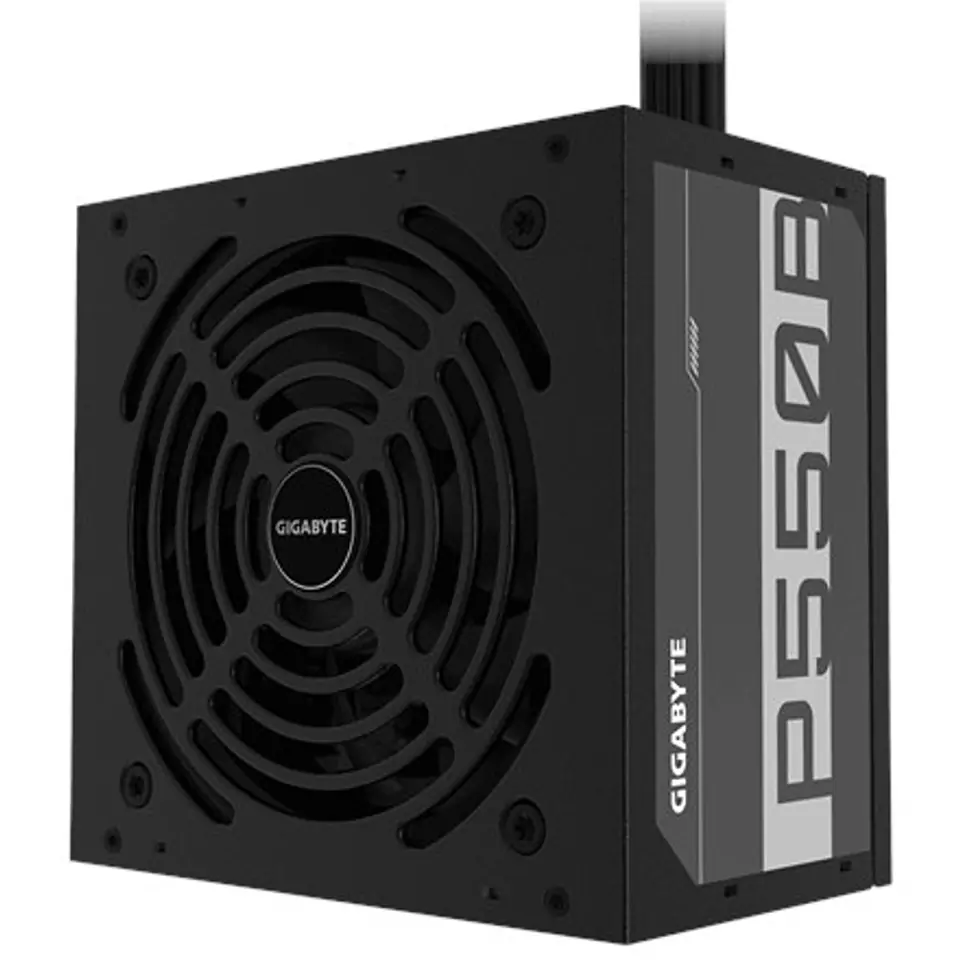

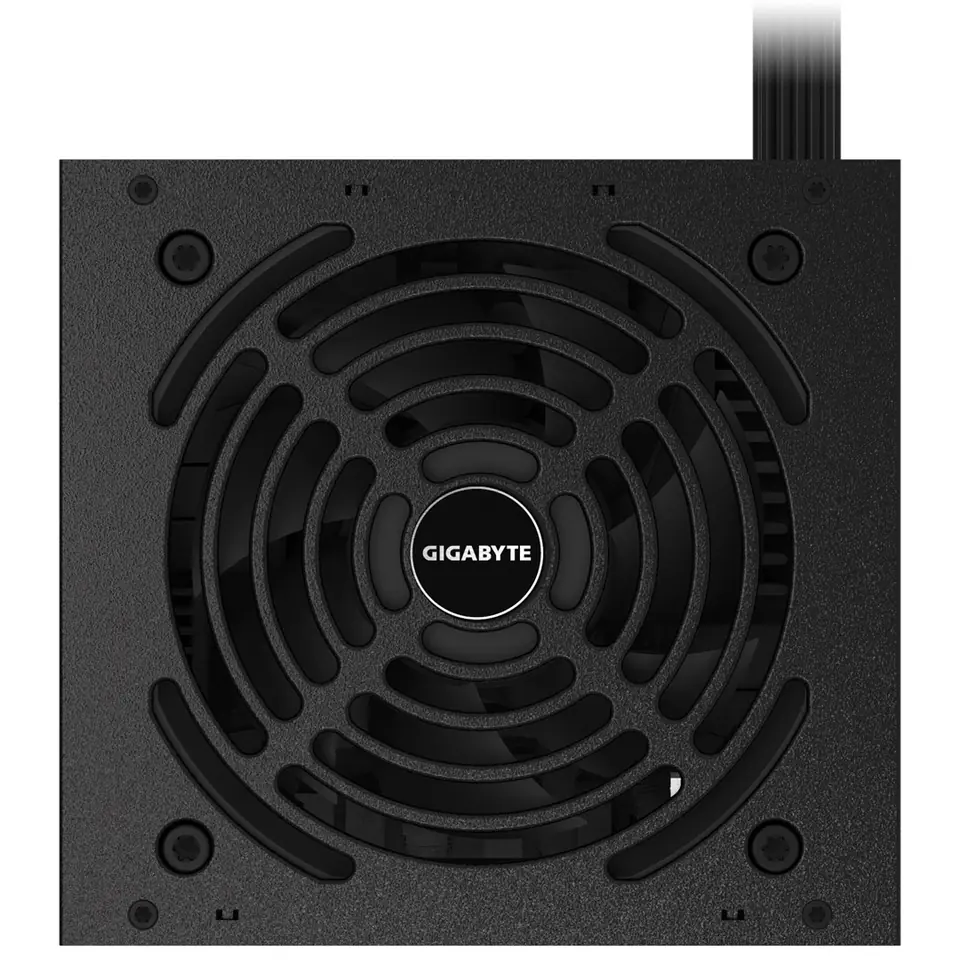

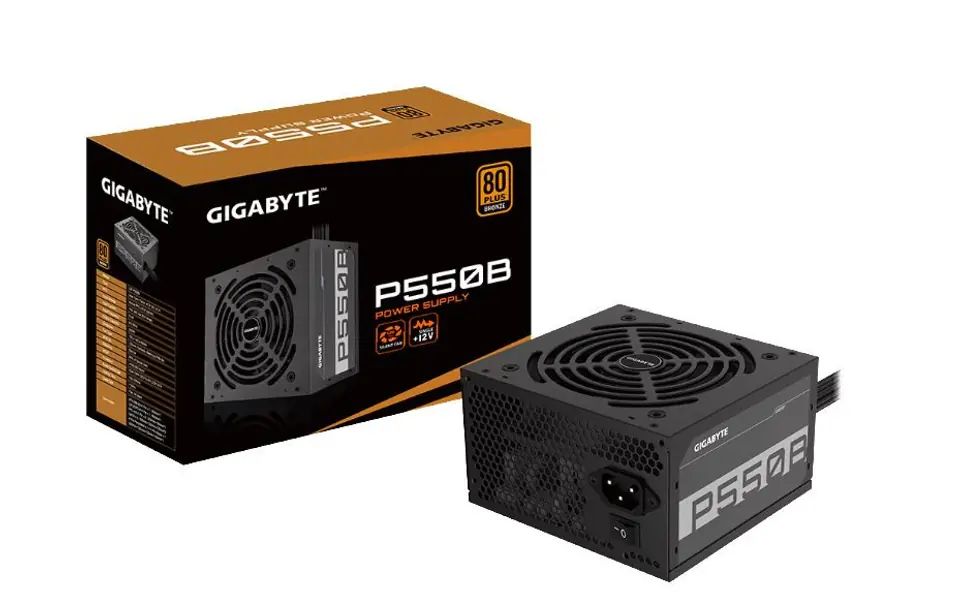

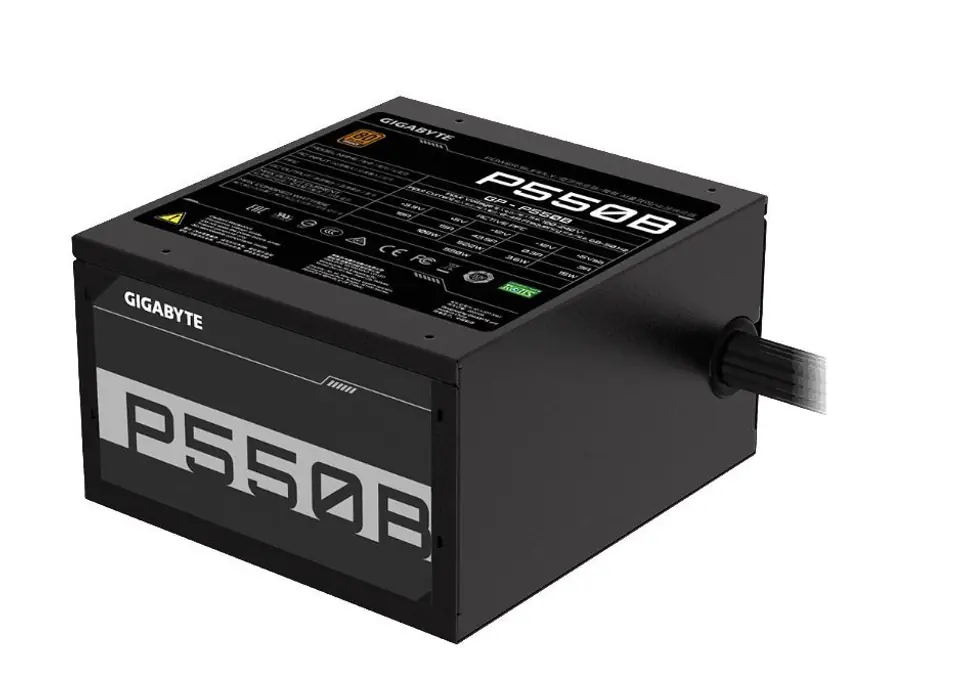

Gigabyte P550B power supply unit 550 W 20+4 pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Gigabyte
- Product code:
- GP-P550B / 4719331551490
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.31 |
| Bearing technology: | HDB |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 522 W |
| Combined power (+3.3v): | 108 W |
| Combined power (+5v): | 108 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Cpu power cable length: | 60 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Efficiency: | 85% |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Input current: | 8 - 4 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 43.5 A |
| Max output current (+3.3v): | 18 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Pci express connector: | Yes |
| Pci express power cable length: | 55 cm |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power cable length: | 500 mm |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Under voltage, Over current, Short circuit, Over voltage, Over power |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500 mm |
| Total power: | 550 W |
| Width: | 150 mm |
