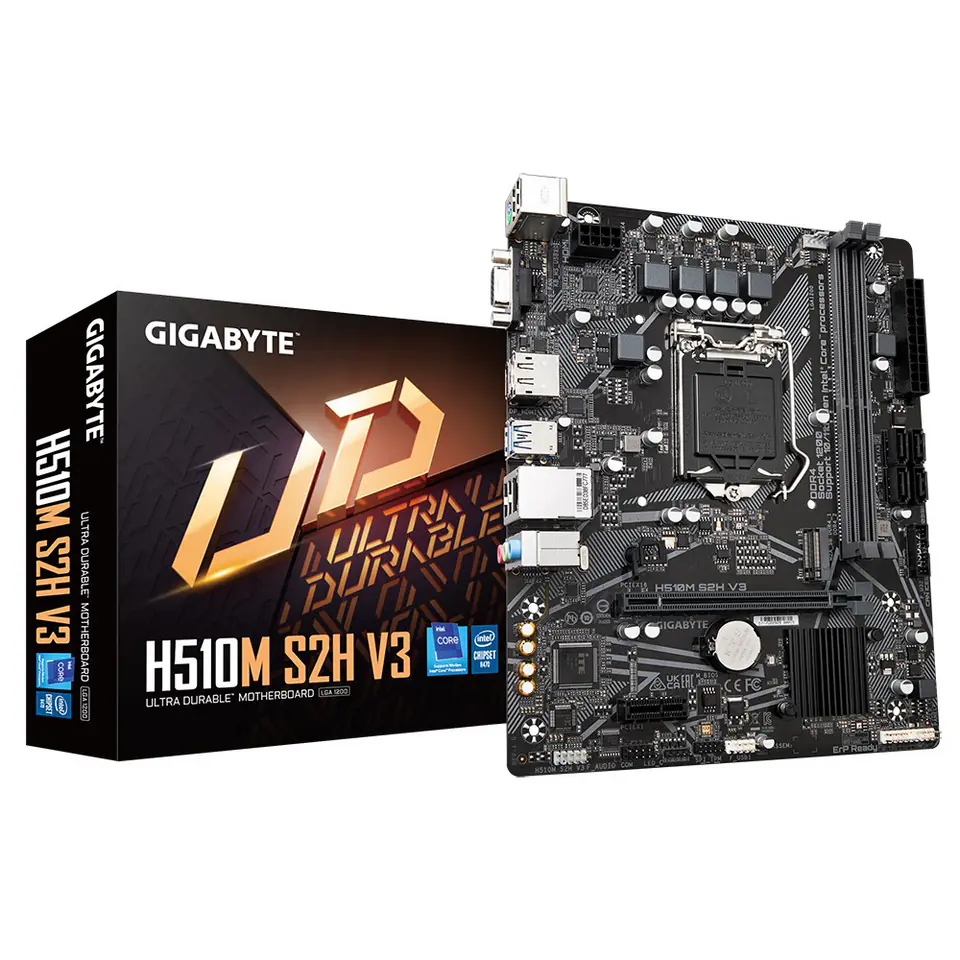

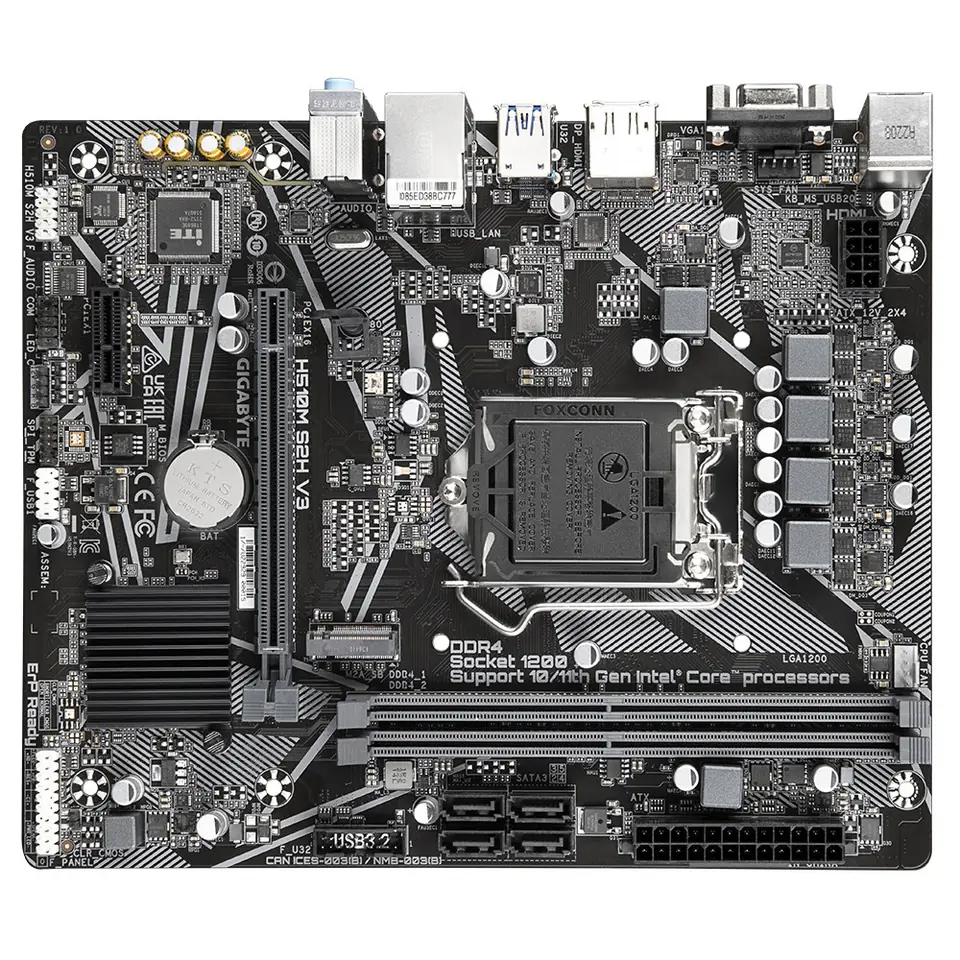

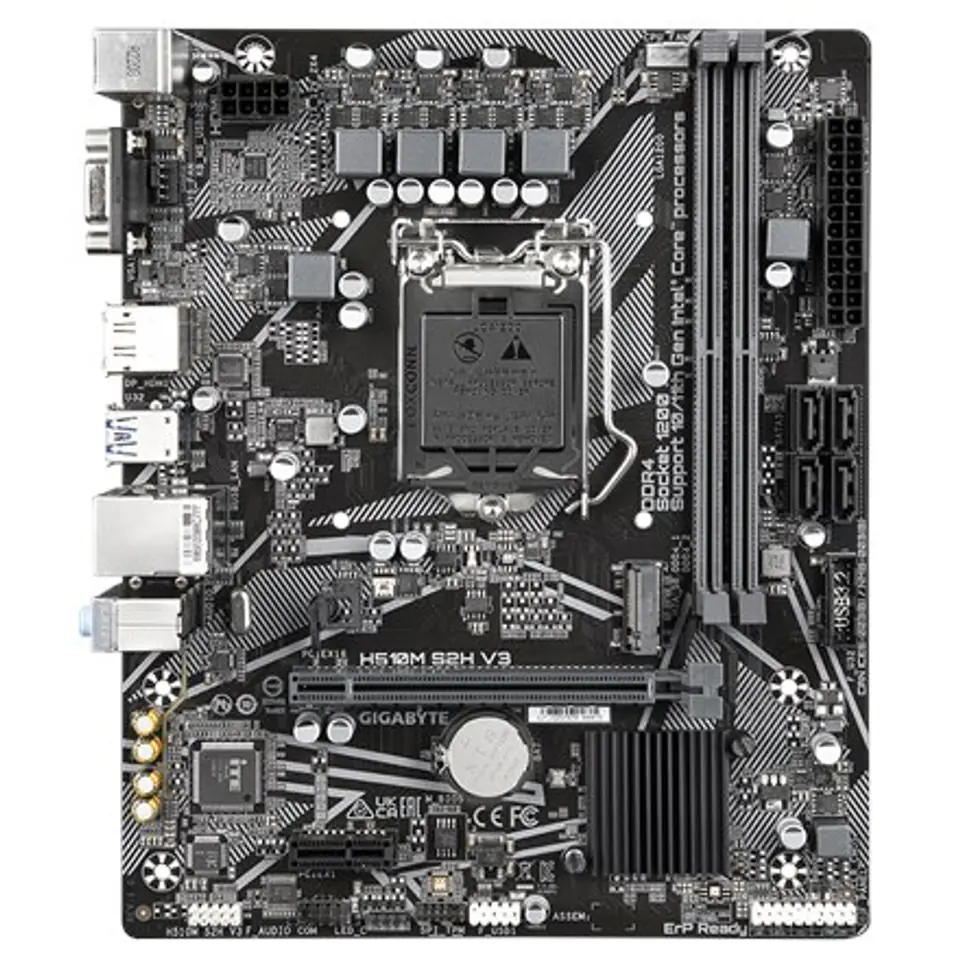

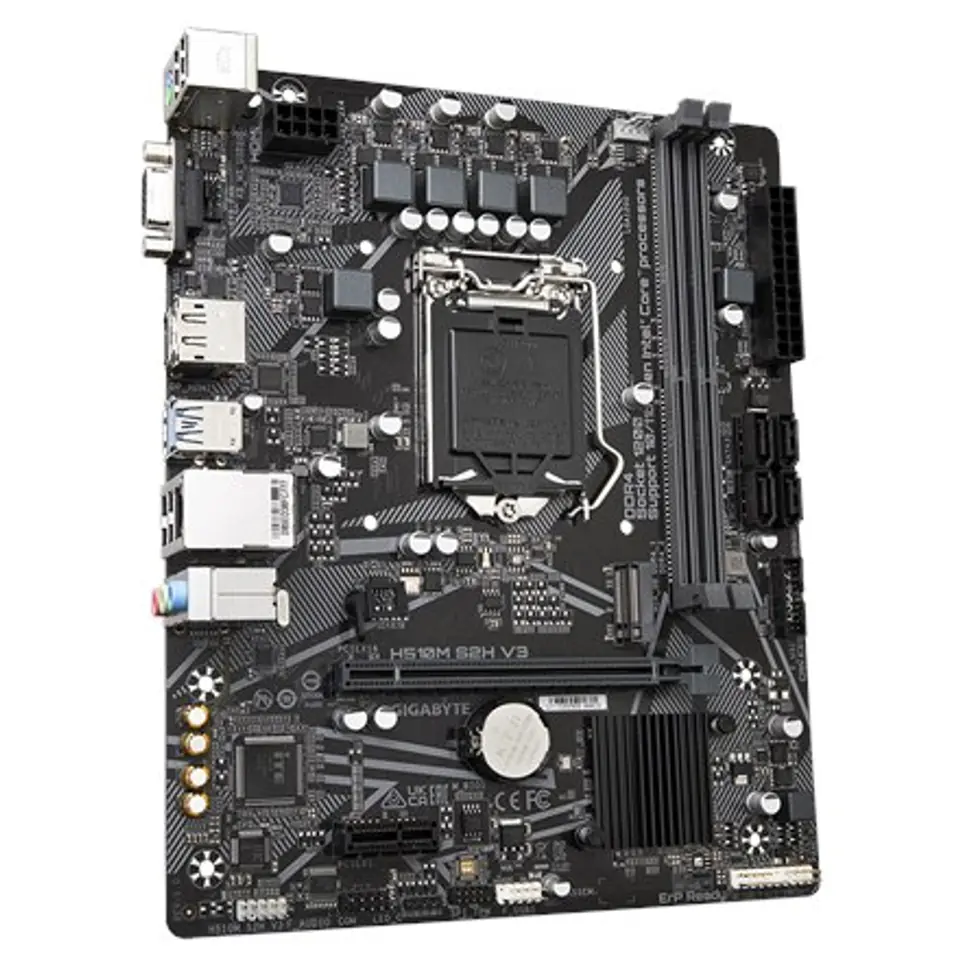

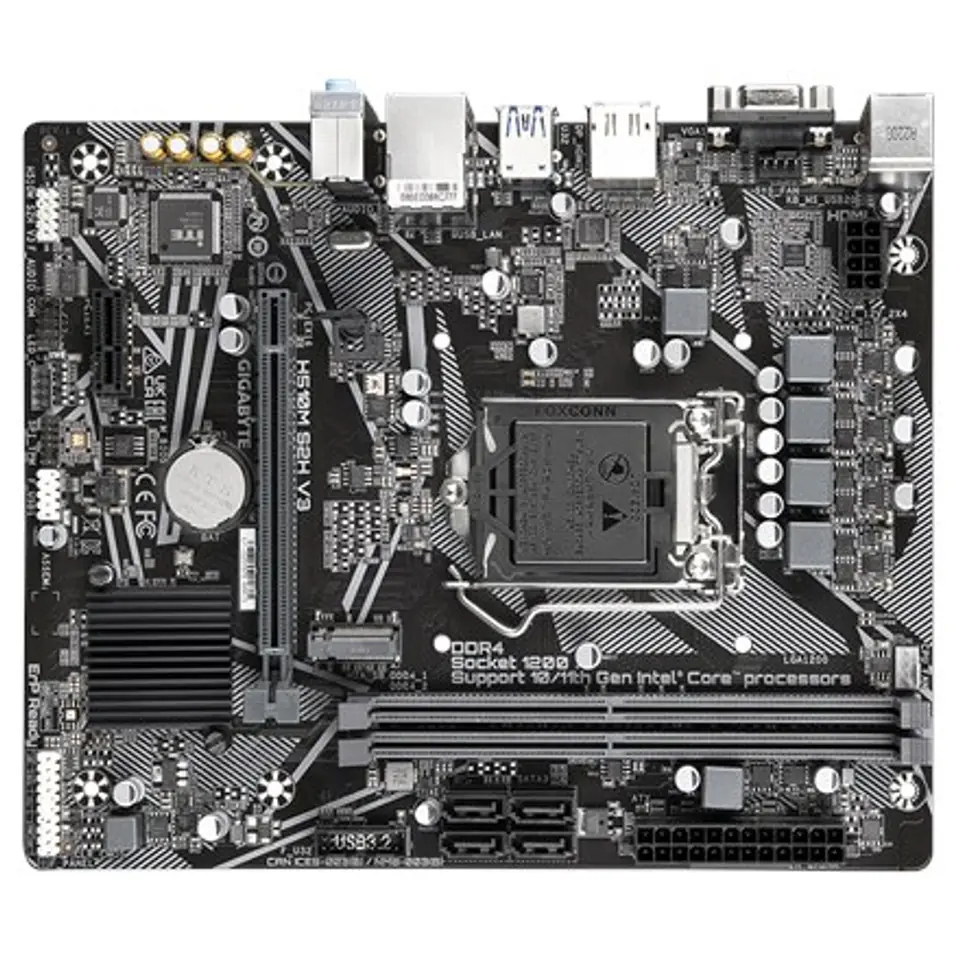

Gigabyte H510M S2H V3 (rev. 1.0) Intel H470 Express LGA 1200 micro ATX
€75.62
Shipping from warehouse: A3
Estimated shipping: Wed, May 1 - Mon, May 6
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- H510M S2H V3 / 4719331855420
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Acpi version: | 5.0 |
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Bios memory size: | 128 Mbit |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Component for: | PC |
| Cpu fan connector: | Yes |
| Depth: | 185 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ecc: | Y |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 52 mm |
| Maximum internal memory: | 64 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel H470 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Non-ecc: | Y |
| Number of chassis fan connectors: | 2 |
| Number of displays supported: | 2 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Fan, Voltage, Temperature |
| Pci express x1 slots: | 2 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Ps/2 ports quantity: | 2 |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speeds: | 2933, 3000, 2400, 3200, 2666, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1200 (Socket H5) |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| System management bios (smbios) version: | 2.7 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 1 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb connector type: | USB Type-A |
| Vga (d-sub) ports quantity: | 1 |
| Weight: | 385 g |
| Wi-fi: | No |
| Width: | 226 mm |
| Windows operating systems supported: | Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
