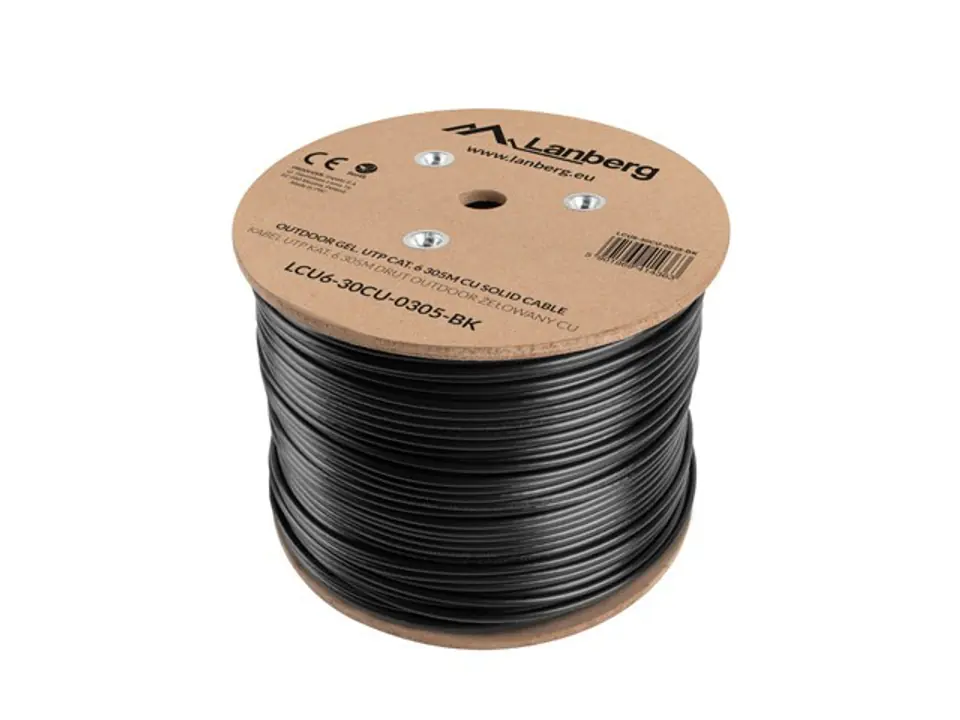

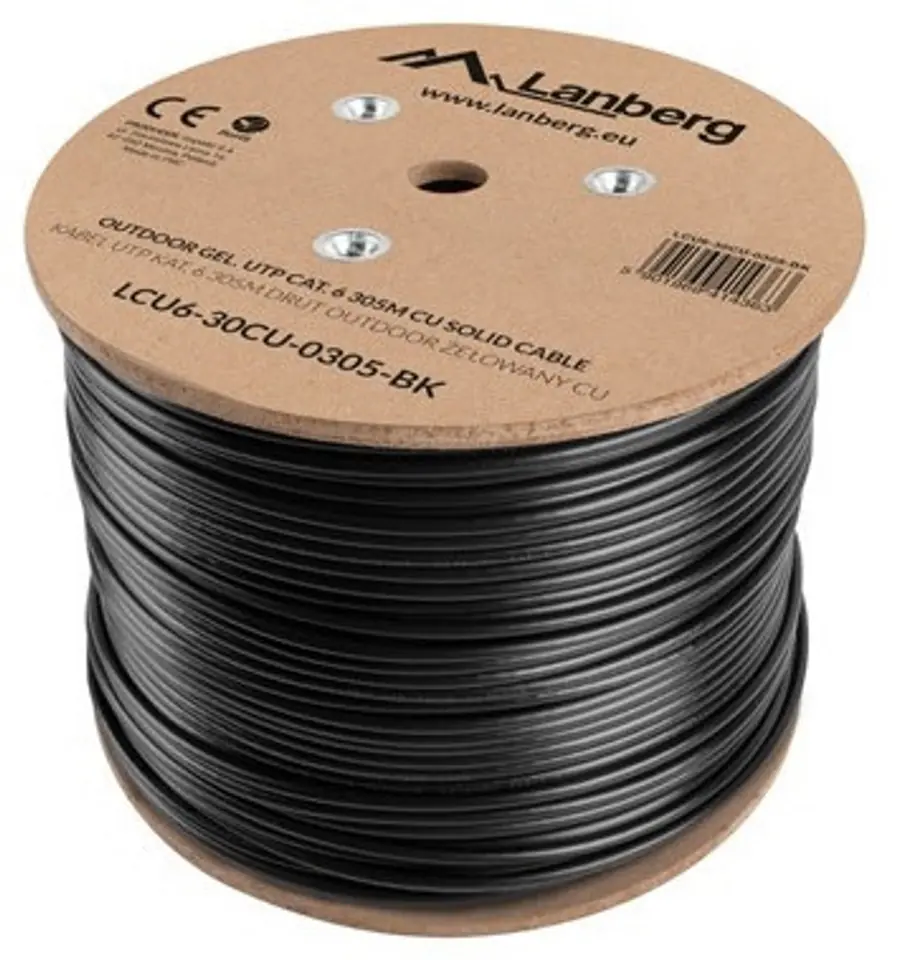

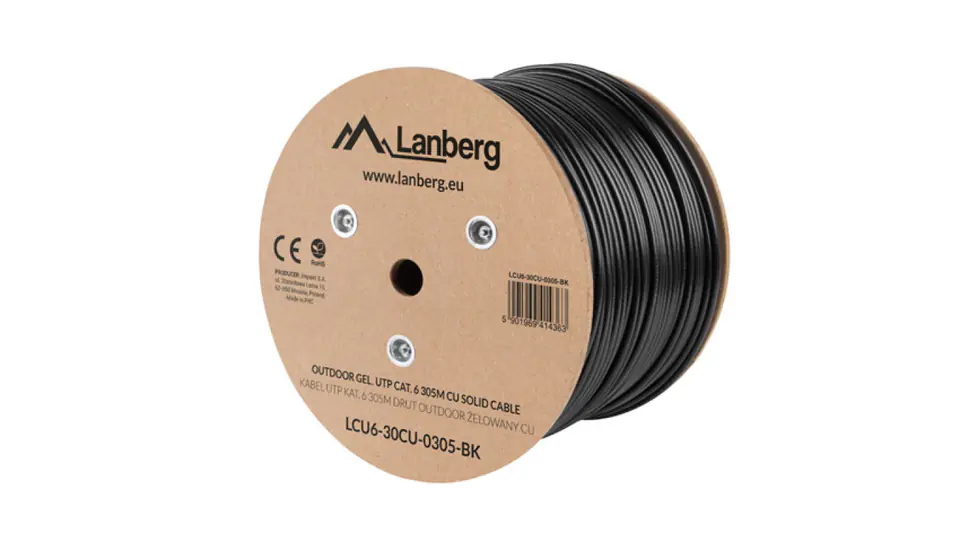

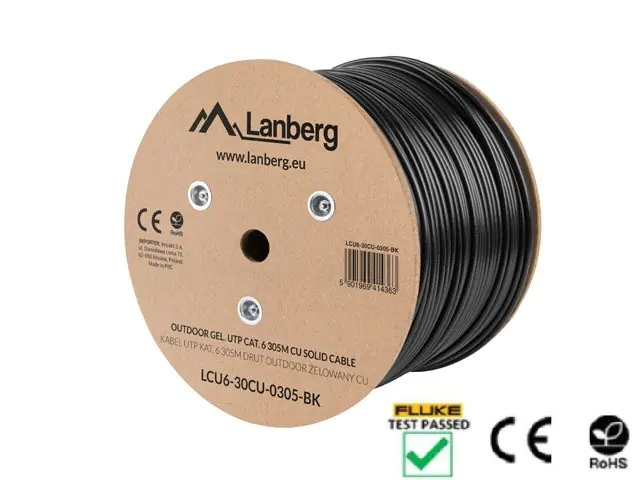

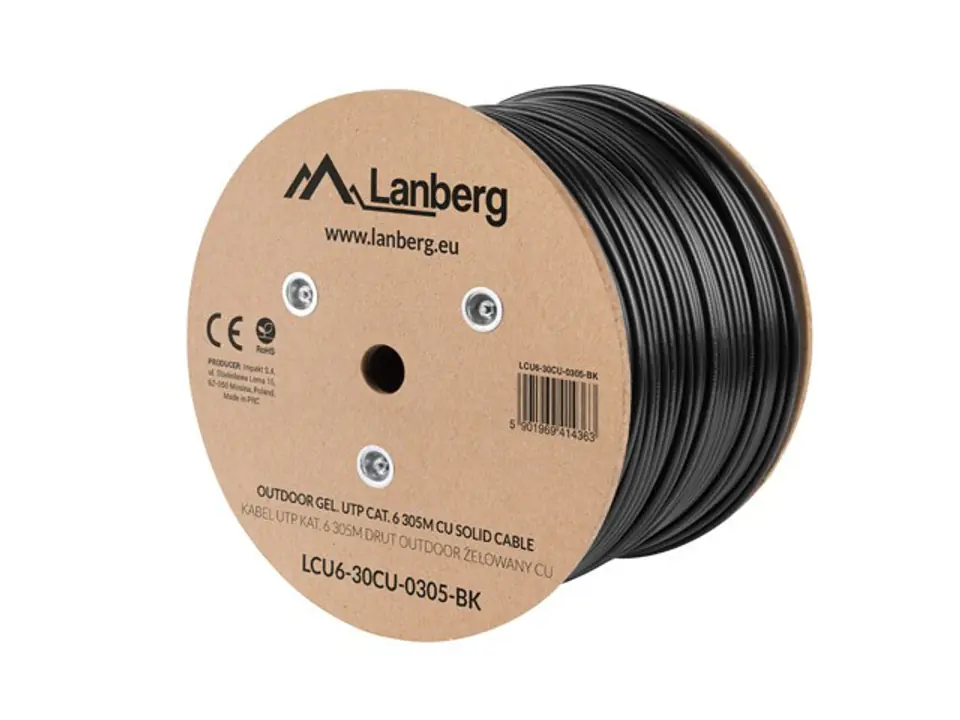

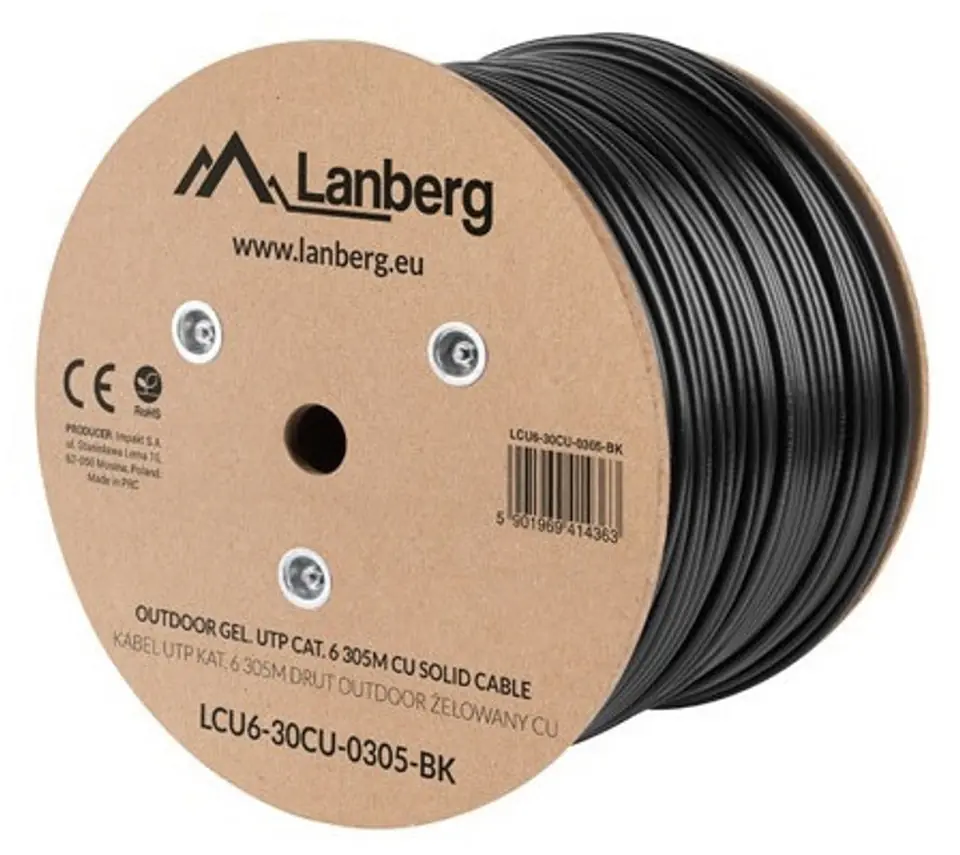

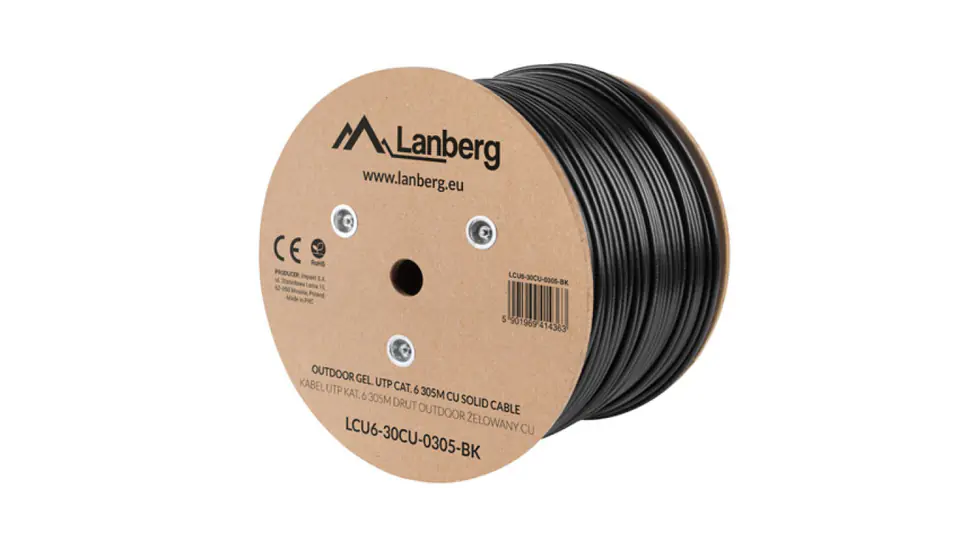

UTP cable Cat.6 CU 305m outdoor gelled wire

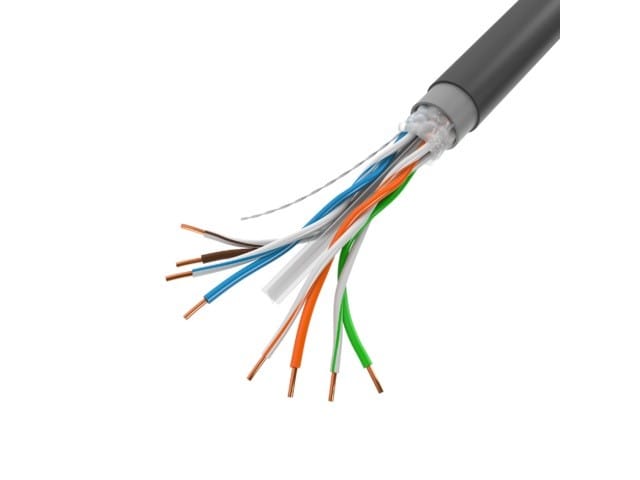

- Cable wires made of pure copper (CU 100% copper)
- AWG 23 (4*2*0.57mm)
- Wire construction: single wire
- Color: black RAL9004
- Overprint of the length meter every cable meter
- External PVC insulation: 0.58m
- PE insulation: 6.8mm
- HDPE insulation: 0.93mm
- Work up to 250Mhz
Electrical parameters (20 degrees):
- Resistance of wire (max.): 20 - 36Om/305m
- Insulation resistance (min.): 5000mOm km
- Steam-a-ground capacity:
Gelled ICT cable U/UTP cat.6 4x2xAWG23 outdoor /305m/
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- LCU6-30CU-0305-BK / 5901969414370
Share this product:
Specification
| Approximate cable weight [kg/km]: | 37 |
|---|---|
| Approximate outer diameter [mm]: | 7.4000 |
| Awg size: | 23 |
| Awg wire size: | 23 |
| Beam: | Vapor |
| Cable length: | 305 m |
| Cable shielding: | U/UTP (UTP) |
| Cable standard: | Cat6 |
| Category: | 6 |
| Common screen: | Lack |
| Conductor insulation: | PE (Polyethylene) |
| Conductor material: | Copper |
| Connector 1: | No |
| Connector 1 gender: | No |
| Connector 2: | No |
| Connector 2 gender: | No |
| Core diameter [mm]: | 0.5700 |
| Flame-retardant: | According to EN 60332-1-2 |
| Frequency: | 250 MHz |
| Halogen-free en 50267-2-2: | No |
| Identification of veins: | Colour |
| Insulation color: | Black |
| Jacket material: | Polyvinyl chloride (PVC) |
| Low fumes (according to en 61034-2): | No |
| Number of veins: | 8 |
| Outer shell material: | PVC |
| Permissible temperature of the permanently laid cable [°c] from: | -20 |
| Permissible temperature of the permanently laid cable [°c] to: | 70 |
| Product colour: | Black |
| Rated core section [mm2]: | 0.2500 |
| Screen on bundles: | Lack |
| Vein class: | Class 1 = single-wire |
