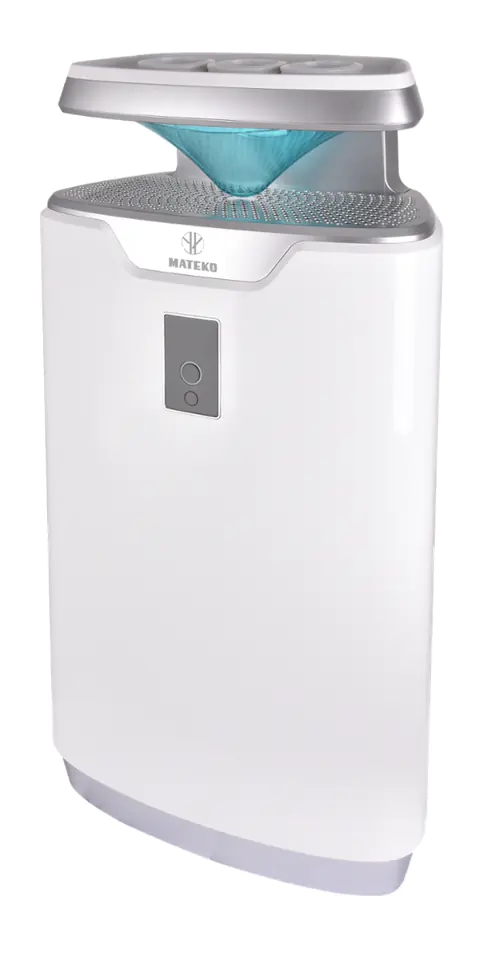

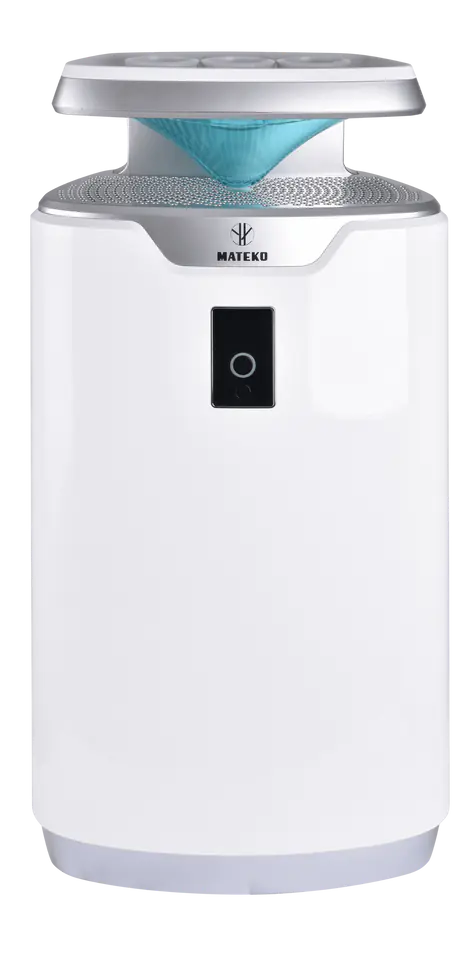

LAVENDER 3 AIR PURIFIER

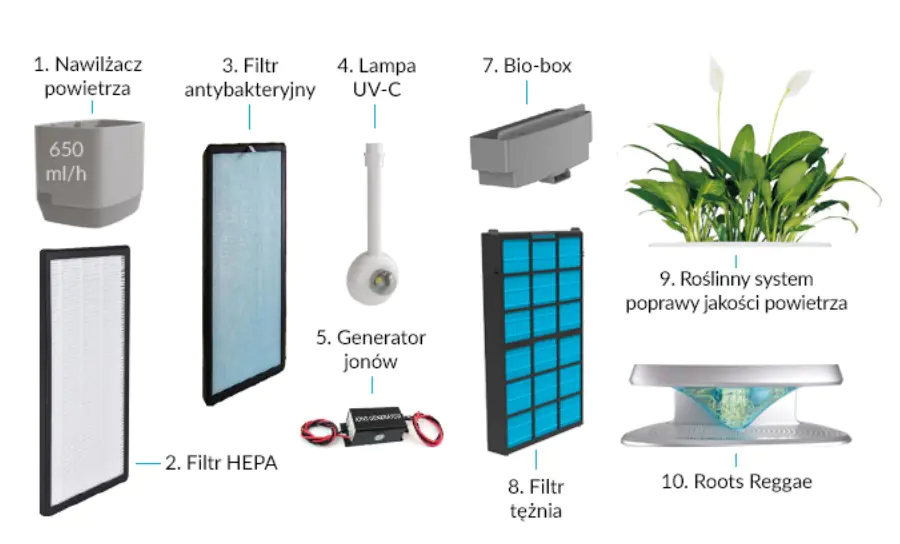

- Humidifier (capacity 650 ml/h)
- HEPA H13 filter (eliminates up to 99.99% of PM2.5)
- Anti-bacterial filter (efficiency 99.99%)
- UV-C lamp (destroying bacteria and viruses)
- Ion generator (eliminates pathogenic microorganisms and allergens)
- Forest cycle (biochemical reaction, Mateko patent)
- Bio-box (module that creates a rich microflora)
- Graduation tower filter (carrier for the produced microflora)
- Plant-based air quality improvement system
- Roots reggae (plant root zone hydrophyte purification, absorption of heavy metals, formaldehydes)
- Sensor PM2.5
- Air humidity level sensor
- Temperature sensor
- Wi-Fi function, managed by app
- Hydroponic pot
Viruses, bacteria and smog are currently the biggest source of threats to our health. In the new, pandemic reality, we are fighting an opponent invisible to the unaided eye. For the sake of you, we present the first on the market, such a versatile device. We offer a weapon that will allow you to protect your family.
Forest cycle
It is a biochemical reaction reserved by Mateko's patent, as a result of which we get forest healthy air: moist and energetic, full of microorganisms and intrusive aromas.
The efficiency of this system is several times higher than that of popular mechanical air purifiers.
The green GAP air purifier combines the advantages of natural, age-old technology derived from nature, with the best features of classic, mechanical air purifiers.
In the new, pandemic reality, we are fighting an opponent invisible to the unaided eye. For the sake of you, we have created the first on the market, such a versatile device. We offer a weapon that will allow you to protect your family.
Green Guard
It is able to purify and maintain the highest standard of humidified air. Equipped with many functions and high-end components:
- Bio-box (module that creates a rich microflora)
- Cooling-pad (modern graduation towers, carrier for the produced microflora)
- HEPA H13 filter (stopping PM2.5 impurities)
- Antibacterial filter
- UV-C lamp (destroying bacteria and viruses)
- Ion generator (eliminating microscopic solids)
- Sensor PM2.5
- Humidifier
- Wi-fi function, management by app
Finally, let's add that the efficiency of this system is several times higher than that of popular, mechanical air purifiers.
The green GAP air purifier combines the advantages of natural, age-old technology derived from nature, with the best features of classic, mechanical air purifiers.

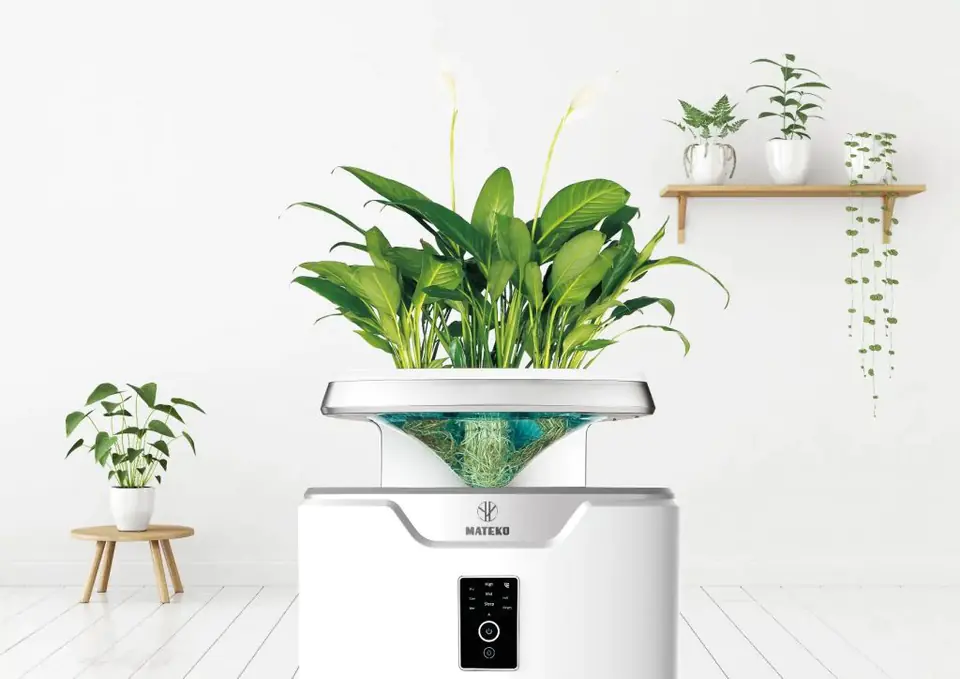

Lavender 3 is a new model in a category that has not been present on the European market so far. This is the first solution of this type. Mateko, in cooperation with the manufacturer, holds a patent for Europe, for a purification technology called the Forest Cycle.
Due to the function of humidifying with treated air in the Forest Cycle, the device is very comfortable for people suffering from inhalation allergies and respiratory diseases.
The device cleans, moisturizes and enriches the air with microflora necessary for proper life.

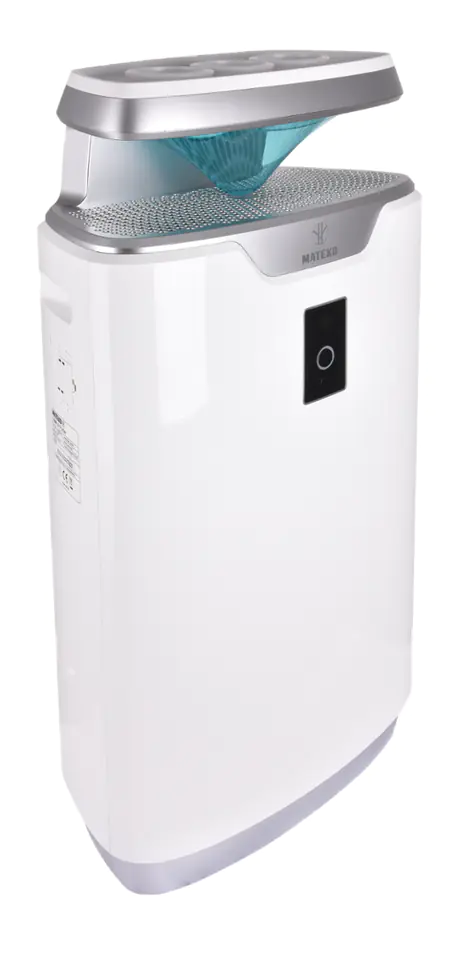

Despite its size and weight (a full water tank weighs 12 kg + the weight of the device 9.5 kg), thanks to the mounted rollers, the unit is easy to maneuver on the ground. Lavendera 3 is characterized by quiet operation and elegant simple housing.

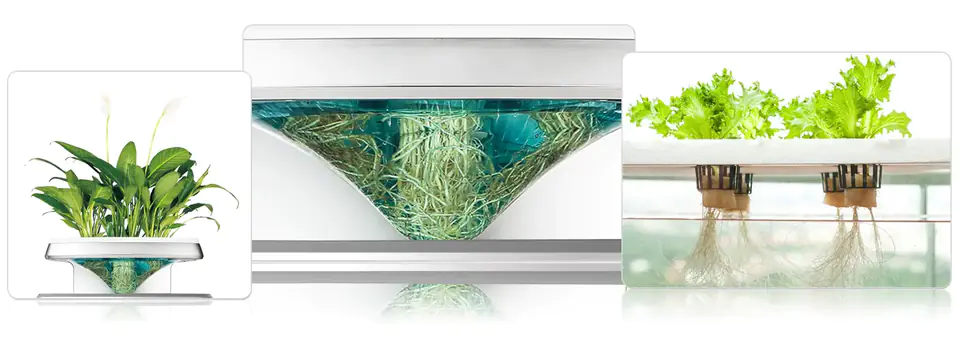

Hydroponic pot

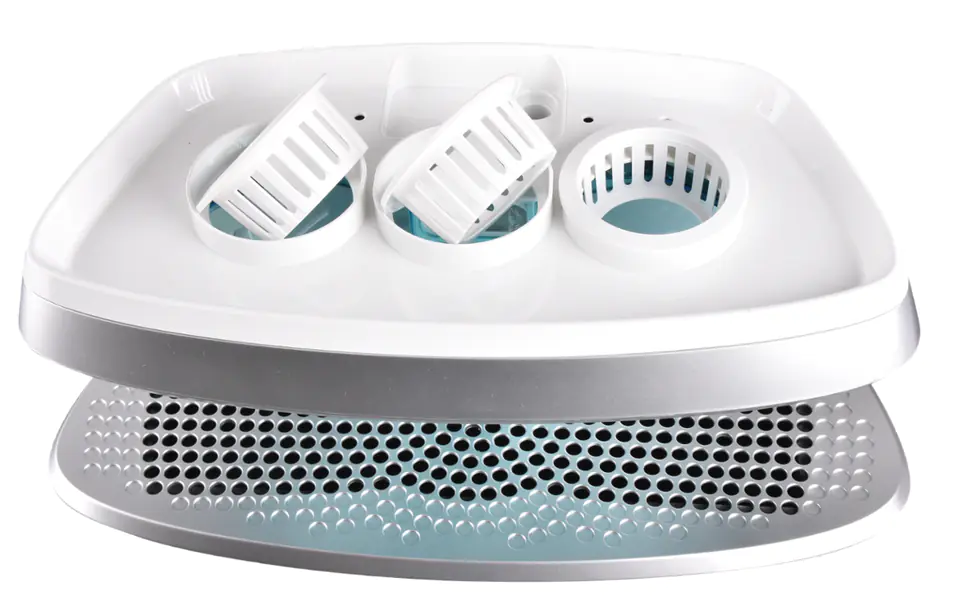

It is equipped with three removable plastic, openwork pots. In the pot we plant – hydroponically – plants. The process of purification from toxic substances, heavy metals, including those accumulated in our homes, takes place in the roots of plants. The plant metabolizes harmful substances, processing them into green mass. At regular intervals, water is pumped out of the pot and put into circulation.
In addition, the green part of the plant forms oxygen by reducing carbon dioxide.

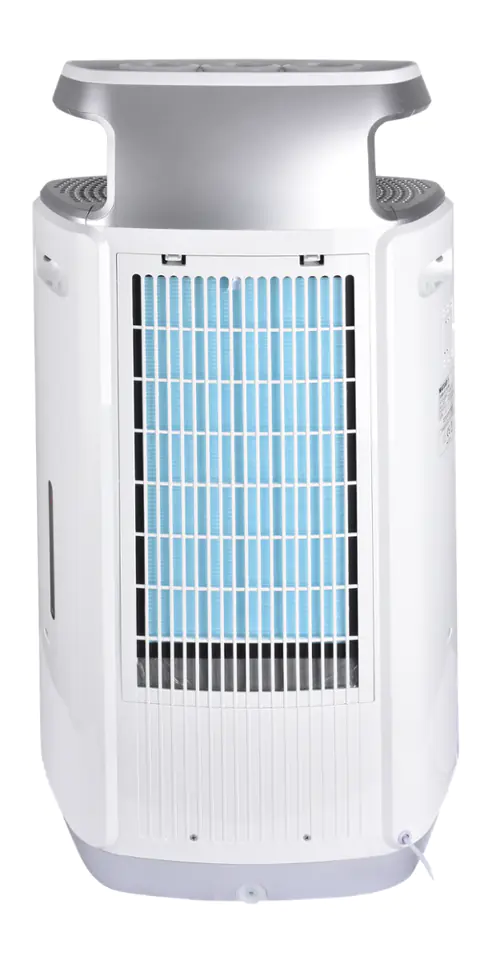

Graduation towers – Cooling-pad filter
It is a porous structure in action resembling graduation towers, the water flowing through the filter moisturizes it, leaving on the walls grown in the forest cycle microflora and plant aromas. Water slowly seeps through the Cooling-pad and flows into the Bio-box.
Bio-box
It is Mateko's patented special container in which bacteria and microorganisms are supplied by water and grown, essential for a healthy natural environment. To have rich bio-air, we need to allow this flora to develop.
Microorganisms grown in the Bio-box are distributed in water and collected in a tank. Hence, a biologically rich solution is pumped into the pot. Flowing through the roots of plants, it is cleansed of toxins (formaldehyde, toluene, xylene), viruses, bacteria, and soaked in plant aroma. The water purified and prepared in this way is pumped for further processing.
UV light (like the sun) cleanses the flowing water of pathogenic bacteria.
Enriched water seeping through the Graduation Towers, leaves a microbiological layer on their structure. The air sucked in from the room is pumped through the wall of the Graduation Tower, carrying with it millions of crystal clear, healthy water molecules that reach us, creating a unique, rich and crisp climate of the forest.
The cycle closes, and the remaining water flows back into the Bio-box. It all starts again.
This process is the heart of GAP. It is a self-reinforcing, repetitive cycle. Once initiated, it lasts all the time until the device runs out of water. The task of the user is only to water the plant.
Water tank
It stores water, which is regularly pumped into a hydroponic pot. Inside the tank there is a bactericidal UV-C lamp: it irradiates the flowing water, eliminating putrefactive bacteria.
Bio-box (construction)

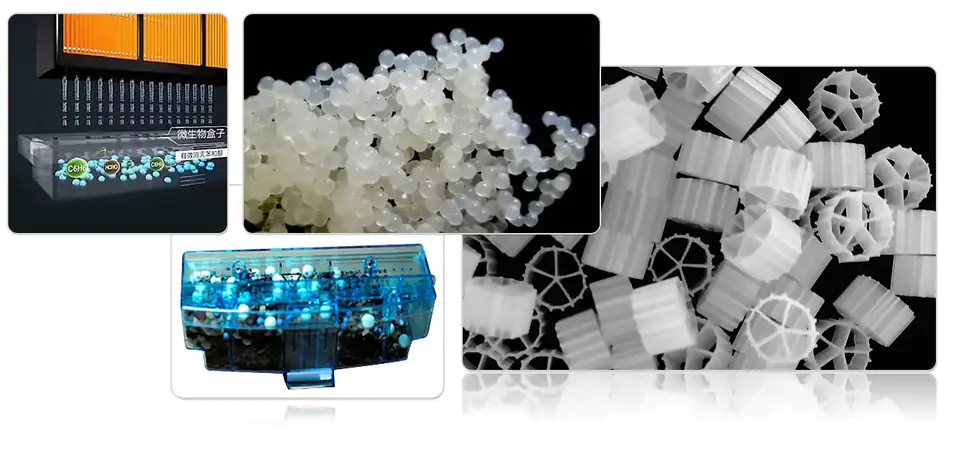

In the biobox there is a porous gel (copolymer) granules with microorganisms embedded in it (Settler), which, after starting the device, slowly develop outside the settling tank and settle on colony carriers (openwork structures), used for further growth of the number of bacteria. The rich, bacterial microflora produced, in the further phase of the cycle, is spread outside along with moist air ejected from the machine. The development of bacterial flora takes about 30-60 days.
Plant breeding
In a hydroponic pot we can plant most of the commonly found plants. An exception may be orchids, which require a loose, airy substrate consisting of bark, expanded clay, etc.
Contraindications are also plants intensively growing upwards or developing the trunk. Such a plant may lose stability. We can plant plants previously rooted, grown by the hydroponic method or transplanted from a mineral substrate (in this case, the roots should be cleaned of earth residues). By fixing the mesh in the pot of the device, we can start breeding directly from the grains. Such a grid is not supplied at the time of purchase.
The device has a graphical instruction for assembling plants and starting, glued on the front of the case.
Moisturizing – Graduation tower
The function of the humidifier is performed by graduation towers. Their perforated structure has a large specific surface area, which provides a good environment for the deposition and growth of microorganisms. During the repetitive forest cycle, flowing the filter through enriched water, fresher and fresher bacterial cultures are deposited on the graduation tower, improved and refined in the breeding process. The air is pumped through the pores of the filter. They are soaked in water with microflora. Then it is blown outside the device together with atomized water molecules. As a result of this process, we get forest healthy air; moist and energetic, full of microorganisms and natural aromas.
• Perforated structure with a large surface area
• Environment for the deposition and growth of microorganisms
• Effect: moist, forest, aromatic, healthy air

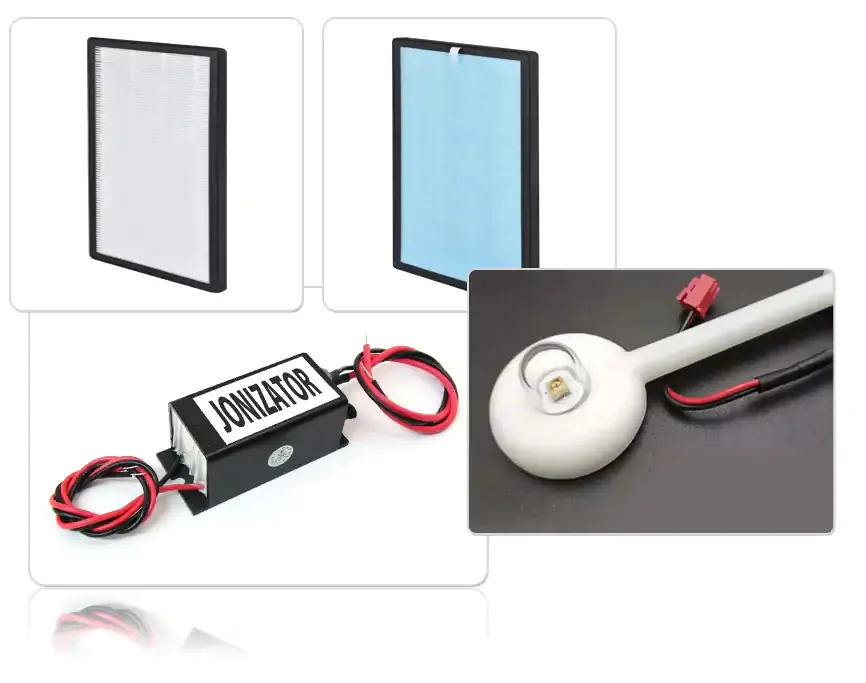

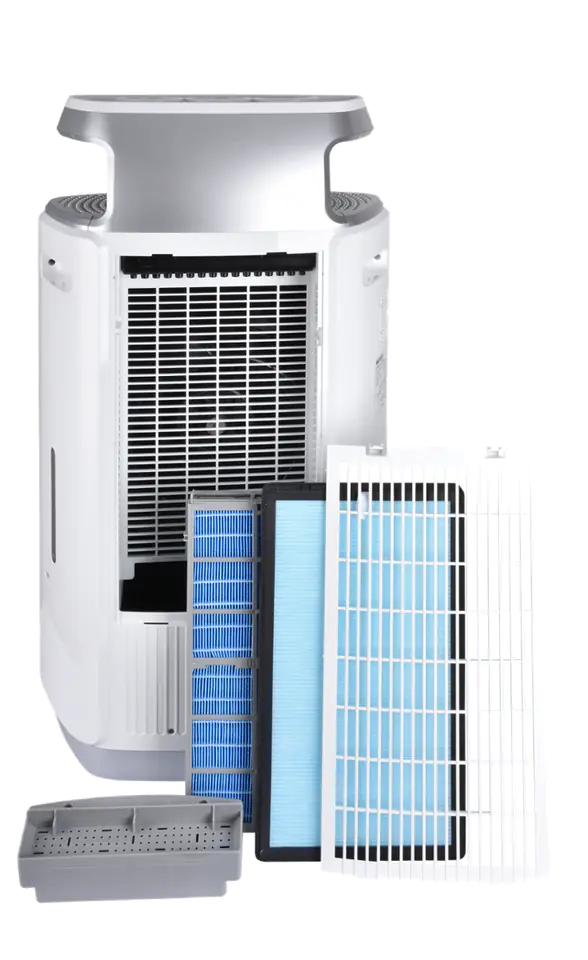

Mechanical air purification

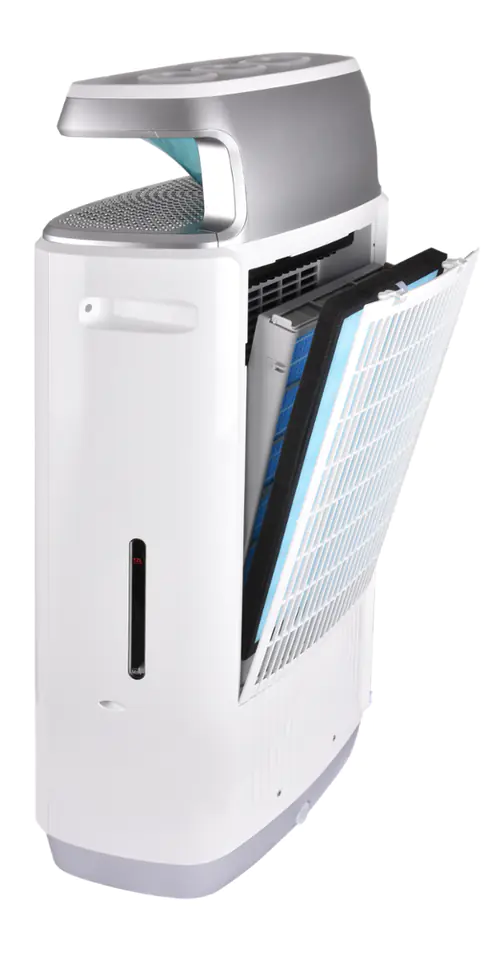

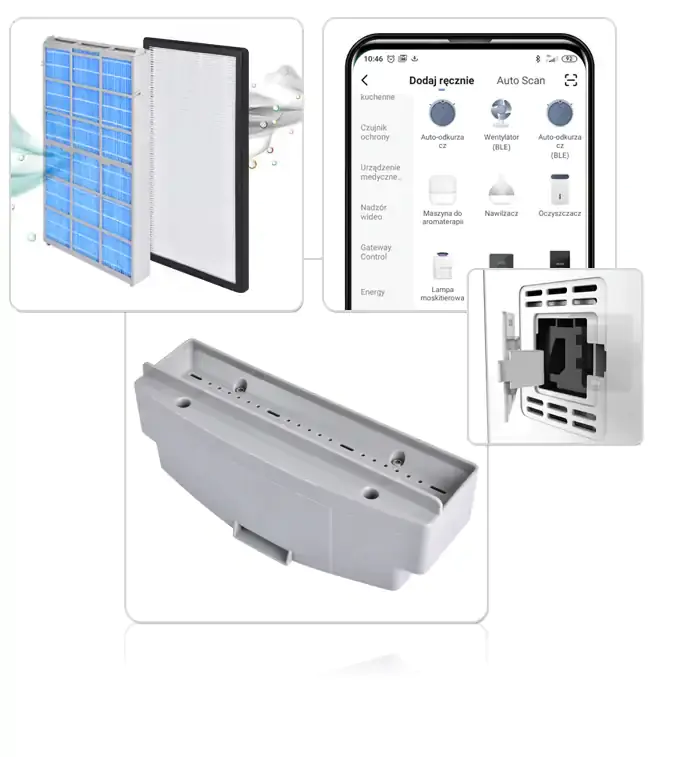

HEPA H13 filter combined with antibacterial filter:
The air filter, medical class HEPA H13, absorbs harmful particles not less than 0.3 microns. The filter captures, from the air, 99.99% of fine particulate matter such as plant pollen, pollutants and allergens, and reduces the presence of bacteria, viruses and smog in the air.
Ion Generator:
The air purifier generates a continuous stream of millions of negative ions circulating in the air. Ions charge very fine particles (e.g. dust, bacteria, as well as mold and fungal spores), causing them to clump, which makes them larger and easier to capture by the air filter or are sucked in during vacuuming.
Bactericidal UV-C Lamp:
The lamp kills free-floating microorganisms with a light source. In a UV sterilizer, a bactericidal LED lamp produces light with a wavelength of 270~285 nanometers. Ultraviolet light penetrates inside bacteria, algae, mutating their DNA, thereby preventing the growth and multiplication of organisms. UV radiation can kill viruses, bacteria, algae and protozoa.
Larger organisms, such as protozoa, require a higher dose of UV radiation than smaller ones, such as bacteria.

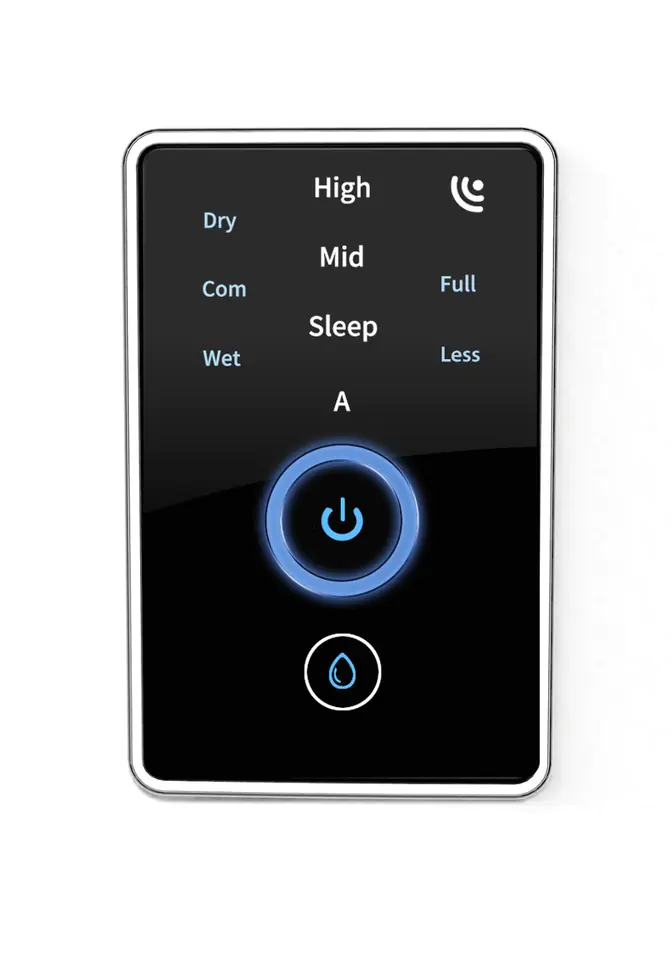

Control panel
The modern control panel, located on the front of the housing, has:
• color indicator of the state of air quality.
• possibility of on/off humidification.
• three fan speed modes plus auto mode.

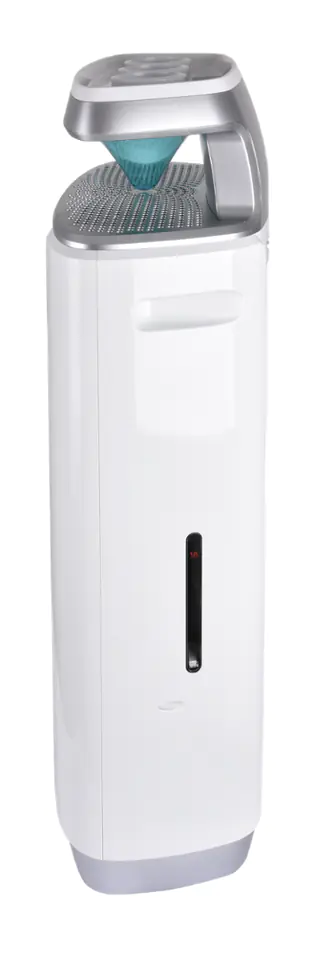

• displays information about the water level in the tank.
• informs about air humidity.
The device is devoid of a remote control. Access to accurate data is through the Tuya application.

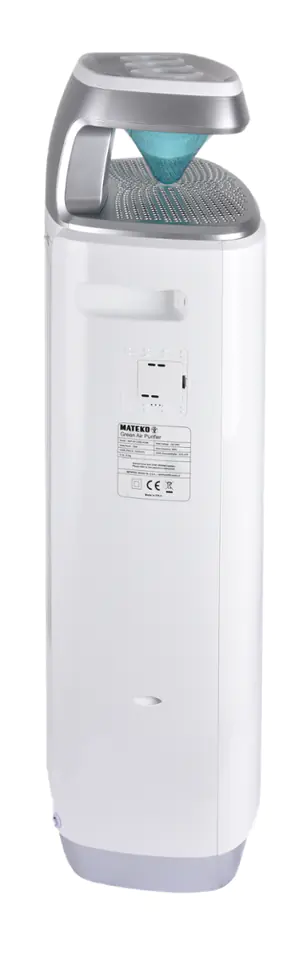

On the side wall there is a chamber with sensors: PM2.5, air humidity
and temperature.
Tuya App
The device has a Wi-fi function and is controlled by the Tuya application. It allows you to manage your device from your phone. This is a standard Tuya service. You can check the air humidity level, temperature and percentage air pollution. From the position of the phone, we can turn on and off the device, control the blowing force and start or stop humidification. We also have information reminding about the date of replacement of the graduation tower -filter (cooling-pad).
TECHNICAL SPECIFICATIONS :
- Model: MAP-KH-U3365-H33W
- Power supply: 220/50/1V~/Hz/Ph
- Rated power: 35W
- Noise level* Nis./W./H.: 16/31/42 (55) dB(A)
- Unit Dimensions WxHxD 440 x 860 x 250 mm
- Box Dimension WxHxD 485 x 925 x 300 mm
- Net/Gross Weight: 9.5/12 kg
- Water tank capacity: 12l
- Color: White
- Area of application (estimated): ~ 35m2
- Compatibility: iOS/Android Wi-Fi
- EAN: 5903246542691
