Gantry reed switch KN-D3 designed for surface mounting
GANTRY REED SWITCH KN-D3
PLN 46.83
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 22 - Tue, Dec 23
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- KN-D3 / 5902887026416
Share this product:
Specification
| Detection:: | Opening the gate |
|---|---|

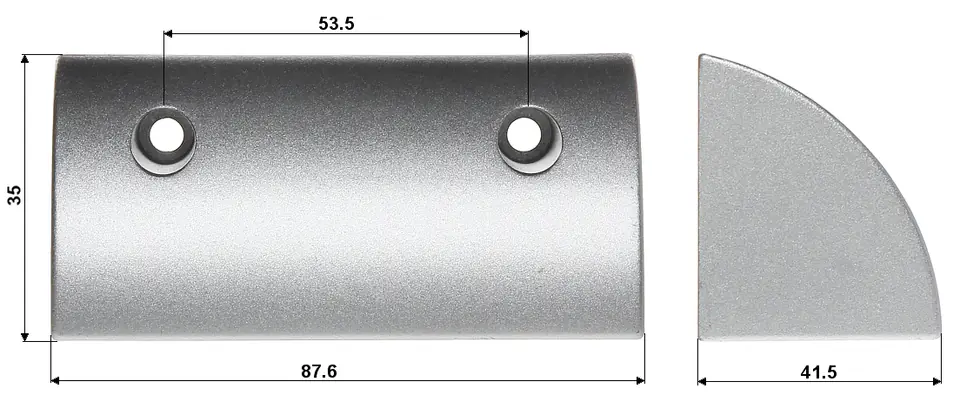

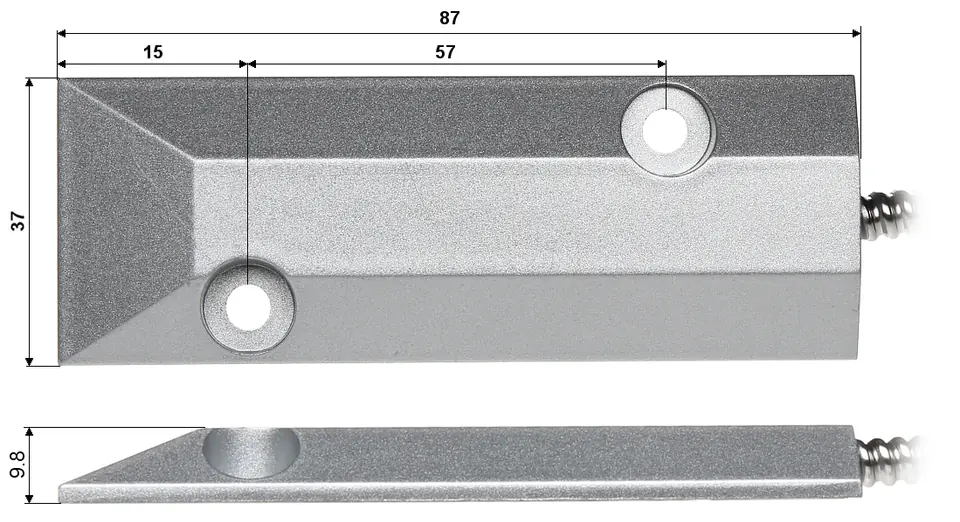

| Dimensions:: | 87 x 37 x 9.8 mm - Reed switch 87.6 x 35 x 41.5 mm - magnet |
| Maximum switchable current:: | 500 mA |
| Maximum switchable voltage of the reed switch:: | 100 volts |
| Opening distance of reed switch contacts:: | 40 mm |
| Reed contact closing distance:: | 38 mm |
| Scales:: | 0.3 kg |
| Selected features:: | Reinforced metal hermetic housing, Aluminum Wires in a metal sheath Wire Length : 35 cm |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
