Gantry reed switch KN-D2 designed for surface mounting
GANTRY REED SWITCH KN-D2
PLN 42.47
Shipping from warehouse: D4
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- KN-D2 / 5902887025877
Share this product:
Specification
| Detection:: | Opening the gate |
|---|---|

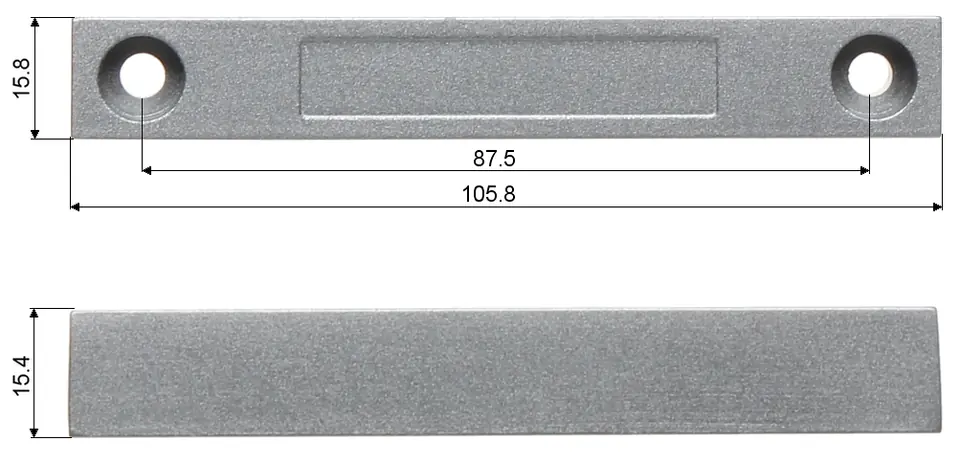

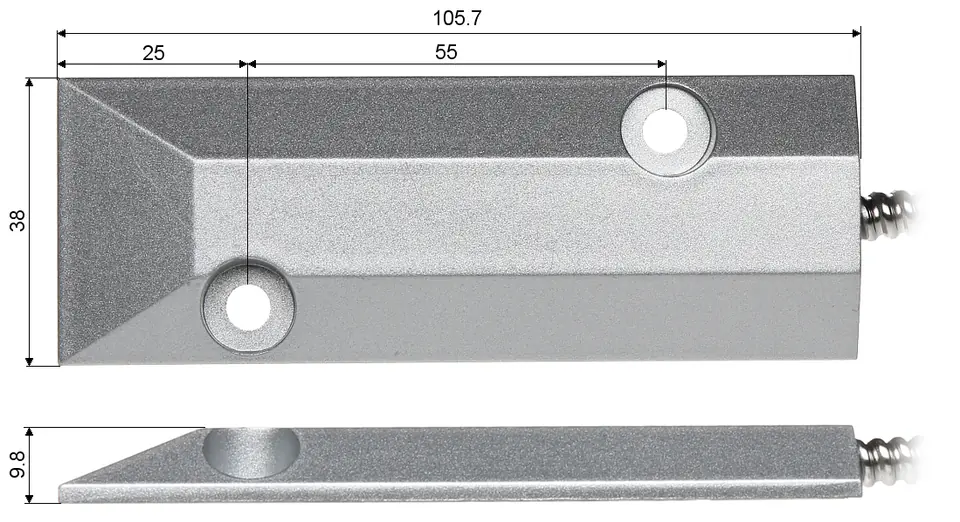

| Dimensions:: | 105.7 x 38 x 9.8 mm - Reed switch 105.8 x 15.8 x 15.4 mm - magnet |
| Maximum switchable current:: | 400 mA |
| Maximum switchable voltage of the reed switch:: | 20 volts |
| Opening distance of reed switch contacts:: | 40 mm |
| Reed contact closing distance:: | 38 mm |
| Scales:: | 0.18 kg |
| Selected features:: | Reinforced metal hermetic housing, Aluminum Wires in metal sheath Wire Length : 30 cm |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
