In larger installations, potential differences between individual network segments cause that when disconnecting e.g. splitters or amplifiers, the overvoltages that occur may cause damage to components or a slight shockSG-4170 is a surge protection for receivers, operating in the full range of terrestrial TVIt is used, for example, to protect: TV sets, HiFi set, amplifiers

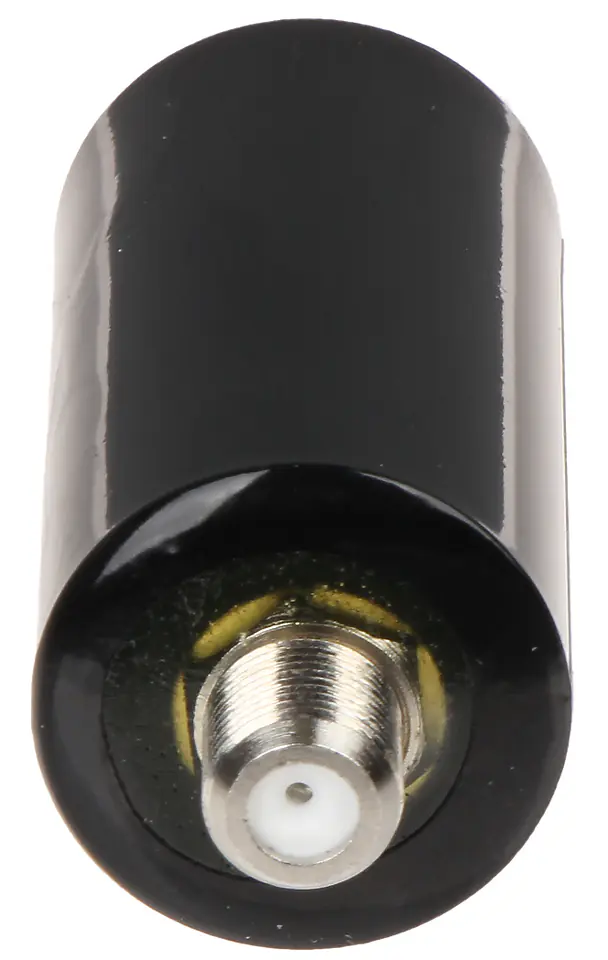

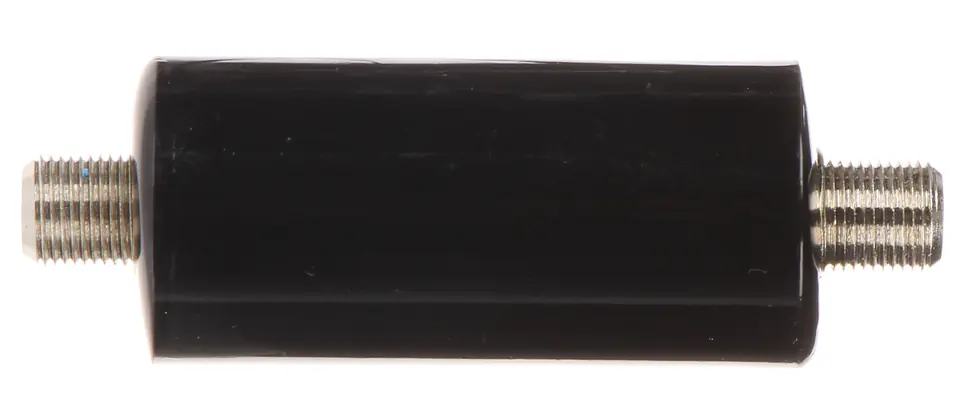

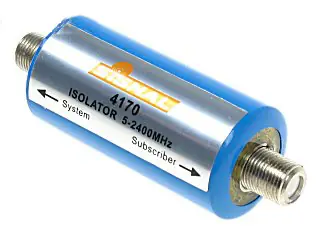

GALVANIC ISOLATOR SG-4170 5-2400 MHz
PLN 21.42
Shipping from warehouse: D4
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- INNY-D
- Product code:
- SG-4170 / 5907634565132
Share this product:
Specification
| Attenuation: | 5 ... 550 MHz (< 1dB)550 ... 1000 MHz (<1.5 dB) |
|---|---|
| Band: | 5 ... 2400 MHz |
| Breakdown voltage: | 3000 V for 1 minute with leakage current < 0.7 mA |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
