Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.

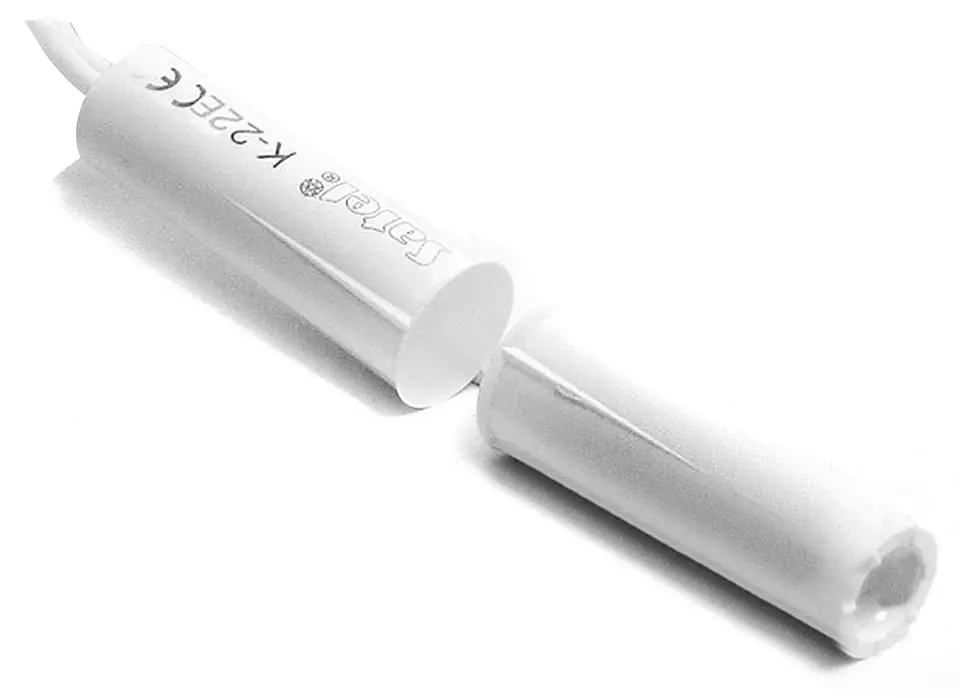

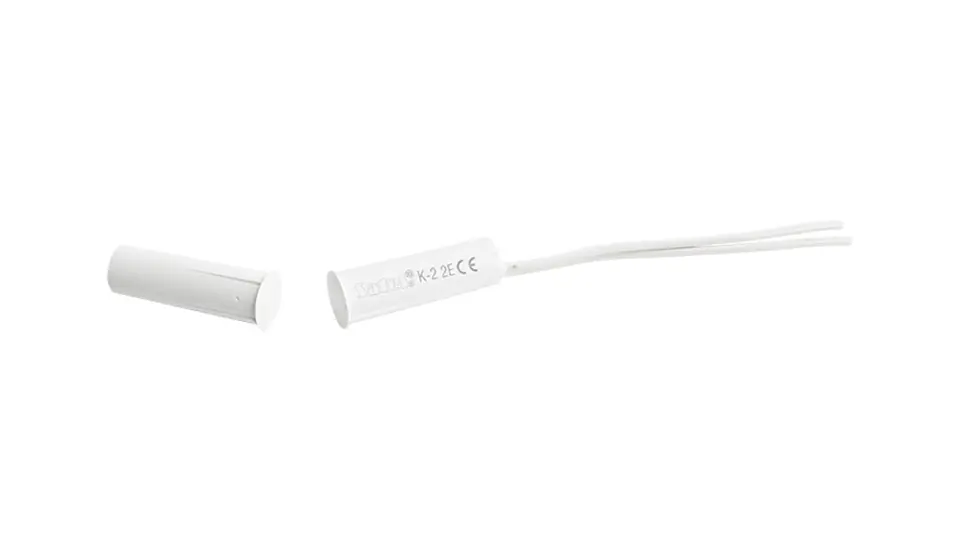

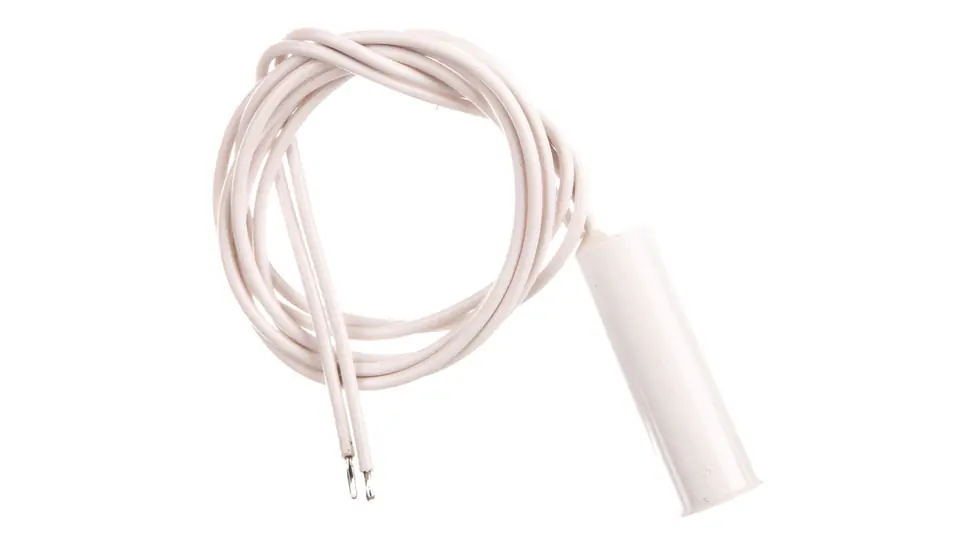

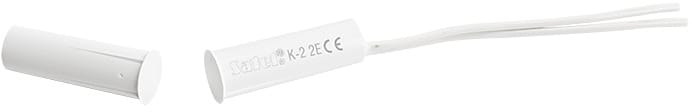

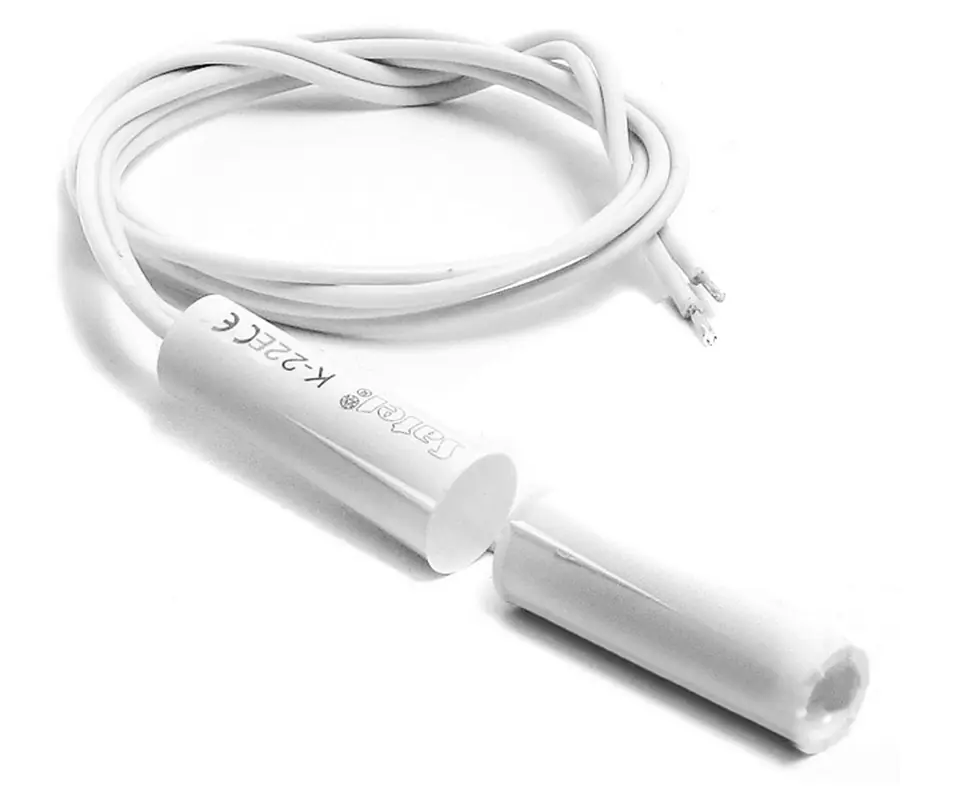

Front reed switch with 2 resistors 1,1kOhm in configuration 2EOL/NC white) K-2 2
PLN 24.52
Shipping from warehouse: H7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- K-2 2E / 5905033335233
Share this product:
Specification
| Colour: | white |
|---|---|
| Detection: | Opening a door or window |

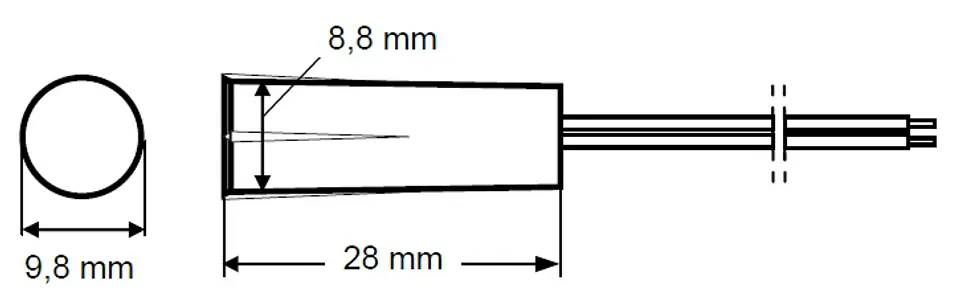

| Dimensions: | 28 x 8.8 x 9.8 mm |
| Distance of opening of reed contacts: | 40 mm |
| Ean: | 5905033335233 |
| Maximum switchable current: | 20 mA |
| Maximum switchable voltage of reed switch: | 20 volts |
| Producer / brand: | SATEL |
| Reed switch closing distance: | 28 mm |
| Scales: | 0.01 kg |
| Selected features: | Parametric resistors - 1.1 kΩ 2EOL/NC |
| Type of siren: | Electronic |
| Warranty: | 2 years |
| With connection cable: | yes |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
