CoA front carrier set
Material: set of fine parts CoA, clamping circle diameter 12-50 mm, turning range 13-100 mm, hydraulic.
Application: for effective turning of details along their entire length, with high accuracy and without changing the fastening. Developed on a modular basis, thanks to which universal replacement of carrier discs and centering tusks is possible. Hydraulic or mechanical pressure compensation ensures even clamping even on uneven face surfaces of the workpiece. The spring-loaded centering tip acts as a length limiter for the workpiece on the front side.

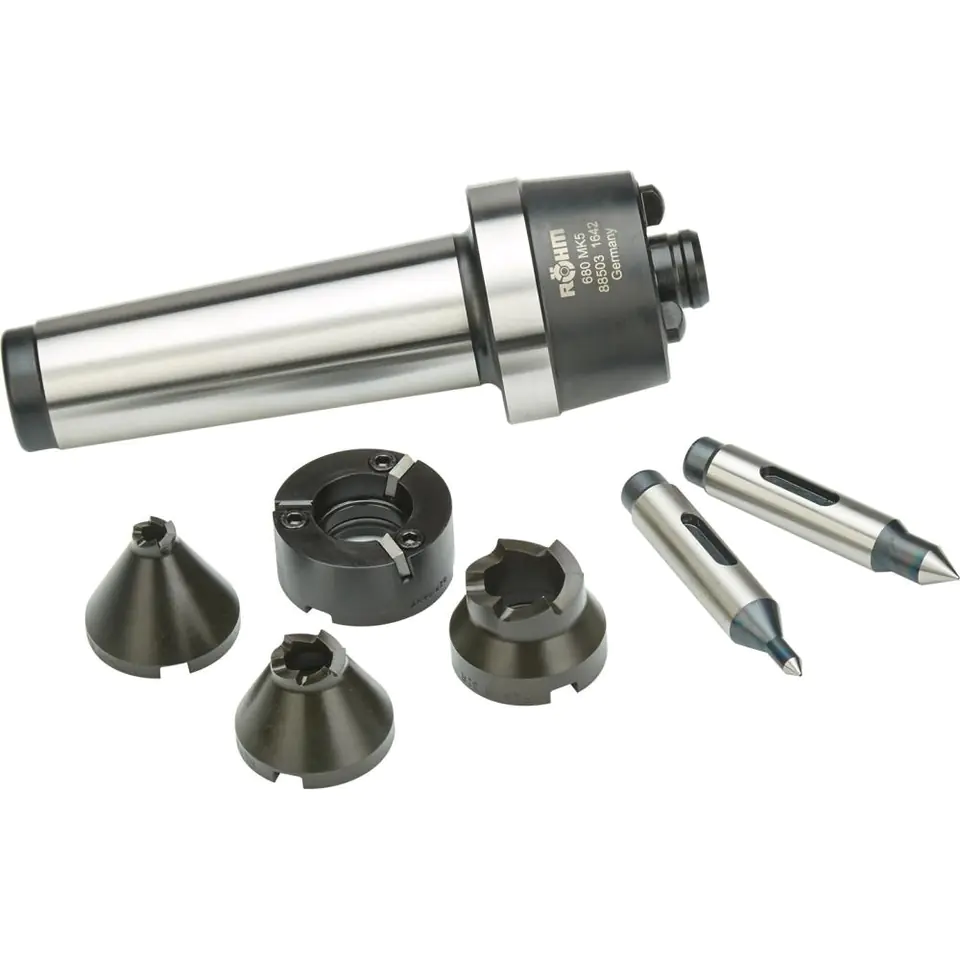

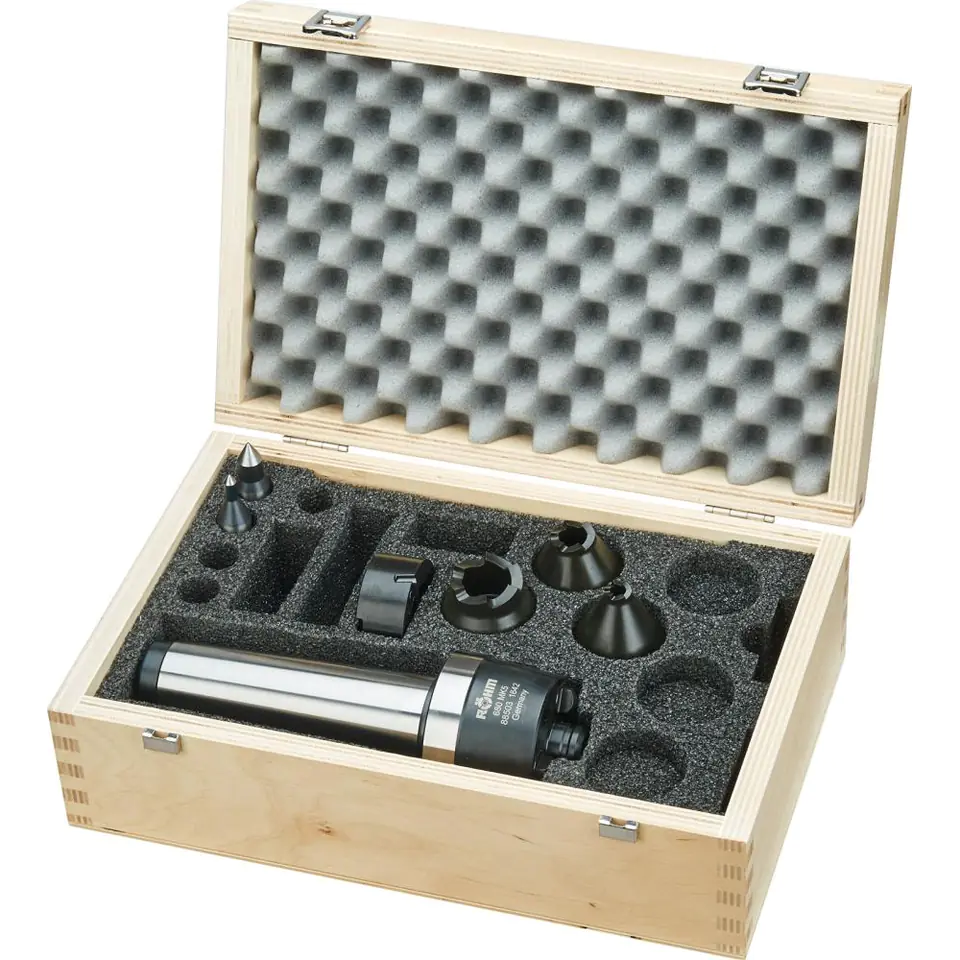

Delivery: carrier body, 4 carrier discs, Ø clamping circle 12, 20, 32 and 50 mm and 2 centering canines with a diameter of A = 6 + 12 mm.
