Specifications:
Article number: 64 02 115
EAN: 4003773035343
Head: polished to a high gloss
handles: with multi-component caps
Weight: 70 g
Dimensions: 115 x 62 x 17 mm
Standard: DIN ISO 9654
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of soft wire (diameter): 2.0 mm
Cutting range of medium hardness wire (diameter): 1.0 mm
Cutting range of hard wire (diameter): 0.6 mm

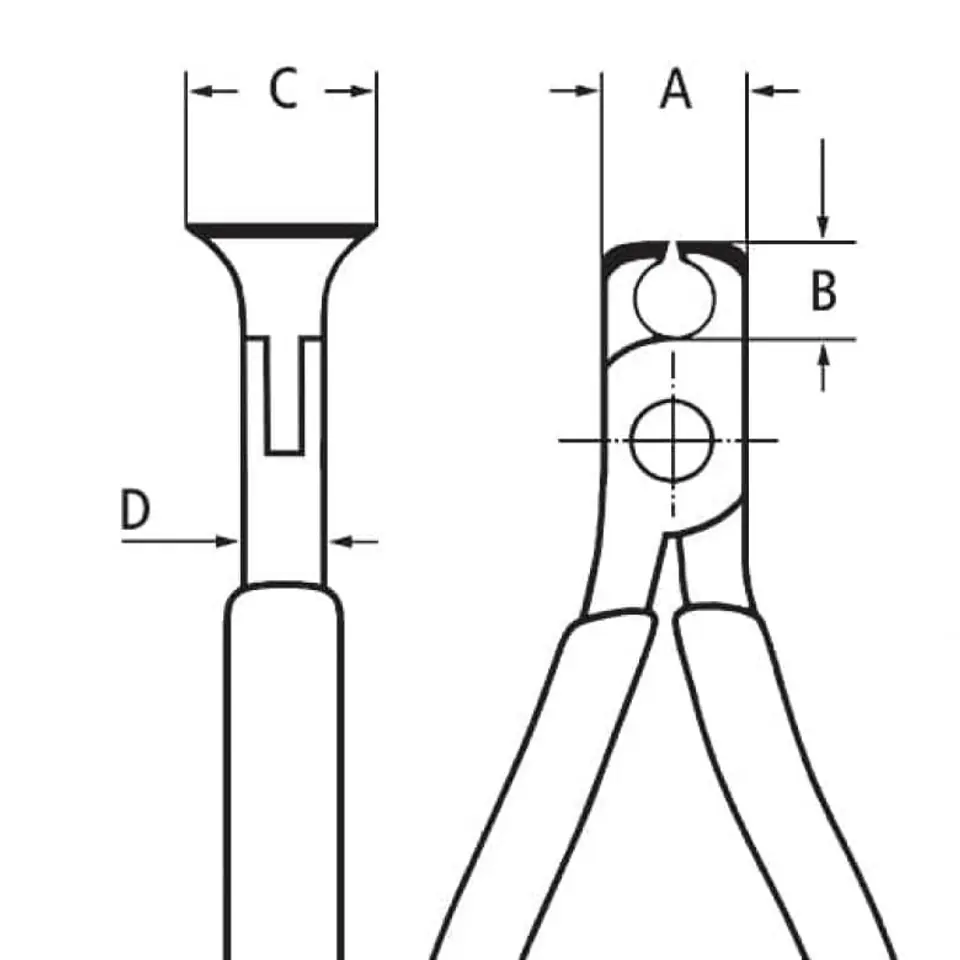

Width (A):11 mm
Jaw Length (B): 6mm
Jaw thickness (joint) (D): 7.5 mm
Cutting length in mm (C): 16 mm

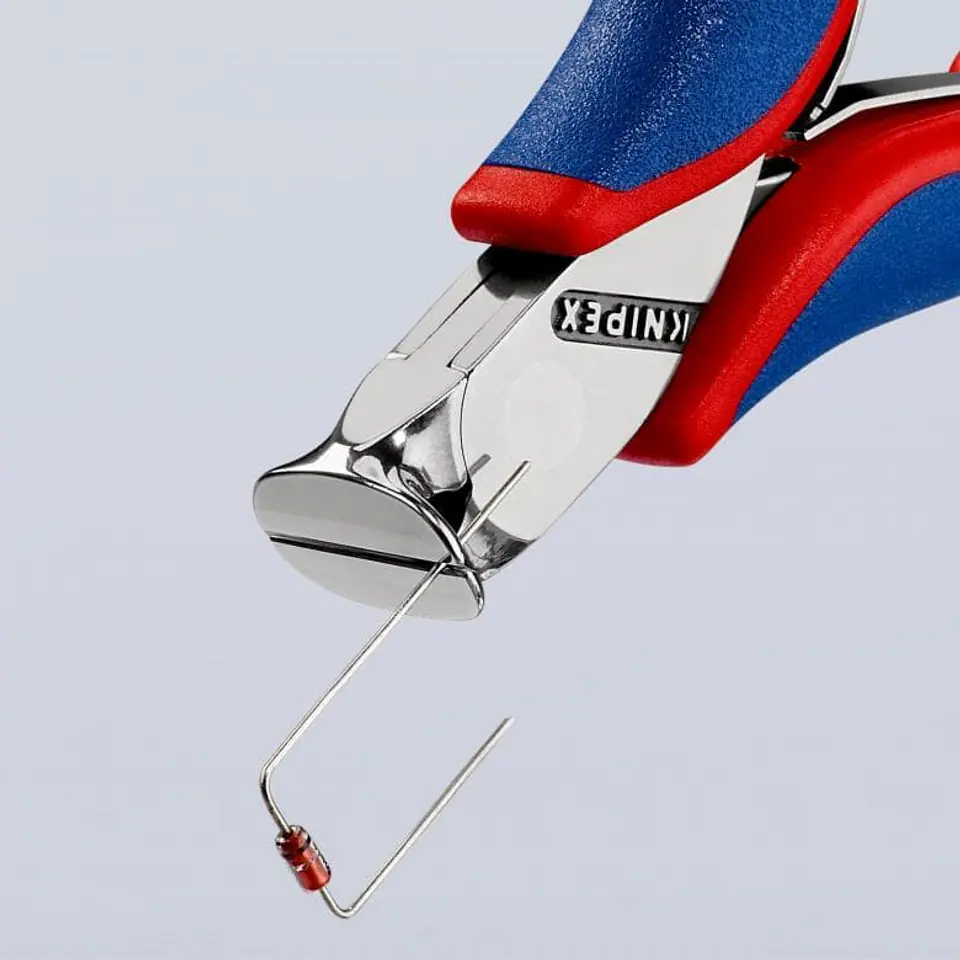

Precision pliers for extremely accurate cutting, e.g. in electronics and mechanics
Precision slide connection
Double opening spring with low friction for gentle and even tool opening
High gloss polishing together with a thin layer of oil perfectly protects the tool against corrosion
Blades additionally hardened, hardness of blades min. 56 HRC

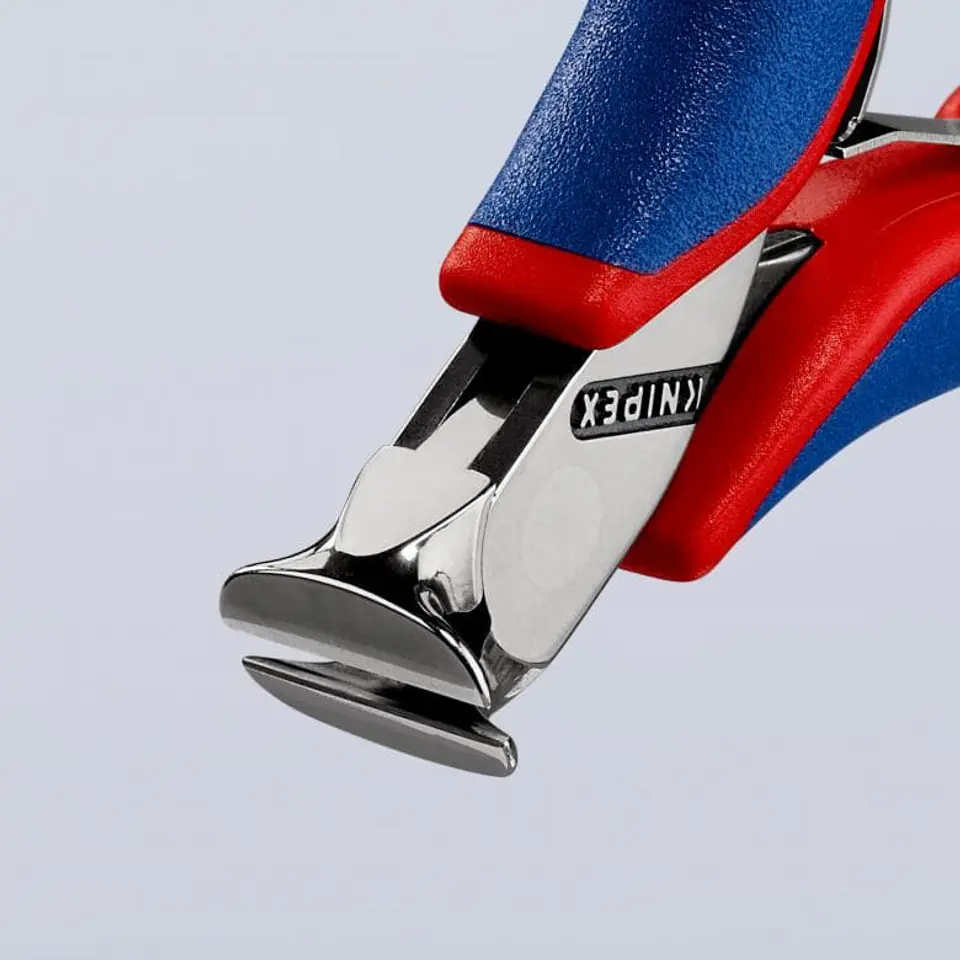

Front cutting pliers with small bevel
Chrome bearing steel, oil hardened
**

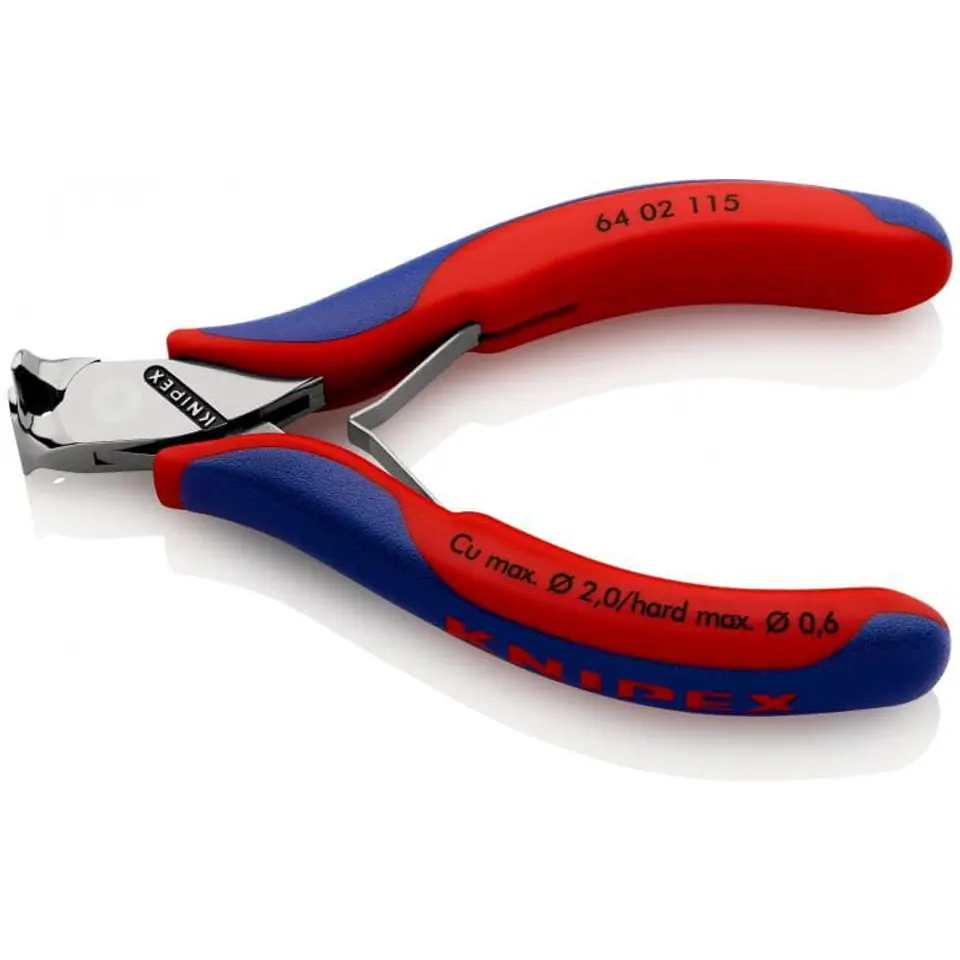

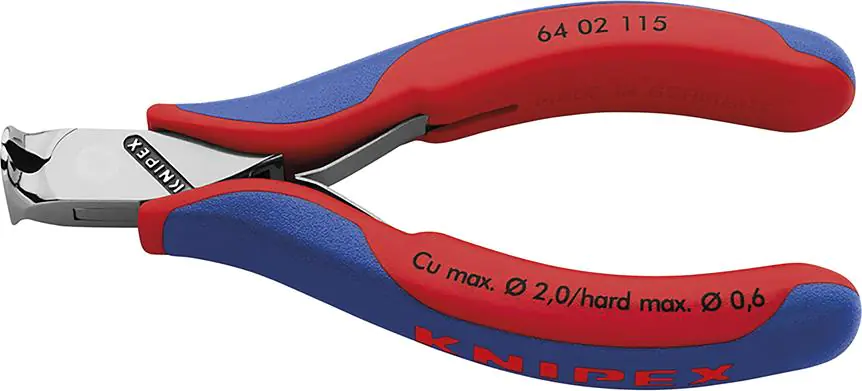

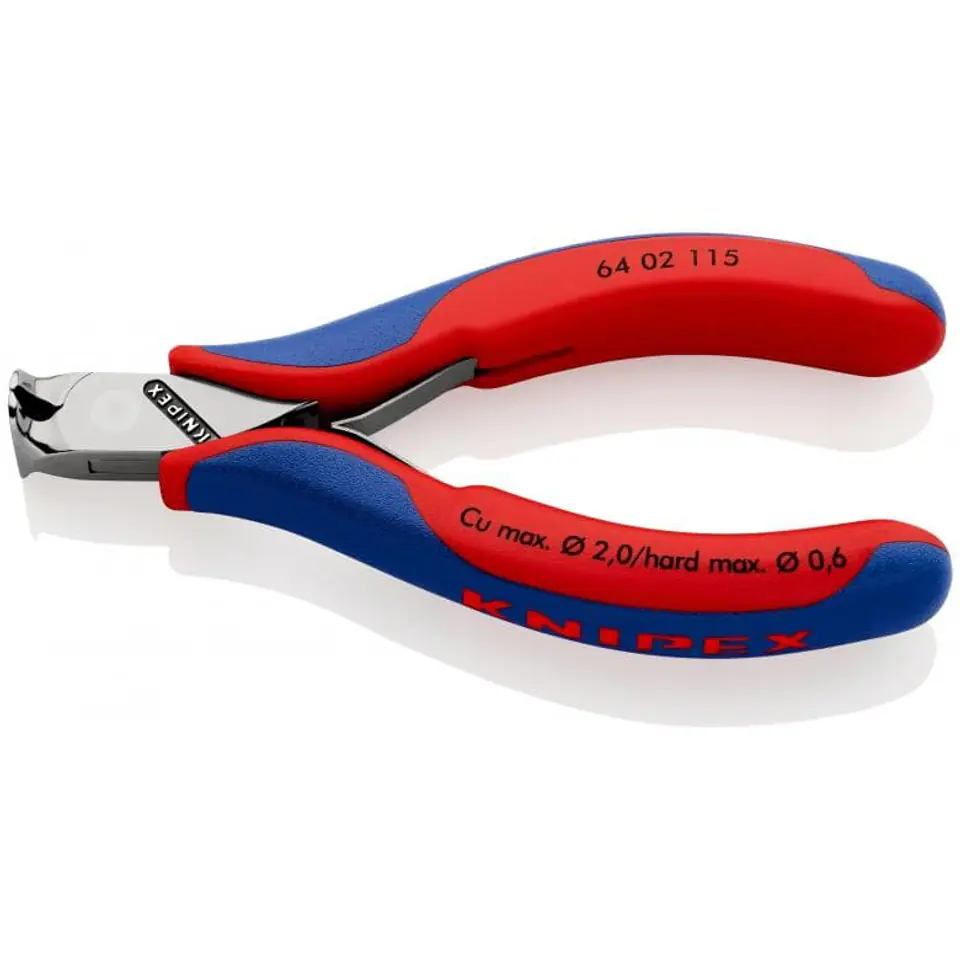

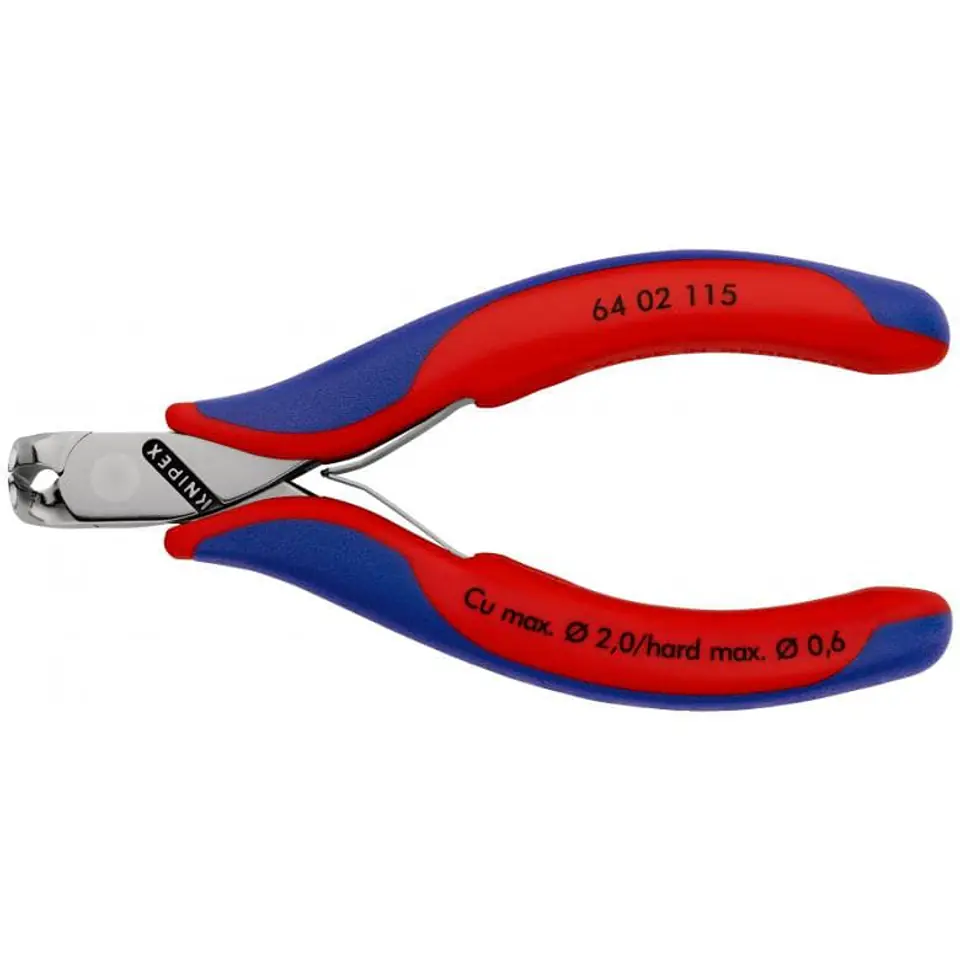

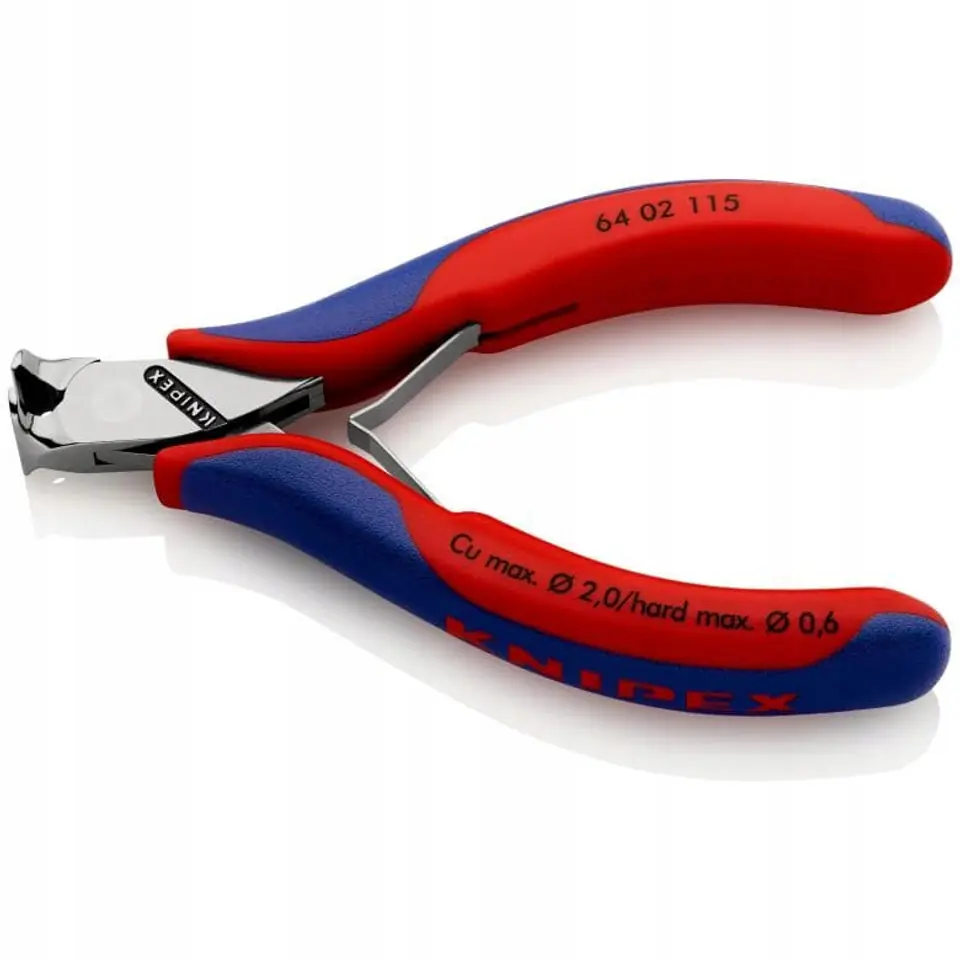

Illustrative photo.
FRONT CUTTING PLIERS FOR ELECTRONICS ENGINEERS
€48.82
Shipping from warehouse: U1
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KNIPEX
- Product code:
- 8253500003 / 4003773035343
Share this product:
Specification
| Cutting parameters, ø medium hard wire: | 1.0 mm |
|---|---|
| Cutting parameters, ø of hard wire: | 0.6 mm |
| Cutting parameters, ø soft wire: | 2.0 mm |
