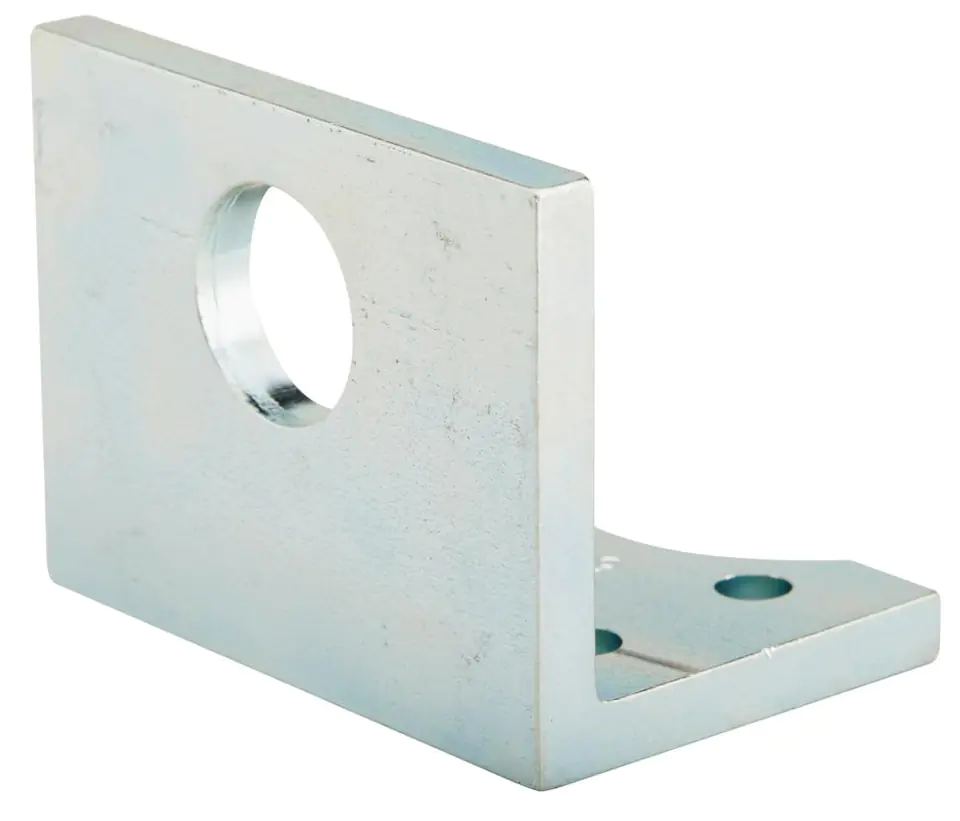

Stable angle foot for quick-contact face clamps with sliding bar (Article code 3954 and 39420100 – 39420155)
Application: extended scope of application due to greater clamping height. Built-in in instruments. Fastening with 4 screws (not included in the scope of delivery).
Foot cat.,stable 6843 wlk. 3 AMF
€11.45
Shipping from warehouse: B6
Estimated shipping: Wed, Jan 21 - Mon, Jan 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AMF
- Product code:
- 94037 / 4020772094034
Share this product:

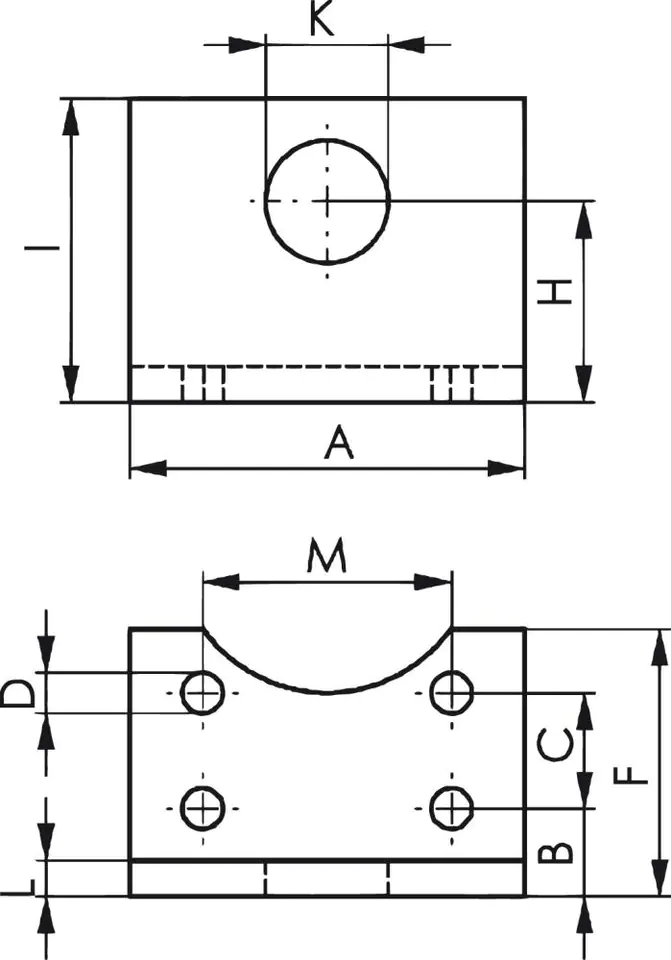

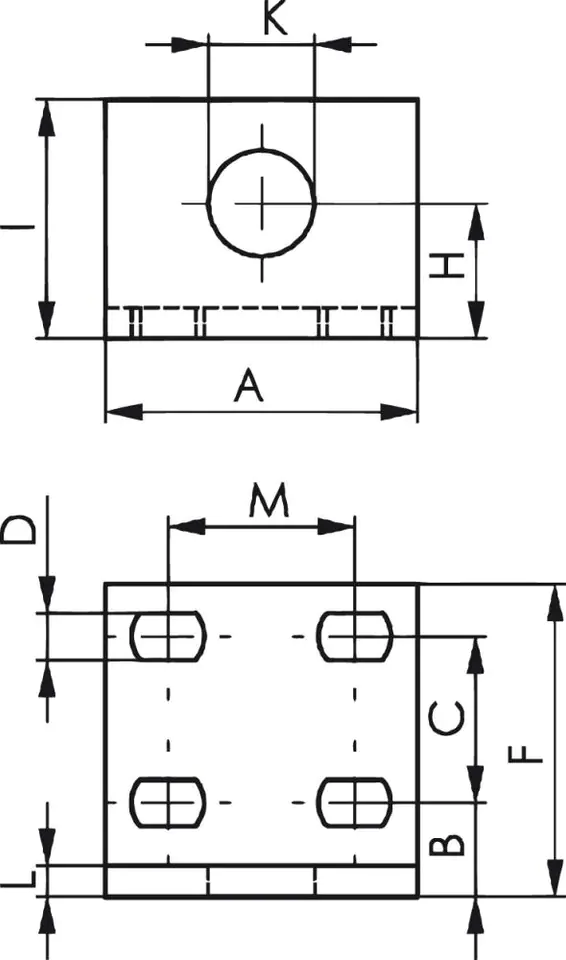

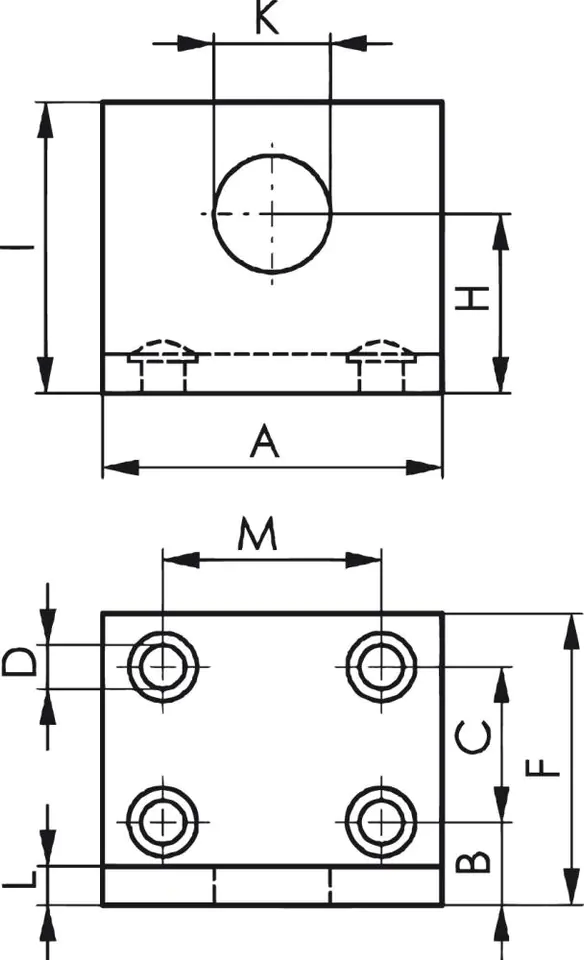

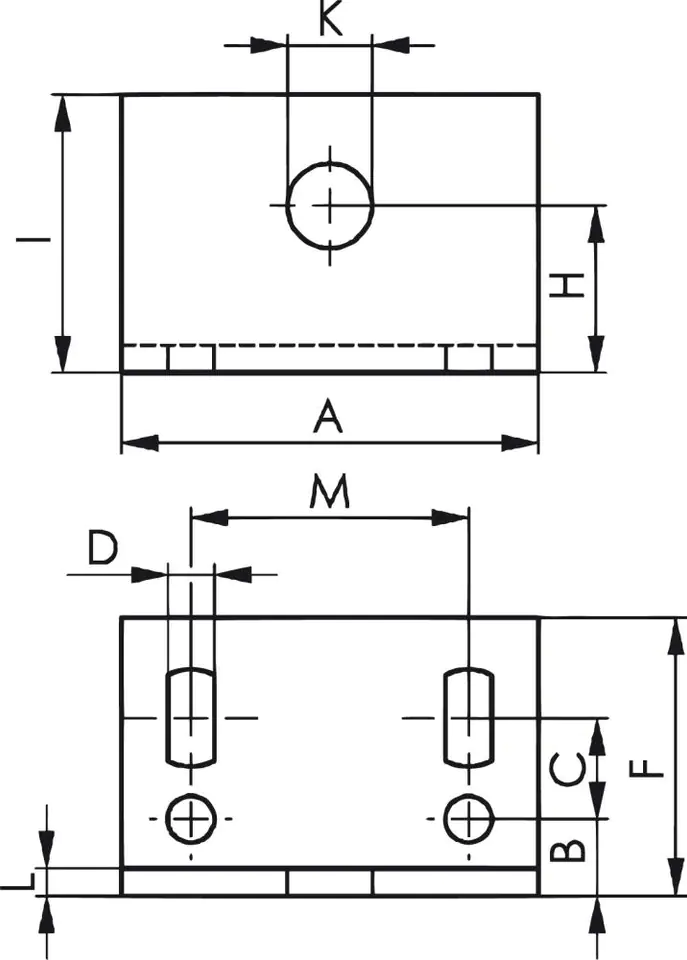

Specification
| A: | 65 mm |
|---|---|
| And: | 50 mm |
| B: | 14,5 |
| C: | 19 |
| D: | 6,7 |
| F: | 44 mm |
| H: | 33 |
| K: | 20,2 |
| L: | 6 |
| M: | 41 |
| Scales: | 235 g |
| Size: | 3 |
