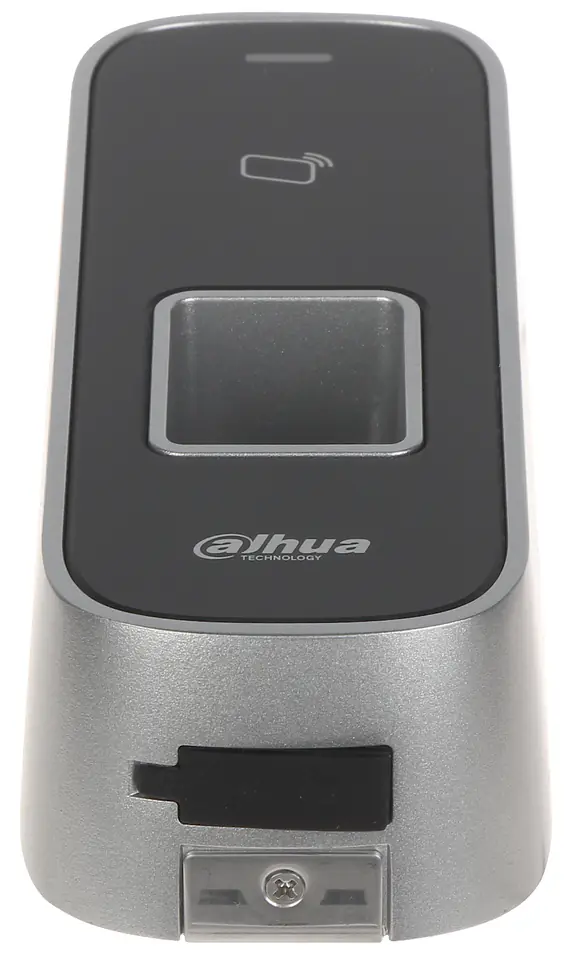

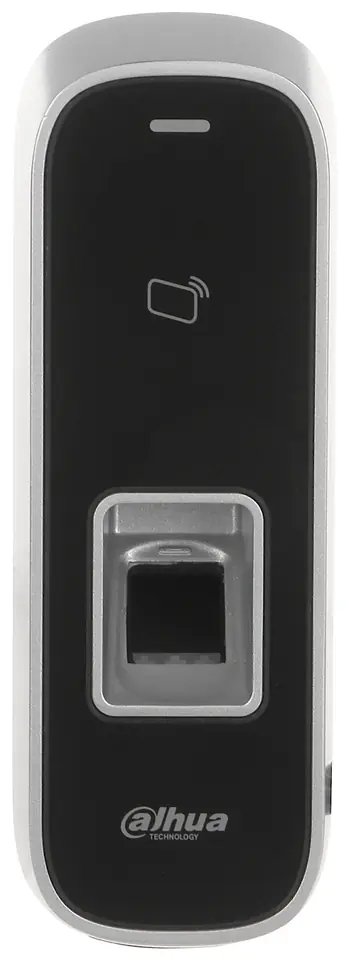

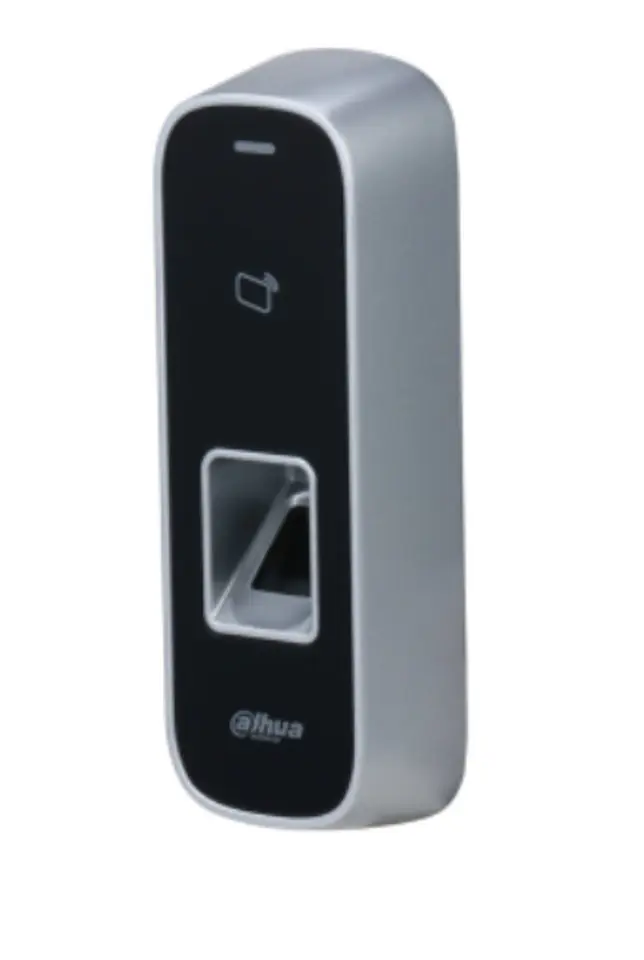

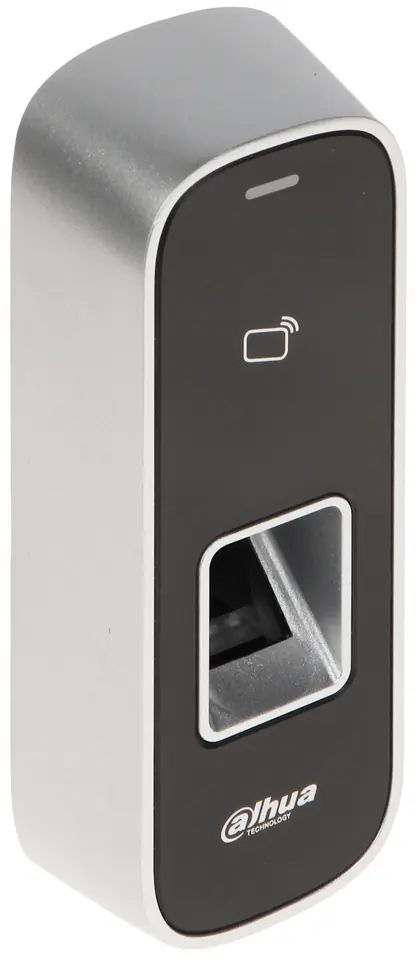

External standalone fingerprint reader with built-in RFID reader
FINGERPRINT + RFID READER ASI1202M DAHUA
This product is not available
- Availability:
- expected delivery
- Brand:
- Dahua
- Product code:
- ASI1202M / 6939554979835
Share this product:
Specification
| Card reading range:: | Max. 1 ... 3 cm |
|---|---|
| Card support:: | MIFARE 13.56 MHz |
| Case:: | Metal + Tempered Glass |
| Colour:: | Black + Silver |
| Communication:: | Wiegand |
| Default administrator login / password:: | admin / - |
| Default ip address:: | 192.168.1.108 |
| Dimensions:: | 159 x 55 x 35 mm |
| Identification time:: | < 1.5 s |
| Manufacturer / brand:: | DAHUA |
| Maximum current consumption:: | 250 mA |
| Network interface:: | RJ-45 - 10/100 Base-T |
| Operating temperature:: | -30 °C ... 50 °C |
| Permissible relative humidity:: | 5 ... 95 % (non-condensing) |
| Power:: | 12 VDC |
| Scales:: | 0.71 kg |
| Sealing:: | IP65 |
| Selected features:: | Memory 3000 Fingerprint Patterns Memory 30000 RFID Cards Full Network Support Anti-Passback Function Inputs for Reed Detector and Output Button Door Open Timer With The Ability to Send an Alarm Signal When Set Value Is Exceeded USB Port Blue Backlight |
| Vandal proof:: | IK10 |
| Warranty:: | 3 years |
