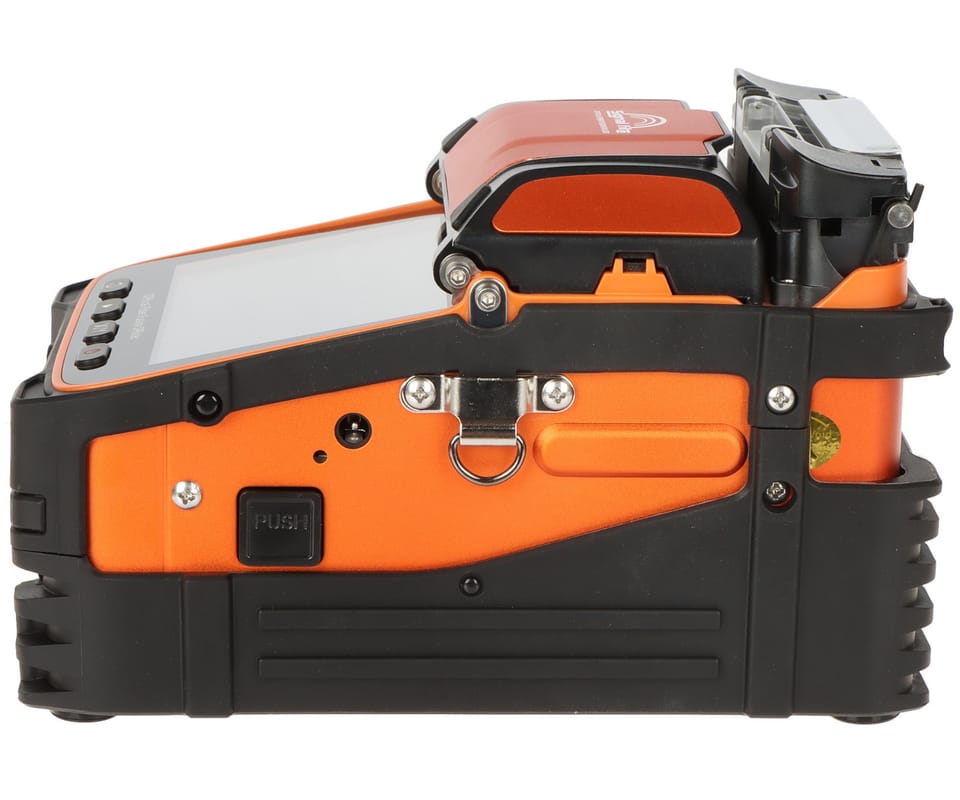

FIBER OPTIC WELDING MACHINE AI-9

€895.08

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Fri, May 3 - Mon, May 6

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: AI-9 / 5902887054655

Specification

Adjustable weld parameters::	Test of the front angle of welded fibers sliding distance when welding pre-weld current pre-weld time weld current splicing time splicing time, etc.
Average attenuation::	0.01 dB (MM)0.025 dB (SM)0.04 dB DS/NZDS
Average soaking time::	15 sec
Average welding time::	5 sec

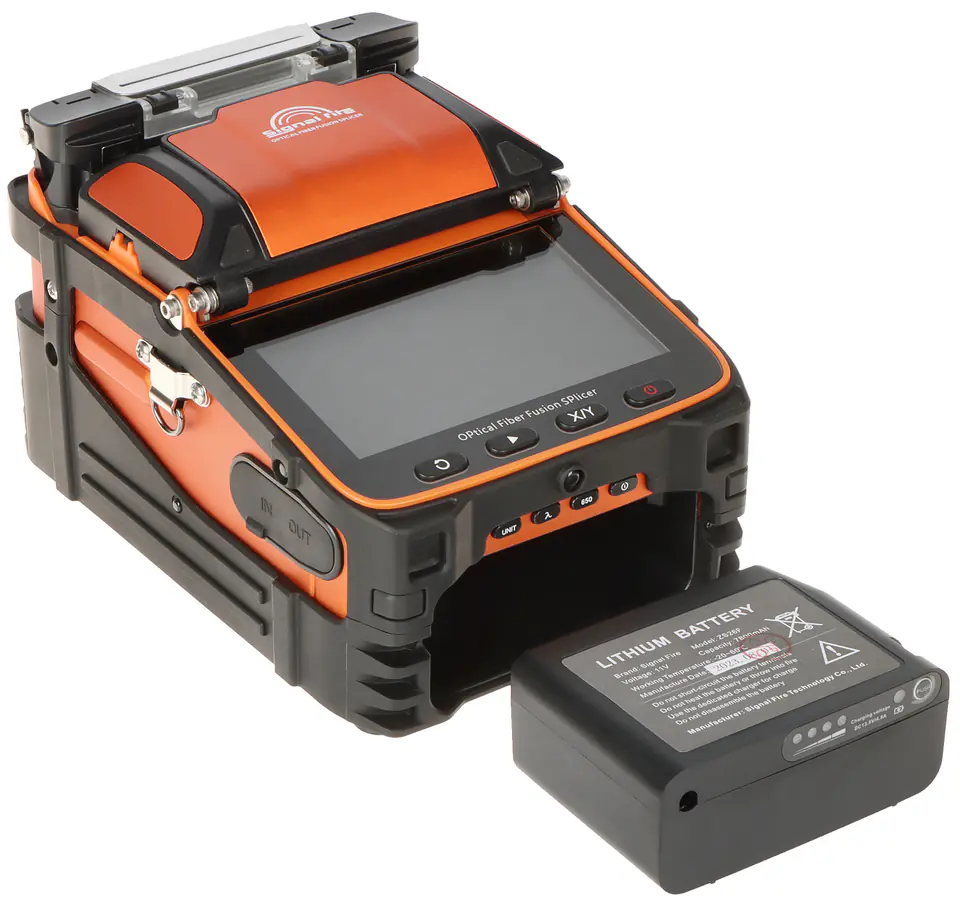

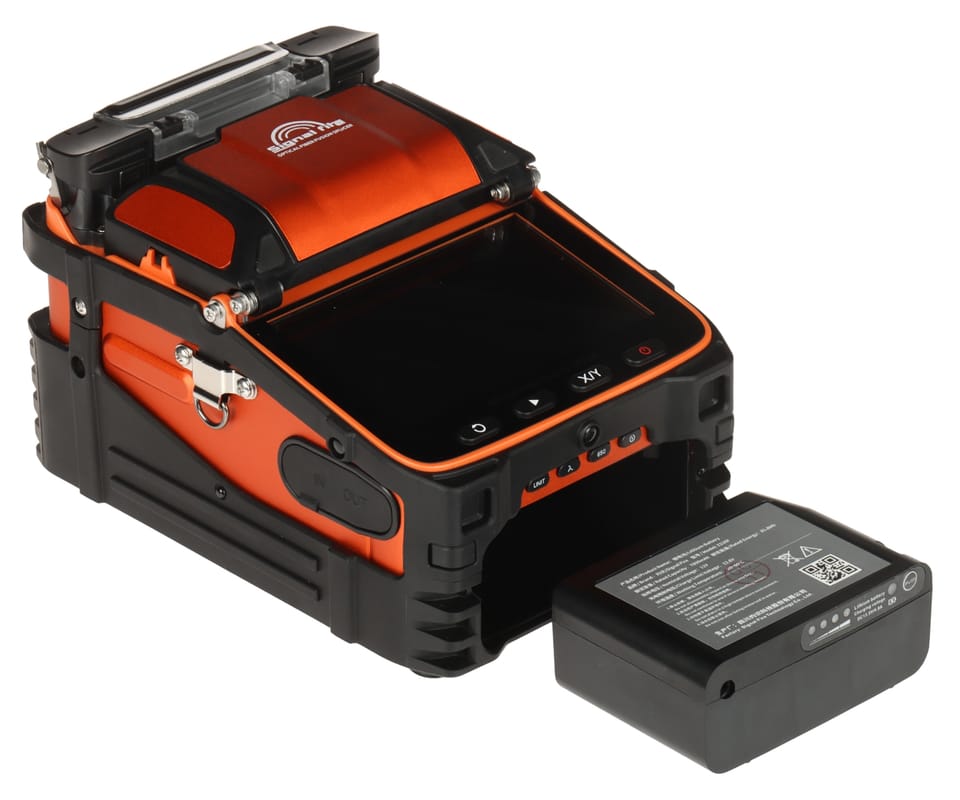

Battery::	11 V DC Li-Ion Battery, 7800 mAh
Centering method::	centering to the core, centering to the jacket, manually
Connecting to a computer::	USB 2.0 - Rechargeable smartphones
Diameter of the primary coating::	0.1 ... 1 mm

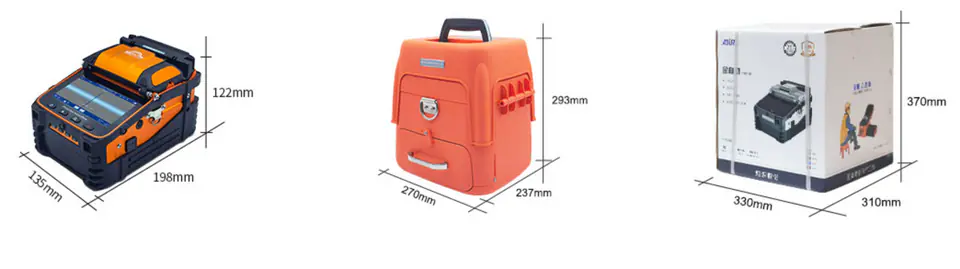

Dimensions::	200 x 143 x 122 mm

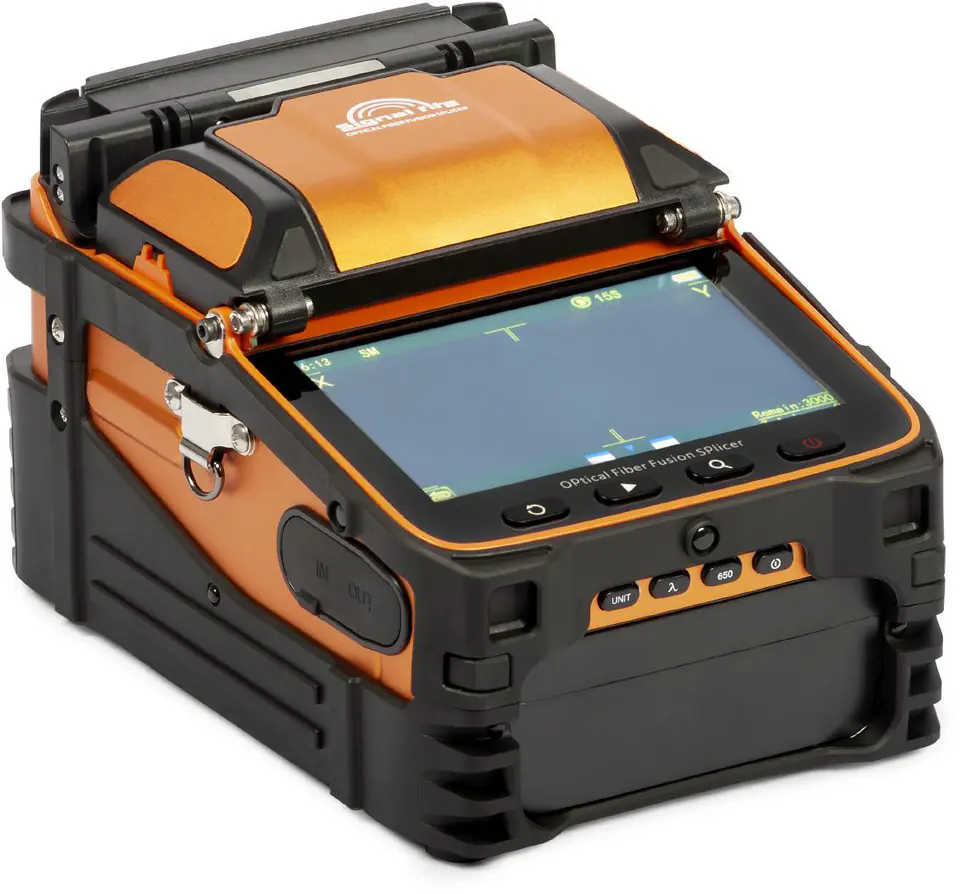

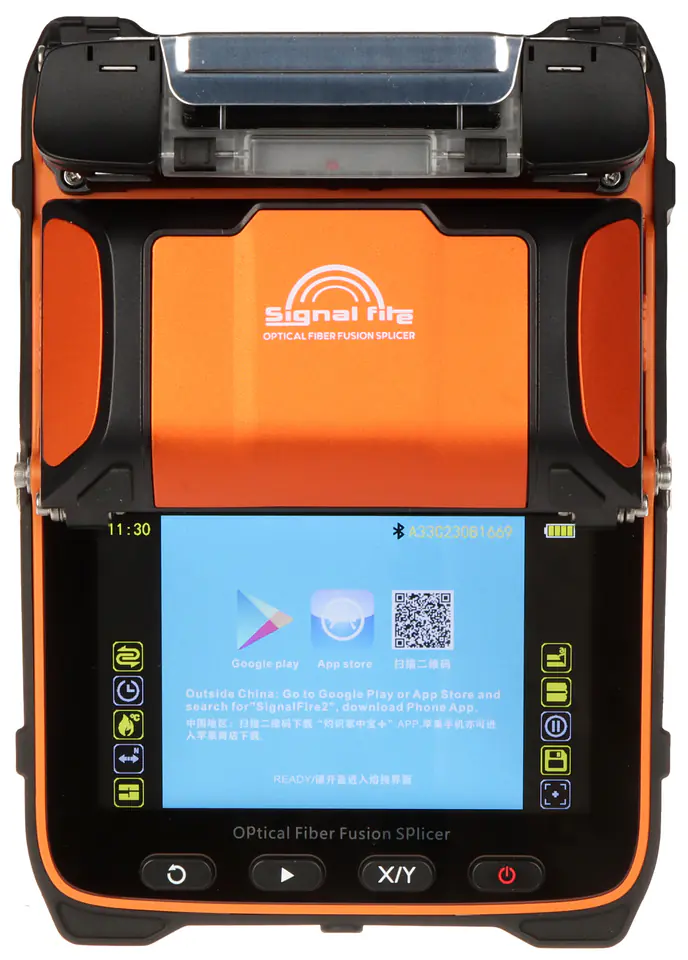

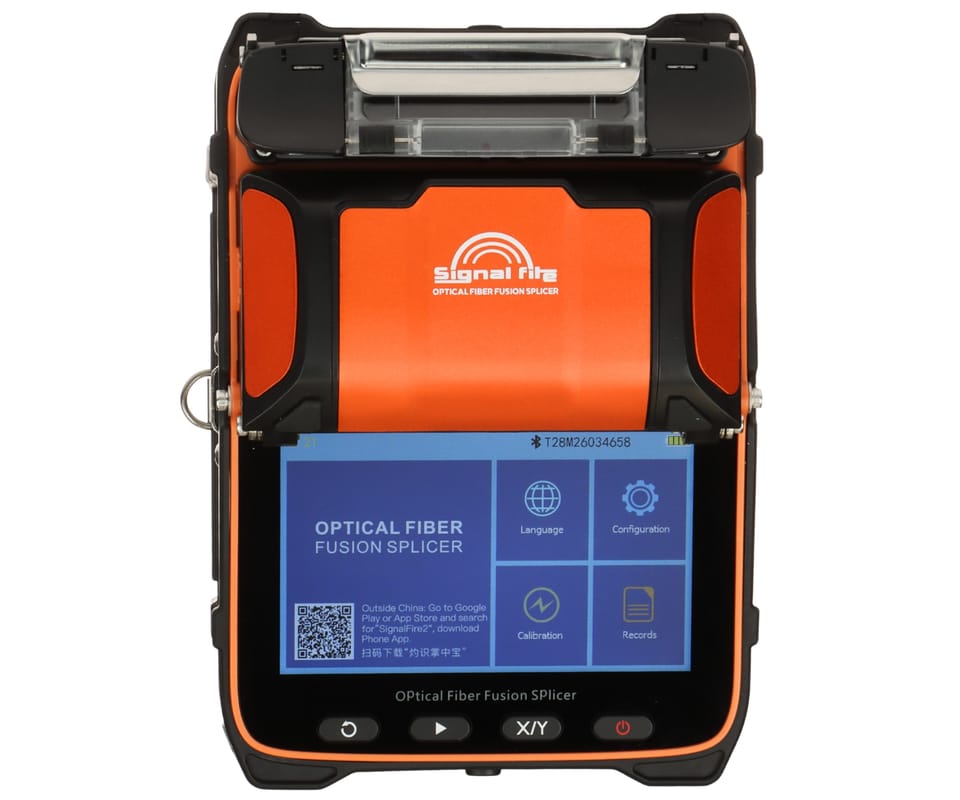

Display::	5.1" liquid crystal (LCD), 800 x 480 pxImage: simultaneous display in two planes (X-Y)
Electrode life::	3000 splices
Jacket diameter::	80 ... 150 μm
Length of peeled fiber::	16 mm
Mechanical strength test::	2 N
Operating temperature::	-15 °C ... 50 °C
Optical fiber type::	multimode (MM) - G.651, single-mode (SM) - G.652 & G.657, single-mode (DS / NZDS) with non-zero shifted dispersion (G.655)
Permissible relative humidity::	< 95 % (bez kondensacji)

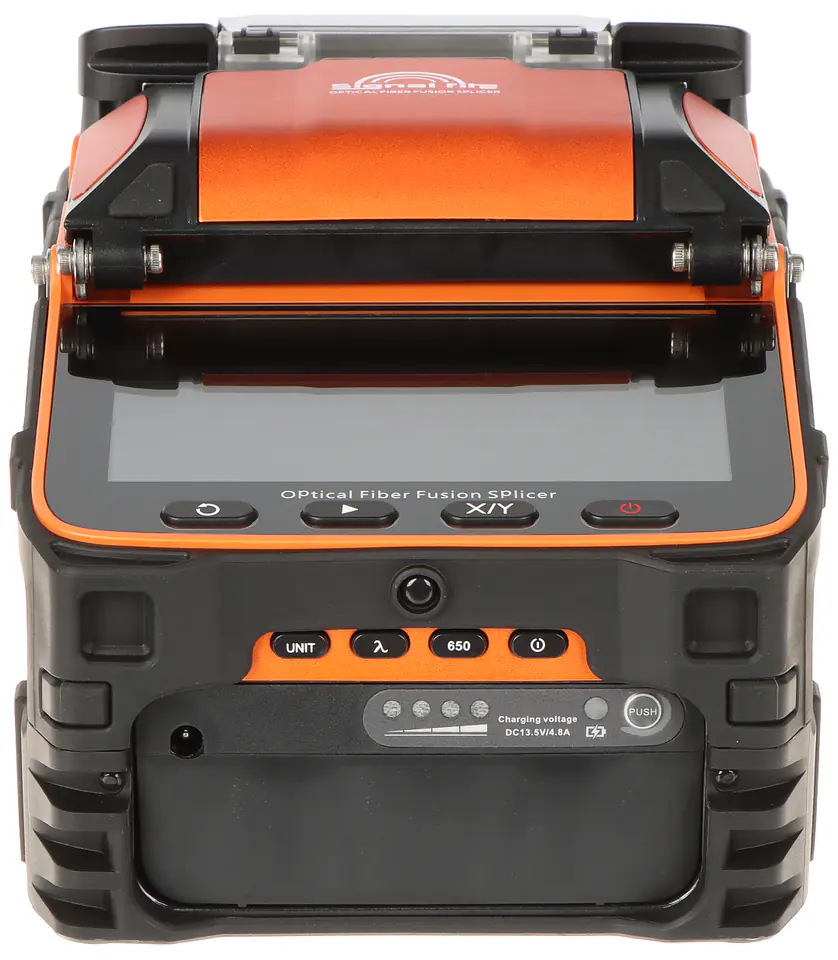

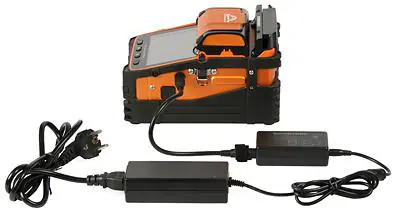

Power::	13.5 V DC / 4.8 A (power supply included)
Scales::	2.16 kg

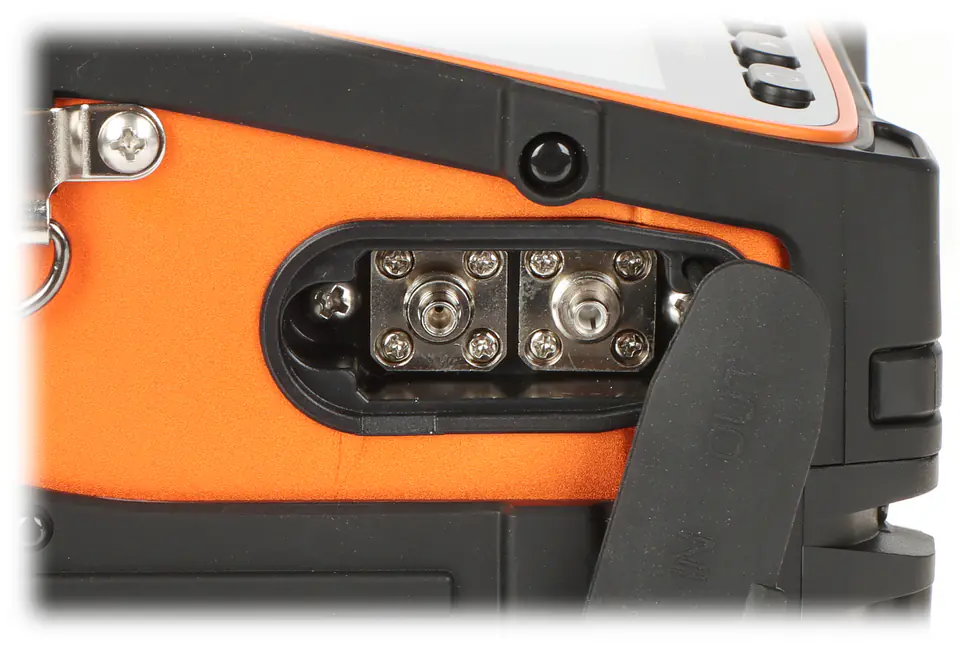

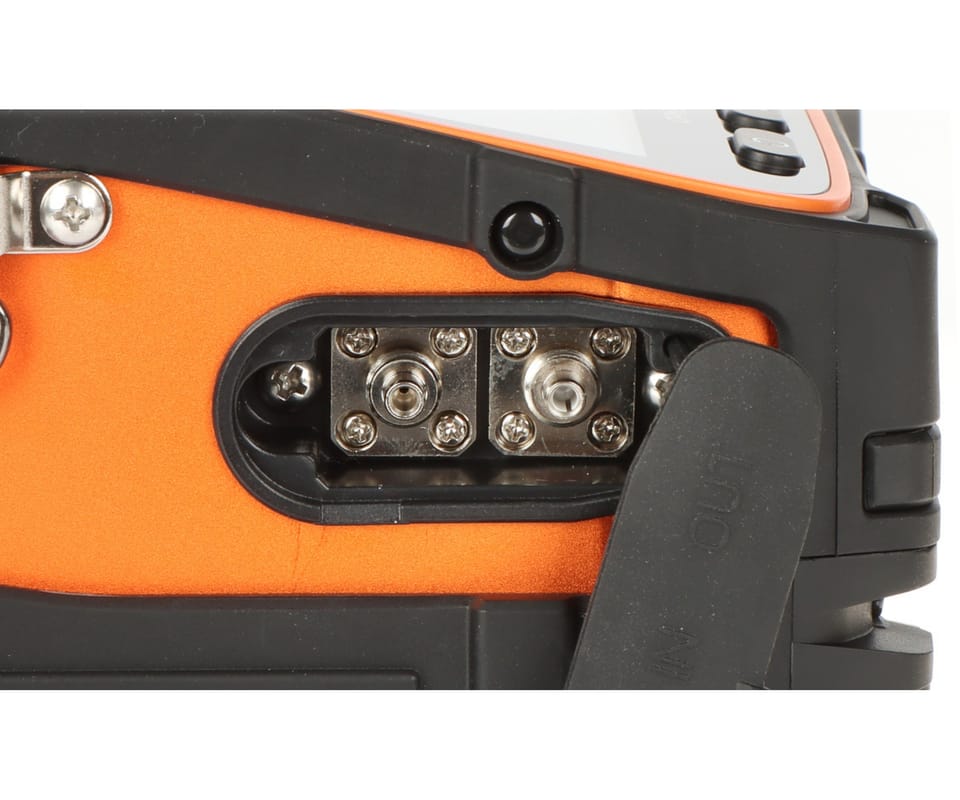

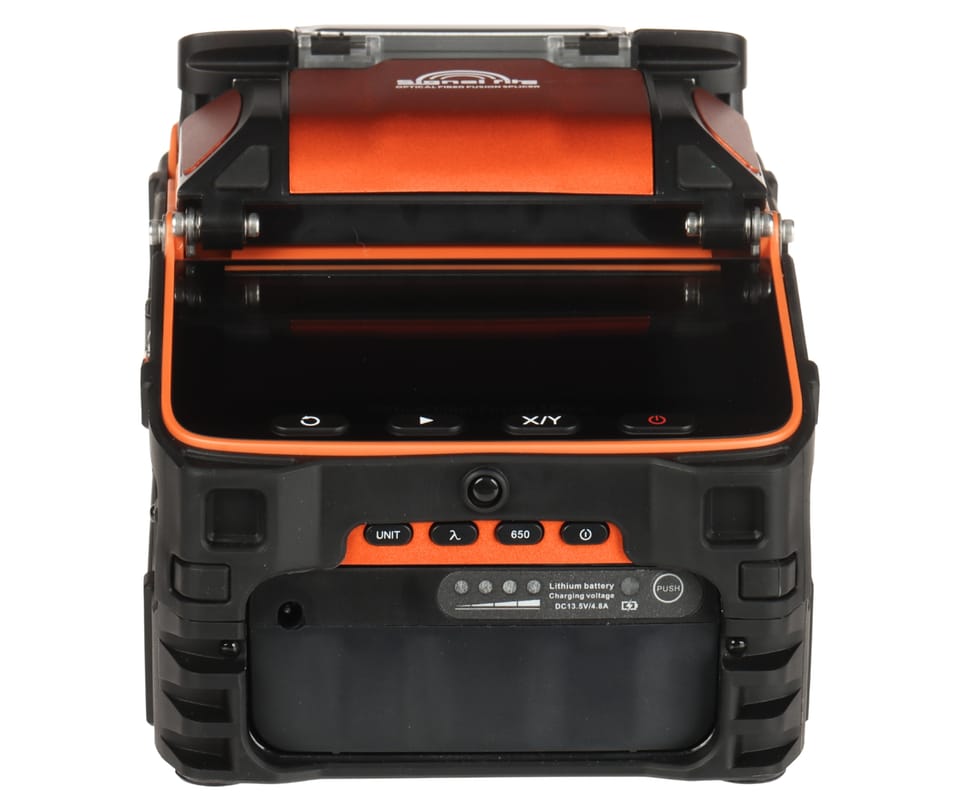

Selected features::	Built-in Optical Power Meter : Optical Wavelength : 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm Wide Measuring Range : -70 dBm ... +6 dBm Measurement Error : < 0.3 dB , VLS (VFL) - wizualny lokalizator uszkodzeń włókien światłowodowych : Długość fali optycznej : 650 nm Moc na wyjściu optycznym : 15 mW Tryby pracy : ciągły, pulsacyjny - 2 Hz
Warranty::	3 years
Welding programs::	(factory programs) + (user programs)

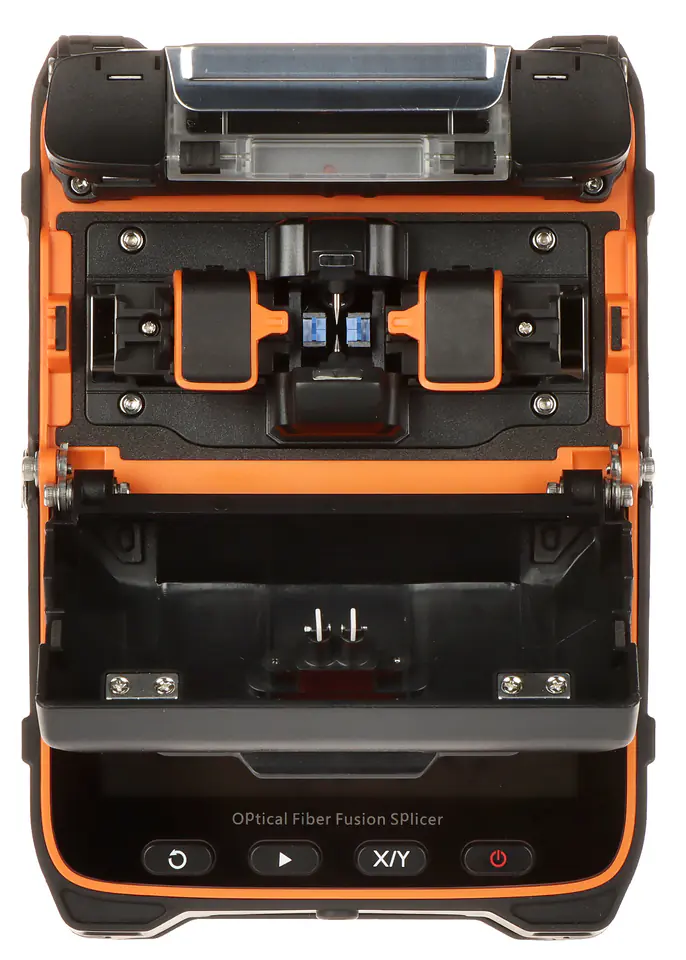

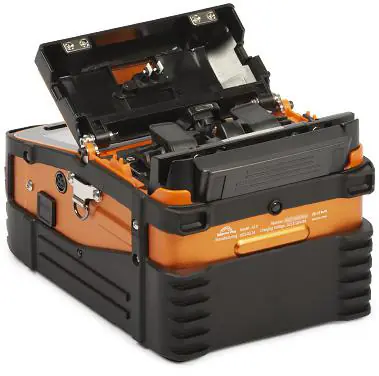

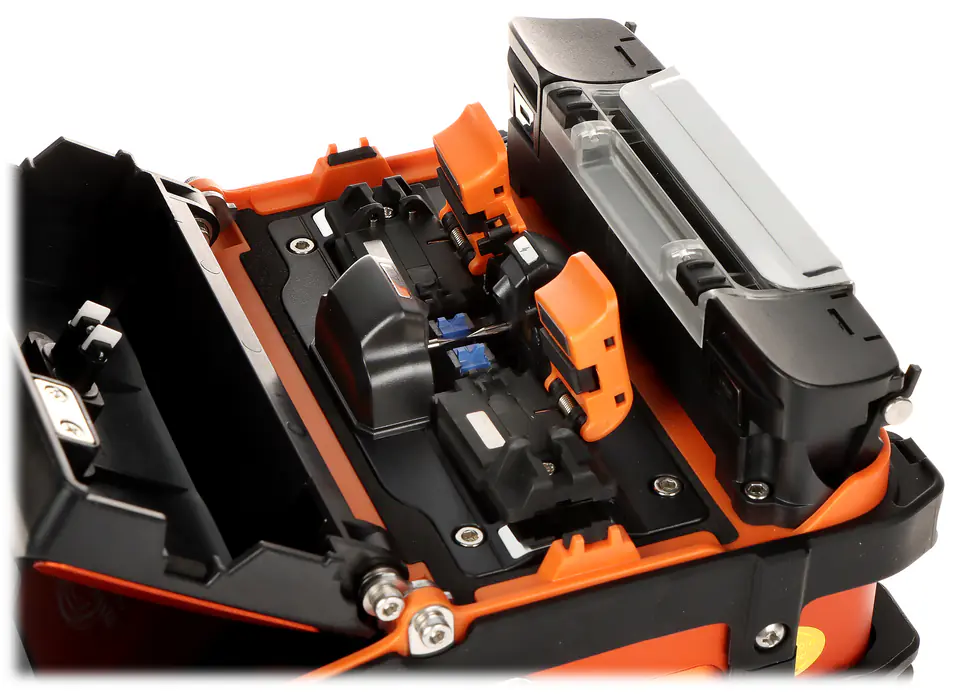

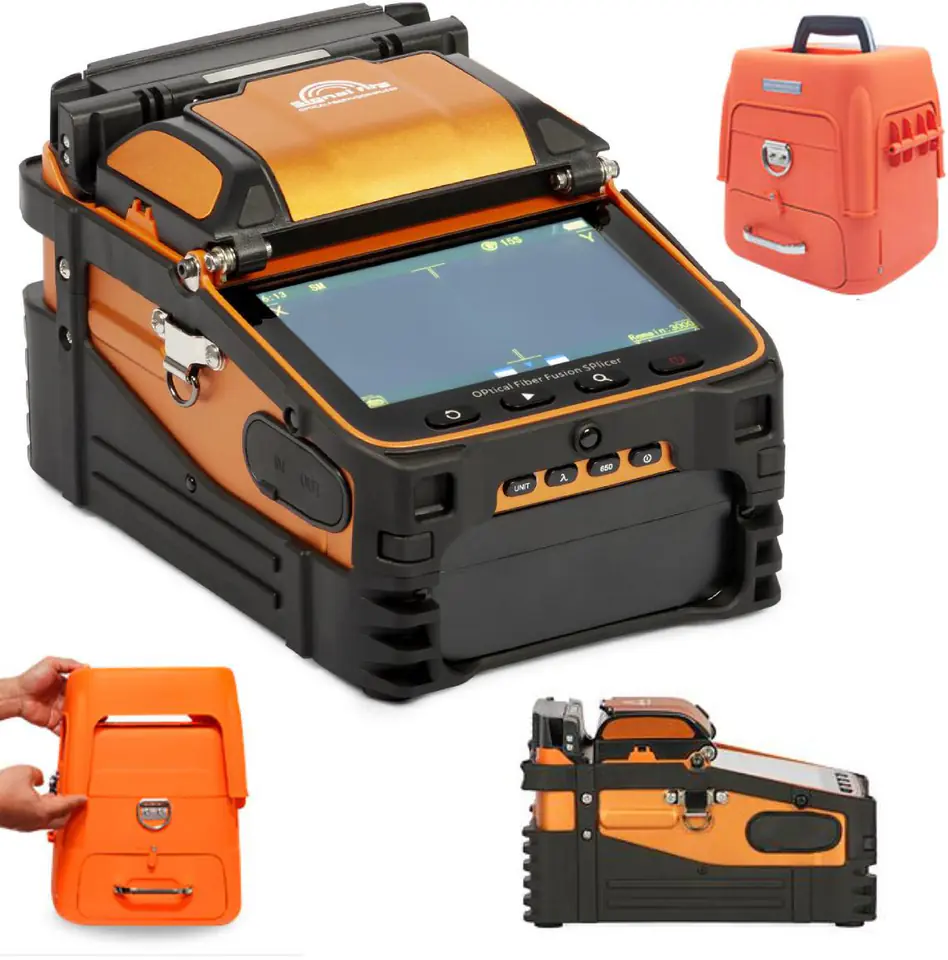

The AI-9 fiber optic welding machine, thanks to fast image processing and advanced centering process to the core, allows you to automatically make a weld with excellent parameters in less than 10 seconds

Remark! By default, the device is configured in automatic modeIn the vast majority of situations, any adjustments to the default settings are not requiredThere is also no calibration required - it should be done only in case of problems with obtaining the correct weldThe application available in the Google Play Store and AppStore is required, for example, if you want to change the default welding program or calibration due to extremely changing environmental conditions

Changing the parameters and configuration of the welding machine is carried out exclusively via the Bluetooth interface using dedicated applications for Android / iPhone

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
