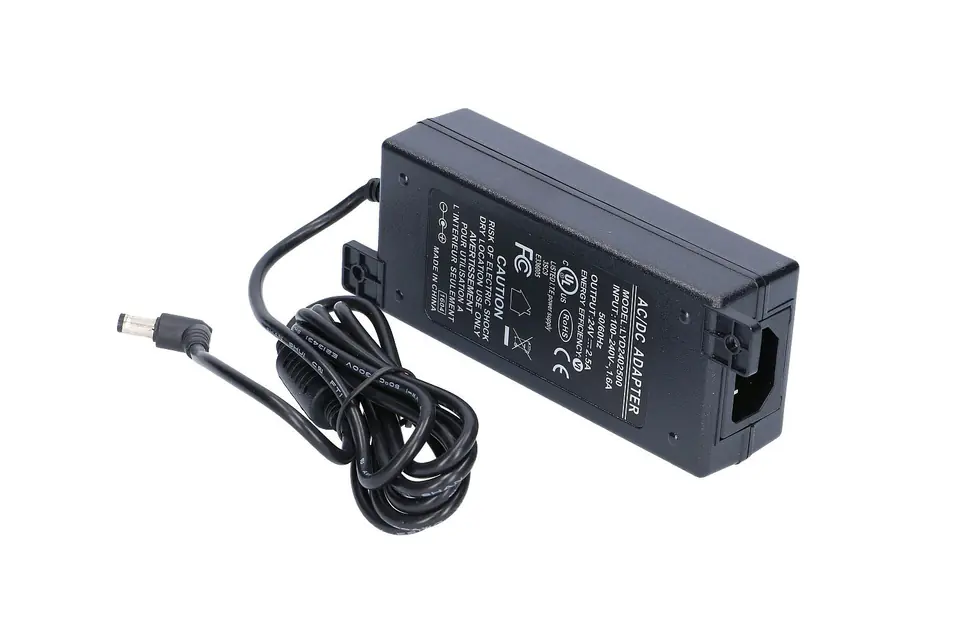

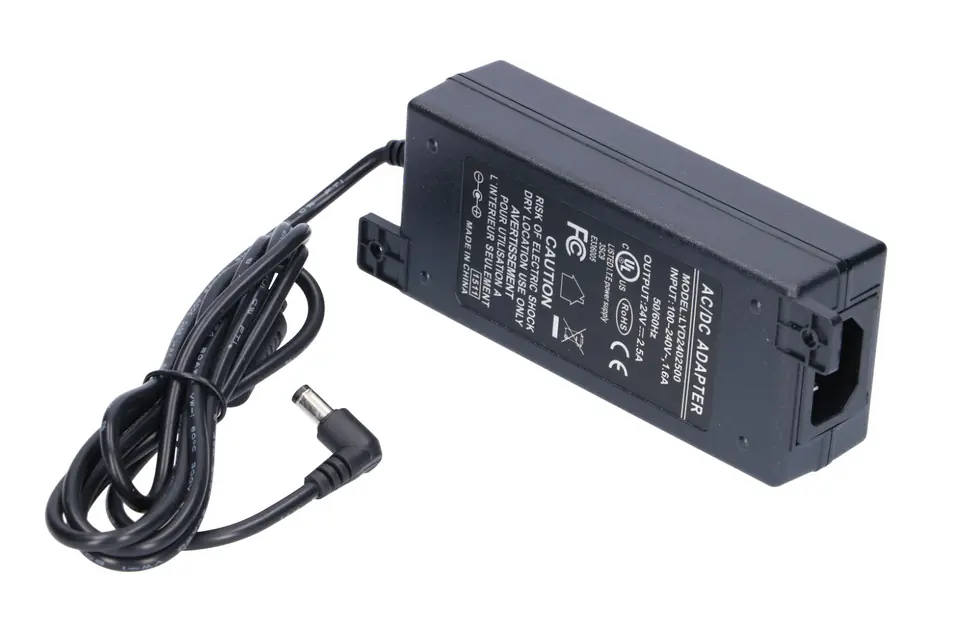

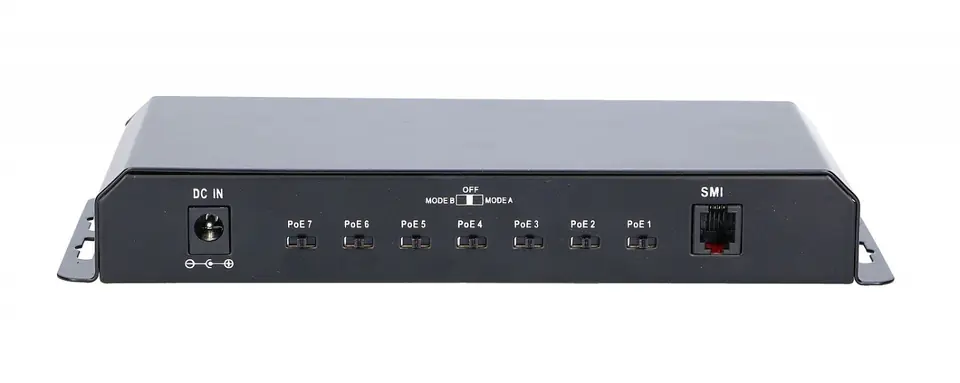

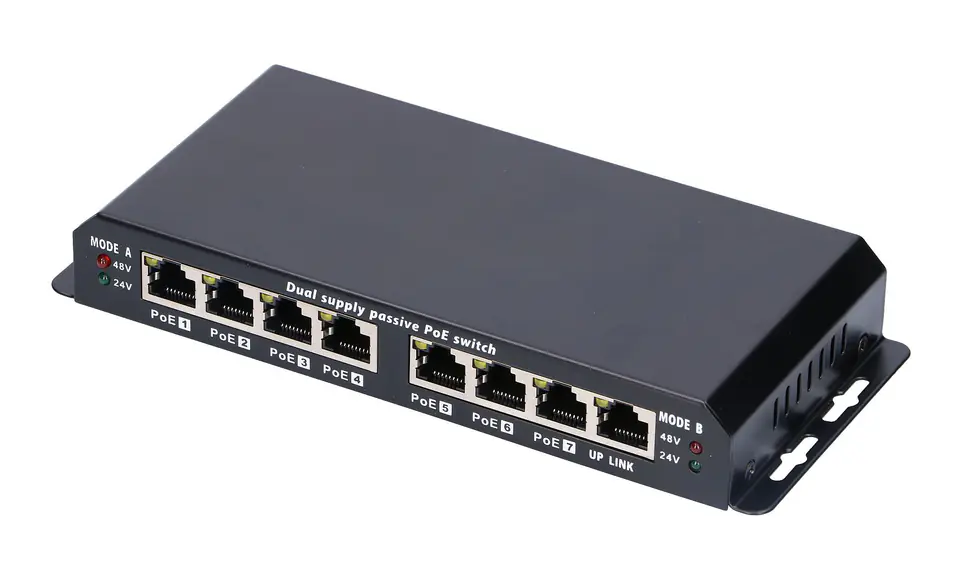

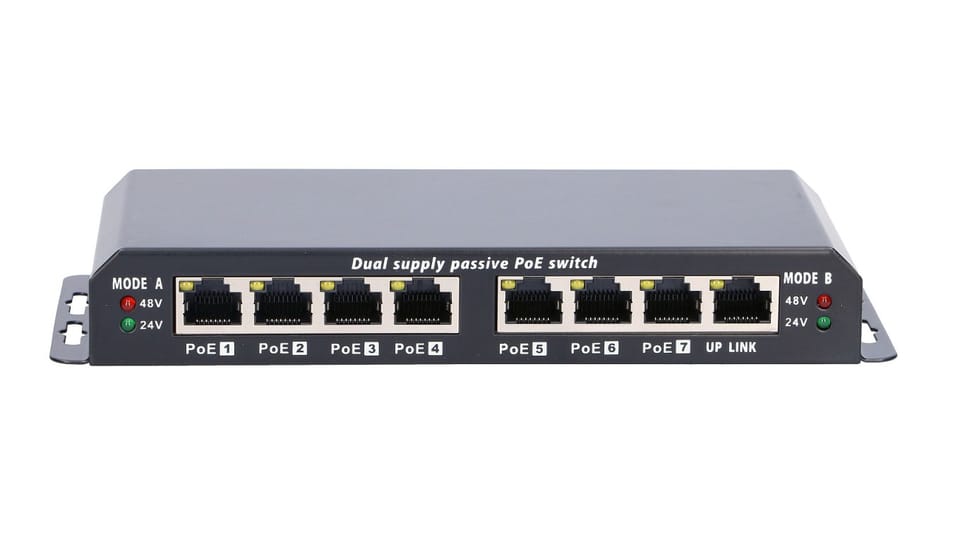

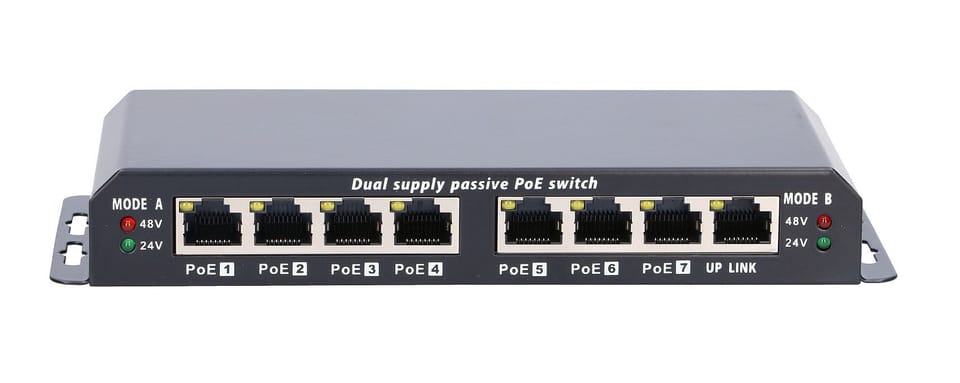

EXTRALINK POE SWITCH 8-7 PORT 24V 90W POWER SUPPLY
is a switch combining high performance, 8 10/100 Mbps ports including 7 PoE ports. PoE switch uses an external power supply from 18V to 57V. The device is designed for use in the home and small business. It is a cost-effective solution for environments where the power supply is not available or too expensive to install
Features:

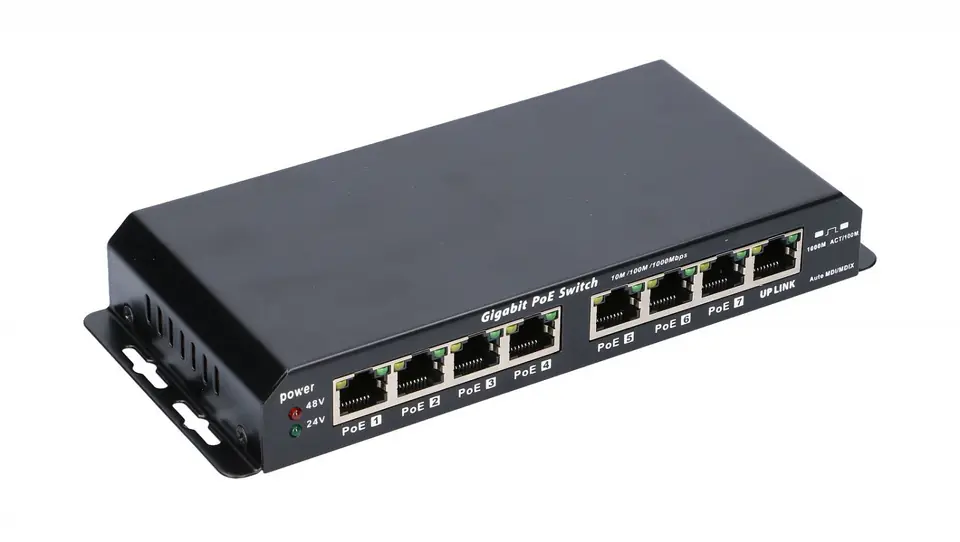

- 8 ports with 10 / 100Mbps bandwidth
- Available power options:
- 18V, 24V, 48V, 56V
- 30W, 60W, 120W
- Input 100 to 240 V AC

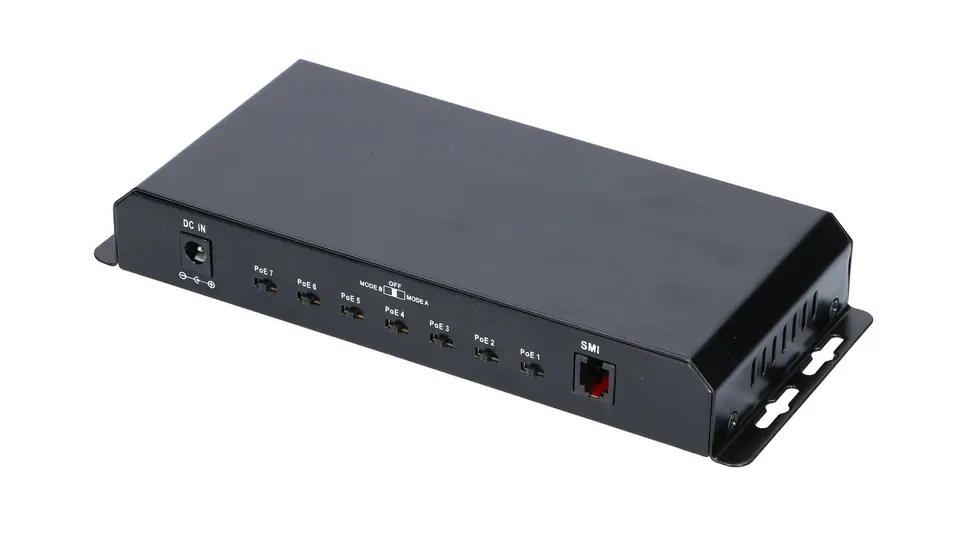

- PoE outputs can work in two modes:
- Mode A data and power supply on 1/2 (-) and 3/6 (+) pins
- Mode B power supply on 4/5 (+) and 7/8 (-) pins and data on 1/2 and 3/6 pins
- Dual PTC fuses on each PoE output port
- One 650mA fuse per port in A mode
- One 1000mA fuse per port in B mode

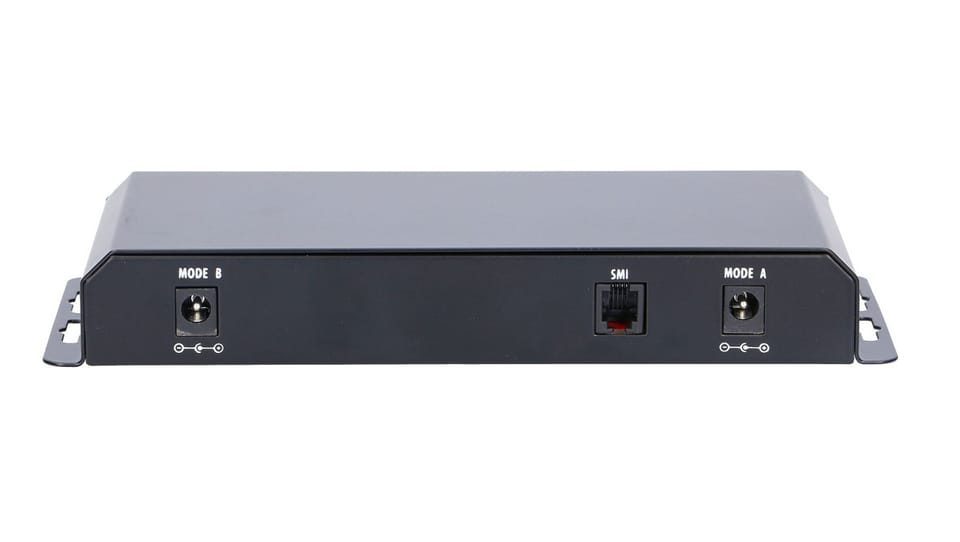

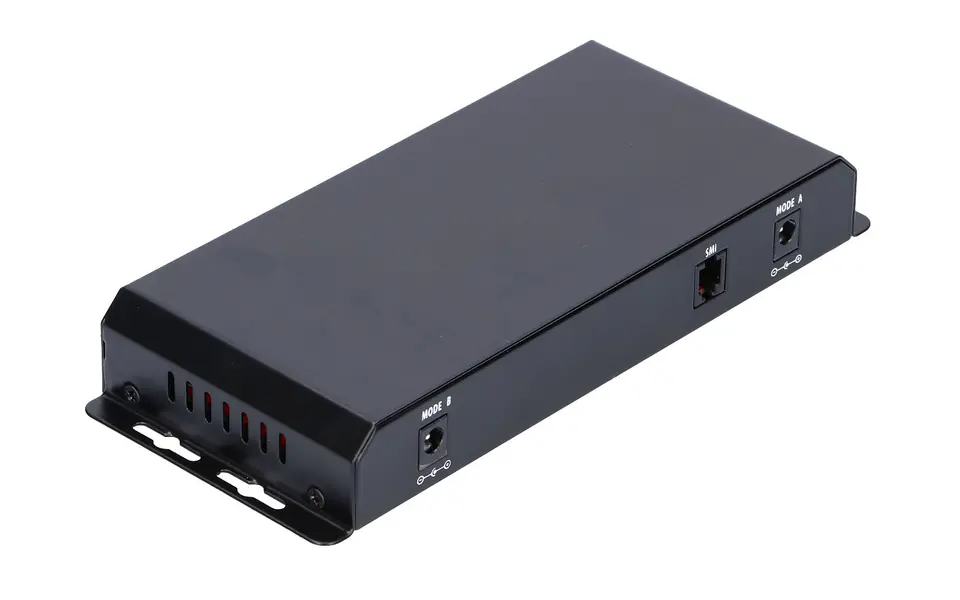

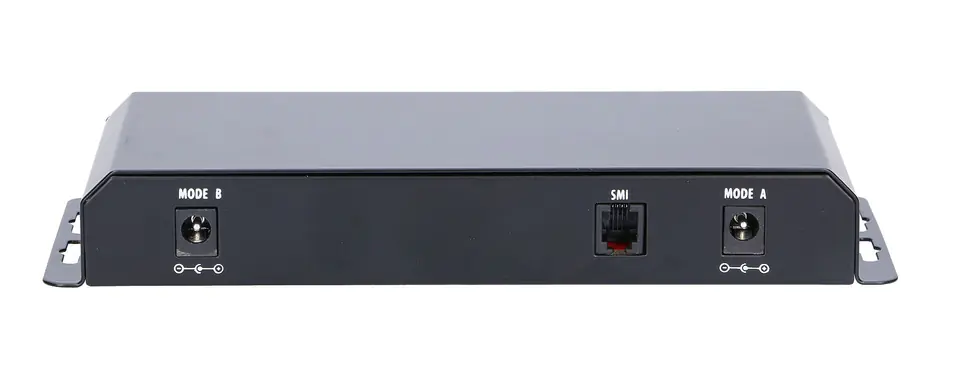

- Input power supply mode A, B with LED

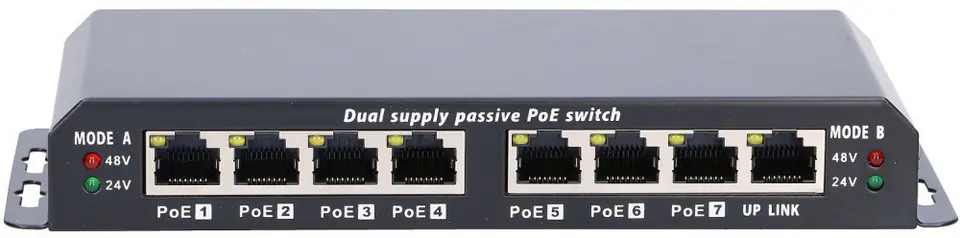

- The LED indicates operation of 18/24 V or 48 / 56V
- Maximum input current to 2.5 A mode
