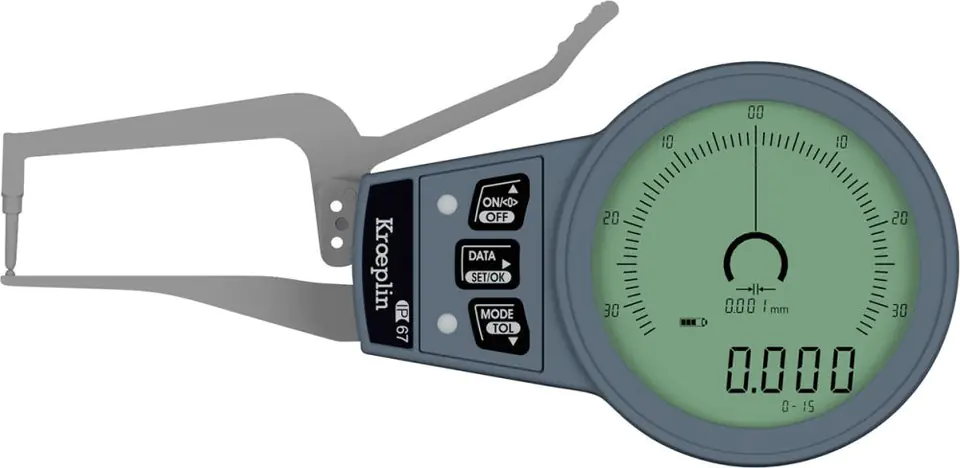

External measuring tentacles for measuring tubes 0-15mm KRÖPLIN

This product is not available
Availability:
expected delivery
Brand:
Kroeplin
Product code:
C0R15 / 4053569817127

Specification

Depth of measurement:45 mm
Error limit:0.01 mm
L. fixed measuring tip:0.9 mm
L. measuring tip movement.:17.0 mm
Measuring load:1.3–1.5 N
Measuring range:0-15 mm
Read:0.001 mm
Repeatability limit:0.005 mm
Type of measuring tip:ball Ø 1,5 #[2] mm

Tentacles for external measurements, reading in μm, INDUCTION

Design: electronic measuring tentacles with reading in μm. Display with 250° analog display range. LiPo battery with inductive charging technology . Possibility to set tolerance ranges and numerical increment values of 0.001/0.002/0.005/0.01 mm.
Functions: absolute and relative measurement program, mm/inch switching, red-green traffic lights for tolerance measurements, numerical increment value switching.
Application: for quick measurement of grooves, holes and wall thicknesses.
