Extension for shrink holders, length adjustable, h6 160x25x16mm HAIMER

Name: Extension for shrink holders, length adjustable, h6 160x25x16mm HAIMER
Brand: HAIMER
SKU: 1030914
Price: 597.5 PLN
Availability: InStock

PLN 597.50

Shipping from warehouse: ⁨B6⁩

Estimated shipping: Tue, Jan 27 - Fri, Jan 30

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: HAIMER
Product code:: 78.250.16 / 4034221024336

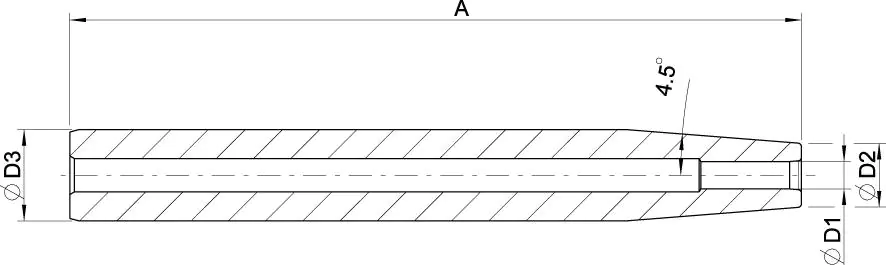

Specification

A:	160 mm
Additional cooling adapter (size):	–
Alpha:	4,5 °
Diameter d1:	16 mm
Diameter d2:	22 mm
Diameter d3:	25 mm
Heatsink cooling:	6-8 mm

Precision extension for shrink holders

Design: minimal radial runout, possibility of optimal and virtually unlimited extension. For universal use, reusable. H6 grip tolerance.
Application: for carbide and HSS grips.
Note: vibration-dampening extensions for heavy metal core shrink holders are available on request.

Note: with screw for length adjustment (adjustment section 10mm). Note: with screw for length adjustment (adjustment section 10mm).

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
