Extension for hydraulic clamping brackets
Design: central coolant supply. Narrow interfering contour. Wide clamping range due to the use of reduction sleeves.
Usage: for extension and adjustment in hydraulic chucks and collet holders.

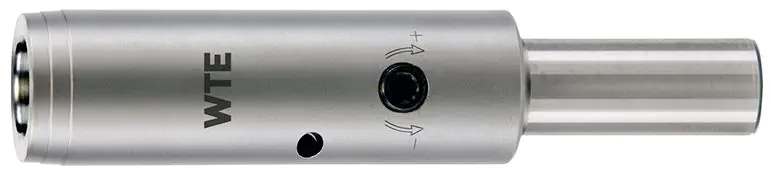

Extension for hydraulic.handles clamp. 32-20mm/150mm WTE
This product is not available
- Availability:
- expected delivery
- Brand:
- WTE
- Product code:
- 30479024 / 4053569749794
Share this product:

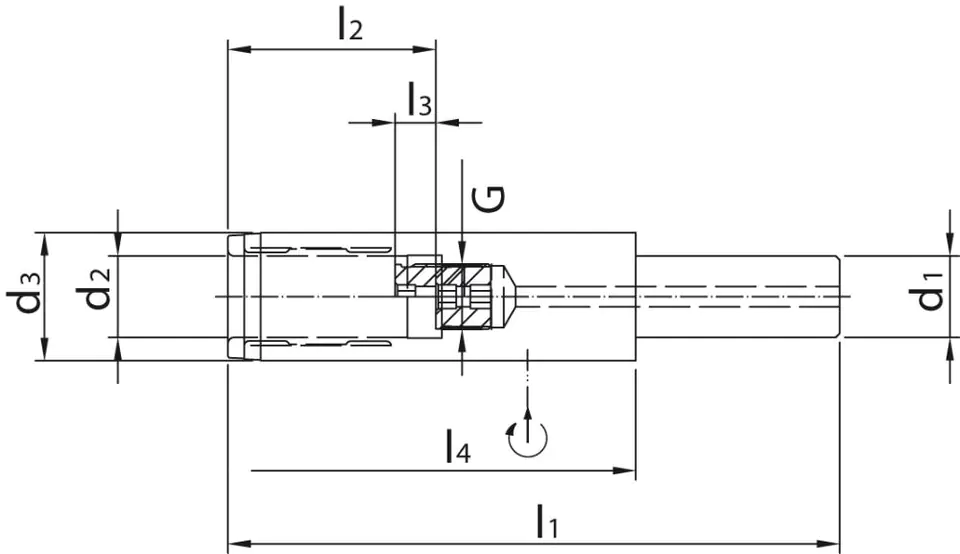

Specification
| D1: | 32 mm |
|---|---|
| D2: | 20 mm |
| D3: | 31.5 mm |
| G: | M16 x 1 |
| Key size: | 5 mm |
| L1: | 150 mm |
| L2: | 51 mm |
| L3: | 10 mm |
| L4: | 90 mm |
