| Device type:: | RECEIVER |
|---|---|
| Dimensions:: | 110 x 58 x 26 mm |
| Hdcp:: | 1.4 |
| Max. number of simultaneously operating receivers:: | 237 |
| Maximum transmission range:: | 100 m UTP cat. 5e 120 m UTP cat. 6 |
| Operating temperature:: | 0 °C ... 60 °C |
| Permissible relative humidity:: | 10 % ... 90 % (non-condensing) |

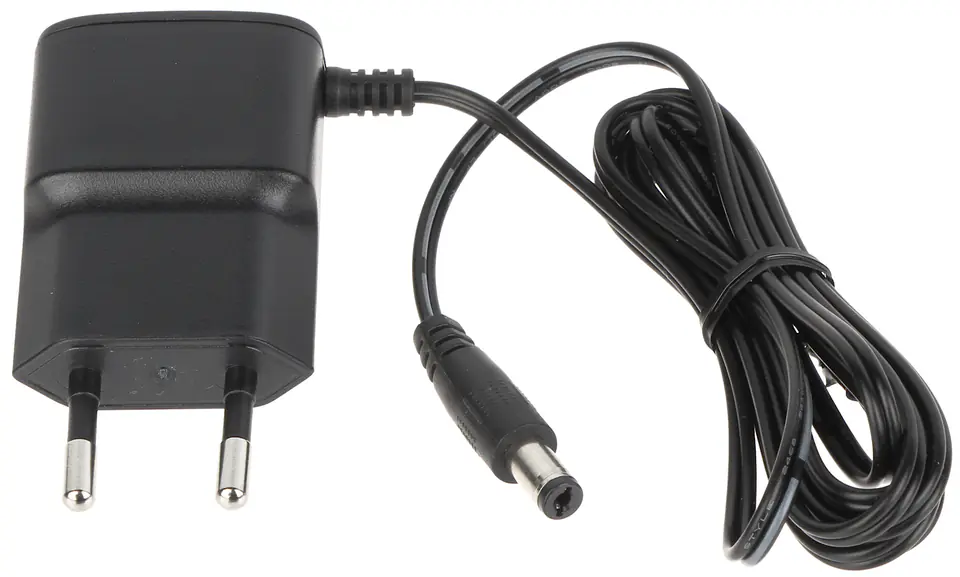

| Power:: | 5 V DC / 1 A (power supply included) |
| Protocols:: | HDbitT |
| Scales:: | 0.13 kg |
| Supported hdmi resolutions:: | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p |
| Supported hdmi standard:: | 1.3 |
| Warranty:: | 2 years |
The device enables the transmission of a high-definition signal to a TV set equipped with an HDMI connector via twisted pair computer cat. 5e, 6

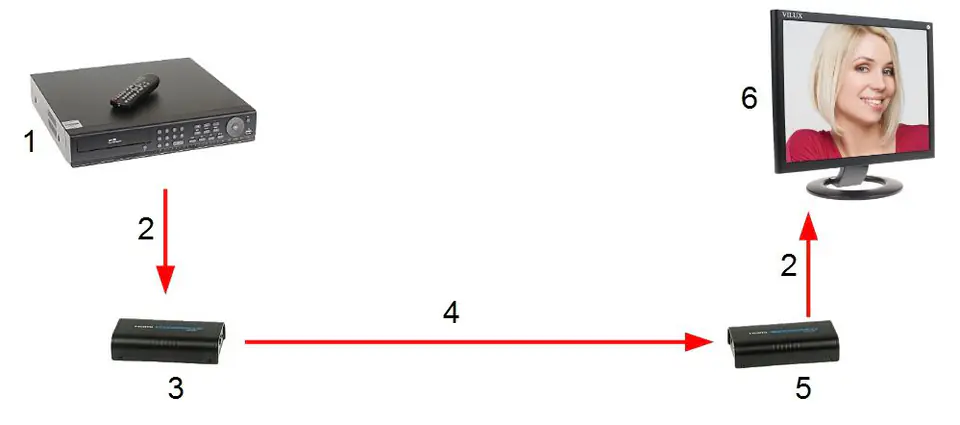

HDMI-EX-120/RX-V4 is ideal for connecting a satellite tuner, DVD player, computer or console to a receiver that is far away from these devices Only one twisted pair cable should be brought to the TV, which facilitates the installation of the device and improves the aesthetics of the installation
