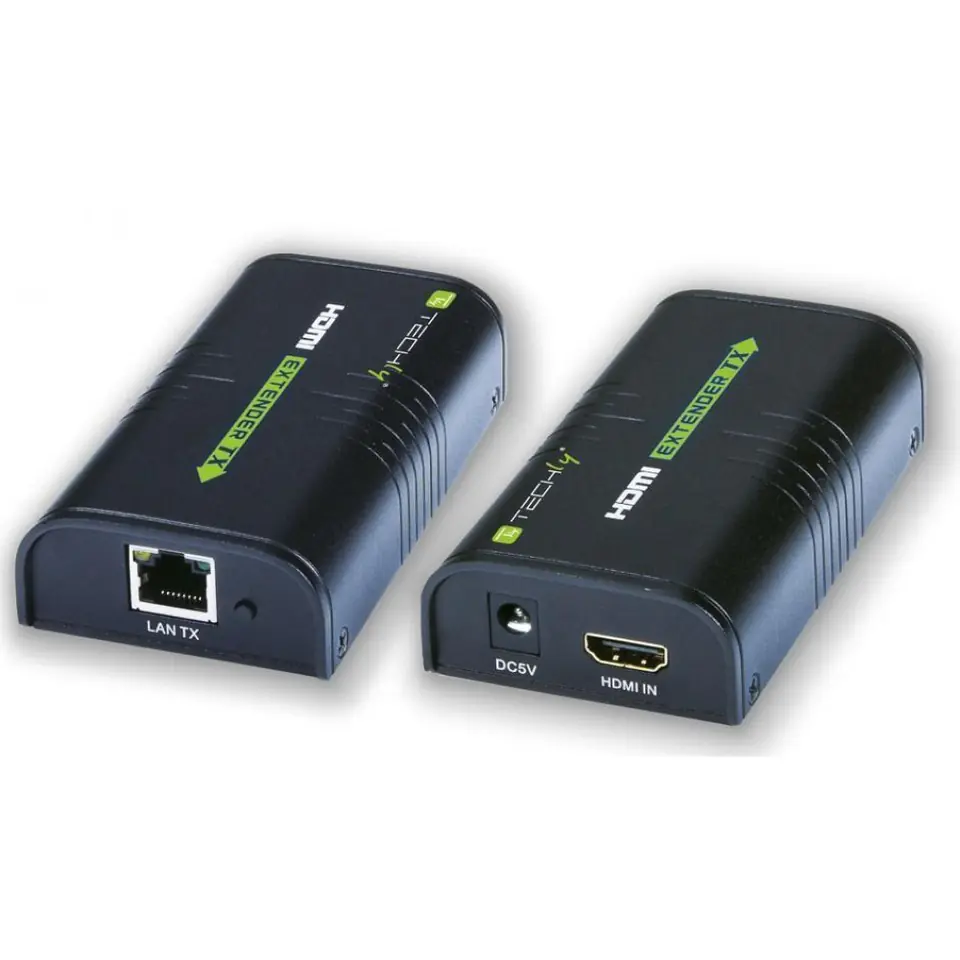

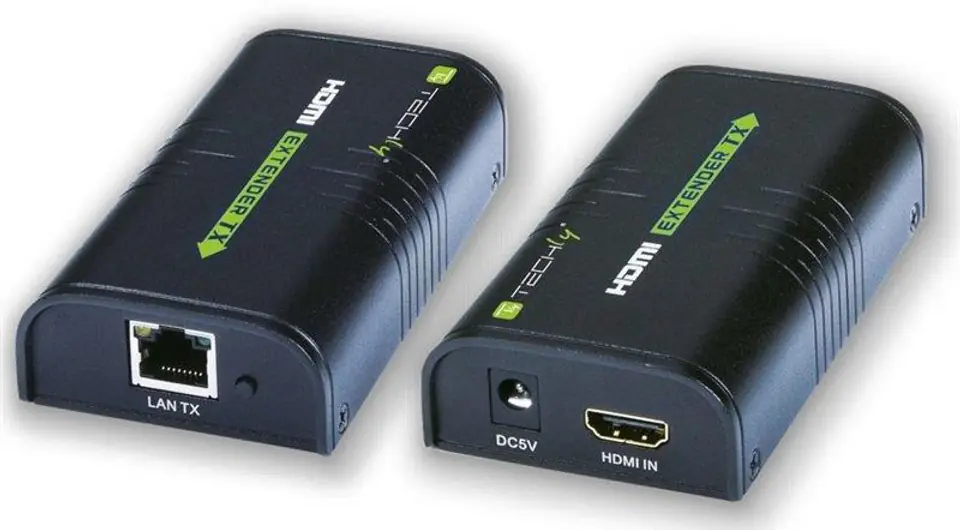

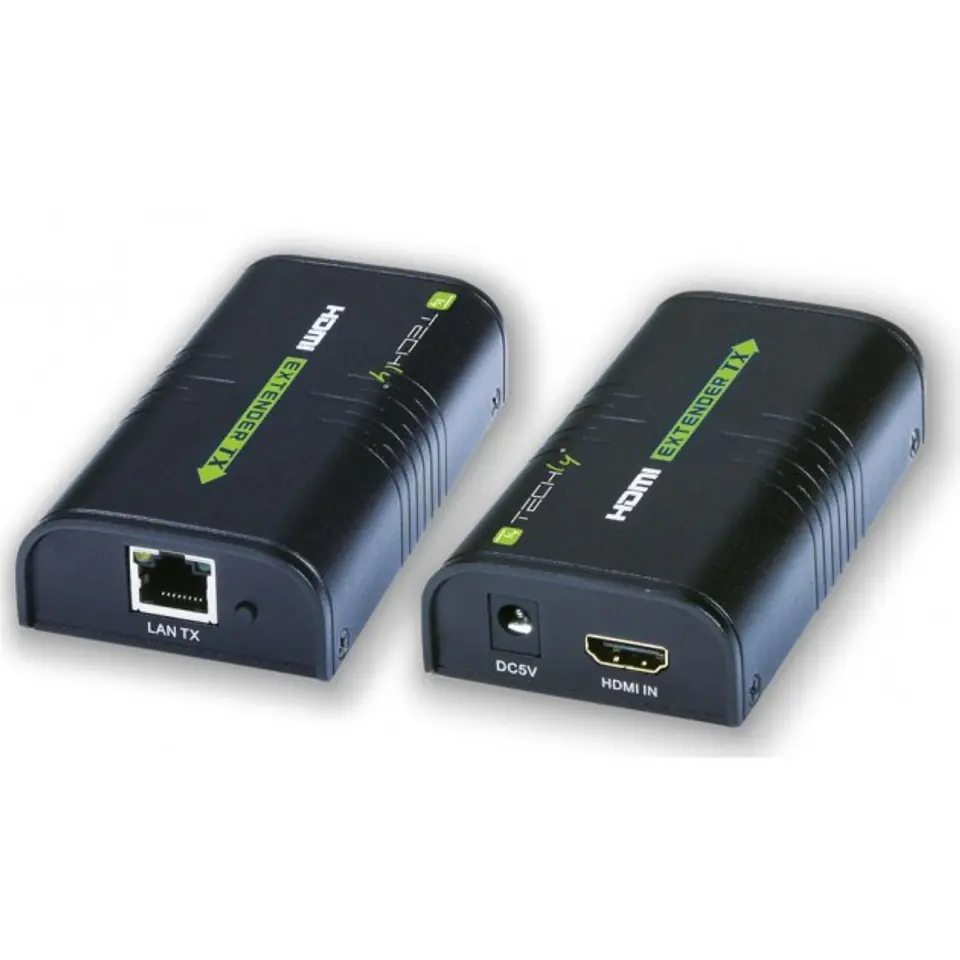

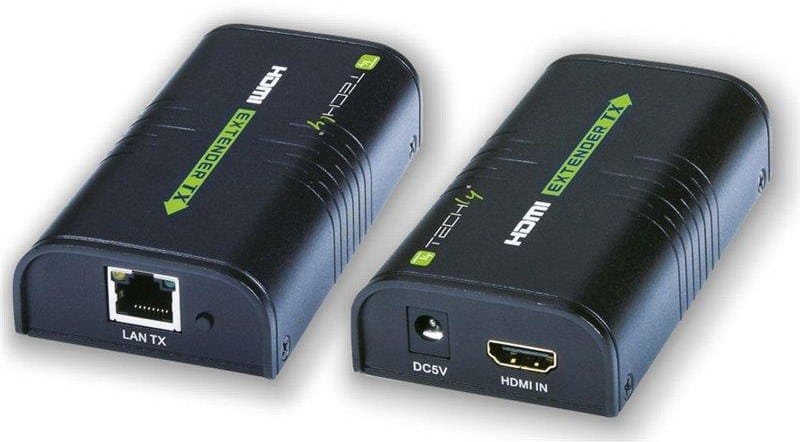

Extender/HDMI splitter after Cat.5e/6/6a/7 twisted pair, over IP

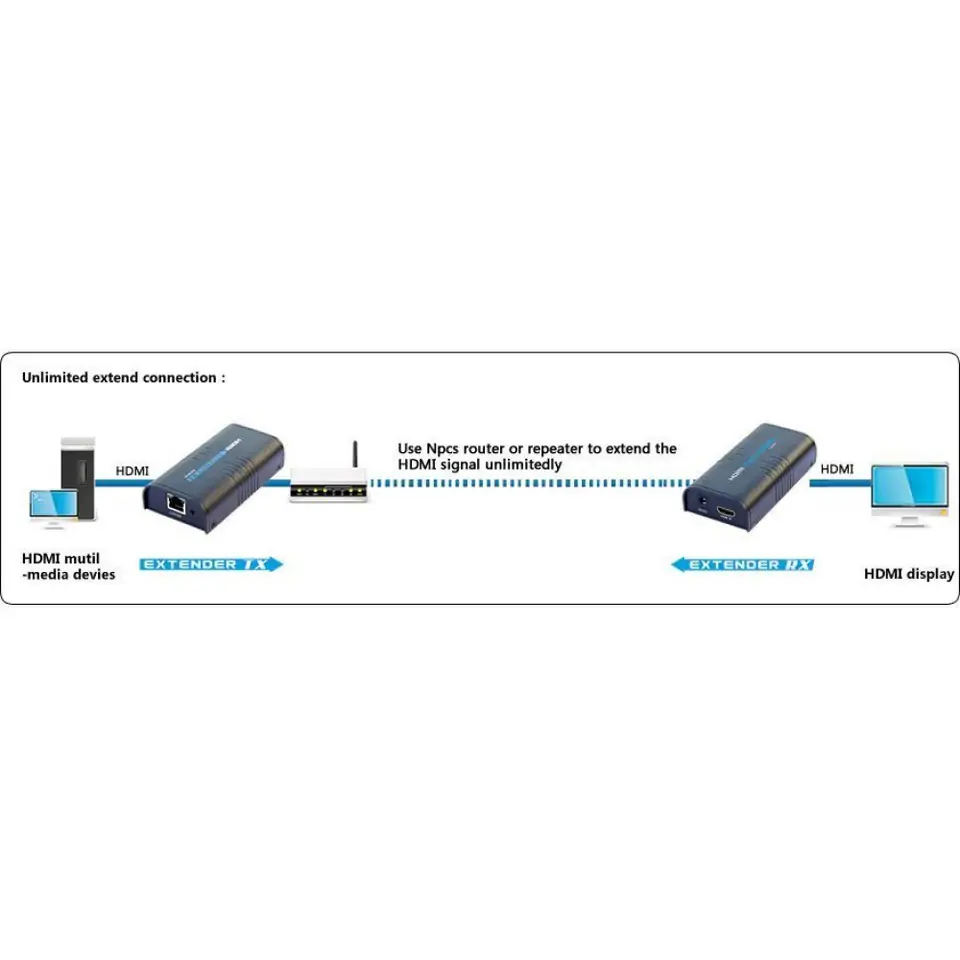

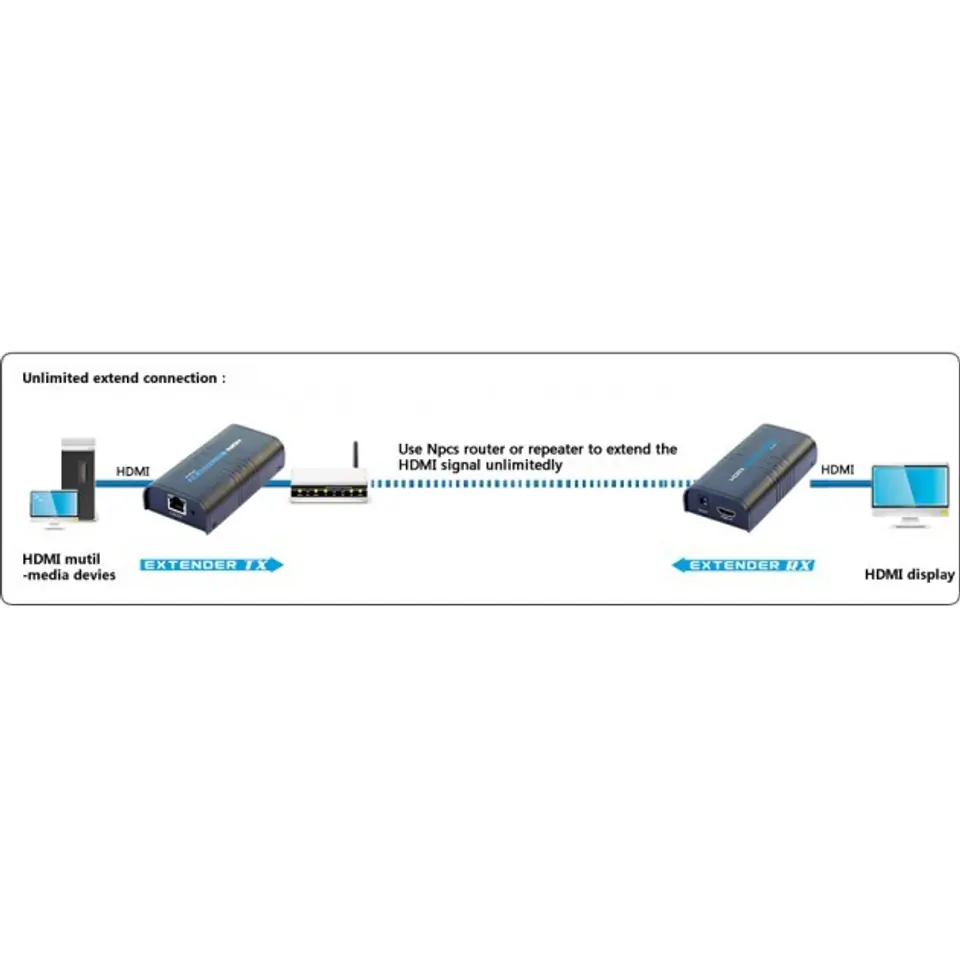

- A simple way to transfer an HDMI AV signal using a network cable

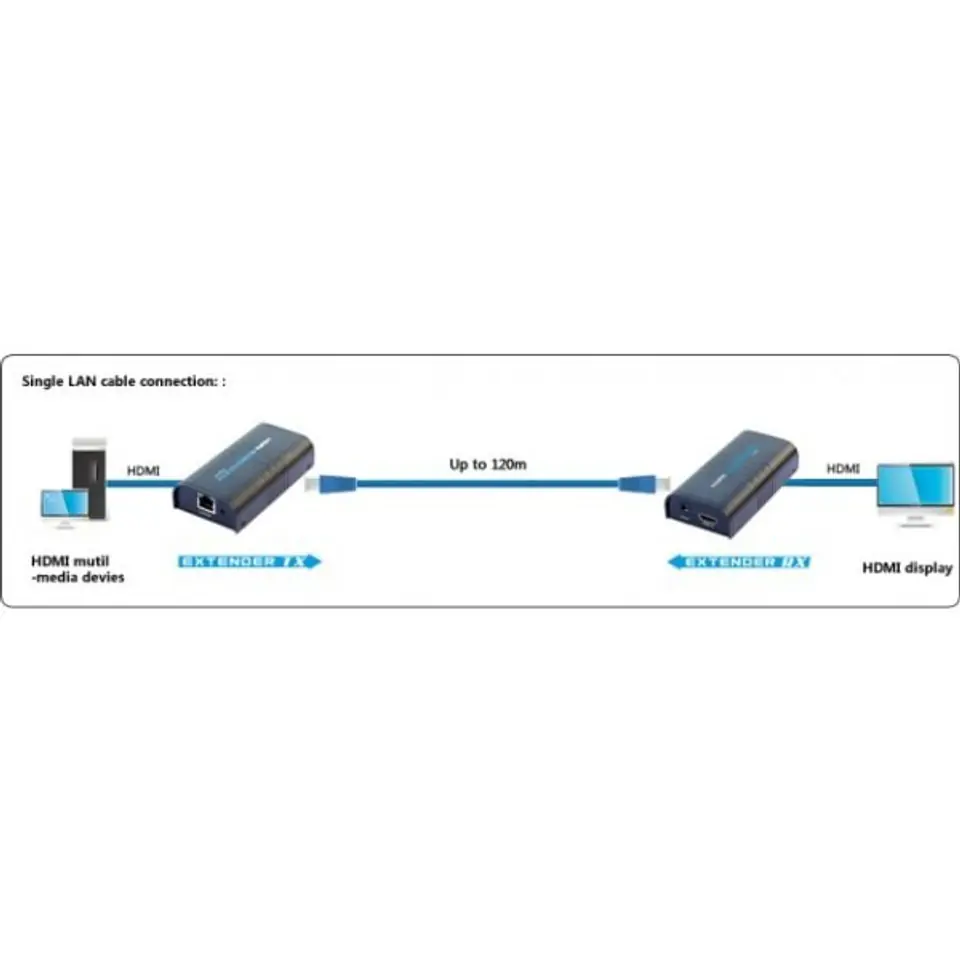

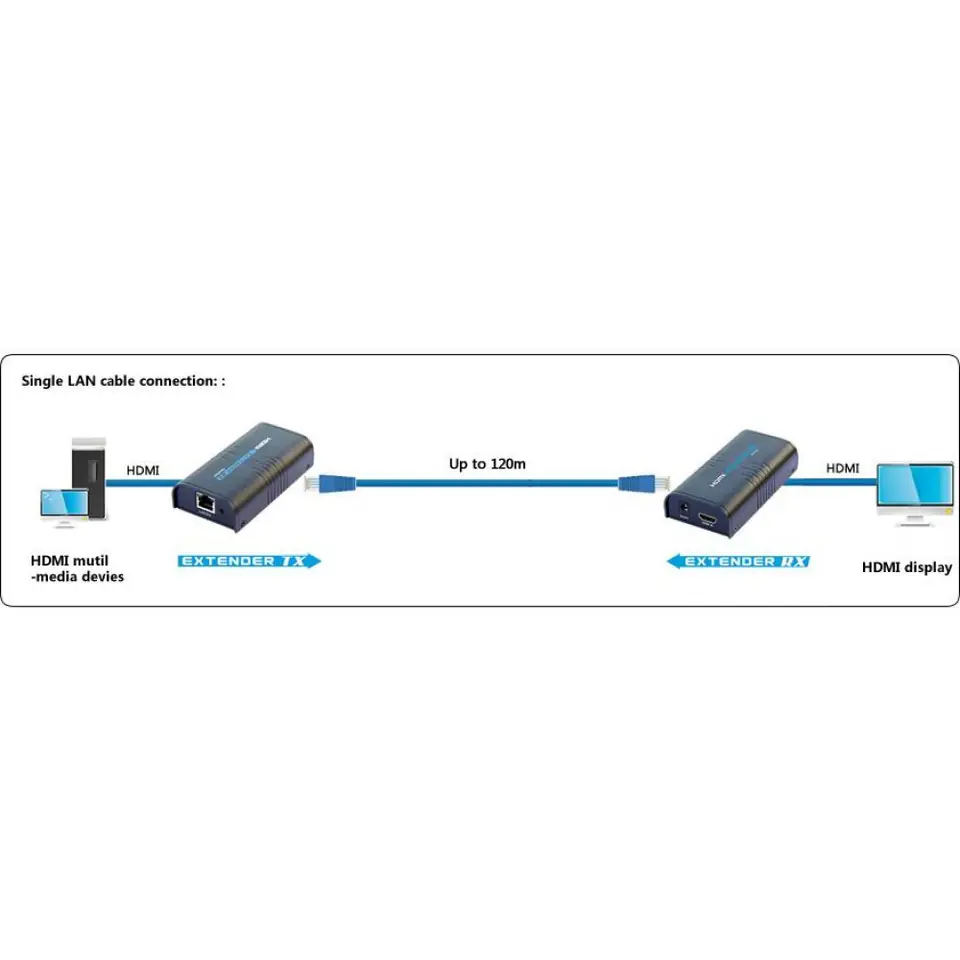

- HDMI signal transmission up to 120m
- Supports Full HD 1080p resolution at 50 / 60Hz and 3D video

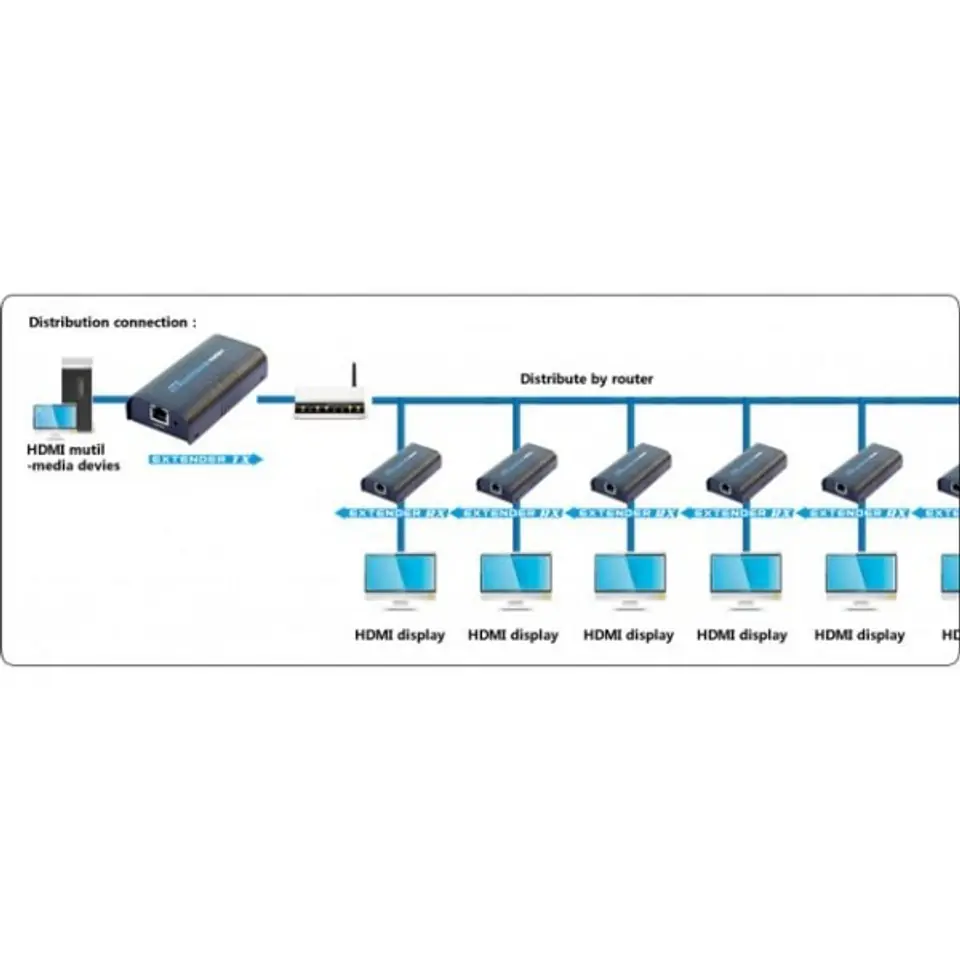

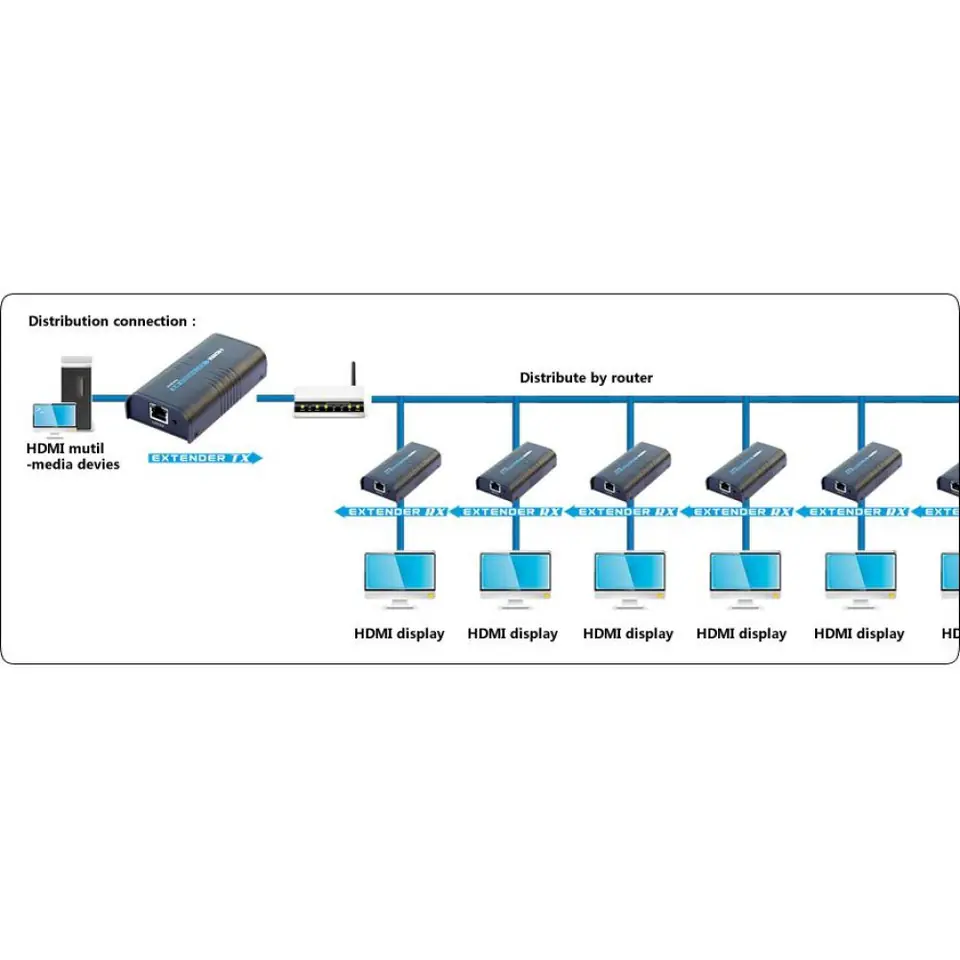

- Up to 253 receivers (P / N: 306011) can be connected to one transmitter using the Ethernet switch
- Supports high-definition multi-channel audio Dolby Digital Plus, LPCM 7.1, Dolby TrueHD and DTS Maser Audio
- Works with any source device with HDMI output port
- Works with any display with HDMI
Extender/HDMI splitter after cable Cat.5e/6/6a/7 up to 120m, over IP, black
€164.86
Shipping from warehouse: M7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Techly
- Product code:
- 306004 / 8057685306004
Share this product:
Specification
| 3d: | No |
|---|---|
| Ac adapter included: | Yes |
| Audio support: | Yes |
| Cable types supported: | Cat5e, Cat6 |
| Colour depth: | 36 bit |
| Current: | 1 A |
| Dc-in jack: | Yes |
| Depth: | 106 mm |
| Hdcp: | Yes |
| Hdmi in: | 1 |
| Height: | 26 mm |
| Manual: | Yes |
| Maximum resolution: | 1920 x 1200 pixels |
| Maximum transfer distance: | 120 m |
| Number of hdmi outputs: | 1 |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | -10 - 60 °C |
| Operating voltage: | 5 V |
| Power consumption (typical): | 3 W |
| Product colour: | Black |
| Receiver dimensions (wxdxh): | 58 x 110 x 26 mm |
| Receiver weight: | 239 g |
| Rj-45 input ports: | 1 |
| Rj-45 output ports: | 1 |
| Supported graphics resolutions: | 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080) |
| Supported video modes: | 1080p |
| Sustainability certificates: | RoHS, CE |
| Transmitter dimensions (wxdxh): | 58 x 110 x 26 mm |
| Transmitter weight: | 239 g |
| Type: | AV transmitter & receiver |
| Vendor code: | 306004 |
| Weight: | 540 g |
| Width: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
