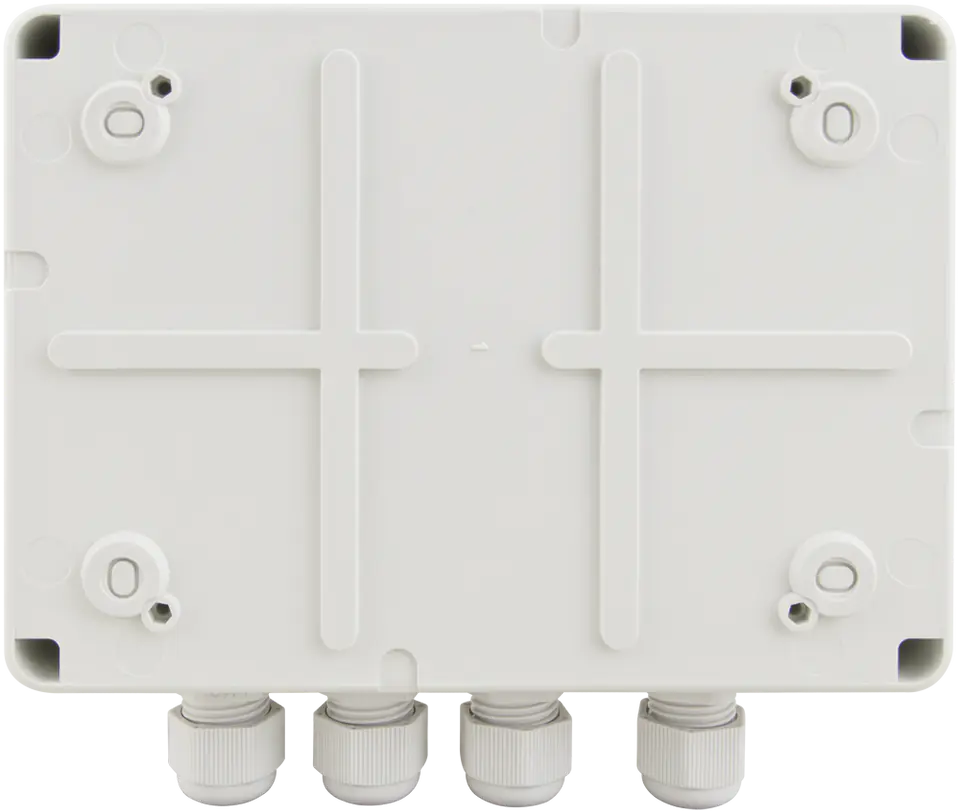

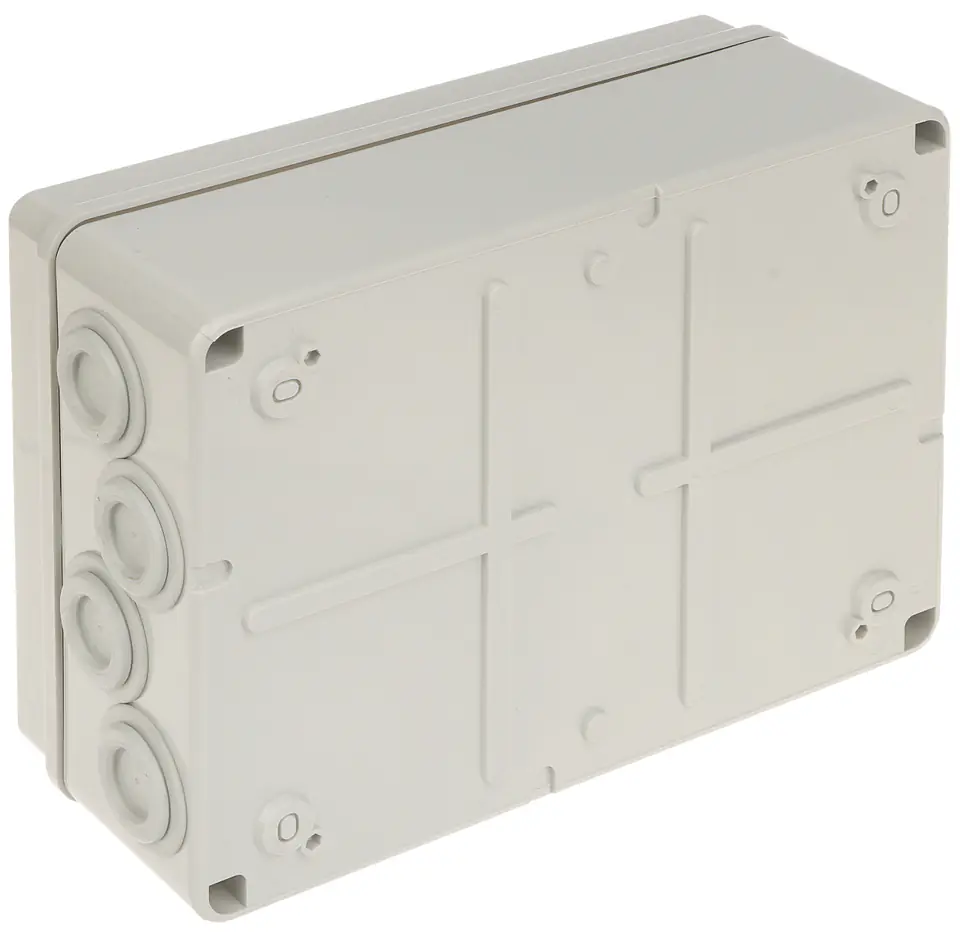

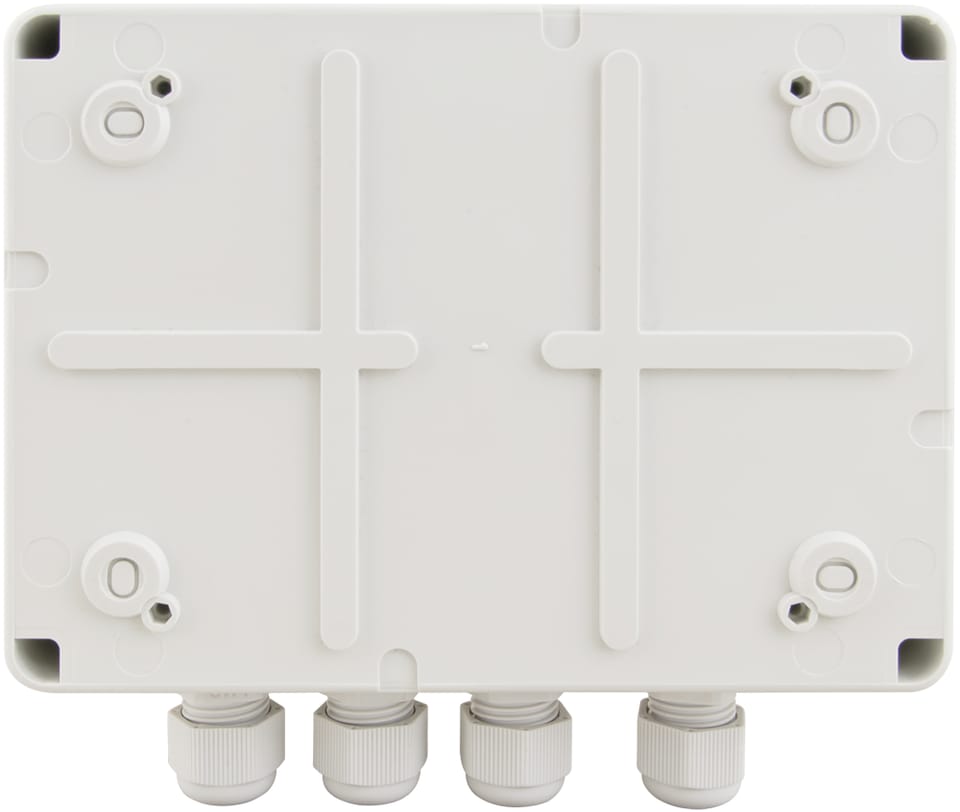

| Case: | Plastic, airtight |
|---|---|
| Dimensions: | 198 x 148 x 78 mm |
| Input voltage: | 42 ... 57 VDC |
| Joint: | 3 x RJ-45 jack |
| Number of inputs: | 1 |
| Number of outputs: | 2 |
| Operating temperature / relative humidity: | -10 ... 40 °C / 10 ... 90 % |
| Output power: | 15.4 W / PoE port OUT 1/2 ,max. 20 W (total) |
| Output voltage: | 42 ... 57 VDC |
| Producer / brand: | PULSAR |
| Scales: | 0.55 kg |
| Sealing: | IP56 |
| Security: | Overvoltage Overload Anti-Short-circuit |

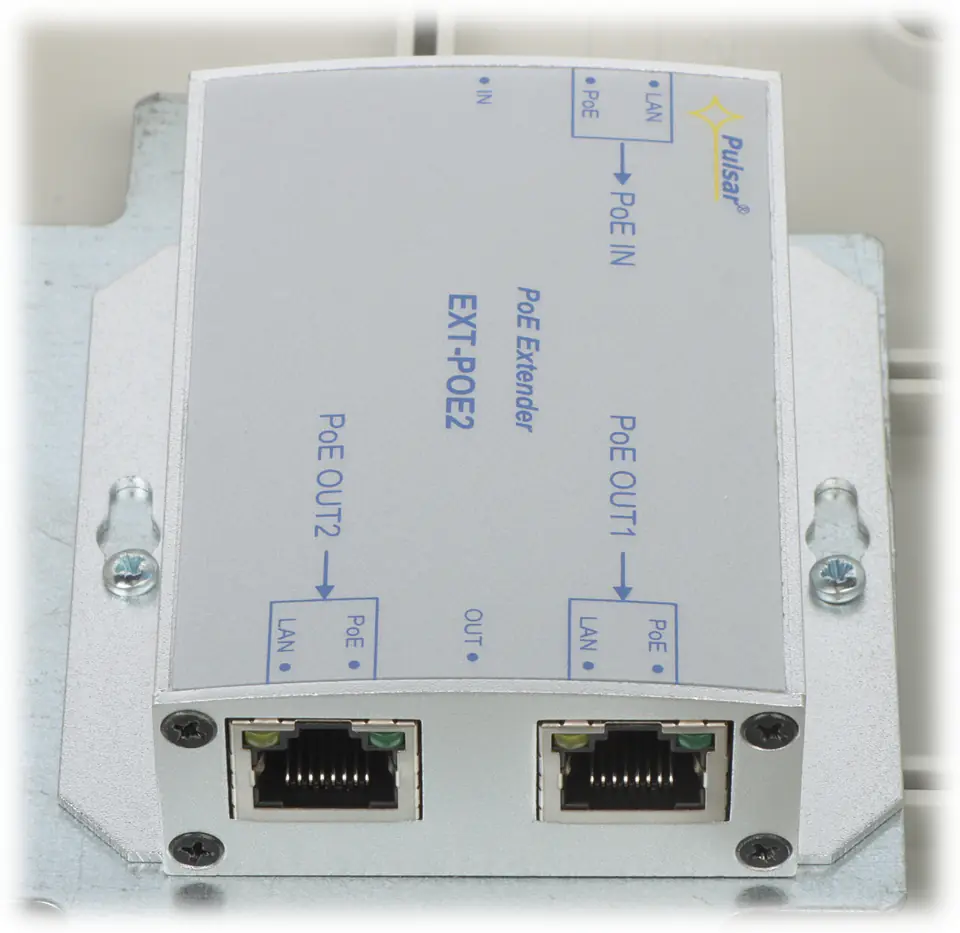

| Signalling diodes: | LAN, PoE |
| Standards: | PoE : IEEE 802.3at, IEEE 802.3af |
| Supported transmission speed: | Range : 100 m - Entrance, 100 m - 2 x Output, Supported transmission rate 10 / 100 Mbps - Fast Ethernet |
| Warranty: | 2 years |

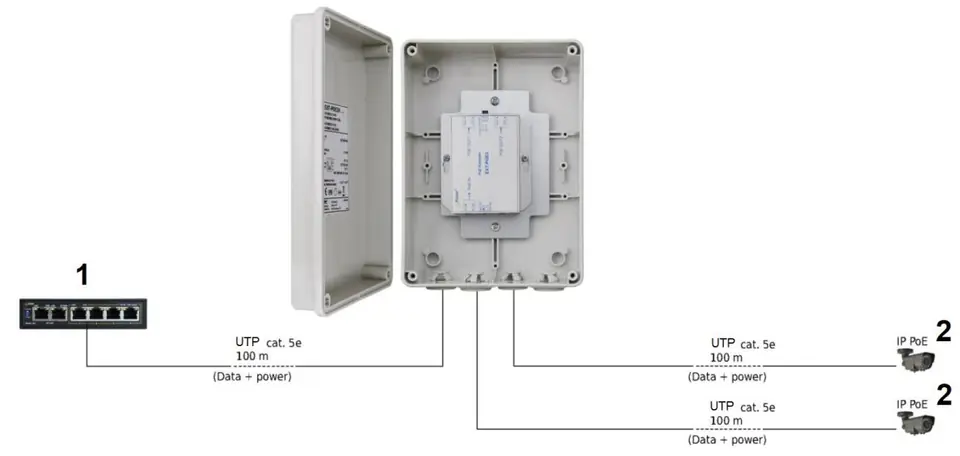

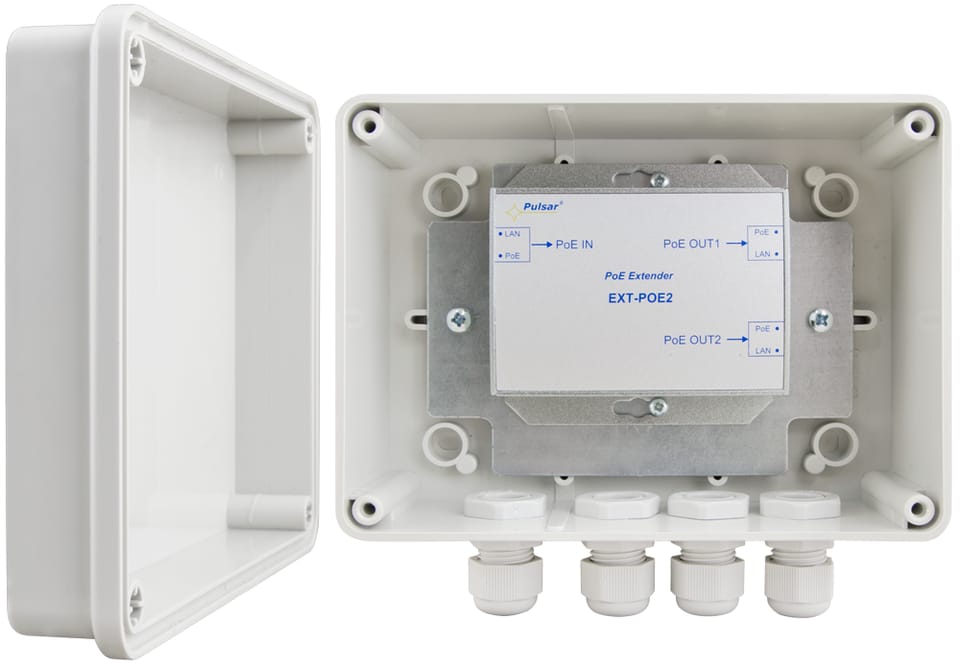

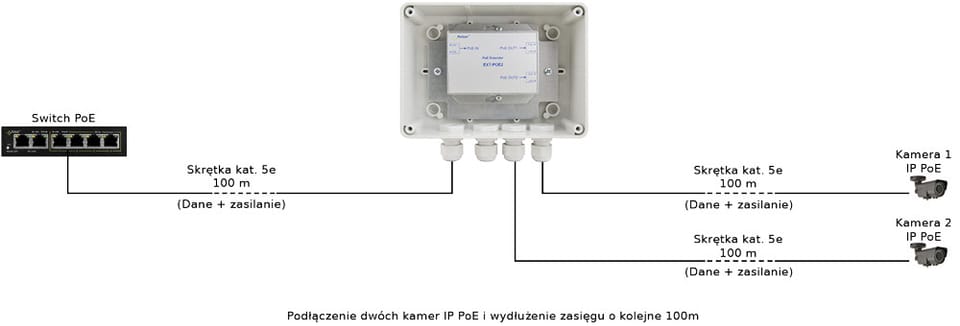

EXT-POE2H extends Ethernet data and PoE range by another 100 metersThe output voltage is compatible with the input voltage
The product meets the IP56 protection class
Remark! The device cannot be used in Gigabit Ethernet networks, where all pairs of twisted pair cables are involved in data transmission
