| Baud: | 10 / 100 Mbps Full Duplex |
|---|---|
| Dimensions: | 120 x 33 x 33 mm |

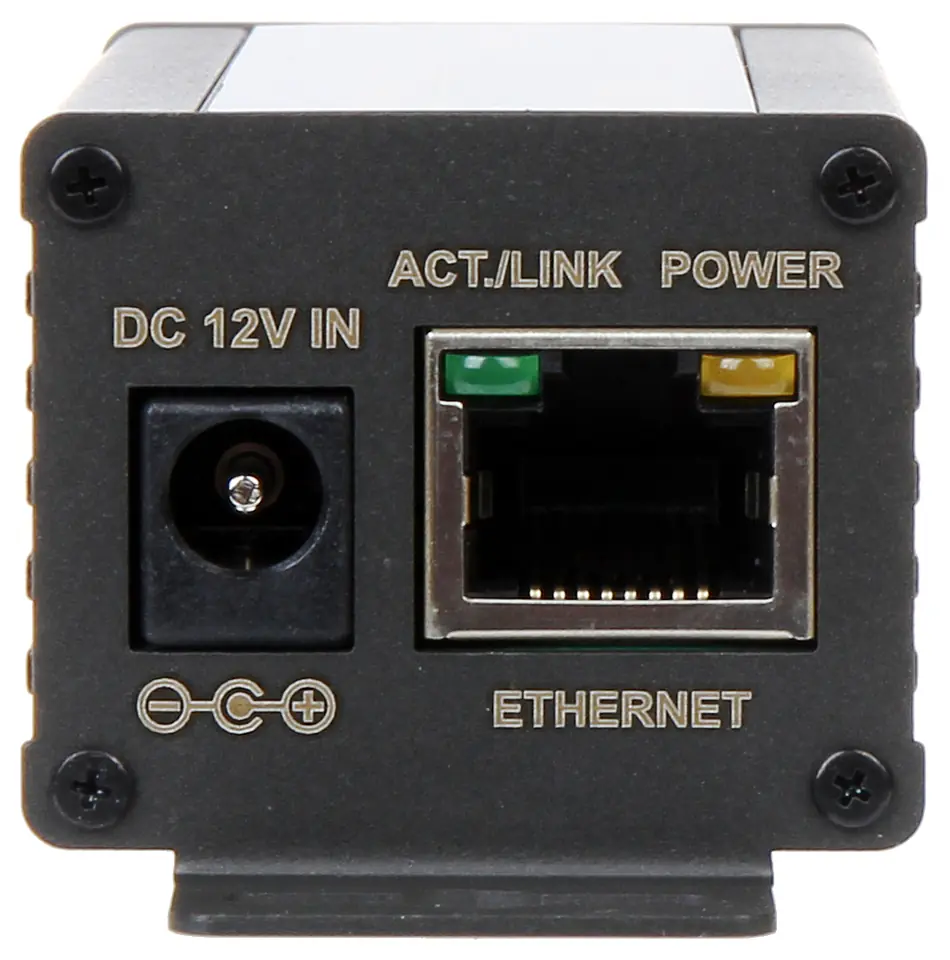

| Lan ports: | 1 pc RJ45 |

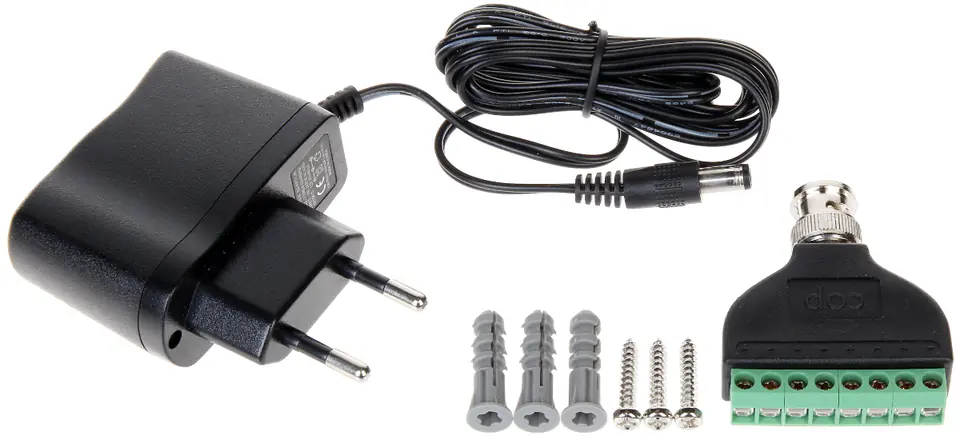

| Power: | 12 V DC / 500 mA (power adapter included) |
| Producer / brand: | COP |
| Scales: | 0.14 kg |
| Selected features: | Plug & Play The transmission device uses 1 pair of twisted pair cables for 1 IP camera |

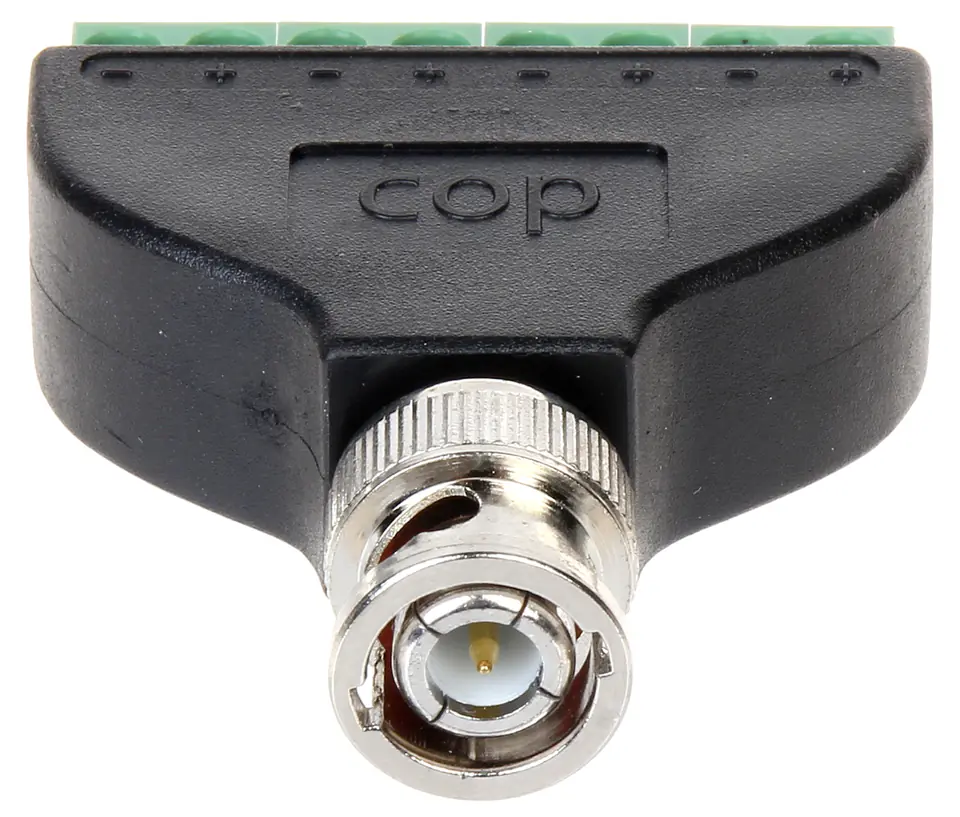

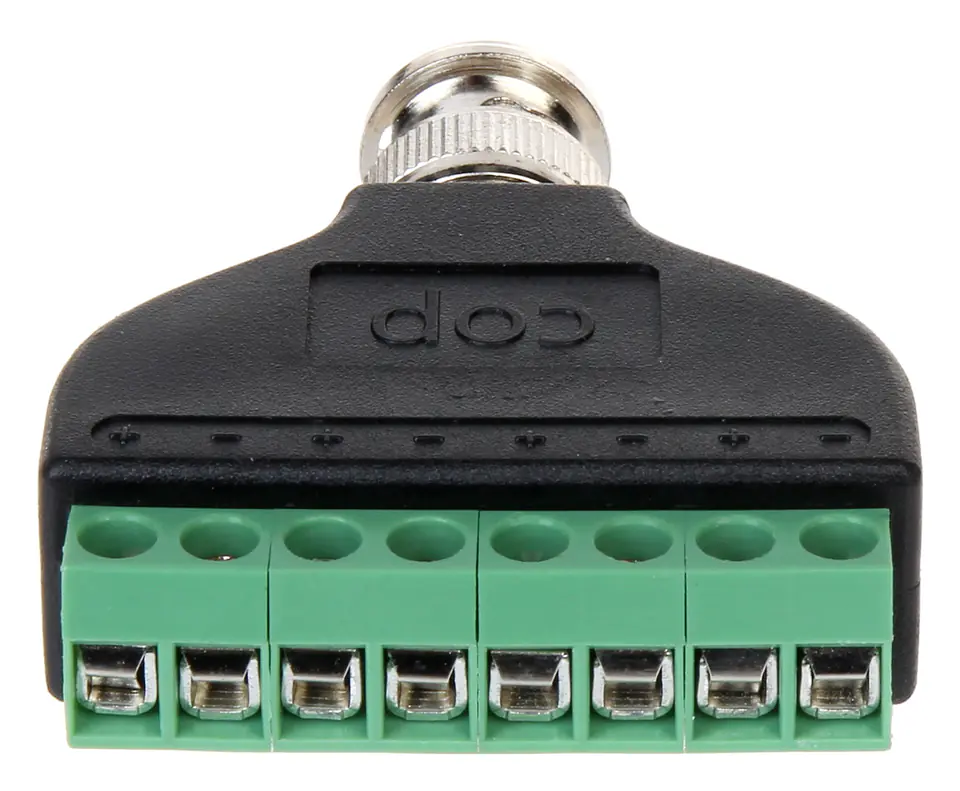

| Transmission ports: | 1 pc BNC + BNC / UTP converter - cable terminals |
| Transmission range: | .max. 1000 m |
| Warranty: | 2 years |

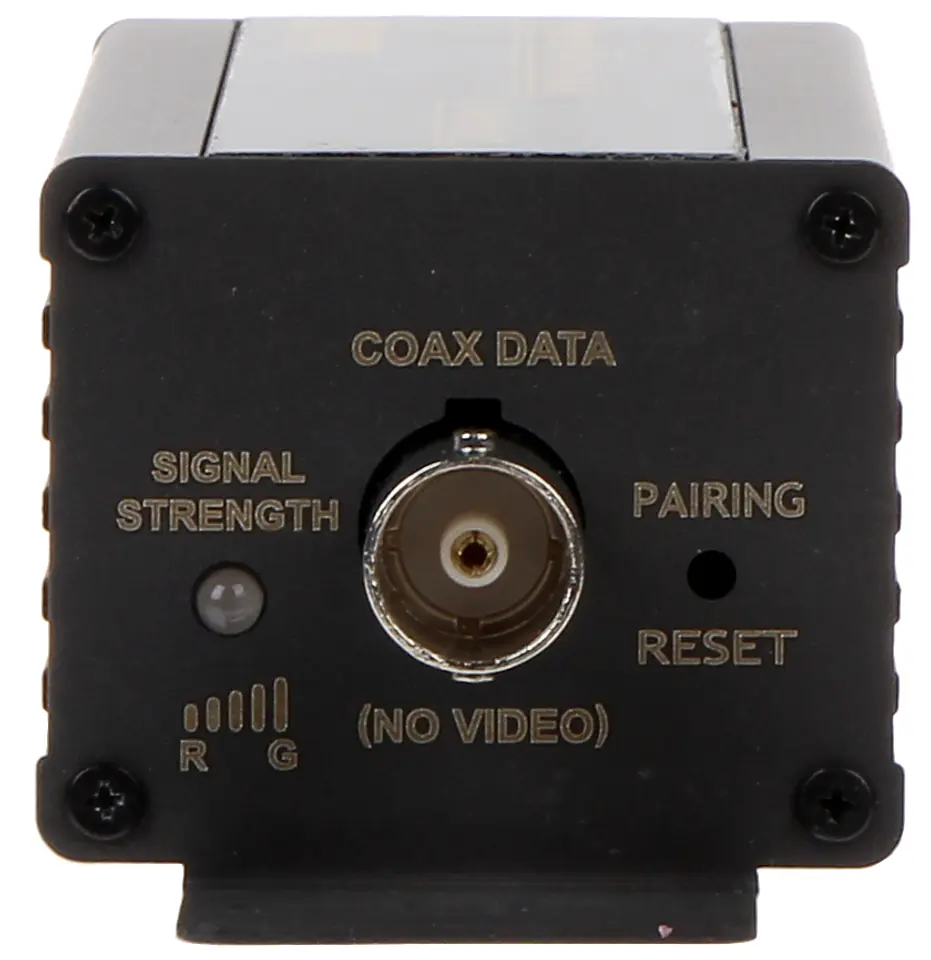

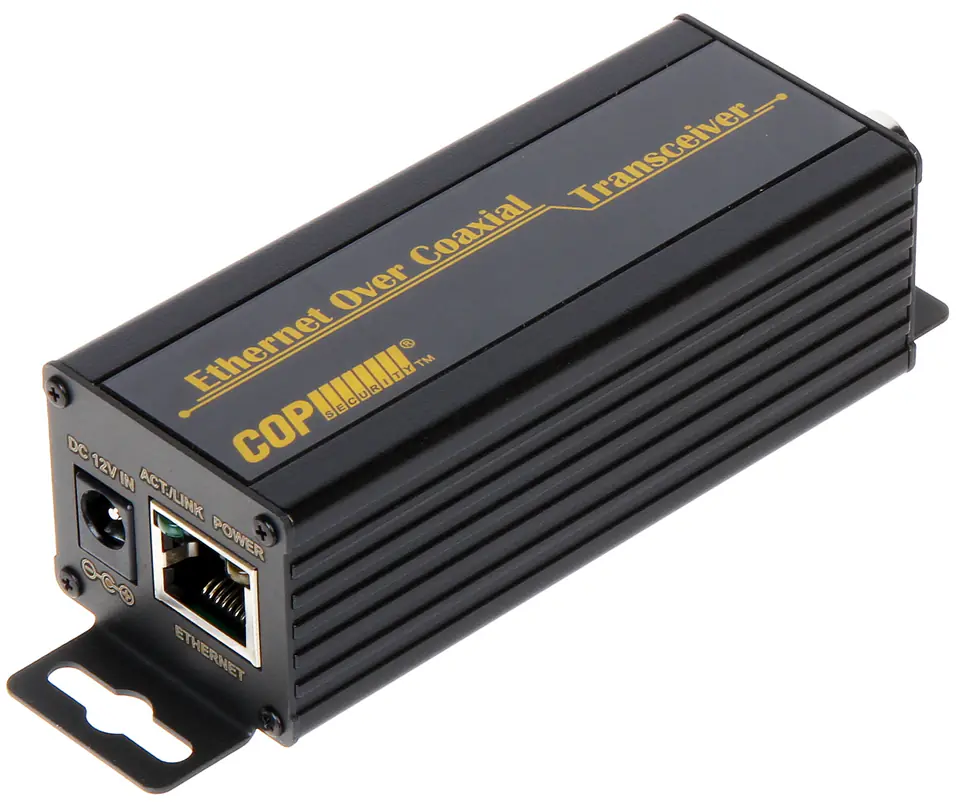

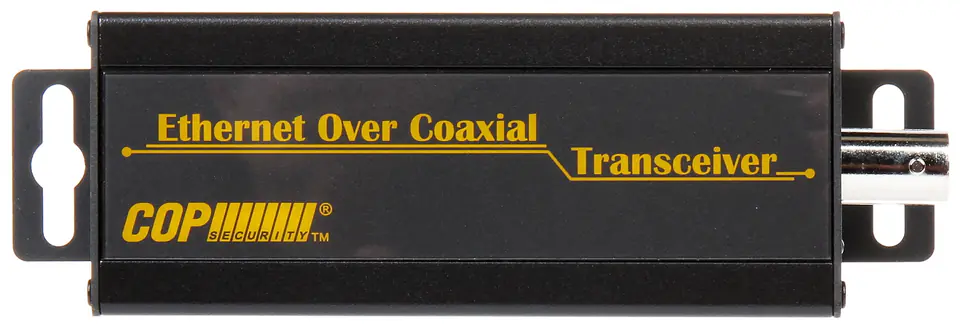

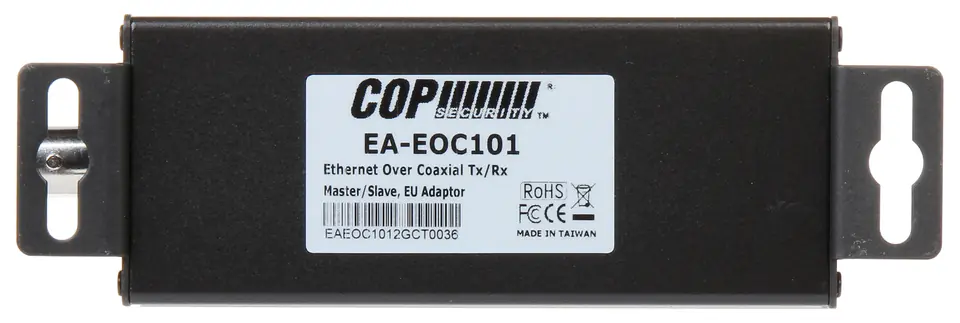

The EA-EOU101 extender allows to extend data transmission via UTP cable over a distance of up to 1000mThe device is a transmitter and receiver in one module (transceiver)

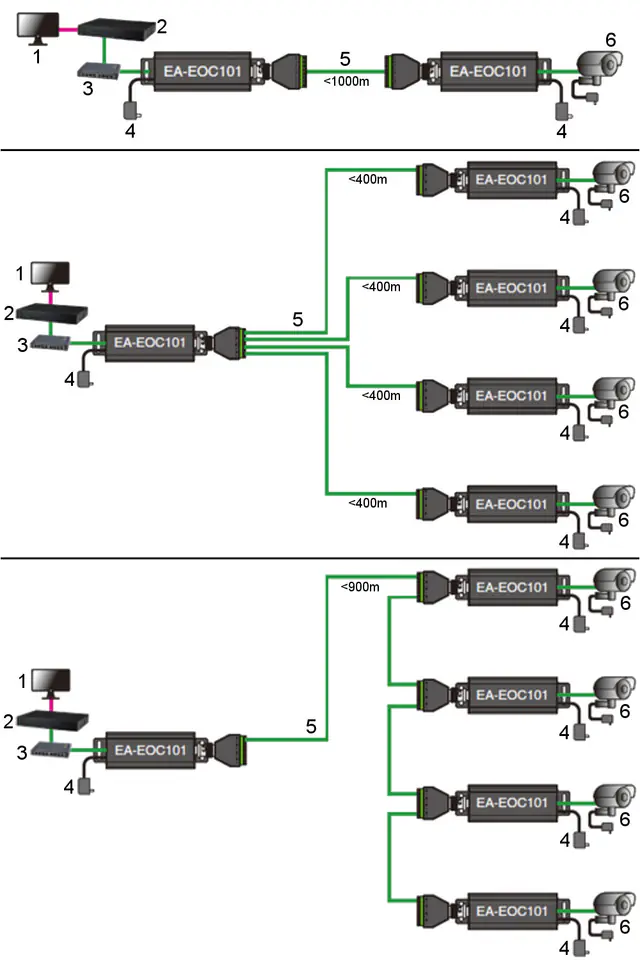

Remark! For proper operation of the device, a minimum of 2 pcs. EA-EOU101The switch side device allows you to connect up to 4 EA-EOU101 devices working on the IP camera side
After disconnecting the BNC / UTP converter, the device has the functionality of the EA-EOC101 extender and is fully compatible with it
