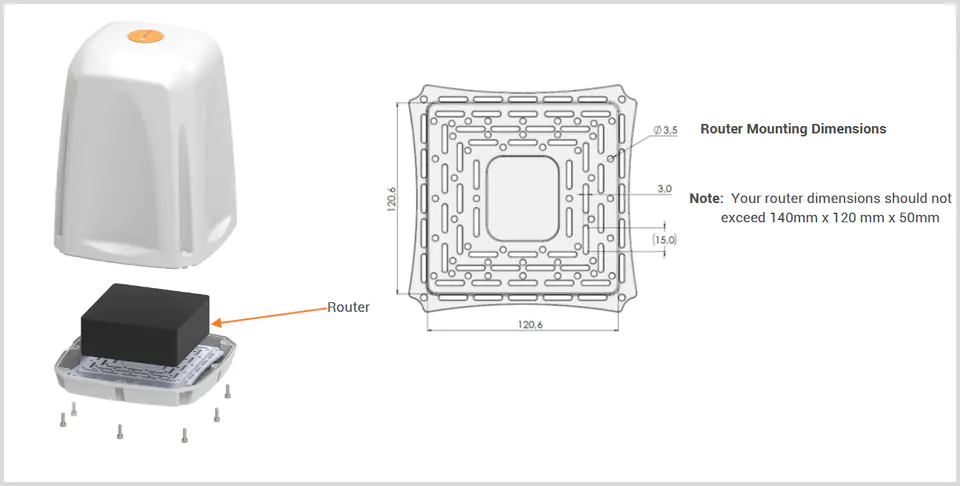

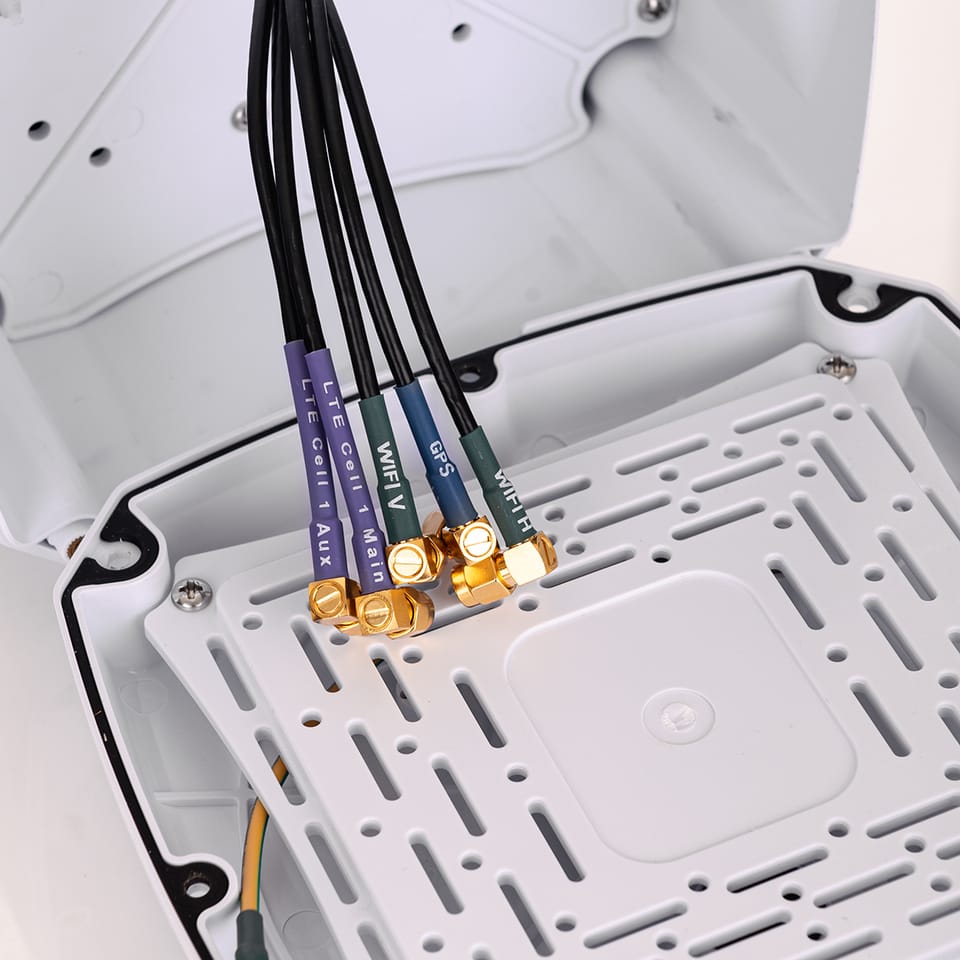

EPNT-4 outdoor enclosure for Poynting 2x2 LTE (MIMO), 2x2 Wi-Fi (MIMO), GPS router

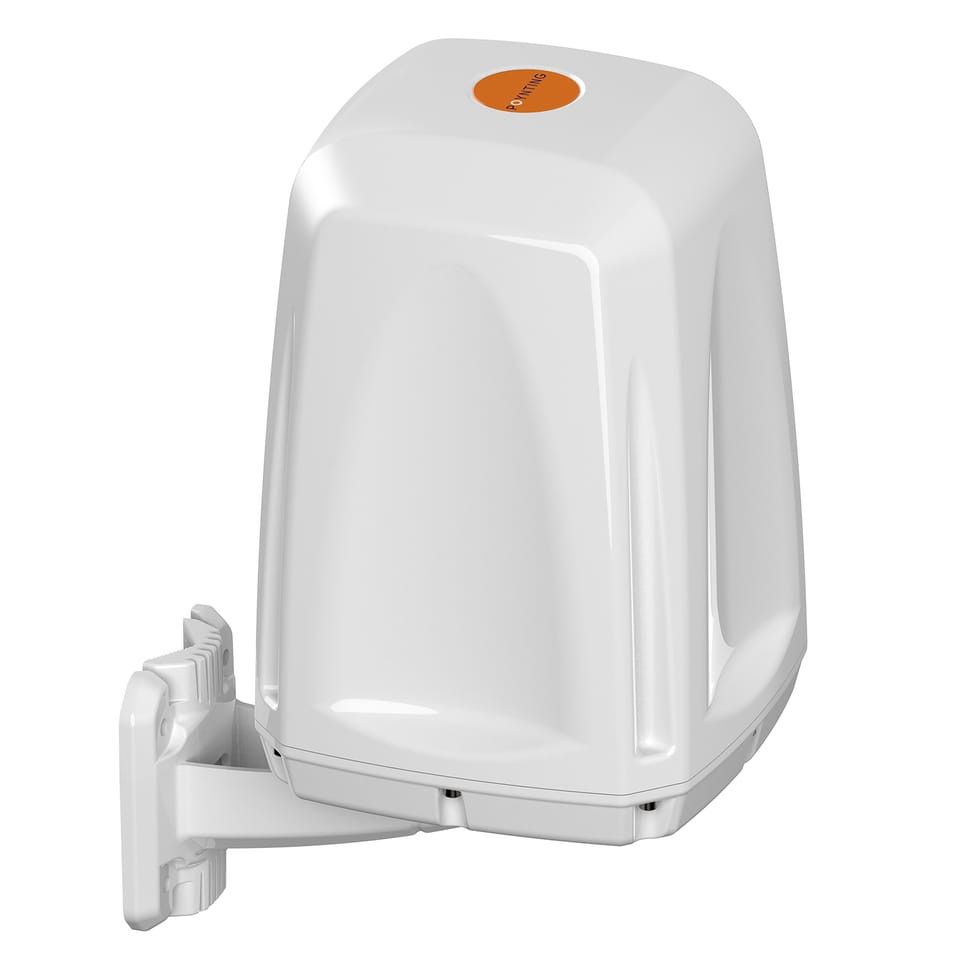

EPNT-4 is Poynting's new omnidirectional customer service equipment (CPE). The EPNT-4 offers many different antennas in one, such as 4x4 5G/LTE MIMO, 2x2 Wi-Fi MIMO, as well as an additional GPS antenna. 5G/LTE cellular antennas are broadband and operate from 617 to 4200 MHz, covering the main 5G/LTE bands with excellent gain on all frequencies, enhancing 5G performance features such as multi-band (CA) aggregation for communication. While Wi-Fi antennas offer dual-band operation and include 2.4 GHz Wi-Fi and 5 to 7.2 GHz bands with 5 dBi peak gain. In addition, the antenna components in the housing are cross-polarized, which further improves the overall performance of the antenna. Connecting our cellular and Wi-Fi antennas to your router will provide you with CPE with exceptional performance and increased data throughput.

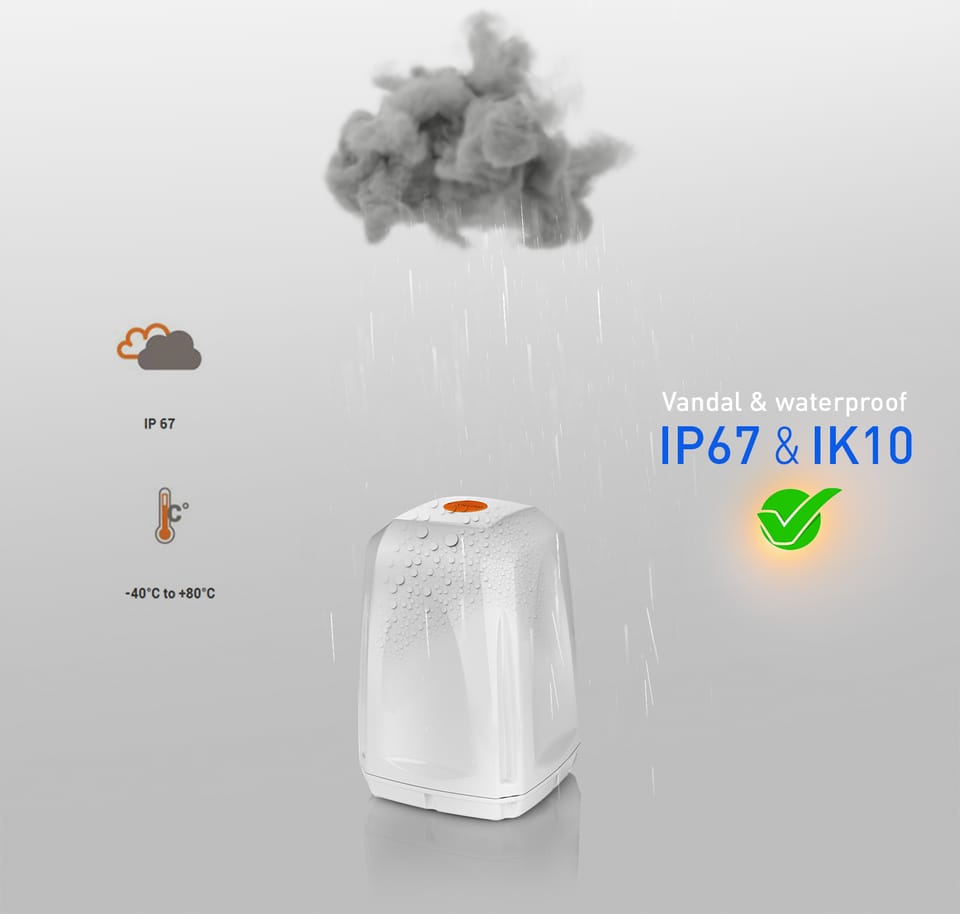

EPNT-4 is also fully protected from salt water, so it can be used in highly corrosive environments, including chemical and toxic environments, thanks to the UV-resistant ASA shield material. The housing also offers a robust mechanical design to withstand adverse weather conditions, making vandal-resistant EPNT-4 and weatherproof with IP67 and IK10 rating.
- Mobile broadband coverage from 617 to 4200 MHz, up to 4x4 MIMO
- Dual-band 2x2 MIMO Wi-Fi at 2.4 and 5 to 7.2GHz
- Cleverly designed, decorated antennas provide excellent MIMO performance in both cellular and Wi-Fi
- Includes high-performance GPS/GLONASS antenna
- Precision mechanical design for resistance, water resistance and dust resistance (IP67)

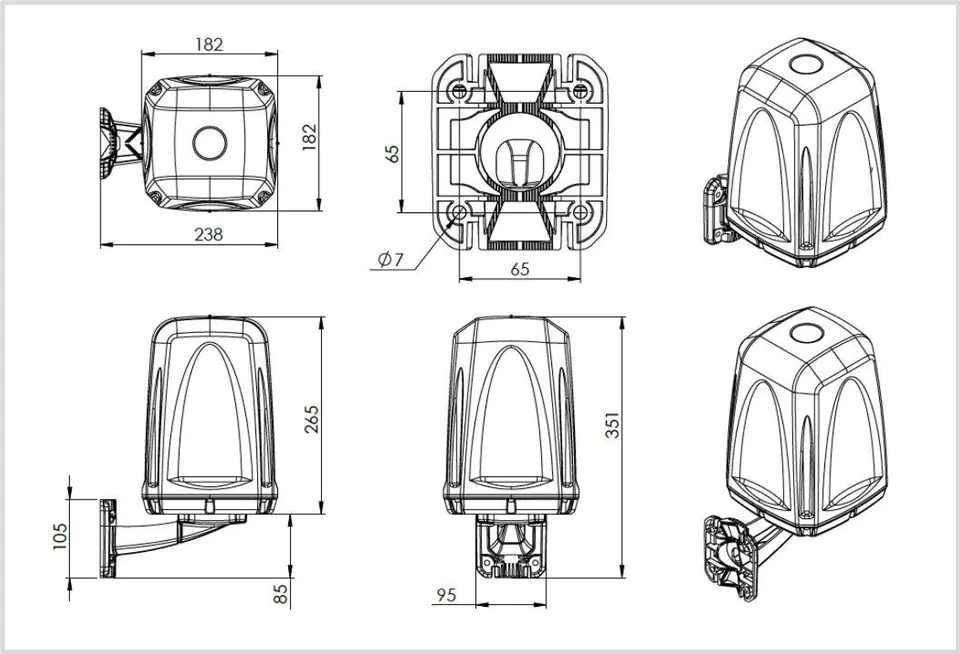

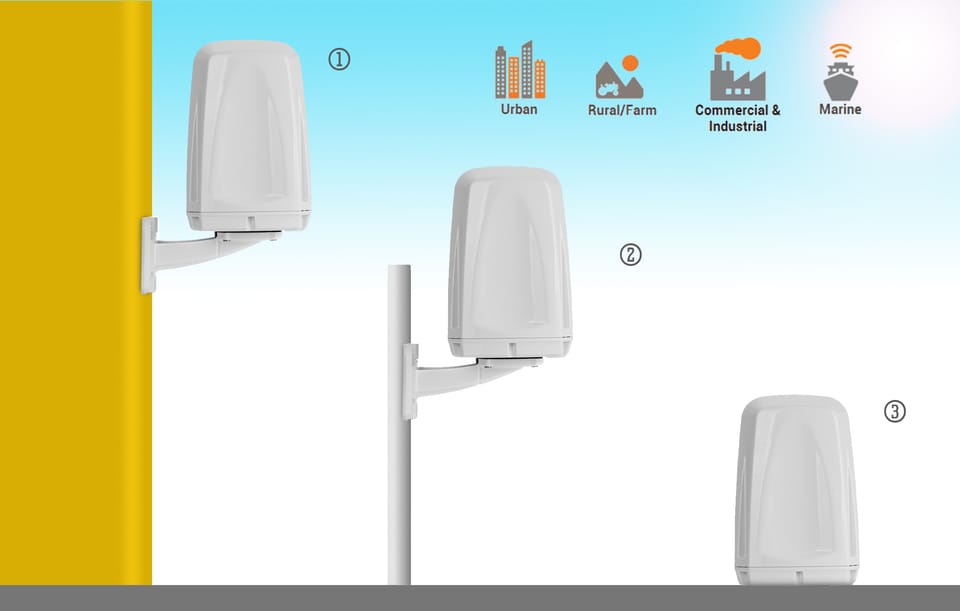

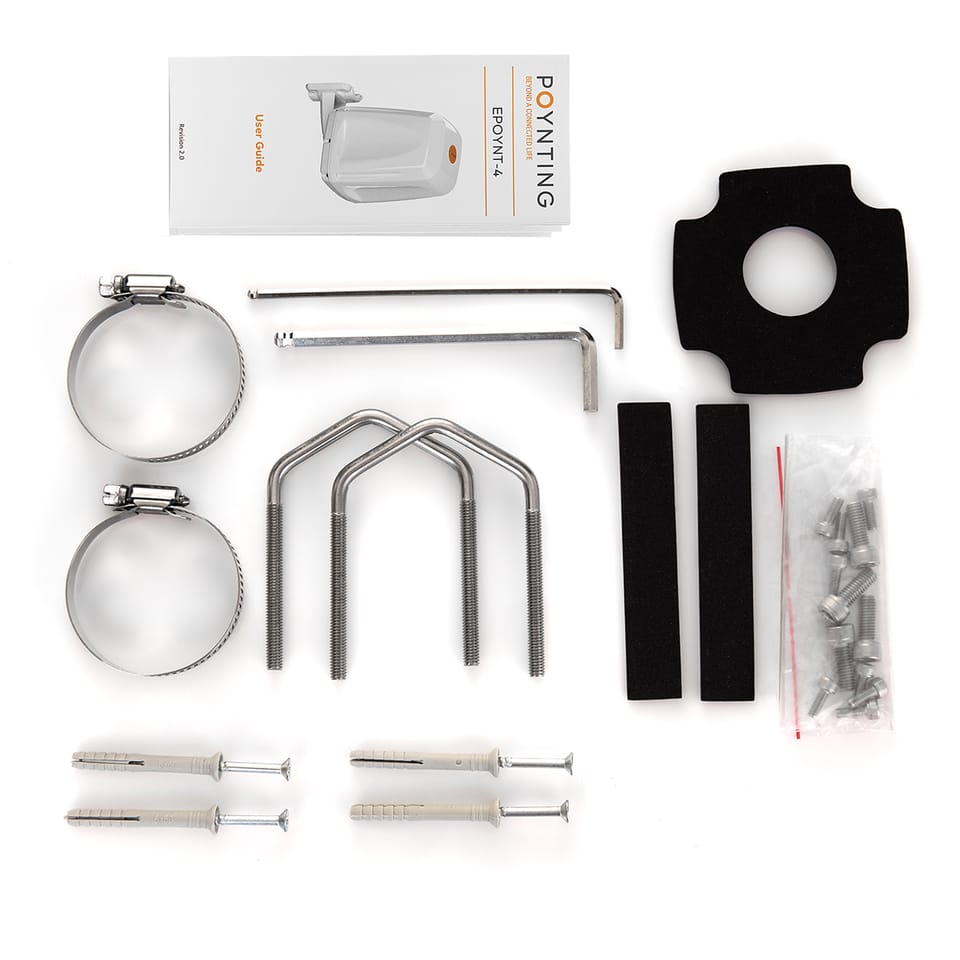

- Wall, pole and flat surface mountable
- Industrial automation, robotic machines and others M2M system telemetry
- Agriculture and agricultural automation such as M2M and IoT
- Broadband distribution of cellular network to Wi-Fi for ships / boats (inland and coastal vessels)
- External antenna for permanent wireless access (FWA)
- Consumer connectivity to 5G/LTE Internet
- Industrial and commercial implementation of 5G/LTE

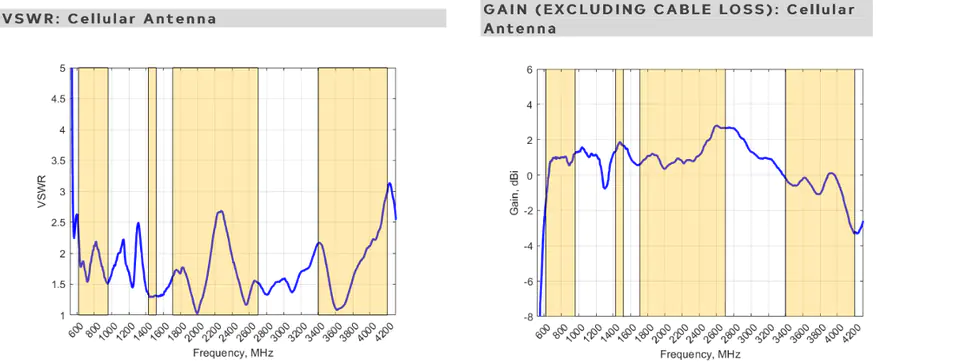

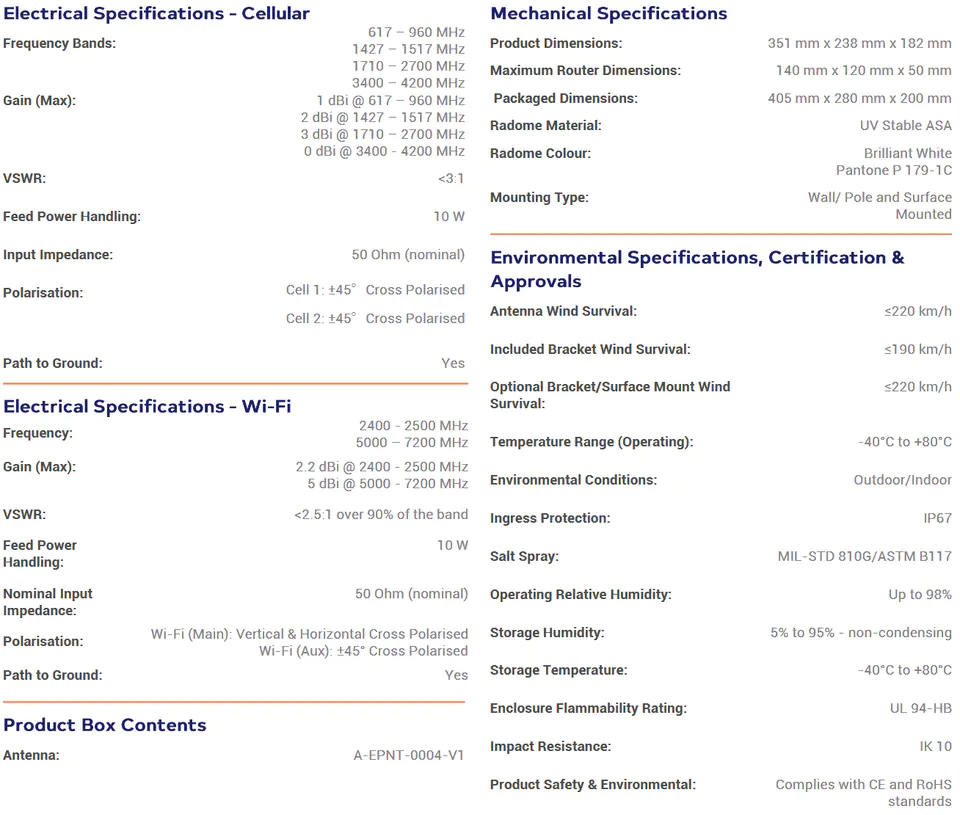

Voltage Wave Factor (VSWR)
VSWR is a measure of radio frequency power efficiency transmitted from a power source over a transmission line to Load. An ideal system transmits 100% of the energy that corresponds to a 1:1 VSWR. EPNT-4 delivers excellent performance on all bands with VSWR <3:1.

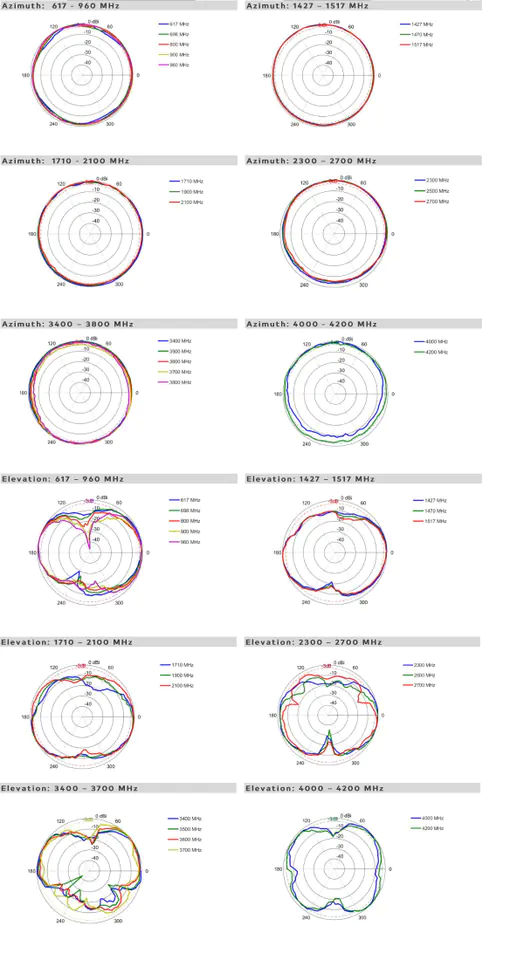

Gain in dBi
3dBi is the peak gain in all bands from 617 to 4200 MHz
Gain at 617 – 960 MHz: 1 dBi
Gain @ 1427 – 1517 MHz: 2 dBi
Gain @ 1710 – 2700 MHz: 3 dBi
Gain @ 3400 – 4200 MHz: 0 dBi
*Antenna gain measured using a standard aligned to the antenna's polarization

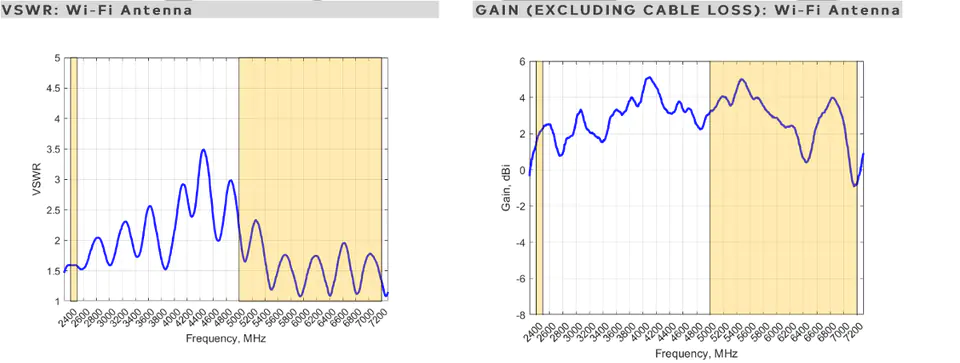

Voltage Wave Factor (VSWR)
VSWR is a measure of how efficiently radio frequency power is transmitted from a power source through a transmission line to a load. Ideally, 100% power is transmitted, equivalent to VSWR 1:1.Wi-Fi EPNT-4 provides excellent performance on all bands with VSWR ≤ 2.5:1 or better on all bands.

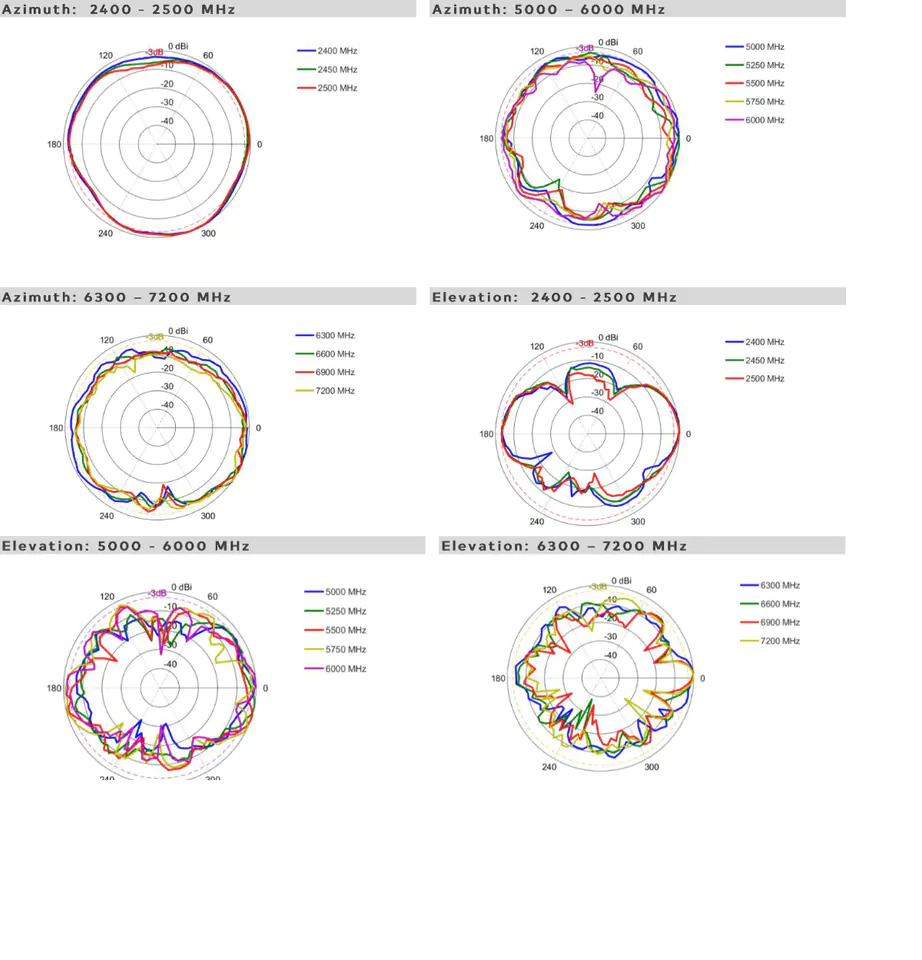

Gain in dBi
5 dBi is the peak gain in all bands from 2400 – 2500 MHz and 5000 – 7200 MHz
- 2400-2500 MHz: 2.2 dBi
- 5000-7200 MHz: 5 dBi
Click here for full antenna technical documentation.
