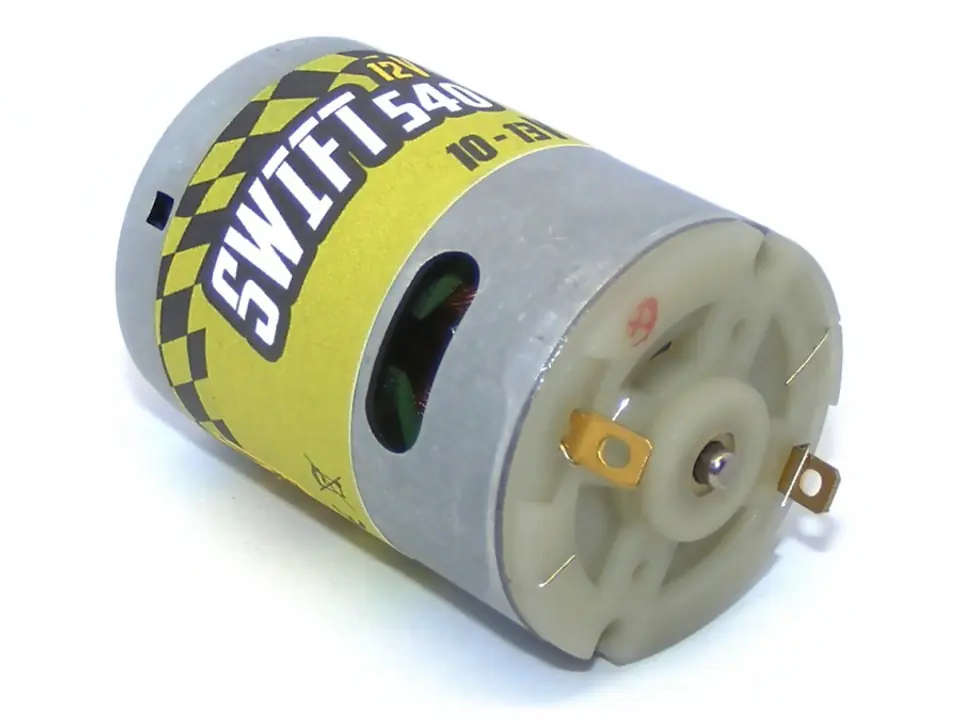

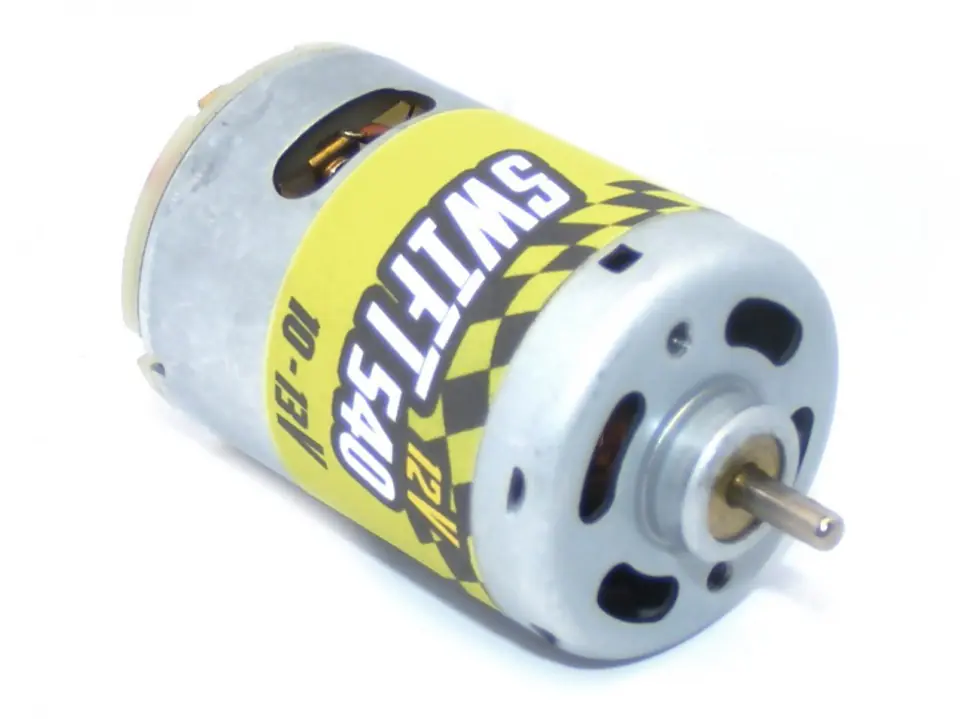

We present a new model of the SWIFT Drive 540 12V brush motor from GPX Extreme.
.
Specifications
- Nominal voltage: 12V
- Voltage Range: 10-13V
- No-load speed: 10000
- Rotation at max. Load: 8392
- No-load current consumption: 0.47A
- Medium current consumption: 2.5A
- Power: 20.9W
- Torque: 2.35 Ncm
- Shaft diameter: 3.17mm
- Shaft length: 8mm
- Body Diameter: 35.5mm
- Body length: 57mm
- Overall length: 67mm
- Weight: 161g
