Manufacturer no: 10030519

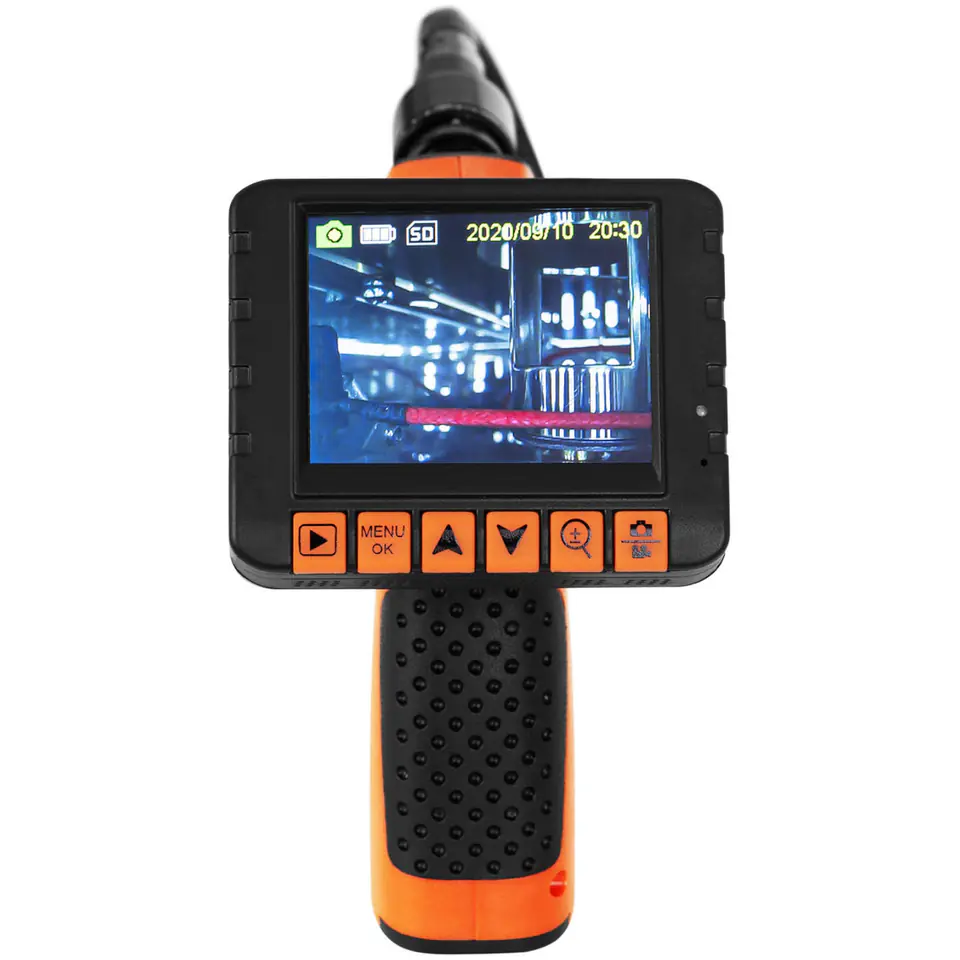

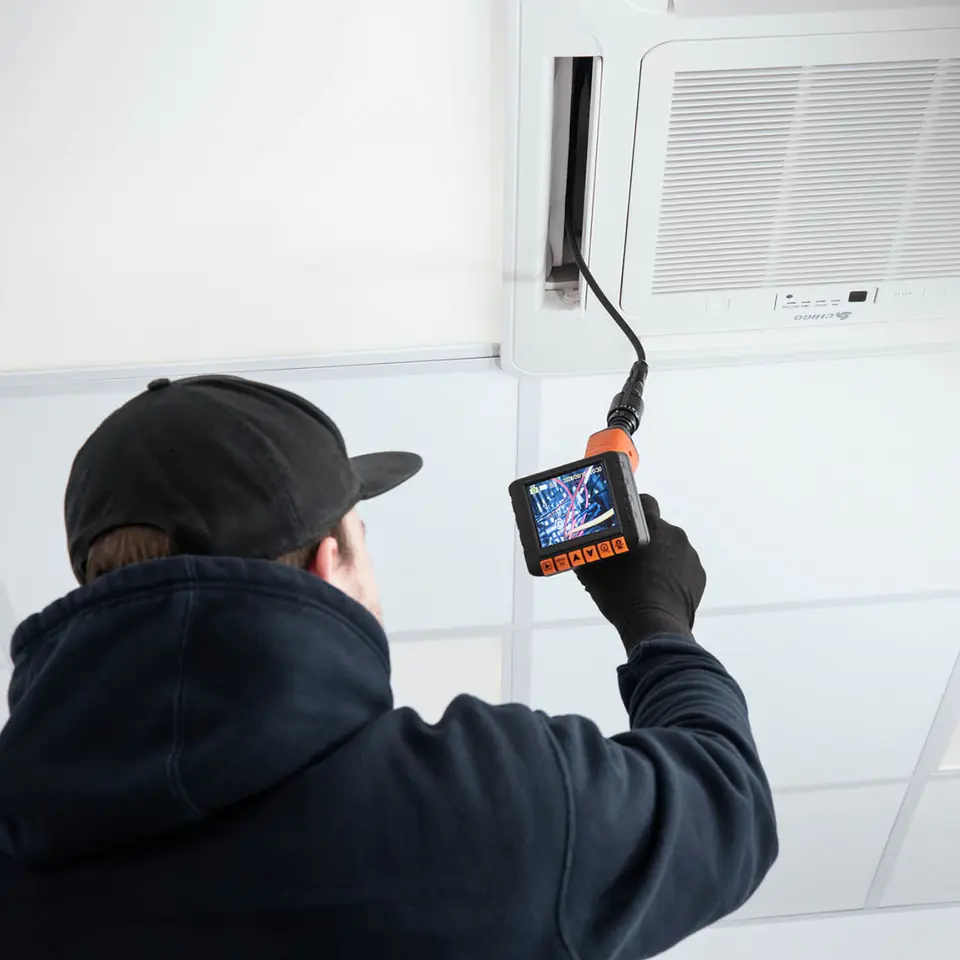

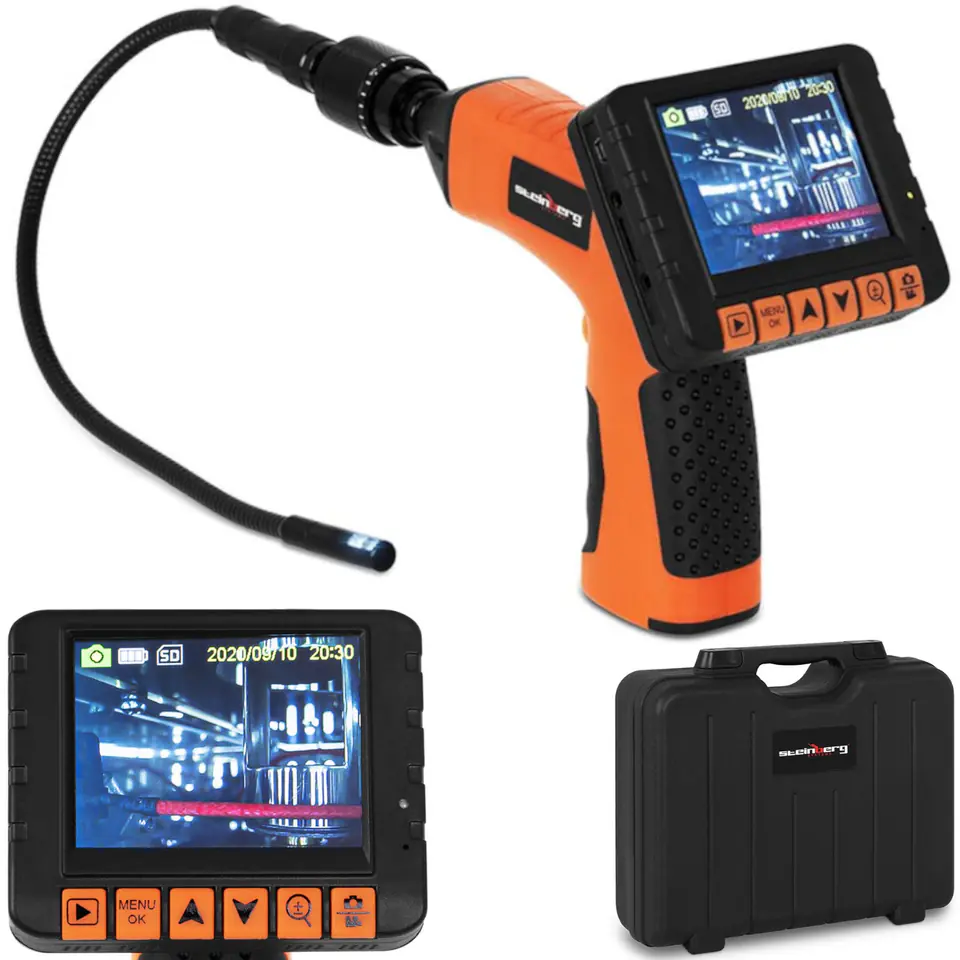

The endoscopic camera from Steinberg Systems will be useful in car workshops, when checking the condition of pipelines or suspended ceilings. 3.5 inch TFT LCD display. The screen can be easily detached from the device. The image is wirelessly transmitted via a 2.4 G signal. The range of transmission is max. 15 m. The view on the display can be rotated in 4 planes (upside down, rotation by 180, reflection from the left and right). 10 mm camera equipped with a 0.3 MP sensor. It is able to take a photo or record a video at a resolution of 480x640 pixels. The frame rate is 30 FPS. The probe has the ability to adjust the focus in the ranges of 1-3 cm or 3-8 cm. In addition, a 4x magnification is used. You can set them using the buttons.

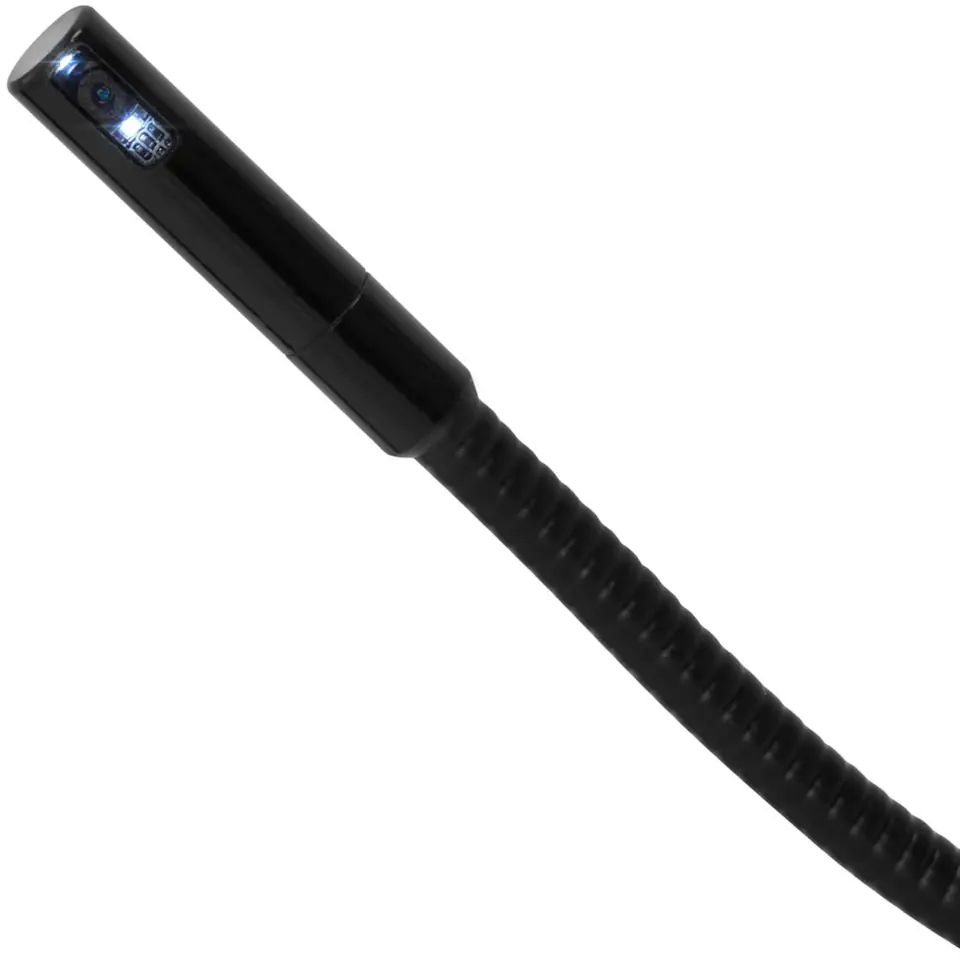

The head rotates by 360. Flexible cable with a length of 430 mm. Its maximum bend radius is 7 cm. Two LED lights serve as a flashlight. The equipment has a slot for an SD card. We recommend using a 32 GB (Class 10) card. You can view the files directly on your device or on your computer or TV thanks to the USB and AV ports. DEGREE OF PROTECTION IP67 - resistance to dust and dust (number 6) and the probe can be immersed in water for a short time (number 7). The whole is powered by a high-quality lithium-ion battery (1600 mAh). It lasts up to 3 hours of operation. The Auto OFF function saves energy. It turns off the endoscope after 10 minutes of inactivity. You can deactivate this mode. To charge the battery, use the included power supply.
Product features:
- - Detachable, wireless TFT LCD display 3.5 inches,
- - Head diameter 10 mm,
- - Possibility of rotation by 360,
- - Matrix with a resolution of 0.3 MP,
- - Mode of shooting videos and taking photos,
- - SD card slot up to 32 GB,
- - Protection class IP67.
- - Model - SBS-EC-10
- - Catalog No. - 10030519
- - Article status - New
- - Power supply - 230 V AC /50 Hz
- - Battery - Li-Ion 18500 1600 mAh 3.7 V
- - Housing material - ABS
- - Wire shell material - PE
- - Signal transmission - 2.4 G
- - Display - LCD
- - Display type - 3.5 inch TFT
- - Sensor type - CMOS
- - Sensor resolution - 320 x 240
- - Head diameter - Ø10 mm
- - Head rotation range - 360
- - Probe length - 430 mm
- - Lens type - Micro HD
- - Depth of field - 30-80 mm
- - Viewing angle - 60
- - Memory - 32GB SD/TF card (not included)
- - USB port - Yes
- - LED lamp - Yes
- - Number of LED bulbs - 2
- - Auto power off - Yes
- - Protection class - Housing: IP20 / Camera: IP67
- - Case included - Yes
- - Photo/video format - JPG/AVI
- - Dimensions (LxWxH) - 69 x 10 x 17.5 cm
- - Weight - 0.55 kg
- - Shipping dimensions (LxWxH) - 37 x 14.5 x 45 cm
- - Shipping weight - 2.8 kg

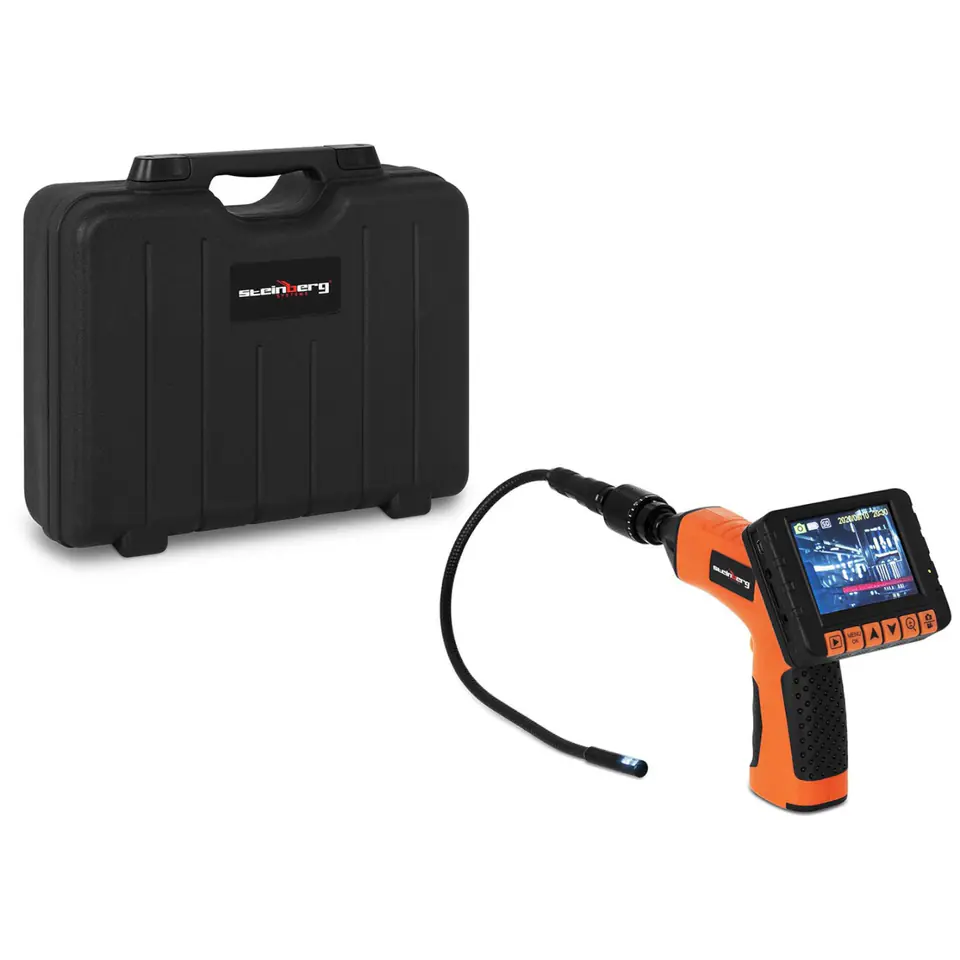

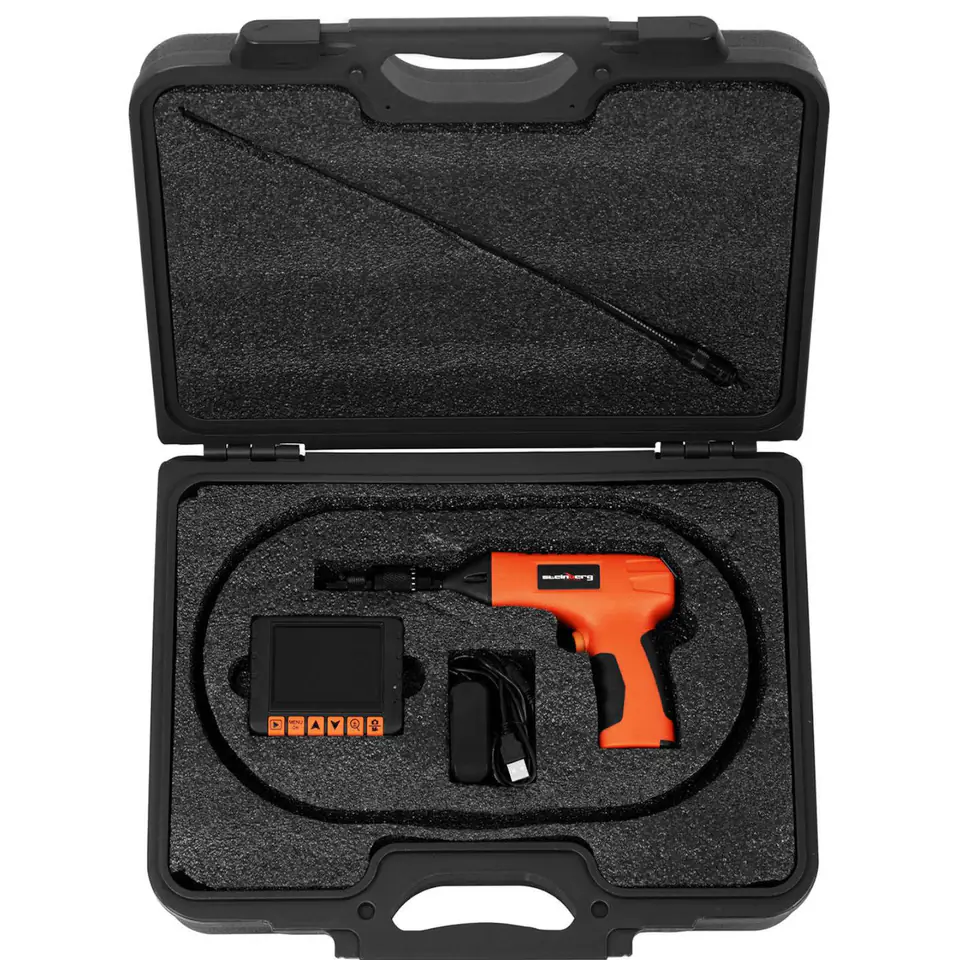

- - Endoscopic camera,
- - Case,
- - Accessories (no SD card),
- - Instruction manual.
