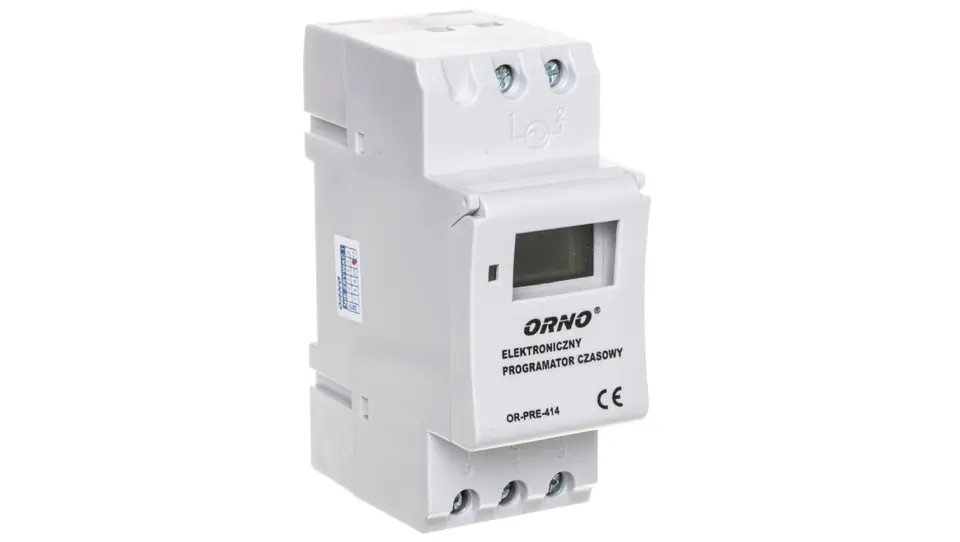

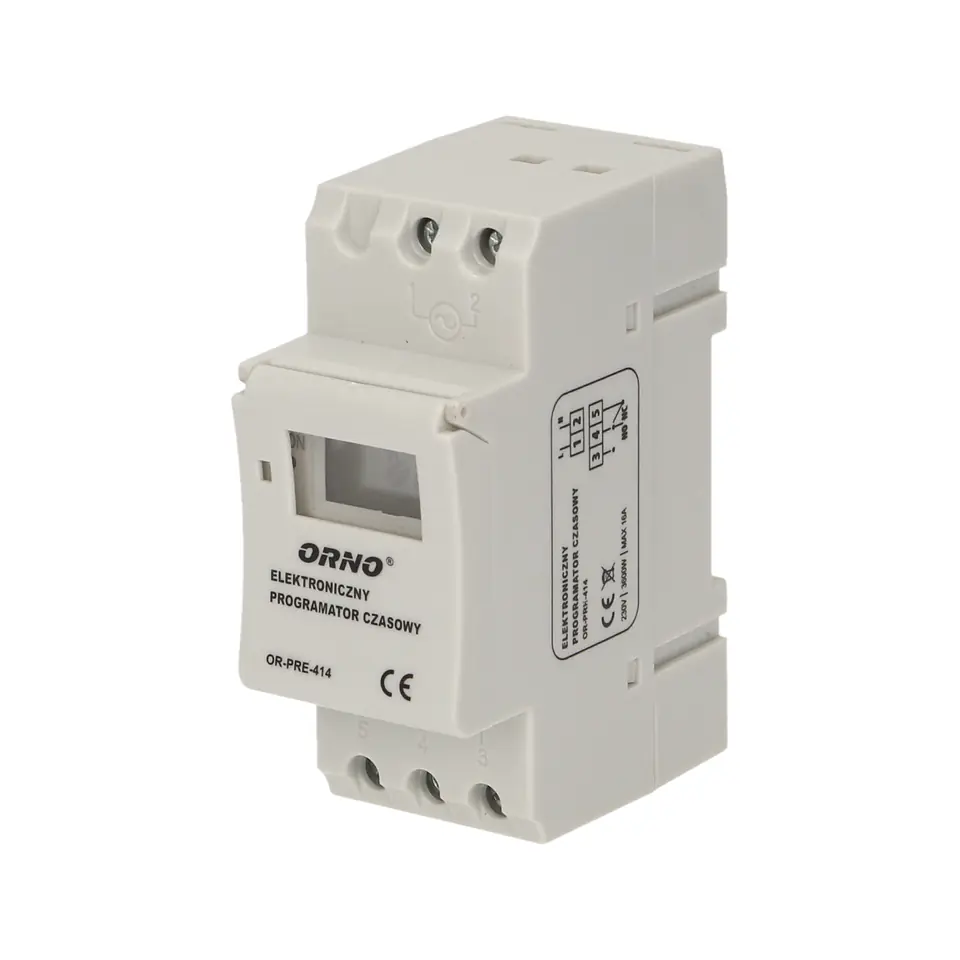

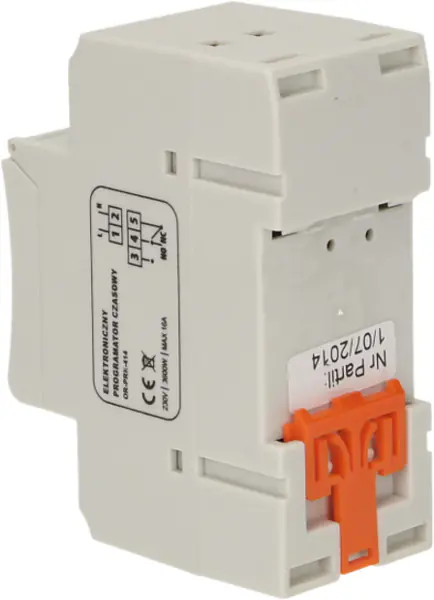

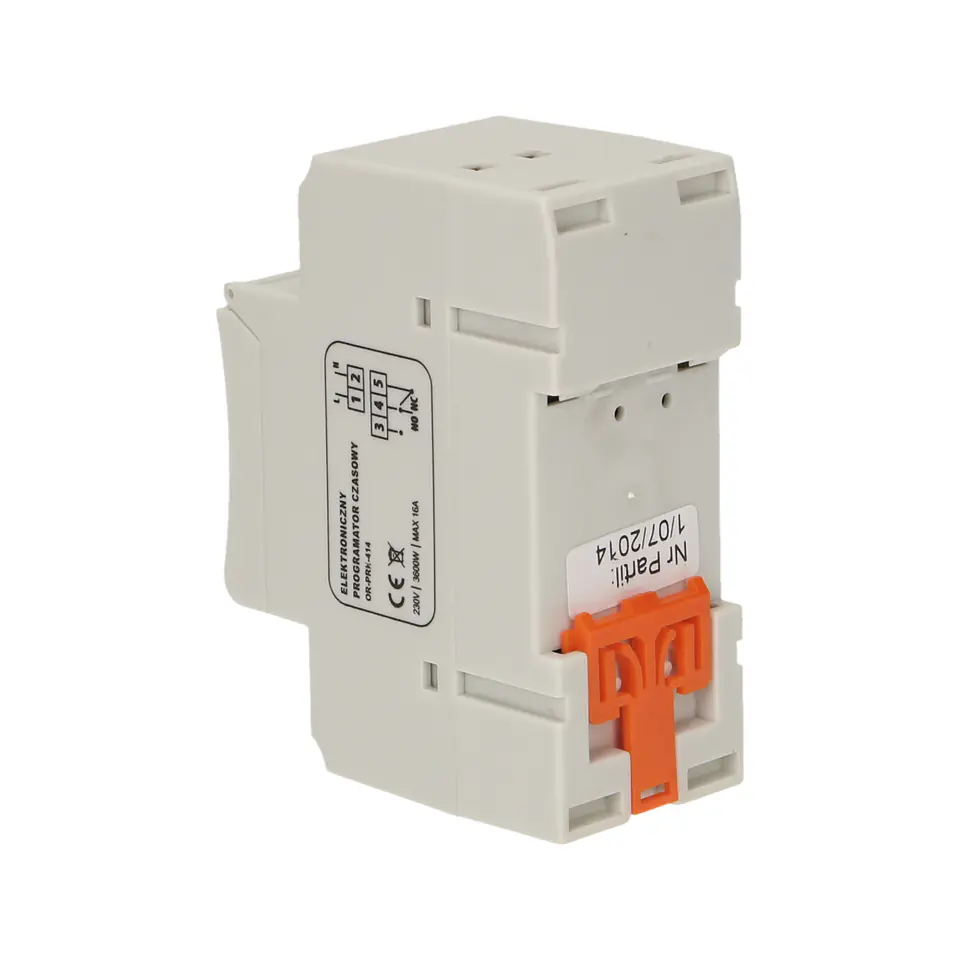

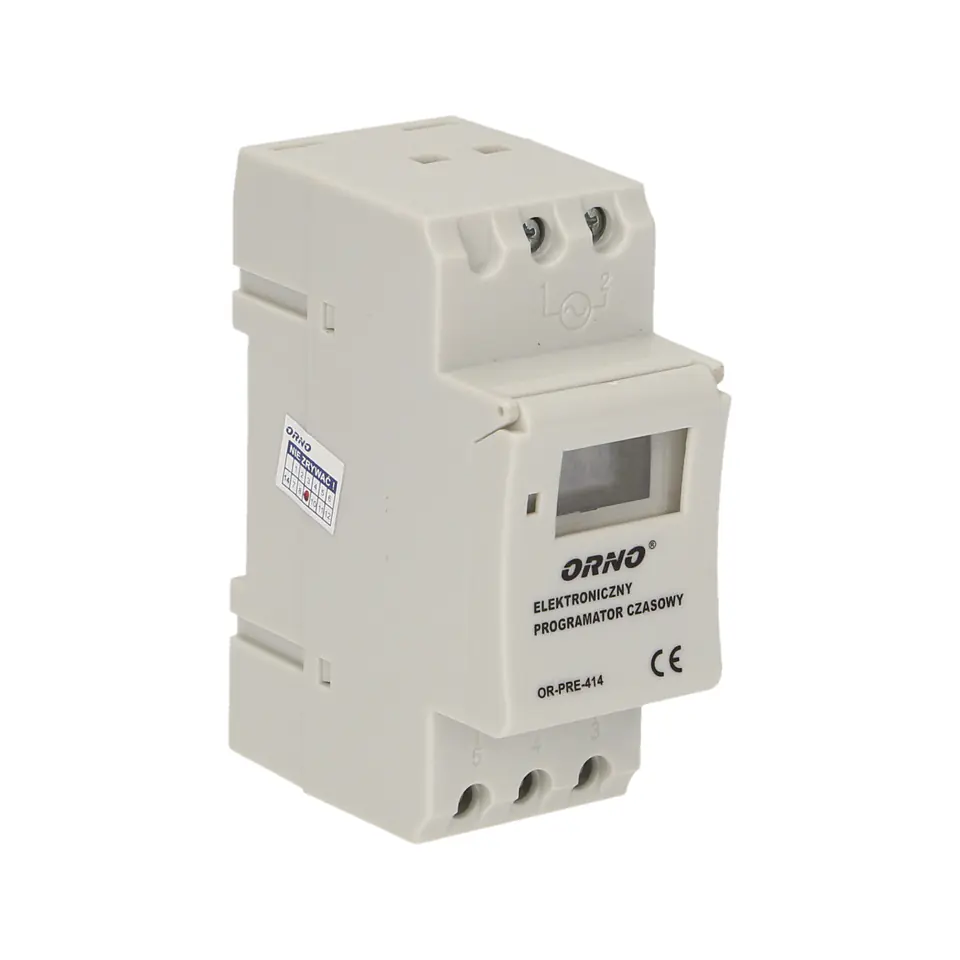

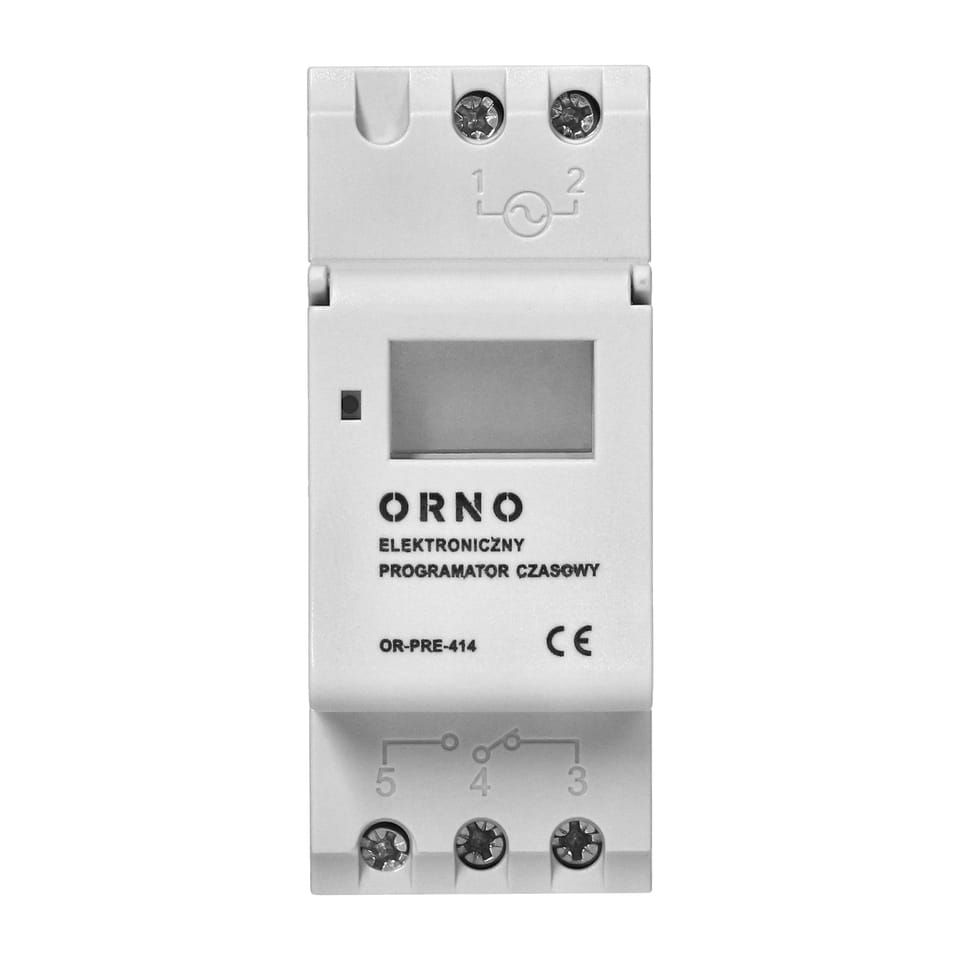

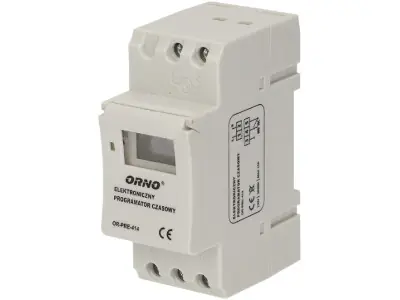

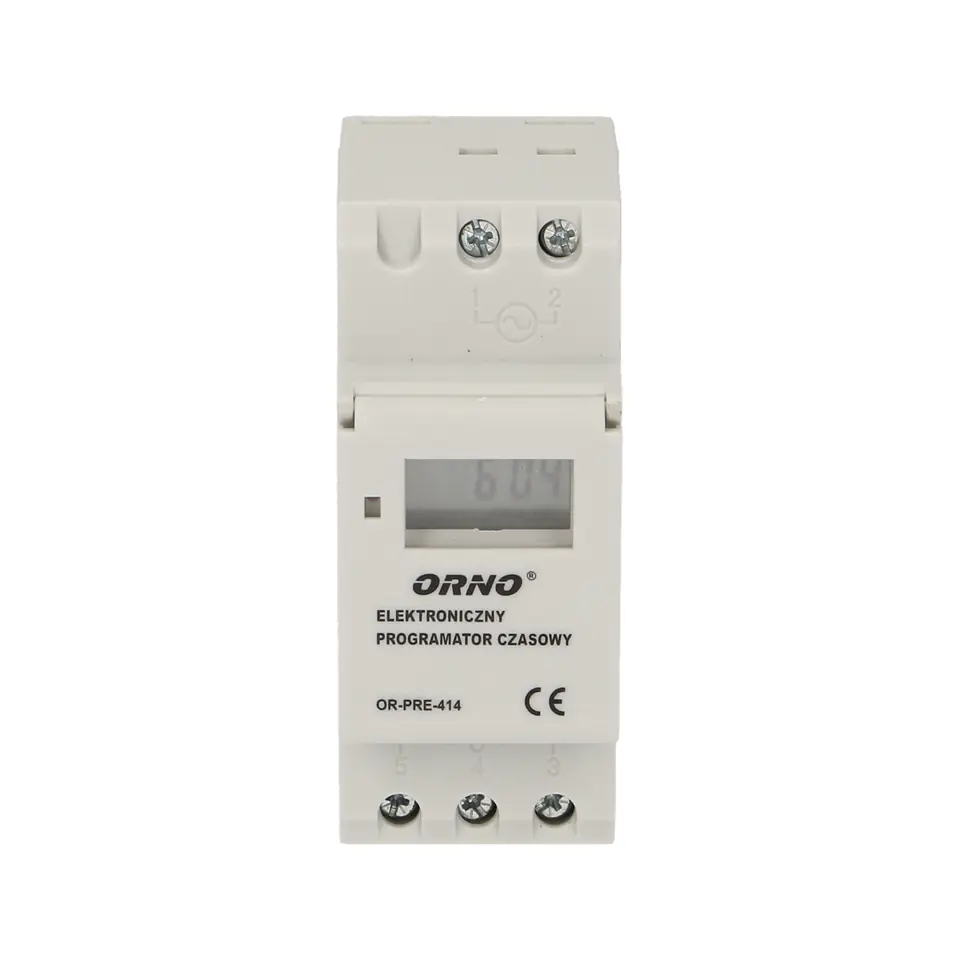

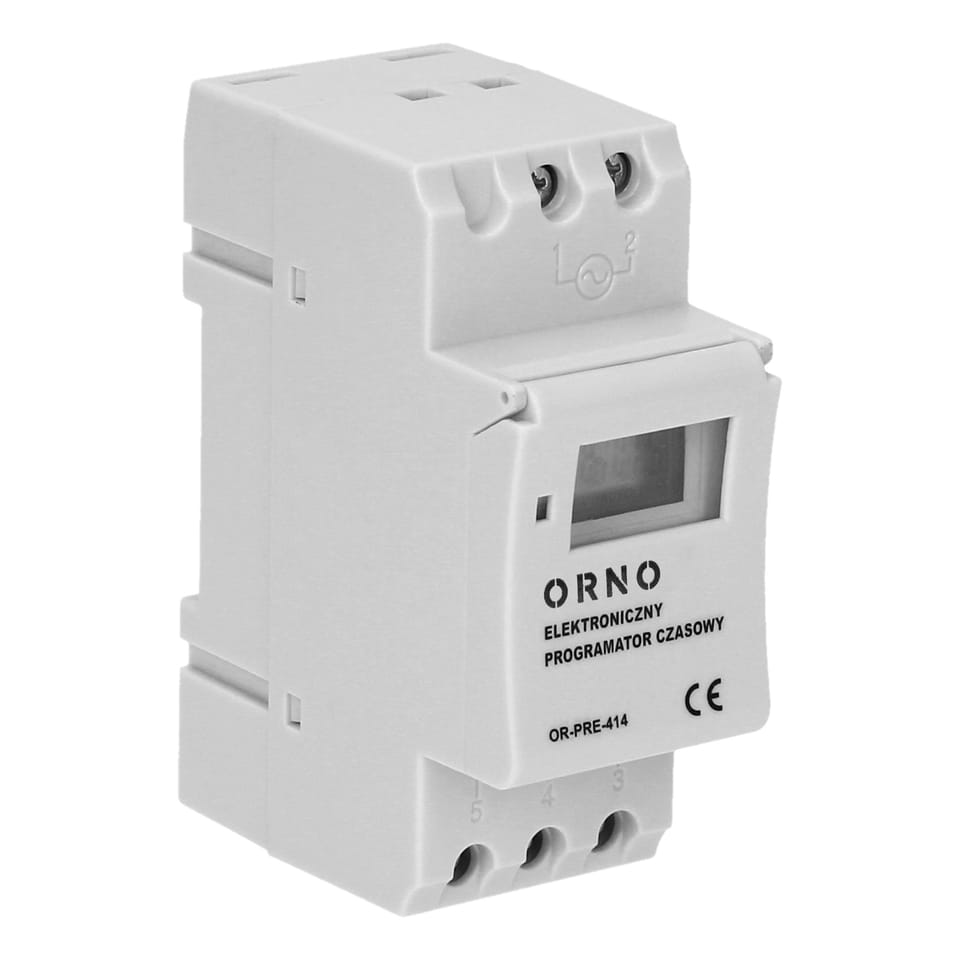

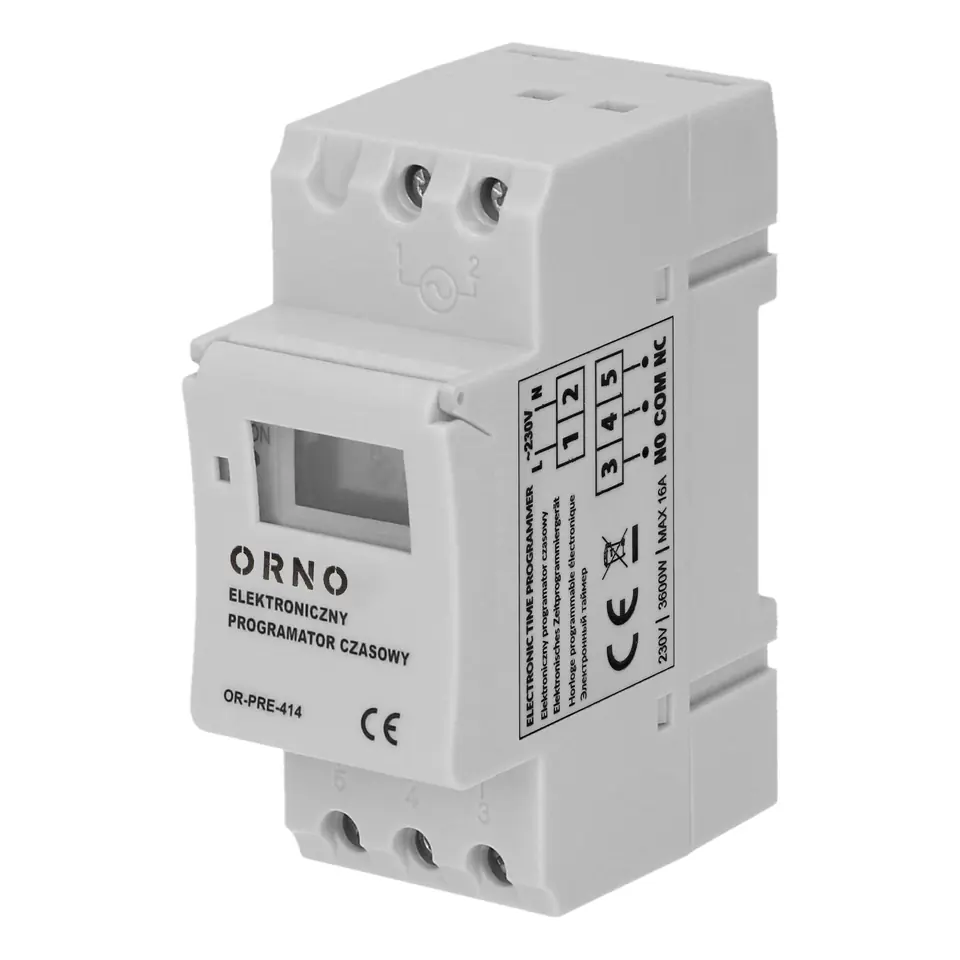

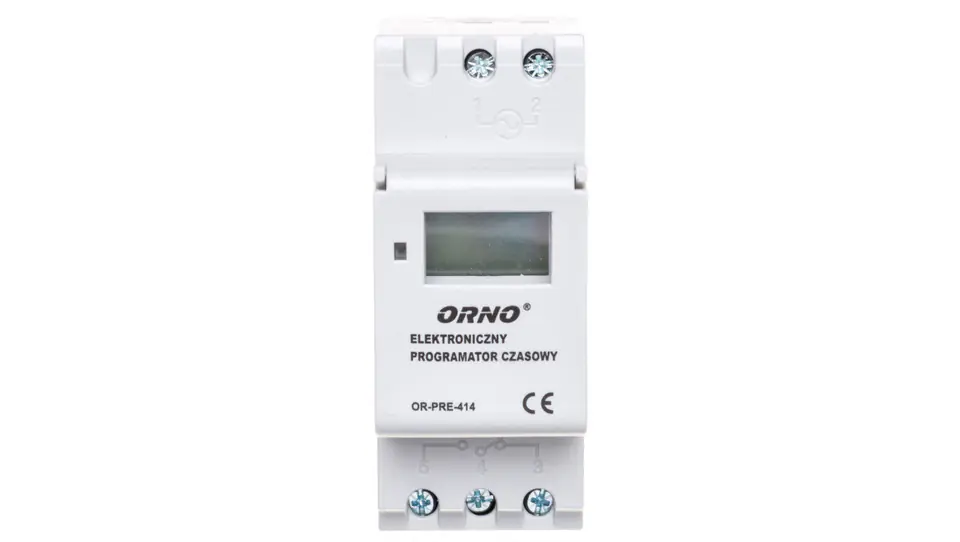

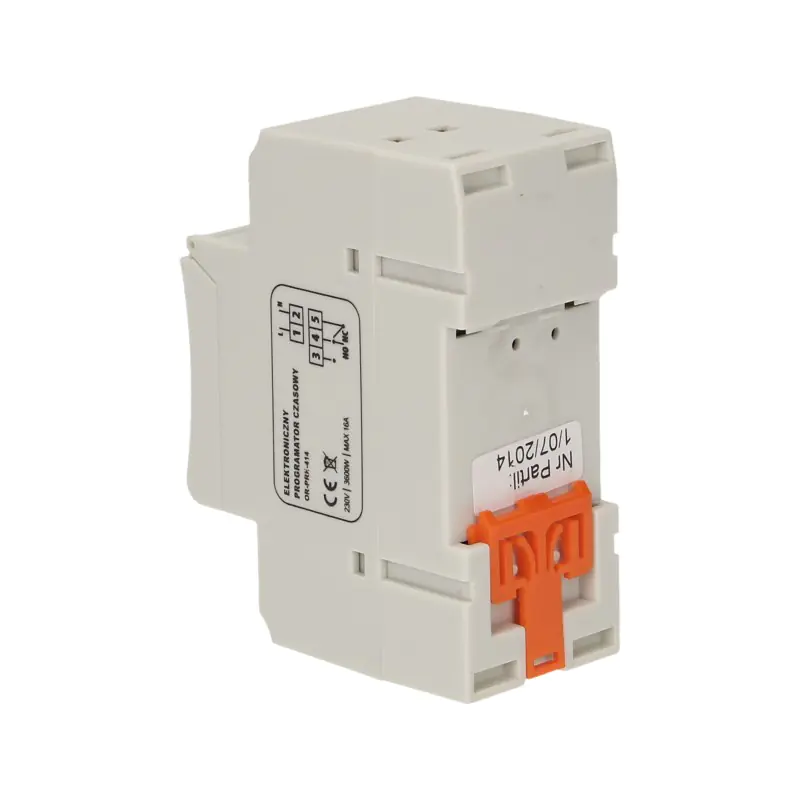

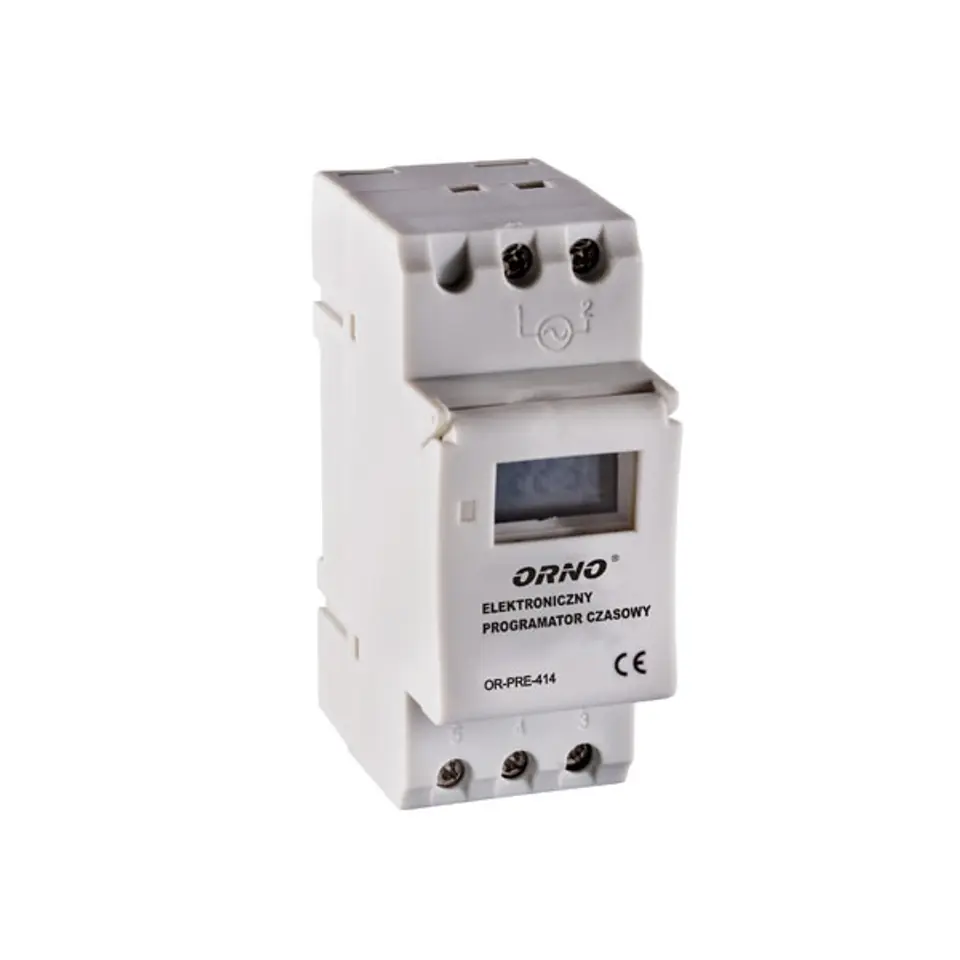

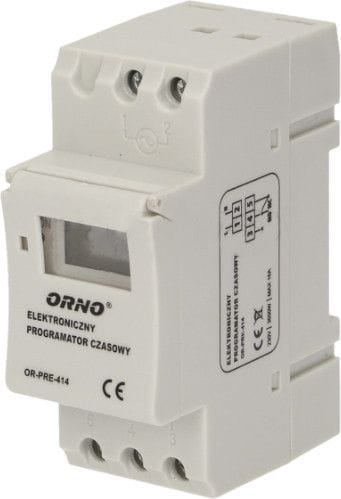

Electronic timer with LCD display adapted for mounting on a standard TH-35 mm DIN rail. It is used to set the time of switching on and off electrical devices such as: water heaters, lighting, motors, pumps, etc. The device has: 16 time programs, setting a daily or weekly cycle, maintaining clock settings in the event of a power outage.
Electronic timer, 16 programs, 2 modules, DIN TH-35mm
€12.90
Shipping from warehouse: H7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- OR-PRE-414 / 5901752483804
Share this product:
Specification
| Accuracy per day [s]: | 2 |
|---|---|
| Annual programme: | No |
| Astronomy program: | No |
| Automatic daylight saving time /winter time change: | No |
| Autonomy / power reserve in hours: | 168 |
| Christmas program: | No |
| Daily programming: | Yes |
| Degree of protection (ip): | IP20 |

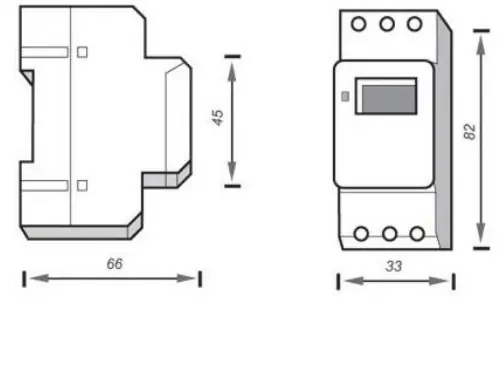

| Depth [mm]: | 66 |
| External (input) button: | No |
| Height [mm]: | 82 |
| Hourly meter: | No |
| Impulse program: | No |
| Manual operation: | No |
| Mounting method: | DIN rail |
| Number of channels: | 1 |
| Number of memorial sites: | 16 |
| Potential-free switching contact: | No |
| Preset switching: | No |
| Programming 60 min.: | No |
| Quartz controlled: | No |
| Radio signal control: | No |
| Random program: | No |
| Rated switching current at 250 v ac [a]: | 16 |
| Recurring program: | No |
| Supply voltage frequency from/to [hz] from: | 50 |
| Supply voltage frequency from/to [hz] to: | 50 |
| Supply voltage range [v] from: | 230 |
| Supply voltage range [v] to: | 230 |
| Synchronized with network frequency: | No |
| Type of contact: | Switching contact |
| Type of supply voltage: | AC |
| View tooltips: | Yes |
| Weekly program: | Yes |
| Width [mm]: | 35,2 |
| Width expressed by the number of modules: | 2 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
