Specifications:
Measurement Unit: mm, inch
Implementation: Digital
Accuracy: ±0.02 mm
Resolution: 0.01 mm
Measuring length: 150 mm
Lock: Screw block.
Update frequency: 3m/s
Arm thickness: 3.5 mm
Standard: DIN 862
Jaw length external measurement: 40mm
Digit height: 9 mm
Additional Features: Waterproof
Jaw length internal measurement: 21 mm
IP67 electronic caliper with electronic module, made of metal.
IP67 rated dust- and waterproof, providing the best resistance to water, oil and coolants.
With absolute measurement system and instantaneous zero point shift.
In premium quality, with a strong construction, with special attention to details and finish.
The caliper is characterized by a very soft and smooth movement of the jaw, because the components were ground in several stages.
Stainless, hardened and precisely ground measuring jaws.
Jaw thickness of 3.5 to 4 mm ensures high stability.
LCD display with clear digits with a height of 9 mm. 4-functions.
Processor with high update frequency (3 measurements/sec).
Choice of indication in mm or inches.
Equipped with a rectangular depth gauge extension and jaws for internal measurements.
Made according to DIN 862.
Supplied in a pouch, with a quality control certificate.
CR2016 type battery attached.
**

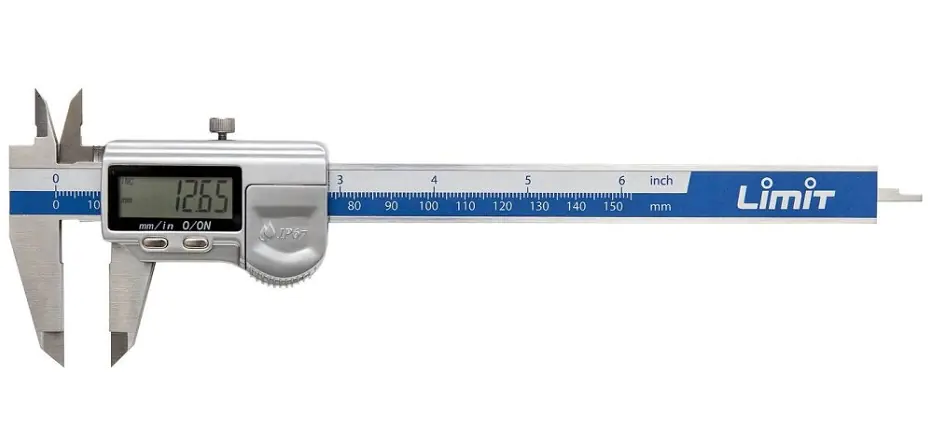

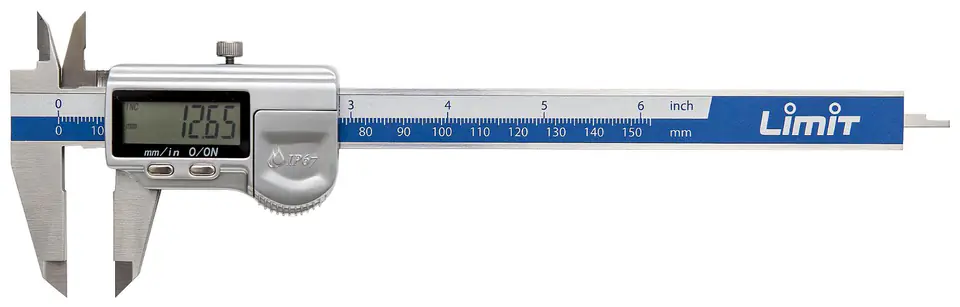

ELECTRONIC CALIPER 150MM IP67
€224.56
Shipping from warehouse: B6
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- UN
- Product code:
- 263970105 / 7311662212315
Share this product:
Specification
| Abs function: | yes |
|---|---|
| Accuracy: | ±0.02 mm |
| Arm thickness (mm): | 3.50 |
| Blockade: | locking screw |
| Depth gauge shape: | Rectangular |
| Height of digits/letters (mm): | 9.0000 |
| Ip protection grade: | IP 67 |
| Item number: | 263970105 |
| Jaw length - inner (mm): | 21.0000 |
| Jaw length - outer (mm): | 40.0000 |
| Measuring length (mm): | 150 |
| Package dimensions (mm): | 30x95x250 |
| Package quantity (pcs): | 1 |
| Repeatability (mm): | ± 0.01 |
| Resolution (inches): | 0.0005 |
| Resolution (mm): | 0.01 |
| Update frequency (m/s): | 3.0000 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
