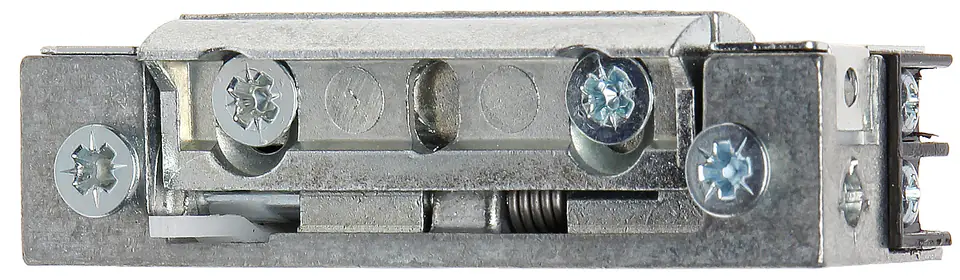

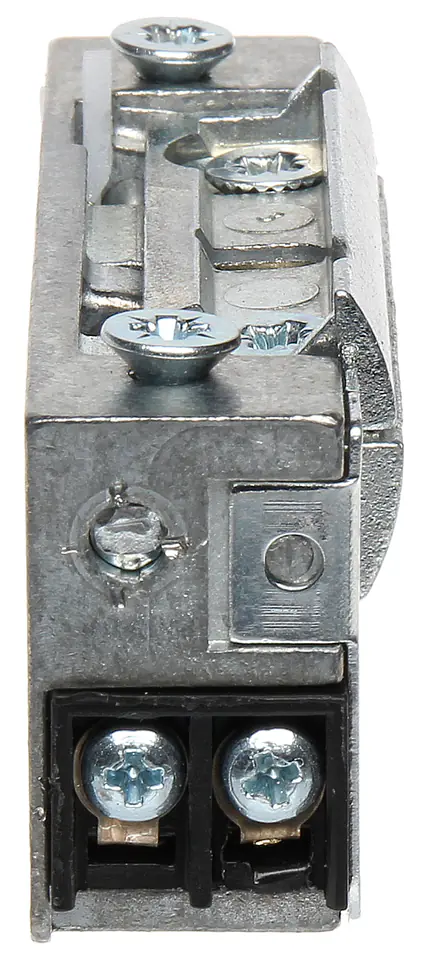

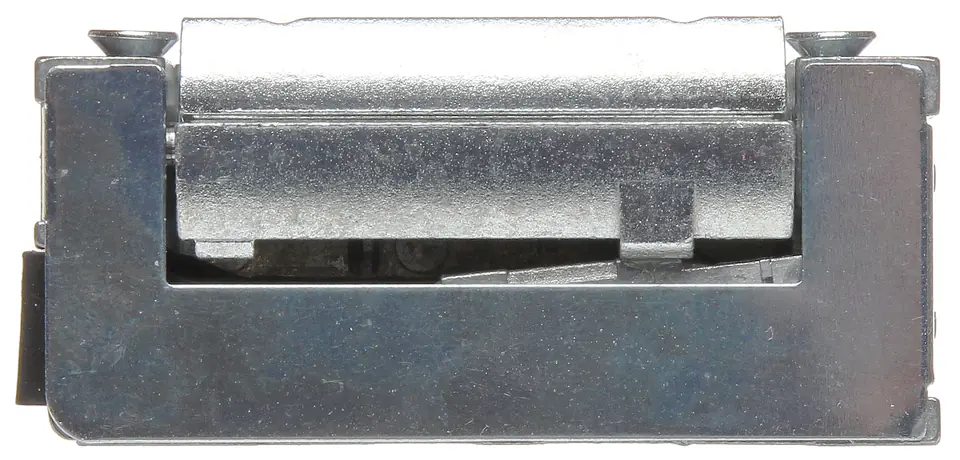

Electromagnetic hitch type R5-12.60 is designed for doors and wickets made of metal sections, to work with a ratchet-latch or ratchet lockThe memory function allows you to control the electric strike by giving a short voltage pulse, after which the hitch is open until the door is first opened
ELECTROMAGNETIC HITCH R5-12.60
PLN 93.93
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- R5-12.60 / 5905279347014
Share this product:
Specification
| Current consumption:: | 500 mA AC / 600 mA DC |
|---|---|

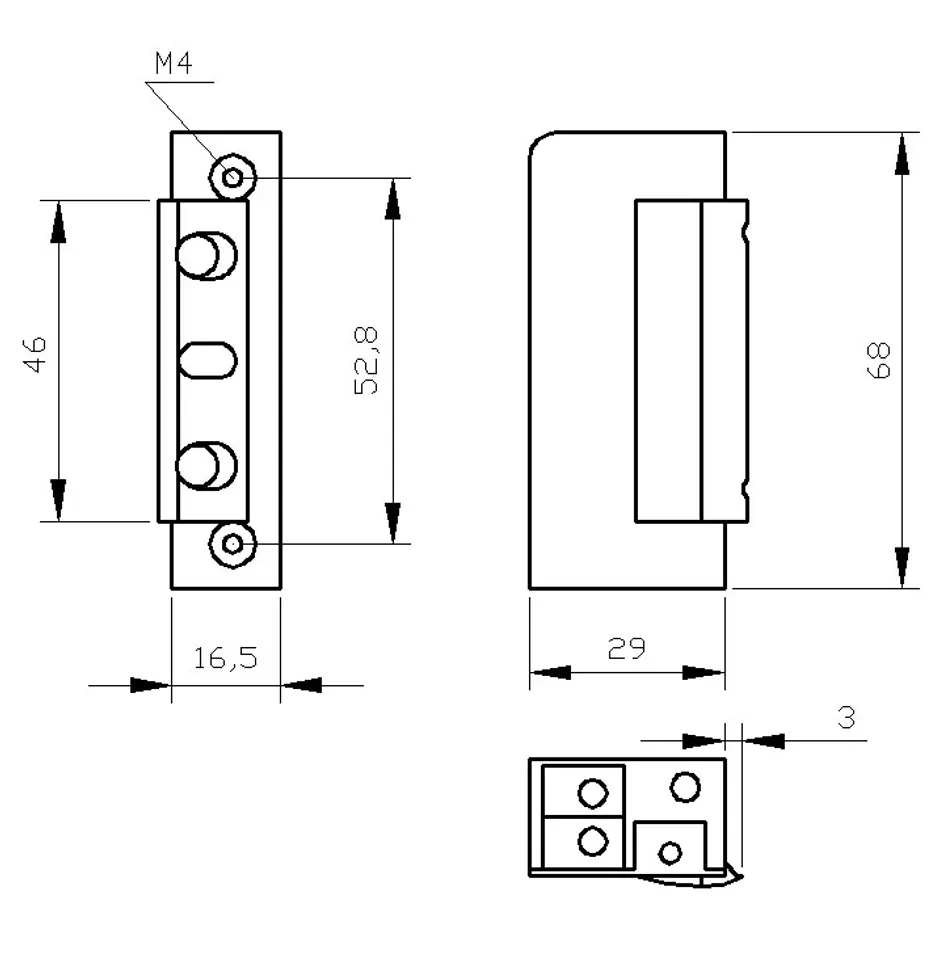

| Dimensions:: | 19.5 x 32 x 68 mm |
| Permissible load on the door acting on the hitch:: | 3000 N |
| Permissible pressure on the door when releasing the latch:: | 30 N |
| Permissible uninterrupted operation time:: | 30 minutes |
| Ratchet lock:: | Possibility of releasing the bolt permanently |
| Scales:: | 0.13 kg |
| Use:: | right door / left door |
| Voltage:: | 10 V ± 2 V AC/DC |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
