Electromagnetic hitch type R4-24.20 is designed for doors and wickets made of metal sections, to work with a ratchet-latch or ratchet lock

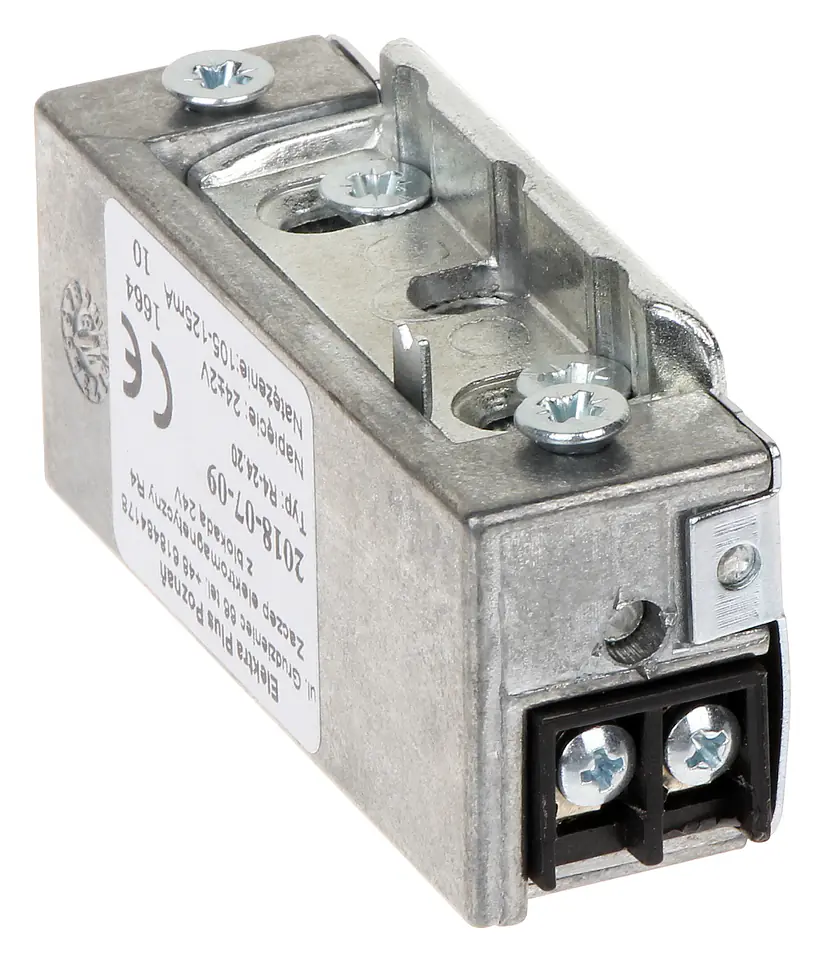

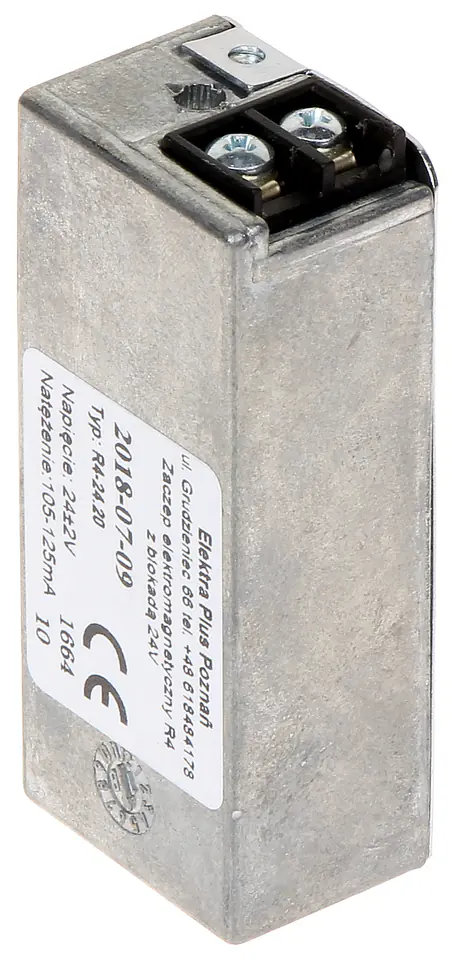

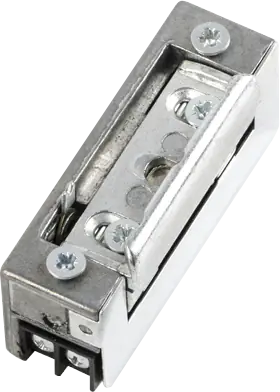

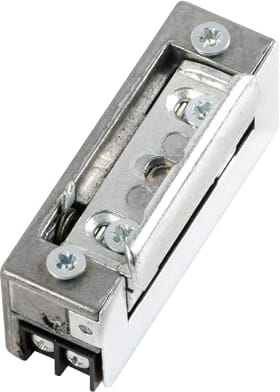

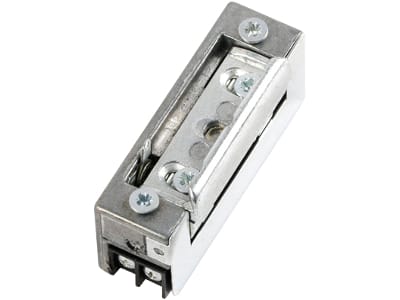

ELECTROMAGNETIC HITCH R4-24.20
PLN 76.41
Shipping from warehouse: H7
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ELEKTRA-PLUS
- Product code:
- R4-24.20 / 5907438279624
Share this product:
Specification
| Current consumption:: | 80 ... 100 mA AC120 ... 140 mA DC |
|---|---|

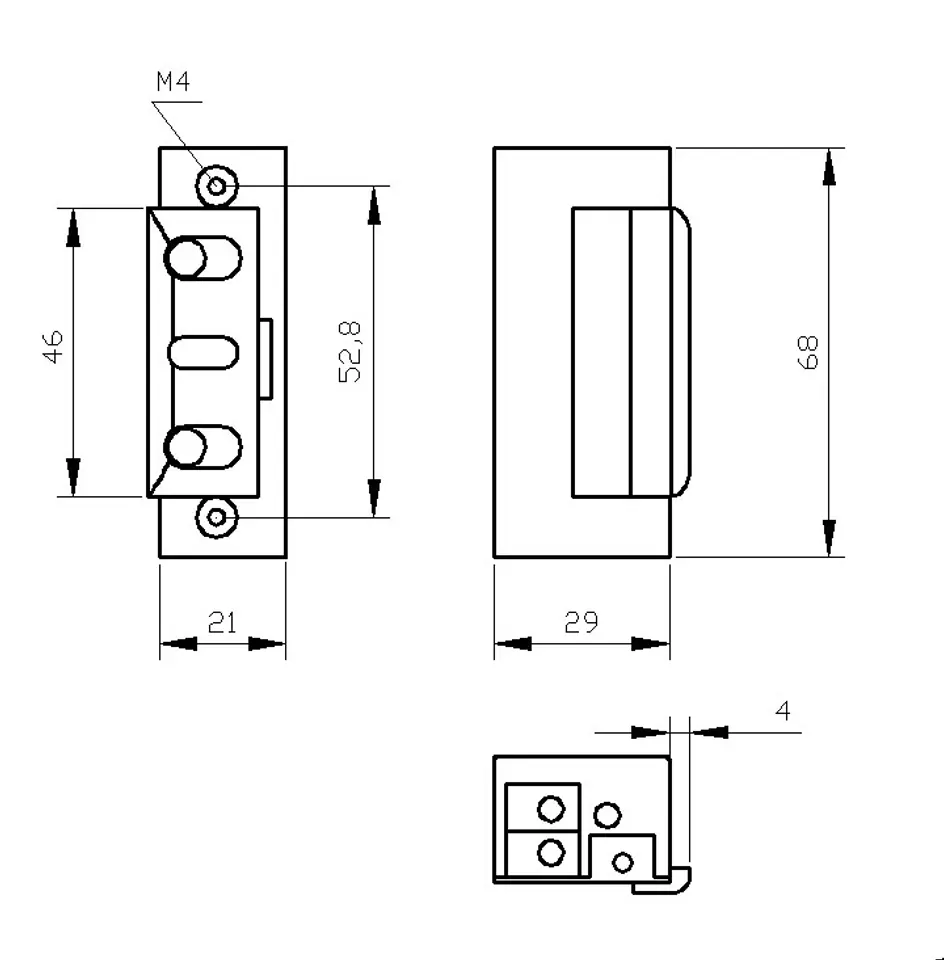

| Dimensions:: | 21 x 29 x 68 mm |
| Permissible load on the door acting on the hitch:: | 3000 N |
| Permissible pressure on the door when releasing the latch:: | 30 N |
| Permissible uninterrupted operation time:: | 30 minutes |
| Scales:: | 0.166 kg |

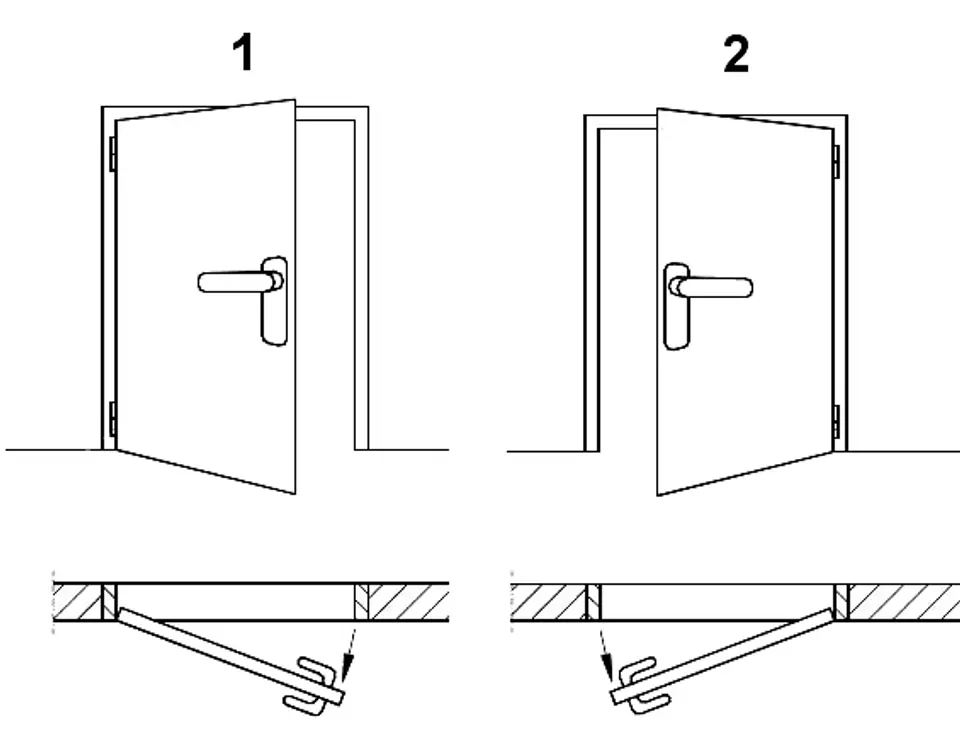

| Use:: | right door / left door |
| Voltage:: | 24 V ± 2 V AC/DC |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
