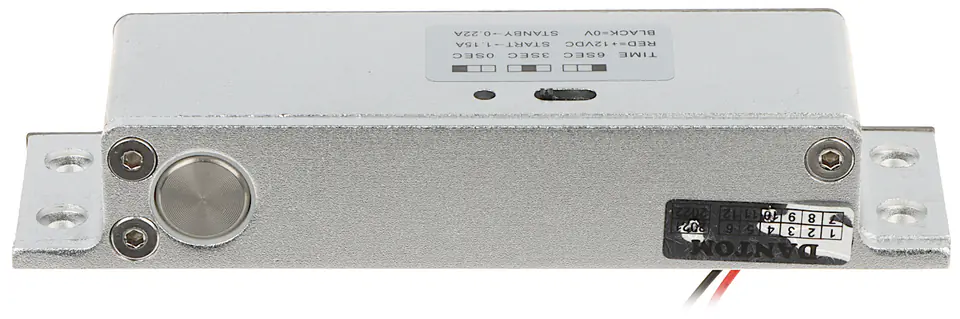

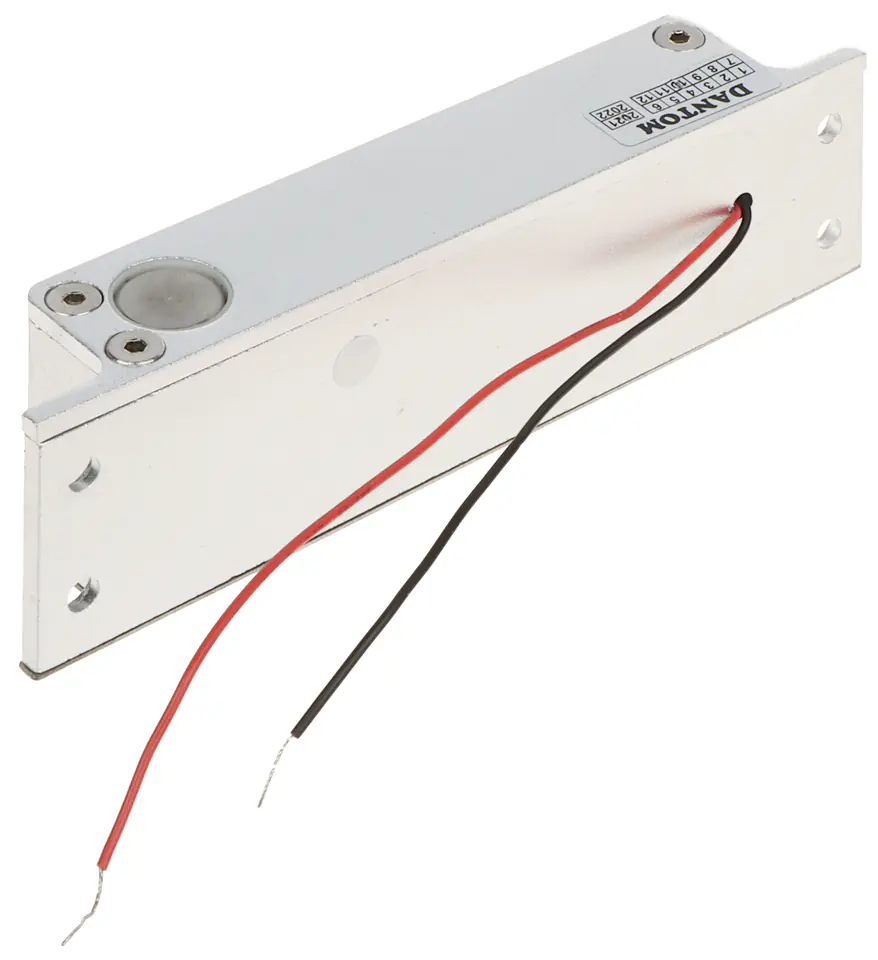

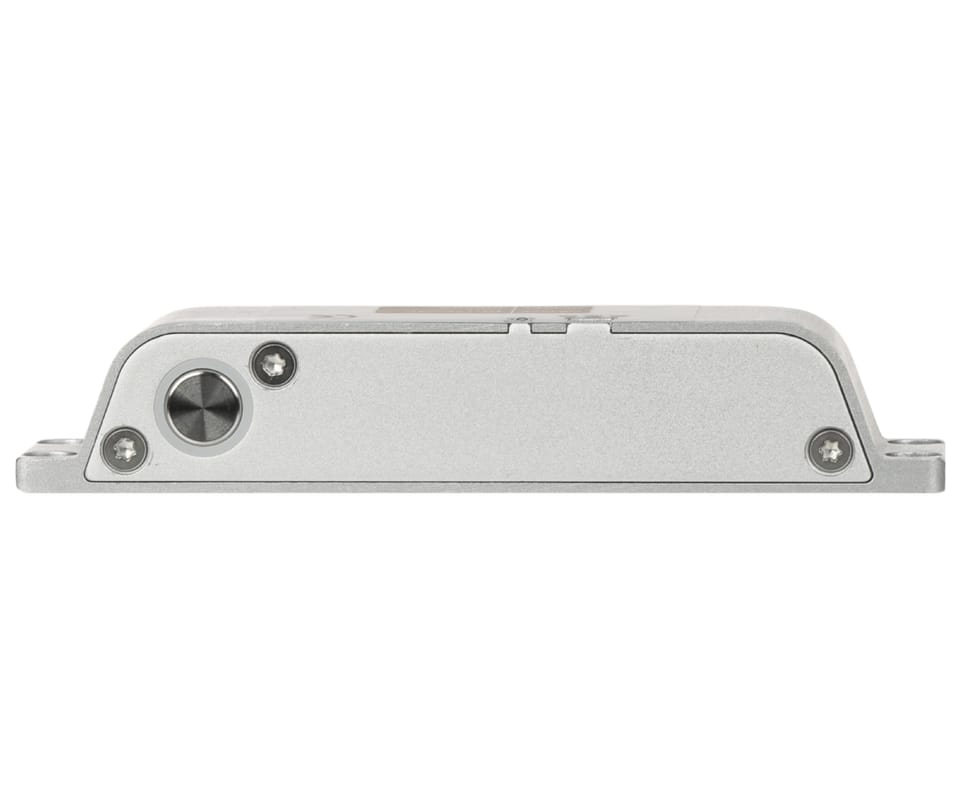

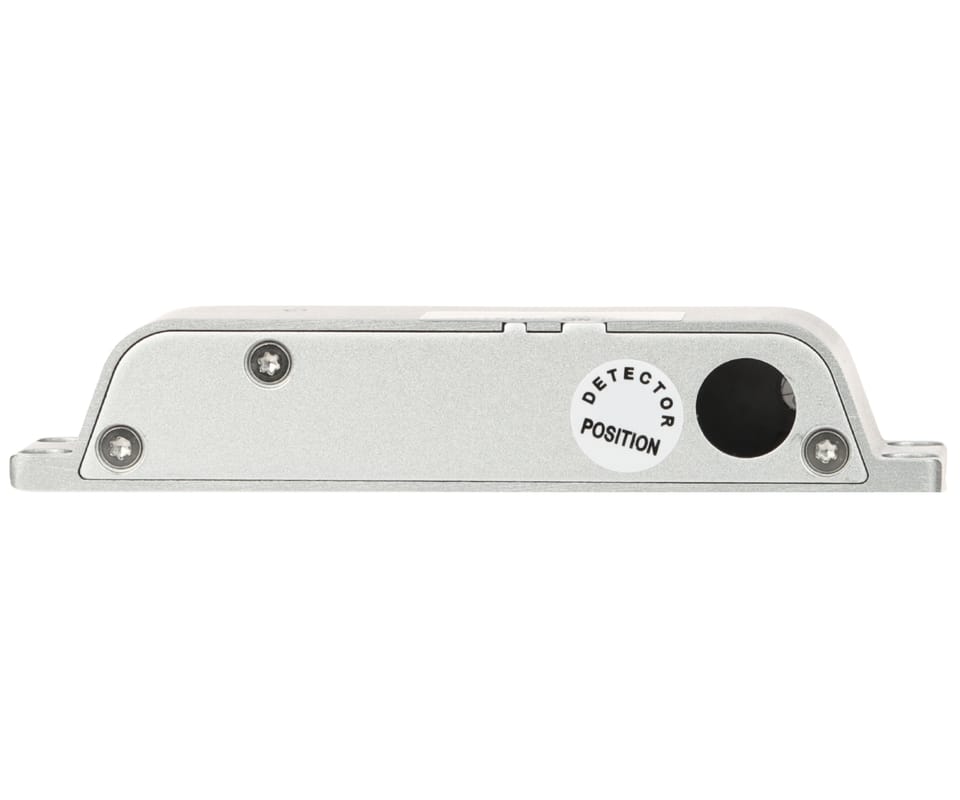

Reversible electromagnetic bolt
ELECTROMAGNETIC BOLT JS-1504N REVERSIBLE DANTOM
€44.87
Shipping from warehouse: D4
Estimated shipping: Mon, May 20 - Tue, May 21
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DANTOM
- Product code:
- JS-1504N / 5902887067525
Share this product:
Specification
| Current consumption:: | 220 mA / 1150 mA - at the time of switching on |
|---|---|

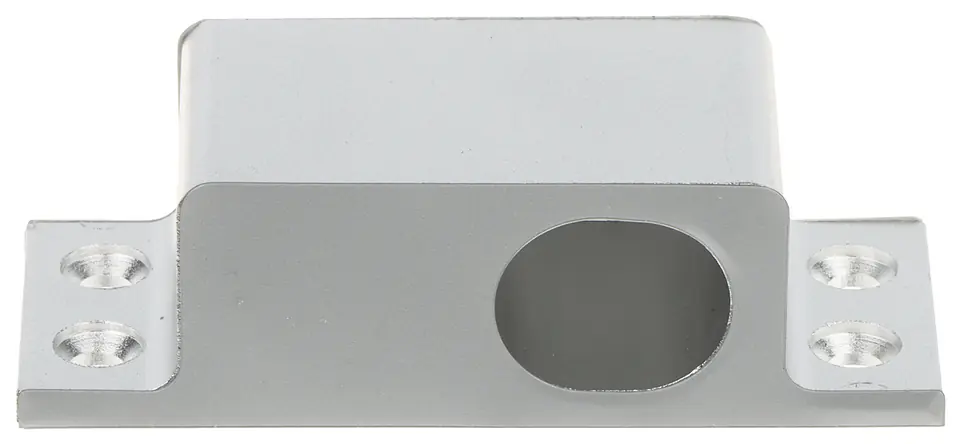

| Dimensions:: | 150 x 41 x 26 mm - Electromagnetic lock86 x 32 x 26 mm - Clamp86 x 34 x 3 mm - board |
| Manufacturer / brand:: | DANTOM |
| Permissible uninterrupted operation time:: | unlimited |
| Reversible work:: | After the voltage disappears, the door will be unlocked |
| Scales:: | 0.424 kg (total) |

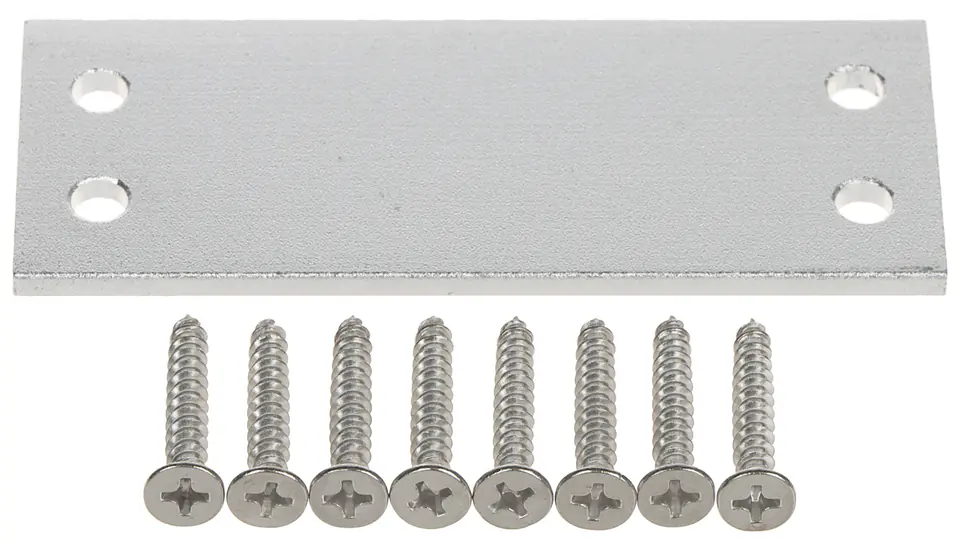

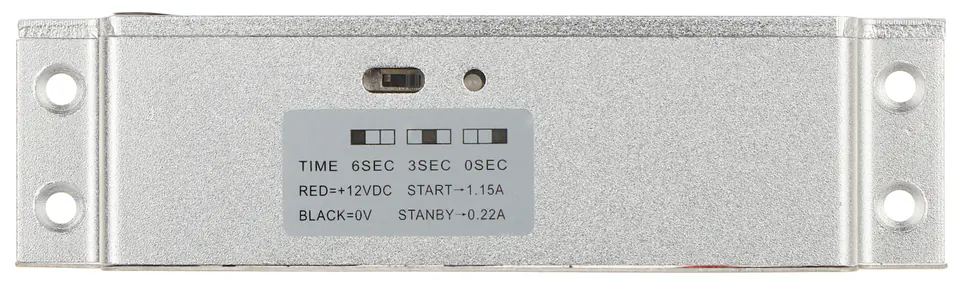

| Selected features:: | Door locking delay adjustment : 0 / 3 / 6 s LED signaling Mandrel extension distance : 15 mm Top mounting (can be used on narrow door frames) Additional mounting plate |
| Use:: | right door / left door |

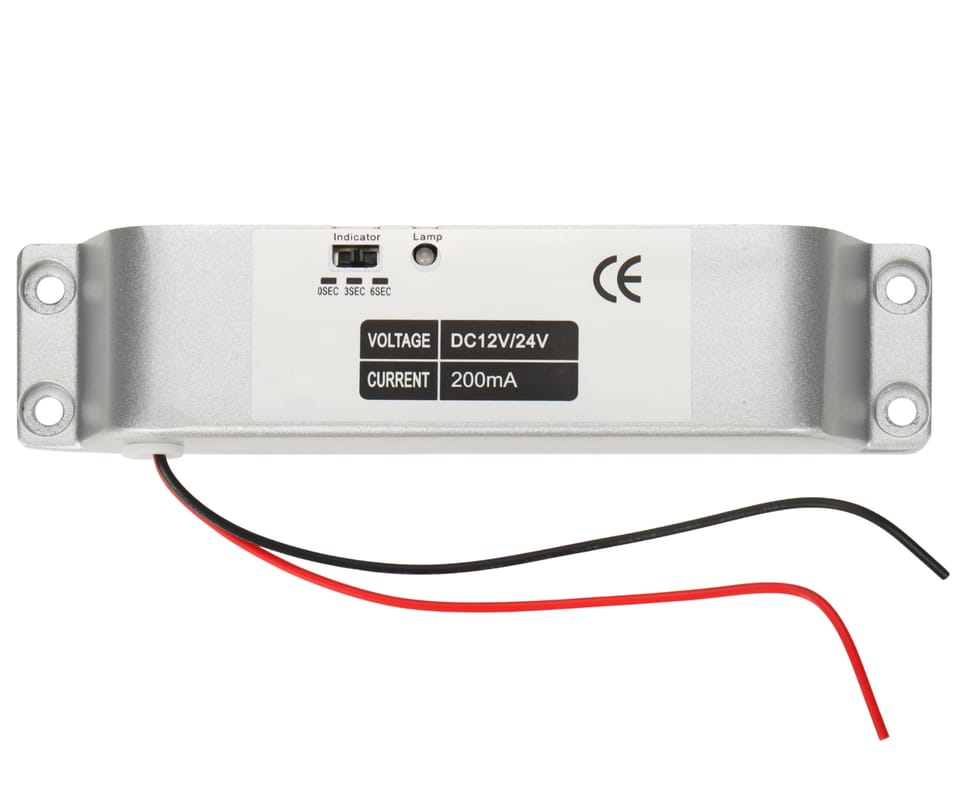

| Voltage:: | 10 ... 15 VDC |
| Warranty:: | 2 years |
