ELECTRIC SHEET METAL SHEARS GNA 75-16 750 W

Specifications:

Processing material: Steel up to 400 N/mm2 at 1.6 mm
Width of cutting trace: 5 mm
Drilling for inner cutouts: 21 mm
Smallest turning radius: 40 mm
Displacement at load: 2,100 min-1
No load stroke: 2,600 min-1
Weight: 1.8 kg
Length: 290 mm
Height: 142 mm
Cutting capacity in steel (400 N/mm2), max. 1.6 mm
Cutting capacity in steel (600 N/mm2), max. 1.0 mm
Cutting capacity in steel (800 N/mm2), max. 0.7 mm
Aluminium cutting capacity (200 N/mm2), max. 2.0 mm
Nominal output: 750 W
Output power: 400W



Efficient and handy tool for all kinds of notches
Compact, slim design for comfortable working
Powerful 750W motor for fast work
Work seamlessly by outline and template
Tool-free changing of cutting attachments
Tool-free rotating die for corrugated and trapezoidal sheet processing
Chip ejection downwards for a clean surface



Matrix 2 608 639 028
Stamp 2 608 639 027

**

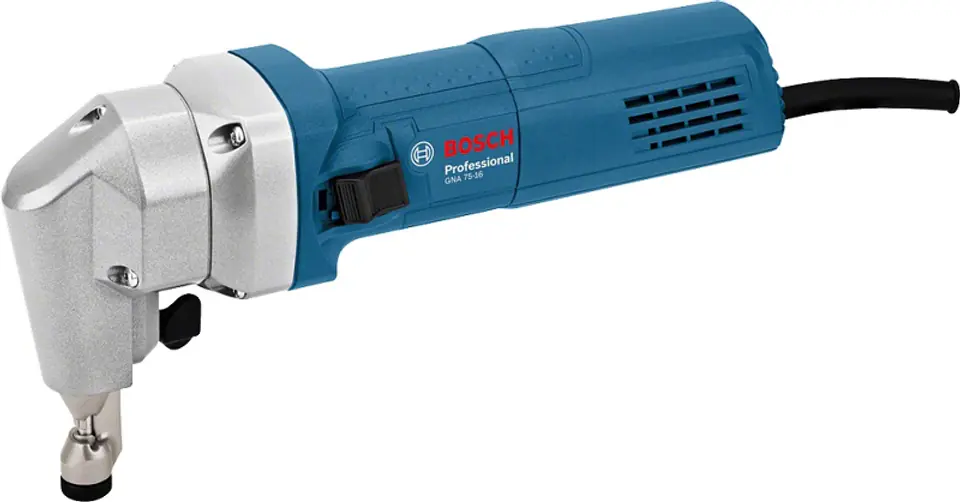

The photo is for illustrative purposes.
