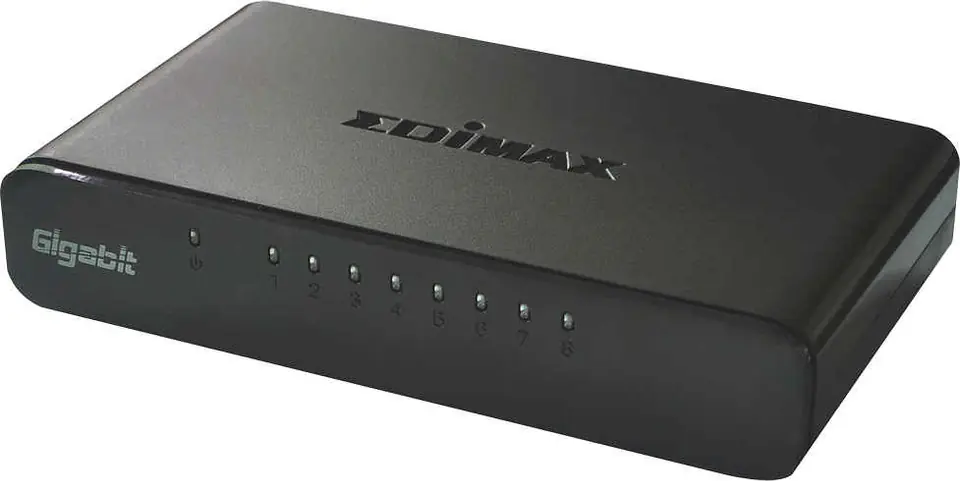

EDIMAX ES-5800G V3 8x 1GbE Switch
This product is not available
- Availability:
- expected delivery
- Brand:
- Edimax
- Product code:
- 0649659020634
Share this product:
Specification
| Built-in memory: | Buffer 128 KB |
|---|---|
| Colour: | Black |
| Depth (mm): | 76 |
| Destiny: | Desk |
| Equipment: | AC adapter, Power cord |
| Height (mm): | 25.5 |
| Jumbo frame support: | yes |
| Mac address array size: | 8000 |
| Method of transmission: | Store and forward |
| Network ports: | 8x 1 GbE |
| Operating humidity range (%): | 10 - 90 |
| Operating temperature range (deg. c): | 0 to 40 |
| Other parameters: | Maximum power consumption: 3 W, LEDs: Switch: Power, Port: Link/Act, Flow control, non-blocking architecture, Auto-MDI/MDI-X and auto-negotiation support, Supports full/half duplex modes, Transmission speed: 1000Mbps - 1488000p/s, 100Mbps - 148800p/s, 10Mbps - 14880p/s, Cables: 10BASE-T - Cat. 3, 4, 5 UTP/STP, 100BASE-TX - Cat. 5 UTP/STP, 1000BASE-T - Cat. 5E UTP/STP, Jumbo frames: 9K, USB or AC adapter powered |
| Power: | USB, 5 V DC |
| Protocols and standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Switching layer: | 2 |
| Warranty: | 2 years |
| Weight (g): | 148 |
| Width (mm): | 137 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
