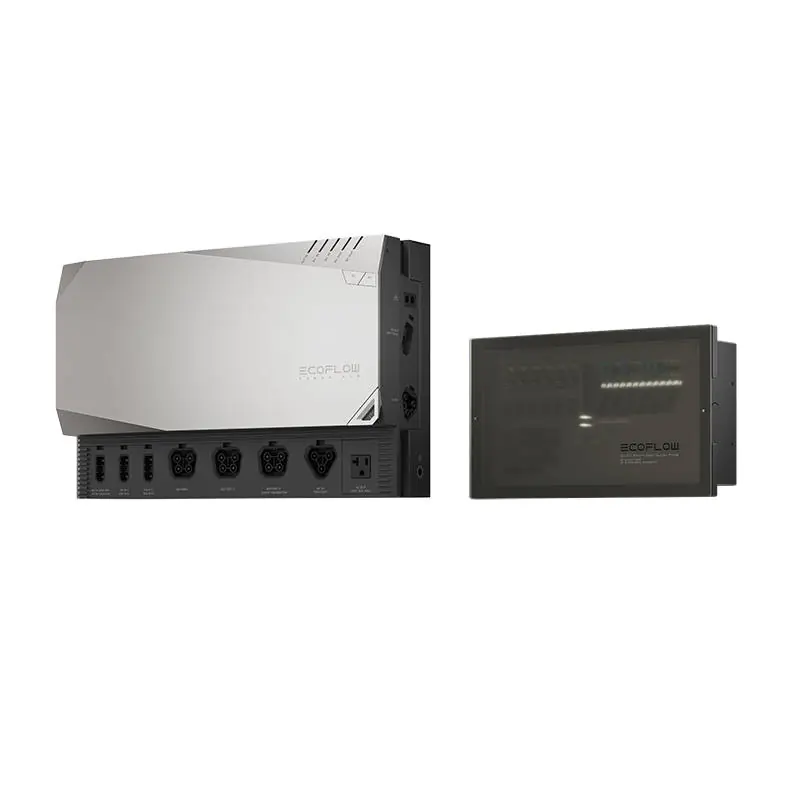

Bet on a handy EcoFlow power supply kit and create the optimal photovoltaic system for your motorhome. The compact hub has 5 different functions, and thanks to the AC 3600W output power, it allows you to power many necessary devices. The set also includes an intelligent distribution panel that will allow you to manage energy and adapt it to selected equipment.

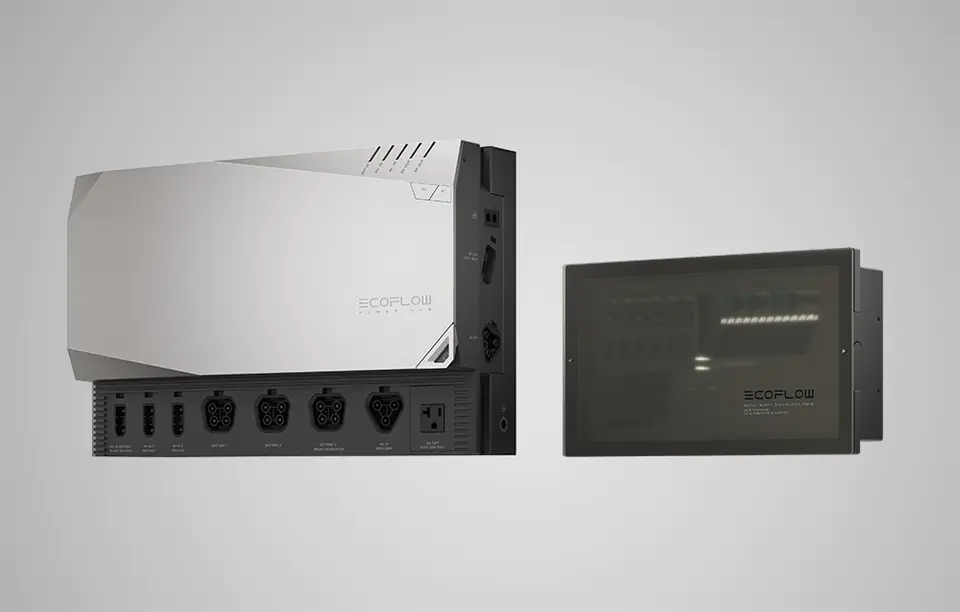

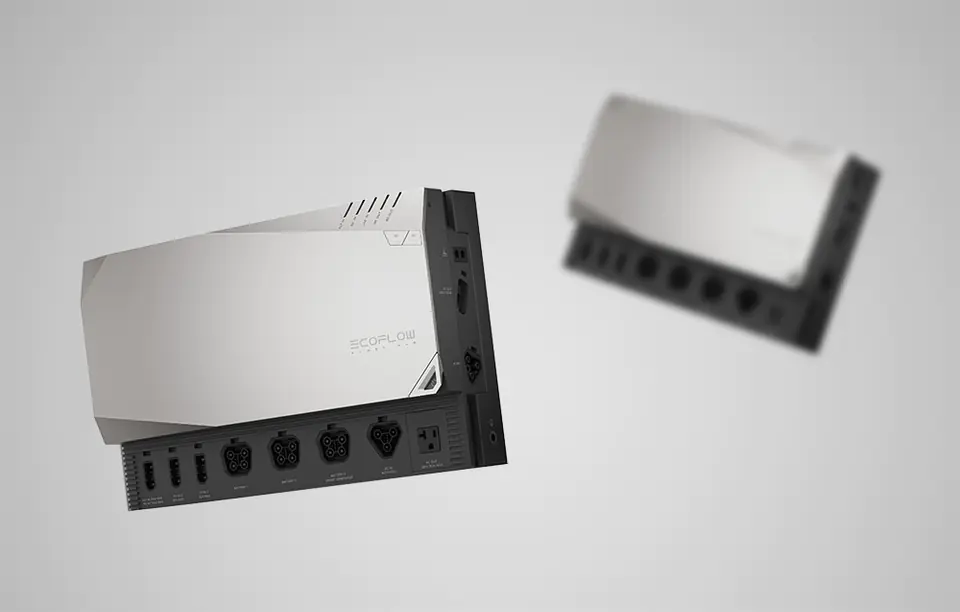

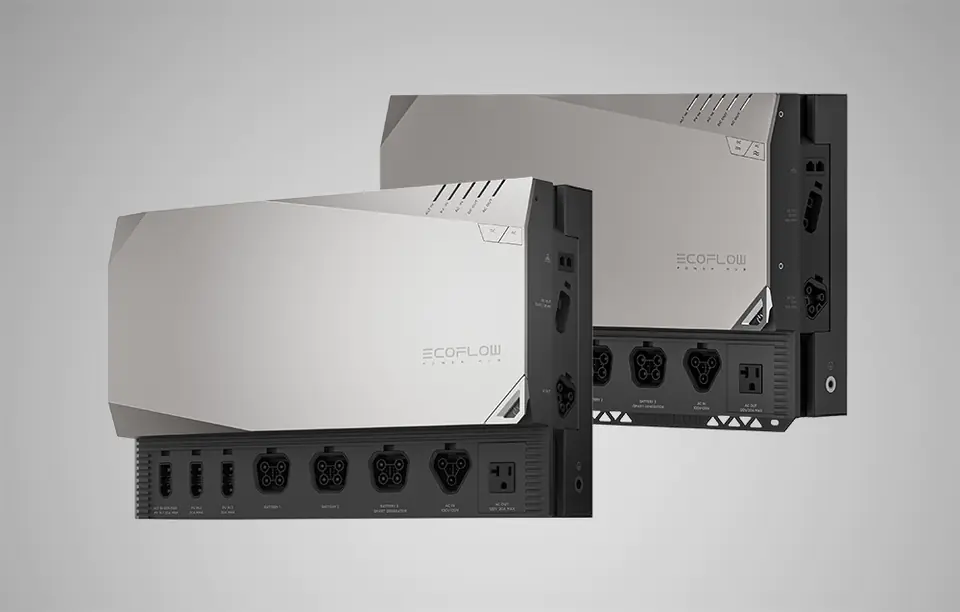

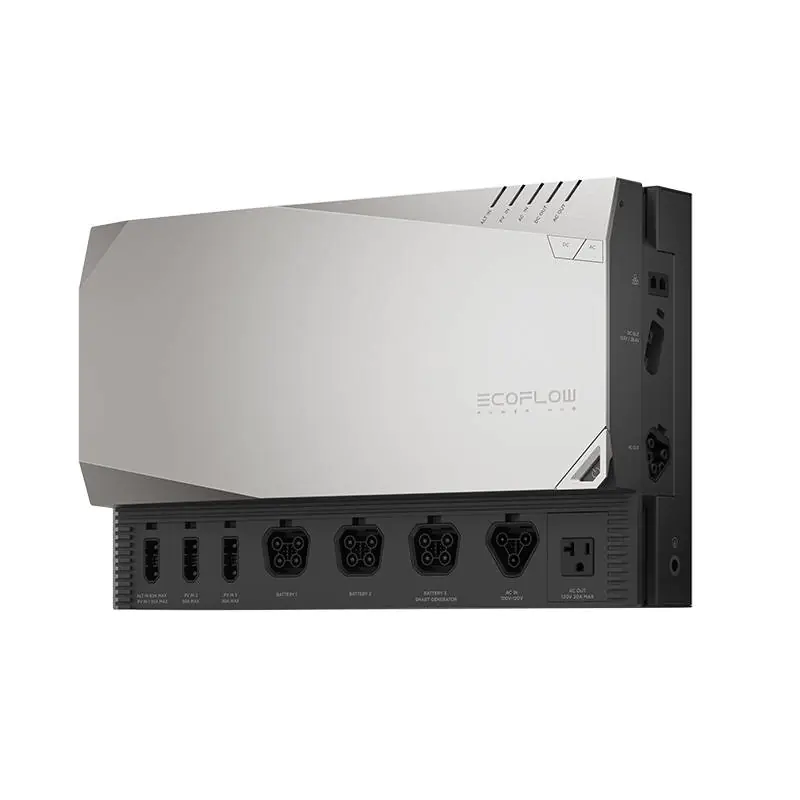

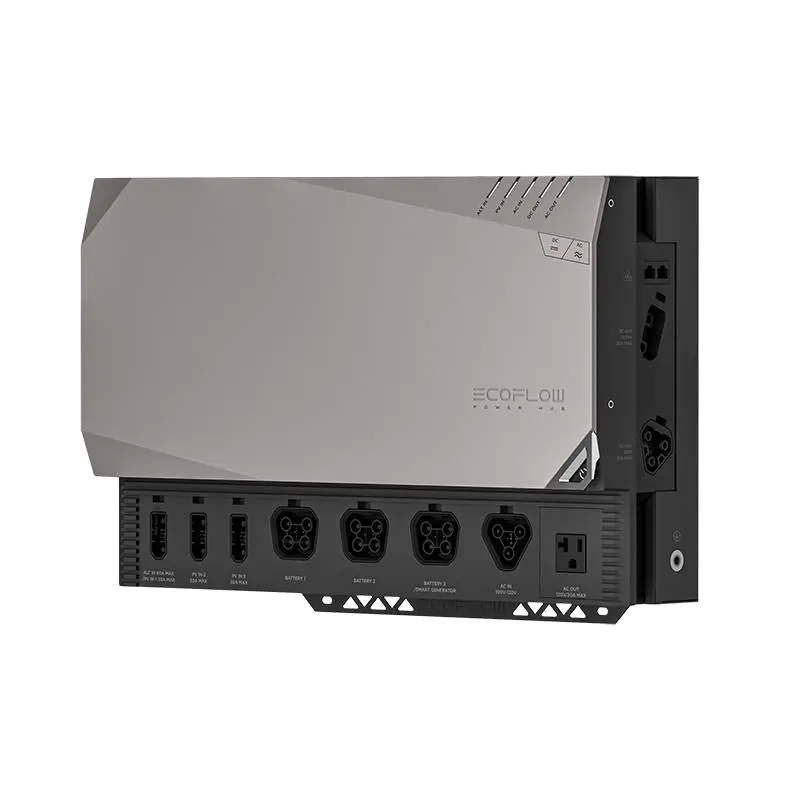

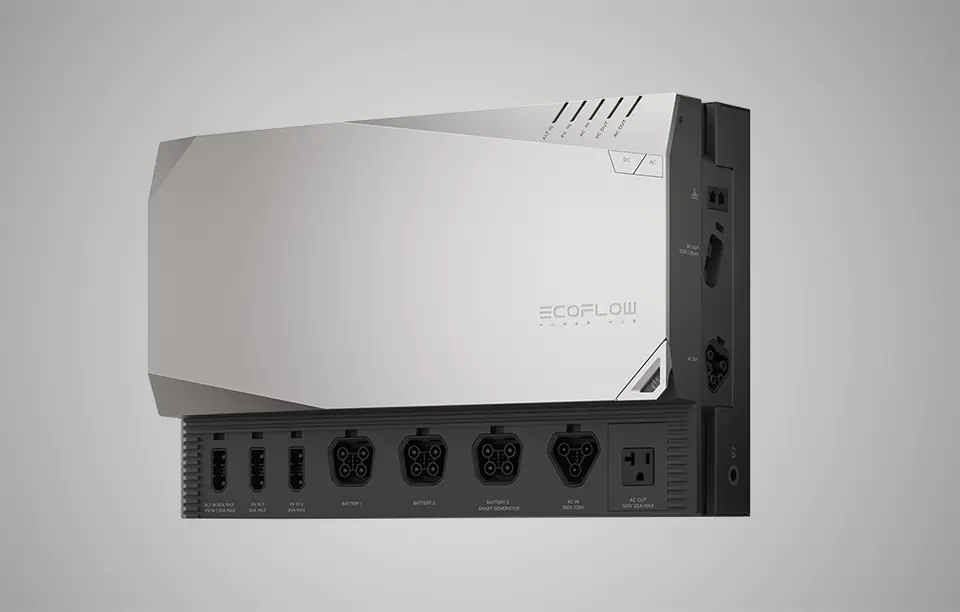

Power hub from EcoFlow is the perfect combination of compact design and high functionality. The compact device combines 2 MPPT solar charge controllers, a battery charger with MPPT, a DC-DC converter and an inverter charger. Thanks to this, you can save space in your motorhome and at the same time use all the necessary elements of the photovoltaic system. Plug & play support is also an advantage.

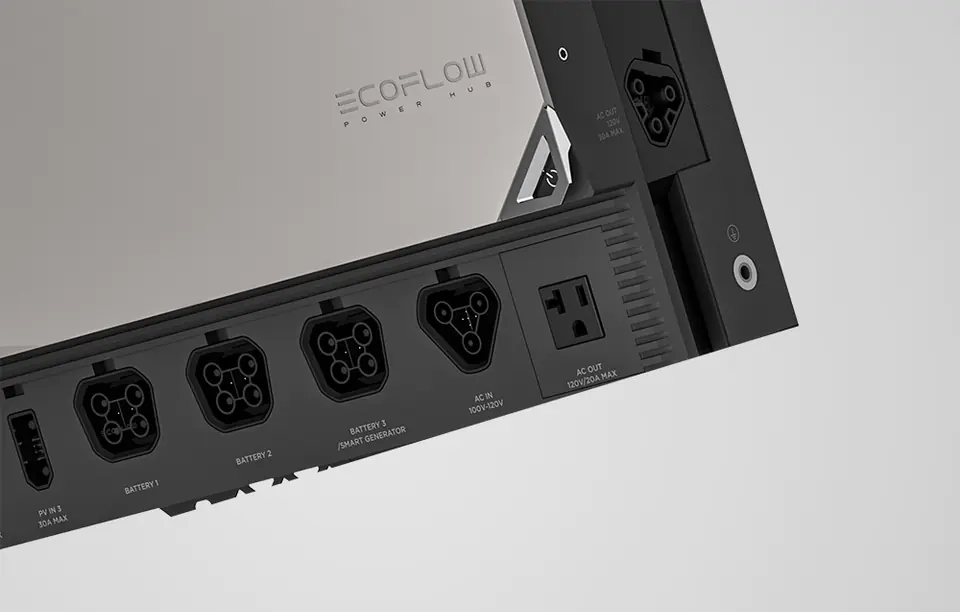

The hub offers a total output power of 6000W and you can easily charge it with solar energy. 3 x 1600W PV sockets allow you to combine the product with flexible, rigid and portable solar panels, in addition, you can use other brands of solar panels without worry. You can also use a shore power supply, an alternator or an EcoFlow smart generator to renew your energy.
The hub uses a number of intelligent solutions so that you do not have to worry about the security of connected devices. The advanced MPPR algorithm optimizes solar energy, X-Boost provides up to 5000W AC power output, and X-Stream guarantees fast charging up to 3000W AC. The device also regulates the amperage to protect the car's battery.

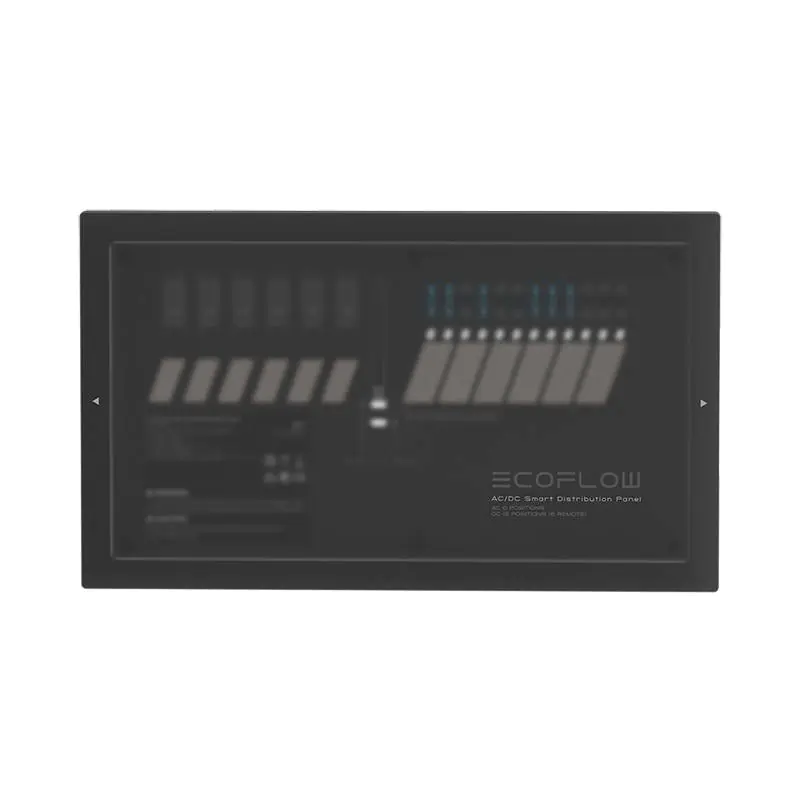

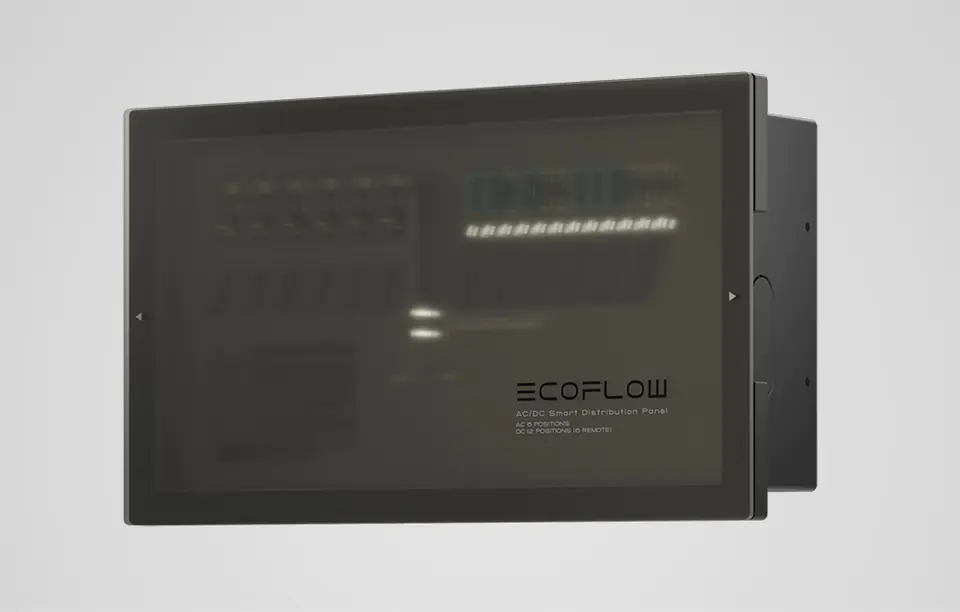

In the kit you will find an intelligent distribution panel that has been equipped with 6 AC positions and 12 DC positions. You can connect selected devices to it to manage energy and share it between powered devices. Available separately, the console will allow you to control up to 6 DC positions and monitor charging data in real time.

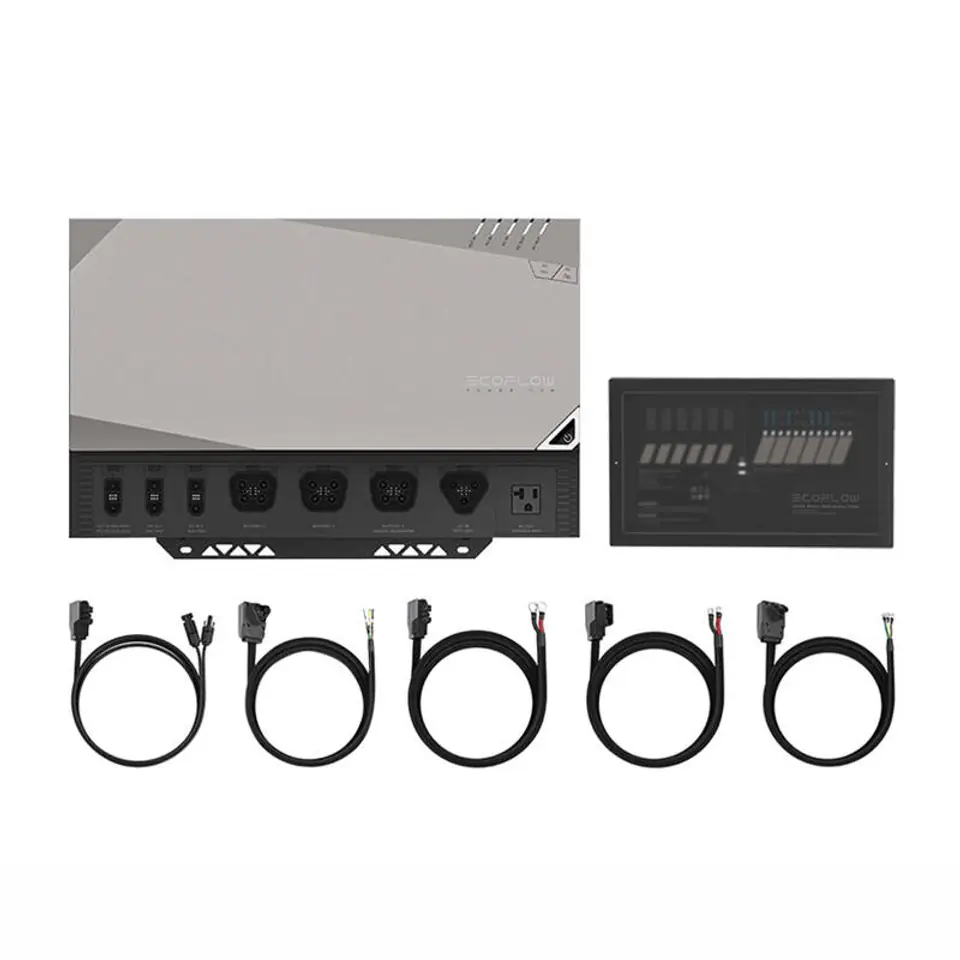

The kit also includes cables that allow you to easily connect your batteries and power devices wherever you want. In the package you will find an AC charging cable, an alternator charging cable, a solar charging cable, 2000W and 1600W AC Main Out cables, as well as an RJ45 CAN Bus cable for the distribution panel.
- Power Hub
- Cable kit
- Distribution panel
Power Hub Specification
| Producer | EcoFlow |
|---|---|
| Name | Power Hub |
| AC Output | Pure Sine Wave, 3600 W (7200 W flow), 230 V, 50 Hz |
| DC output | 13.6 V / 70 A, 1000 W maximum; 26.4 V / 60 A, 1600 W maximum; |
| AC input | X-Stream fast charging 3000 W max., 15 A max. |
| AC input voltage | 220-240 V, 50/60 Hz |
| Solar charging inputs | 15-150V 30A, 1600W max. |
| Charging inputs via alternator | 13-60V 60A, 1600W max. |
| Operating temperature | -25°C - 60°C |
| Storage temperature | -25°C - 60°C |
| Charging temperature | -25°C - 60°C |
| Discharge temperature | -25°C - 60°C |
| Dimensions | 48 x 14 x 30 cm |
| Scales | 14 kg |

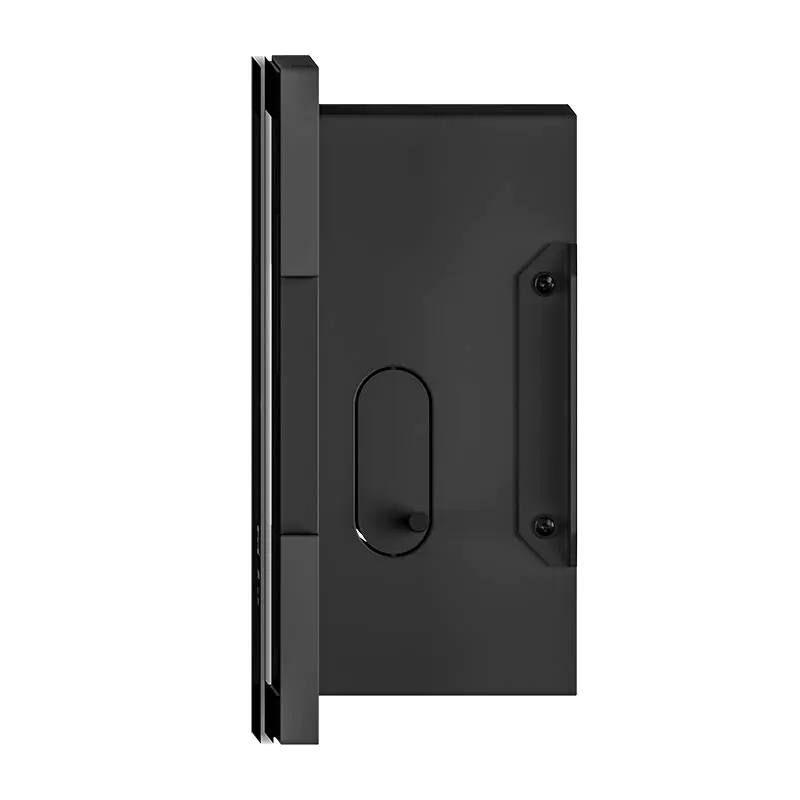

Distribution panel specification
| Producer | EcoFlow |
|---|---|
| Name | Distribution panel |
| Main AC input | 30A max. 220-240V, 50Hz |
| Main DC input | 70A max. 10-30 VDC |
| AC Output | 6 AC circuits, max. 10A each, 220-240V, 50Hz |
| DC output | 6 controlled circuits + 6 regular circuits, max. 20 A each, 10-30 V DC |
| Operating temperature | -25°C-60°C |
| Dimensions | 35.4 x 21 x 9.8 cm |
| Net weight | 2.6 kg |
| Tests and certificates | UL Standard, FCC, PSE |
