| Ac outlet types: | Type E |
|---|---|
| Ac outlets quantity: | 4 AC outlet(s) |
| Audible alarm modes: | Battery replacement |
| Audible alarm(s): | Yes |
| Automatic battery test: | Yes |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Cold start: | Yes |
| Depth: | 235 mm |
| Emergency power off (epo): | No |
| Ethernet lan (rj-45) ports: | 1 |
| Form factor: | Tower |
| Harmonized system (hs) code: | 85078000 |
| Height: | 263 mm |
| Hot-swap battery: | No |
| Input connection type: | FR |
| Input frequency: | 50/60 Hz |
| Input operation voltage (max): | 284 V |
| Input operation voltage (min): | 161 V |
| Led indicators: | Battery replacement |
| Mac compatibility: | Yes |
| Modem (rj-11) ports: | 1 |
| Nominal input voltage: | 230 V |
| Nominal output voltage: | 220-240 V |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 220 V |
| Output power: | 400 W |
| Output power capacity: | 0.65 kVA |
| Overload protection: | Yes |
| Power plug: | C14 coupler |
| Product colour: | Black |
| Rack capacity: | 2U |
| Safety: | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Surge protection: | Yes |
| Surge protection features: | Fax, Network, Telephone, Modem |
| Typical backup time at half load: | 9 min |
| Ups topology: | Standby (Offline) |
| Usb 2.0 ports quantity: | 1 |
| Weight: | 3.6 kg |
| Width: | 81 mm |

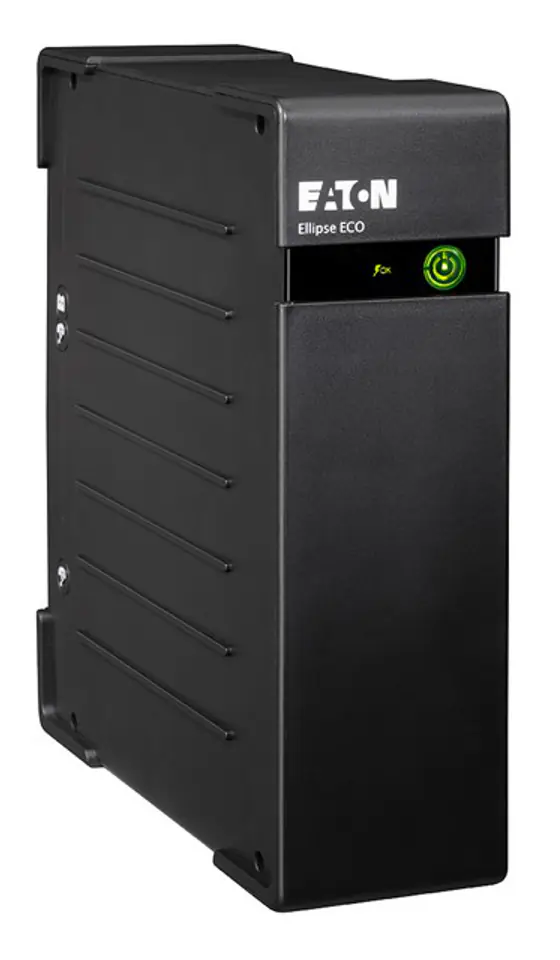

Eaton Ellipse ECO 650 FR USB
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Product features: http://powerquality.eaton.com/EL650USBFR.aspx?CX=101
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
