Mandler cutter, short execution, HSS-E PM, Fire coating
Execution: with center blade, suitable for drilling.
HSS-E PM is characterized by high ductility (greater edge stability and resistance to abrasive wear) and longer durability.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
Application: for circumferential and face milling.

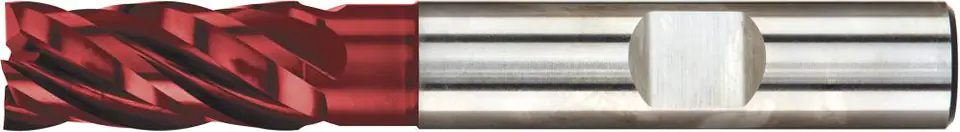

Dull cutter, long DIN844, HSSE-PM FIRE,type N 8mm GÜHRING
€62.52
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 2 - Fri, Dec 5
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9037050080000 / 4031093387637
Share this product:

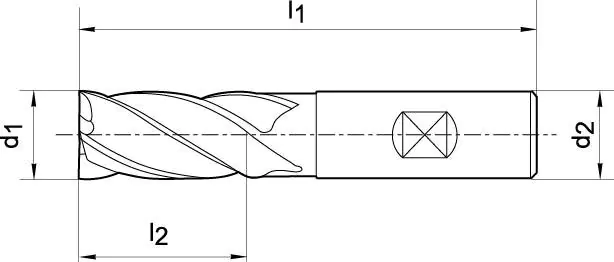

Specification
| Aluminium > 8% silicon: | 132 |
|---|---|
| Cast iron gg/gts: | 45 |
| Copper alloys: | 108 |
| Cutting part length l2: | 19 mm |
| Diameter d1 = k10: | 8 mm |
| Ggg cast iron: | 36 |
| Inox duplex: | 42 |
| Shank diameter d2 = h6: | 10 mm |
| Steel < 1000 n/mm2: | 53 |
| Steel < 1000 n/mm2 fz: | 0.042 mm/rev. |
| Steel < 1400 n/mm2: | 42 |
| Steel < 700 n/mm2: | 66 |
| Titanium > 850 n/mm2: | 26 |
| Total length l1: | 69 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
