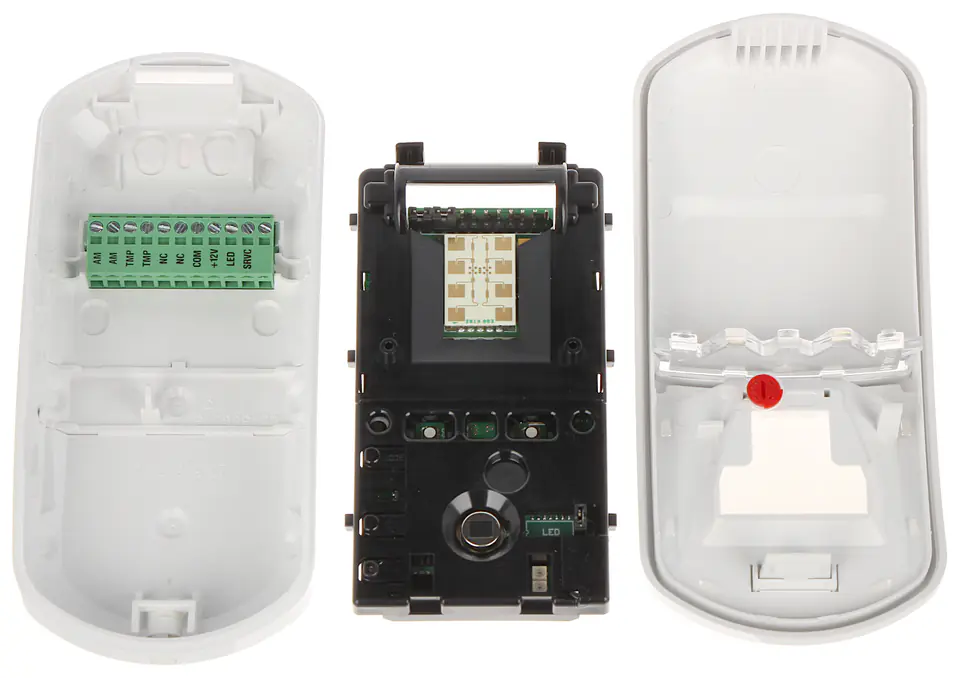

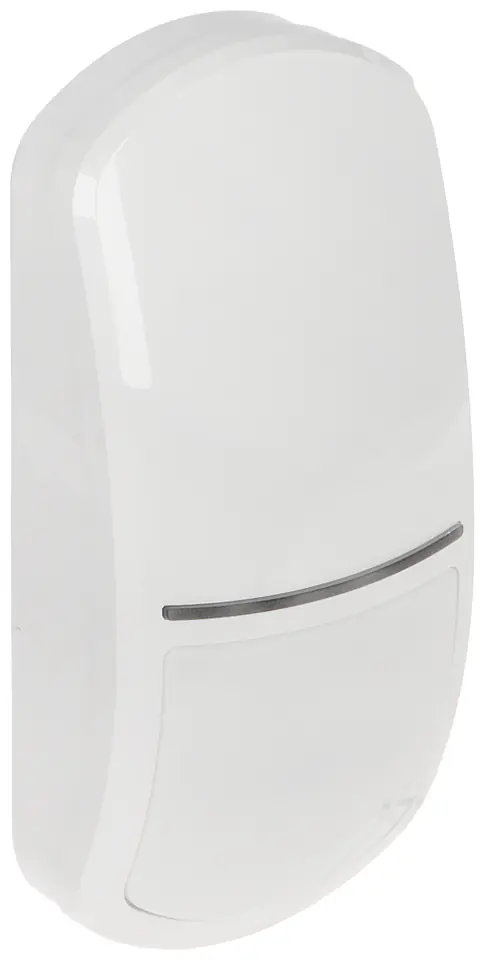

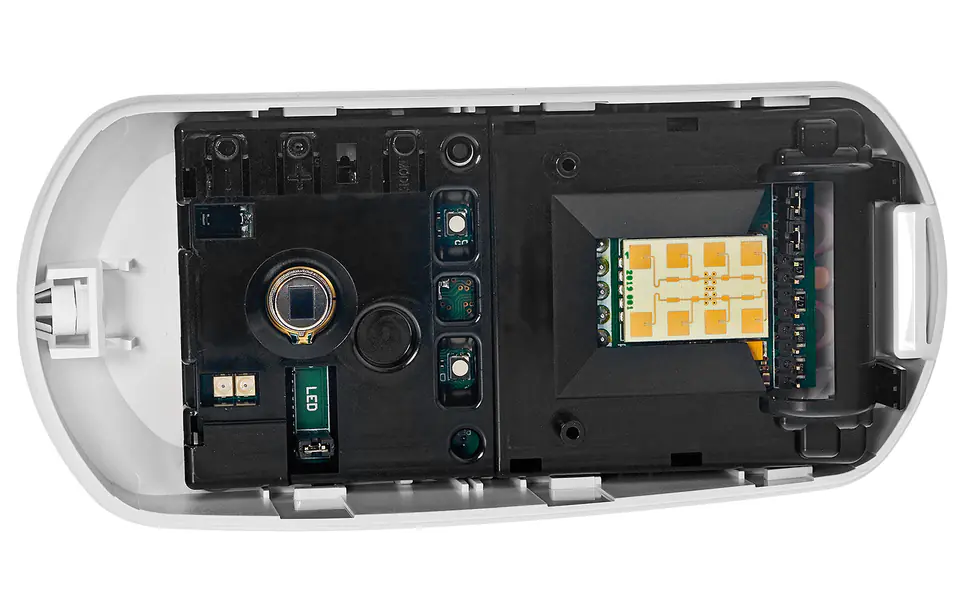

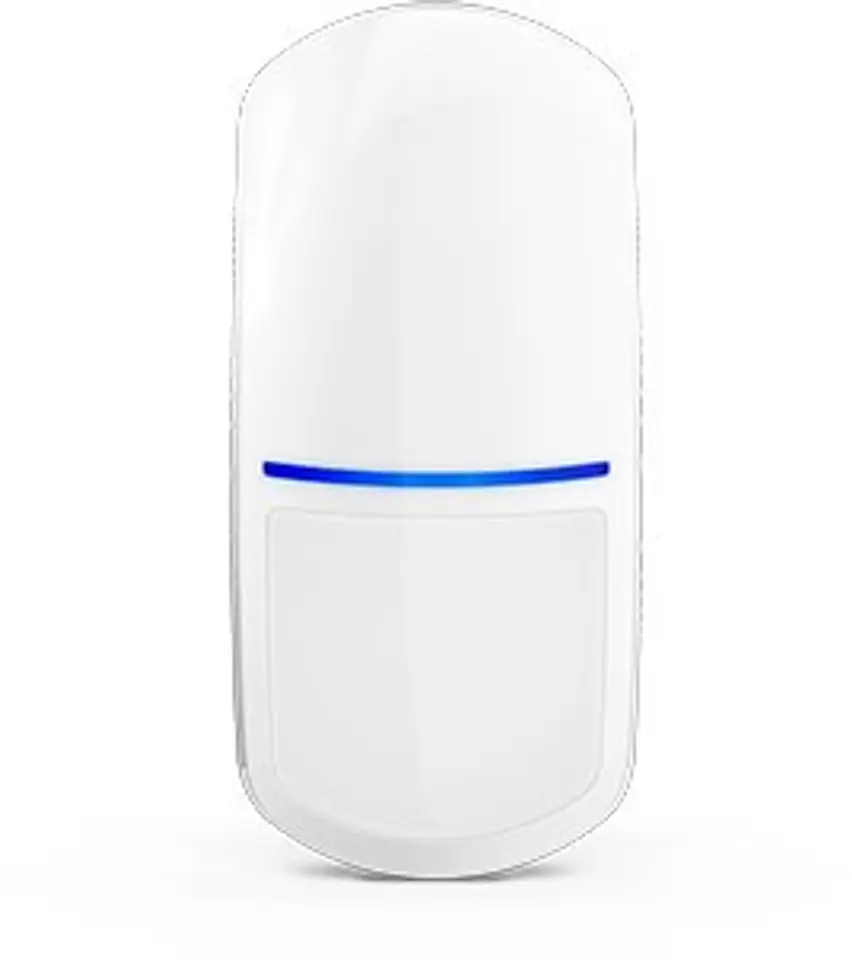

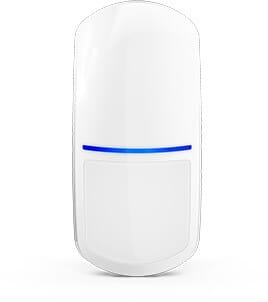

Digital dual detector equipped with PIR and microwave detection path

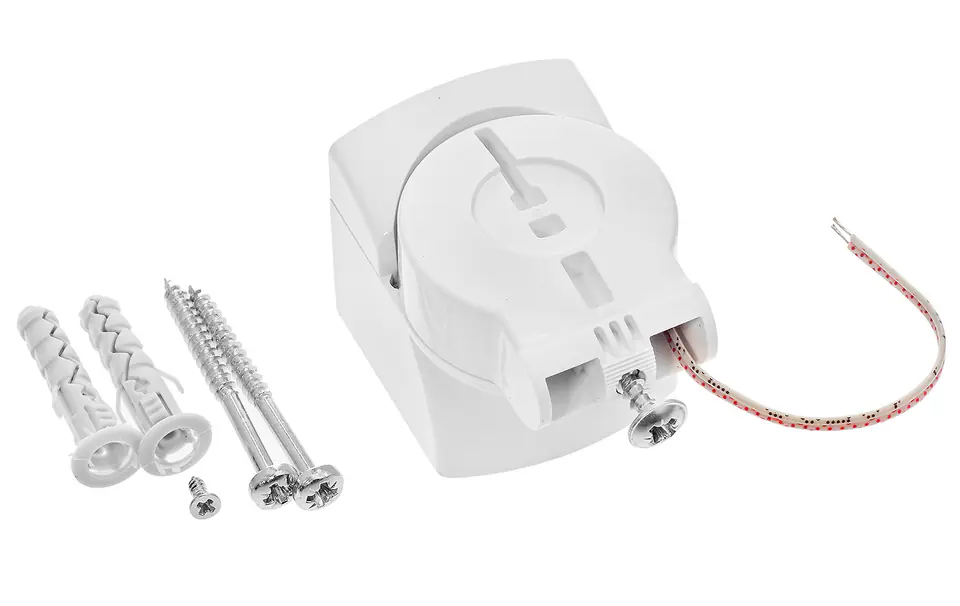

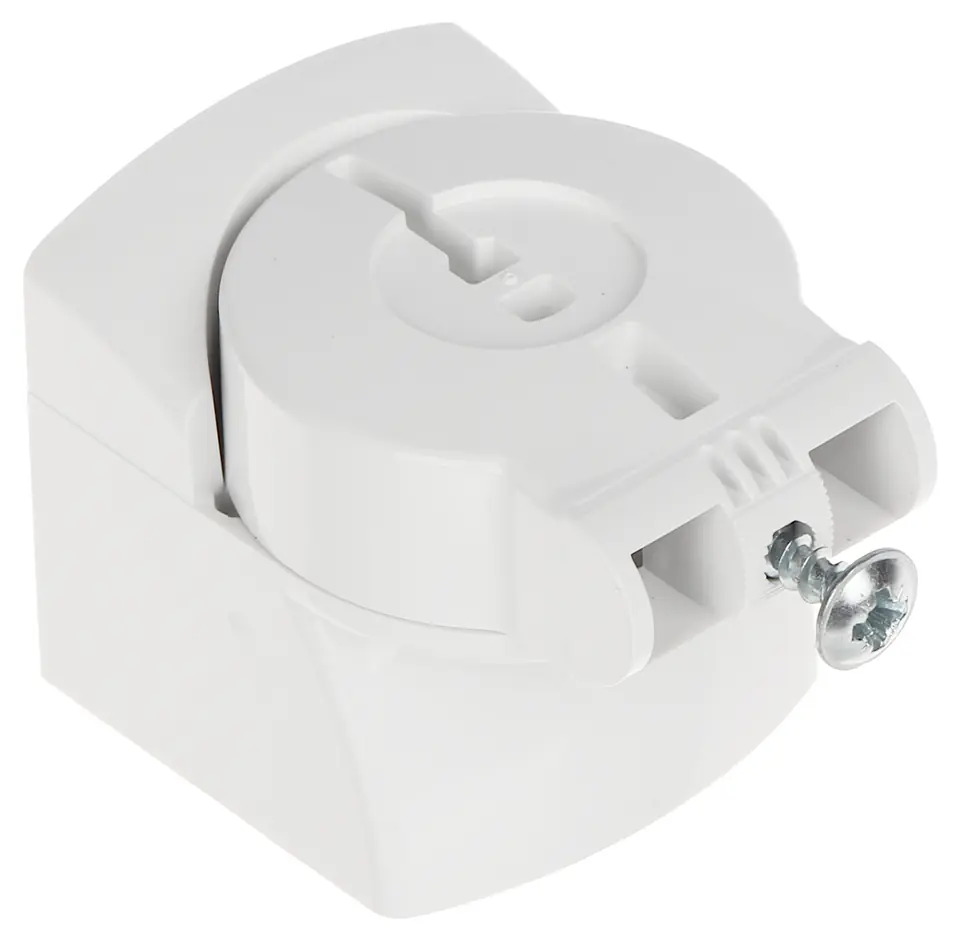

Included with the detector is a dedicated handle

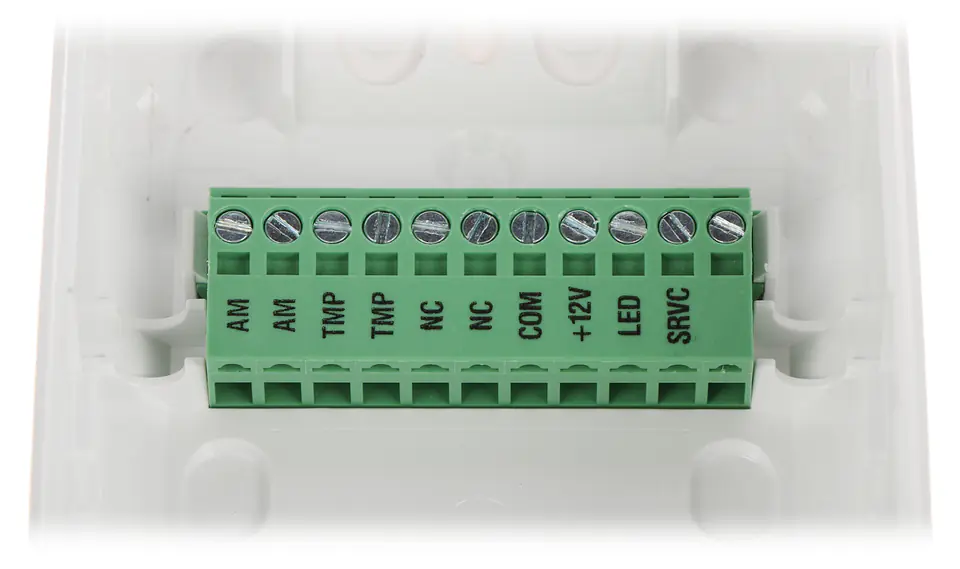

Alarm output:: | NC, 2EOL / NC - Adjustable jumpers |
---|---|
Colour:: | white |
Detectable movement speed:: | 0.2 ... 3 m/s |
Detection angle:: | 90 ° |
Dimensions:: | 137 x 62 x 42 mm |
Environmental class en 50130-5:: | II |
Grade:: | EN 50131-2-4, Grade 3 |
Led signaling:: | Remote on/off led indicator and light color selection (7 colors available) |
Manufacturer / brand:: | SATEL |
Maximum load on outputs:: | 40 mA / 24 V DC - Relay output 40 mA / 24 V DC - Anti-masking output 40 mA / 24 V DC - Anti-tamper |
Microwave frequency band:: | 24.125 GHz |
Operating temperature:: | -10 °C ... 55 °C |
Power:: | 12 V DC / 85 mA (max. max. |
Pyroelement:: | quadruple |

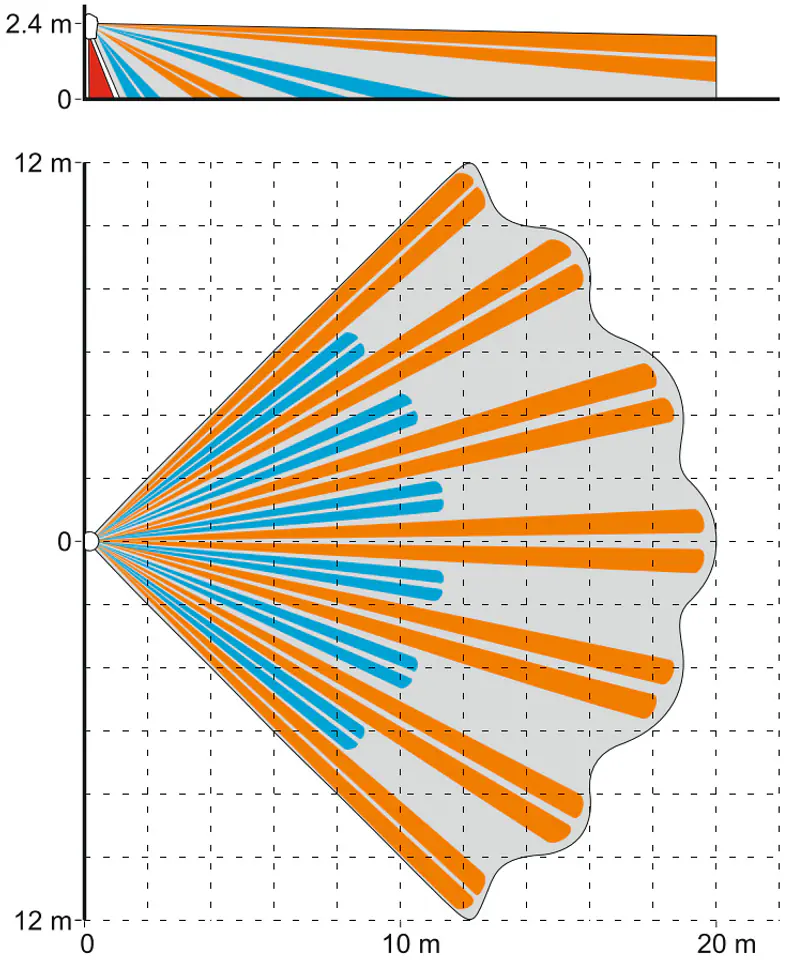

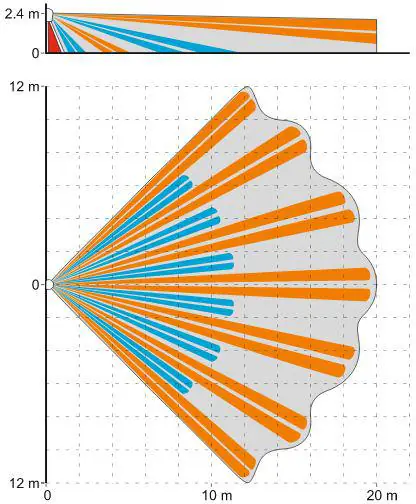

Range:: | Max. 20 x 24 m |
Recommended mounting height:: | 2.4 m |
Scales:: | 0.11 kg |

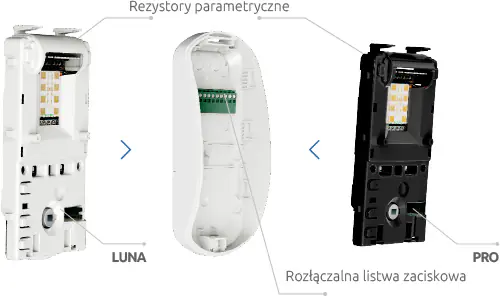

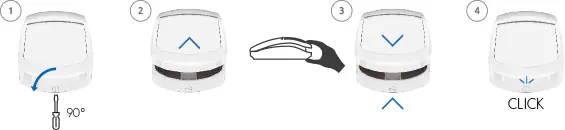

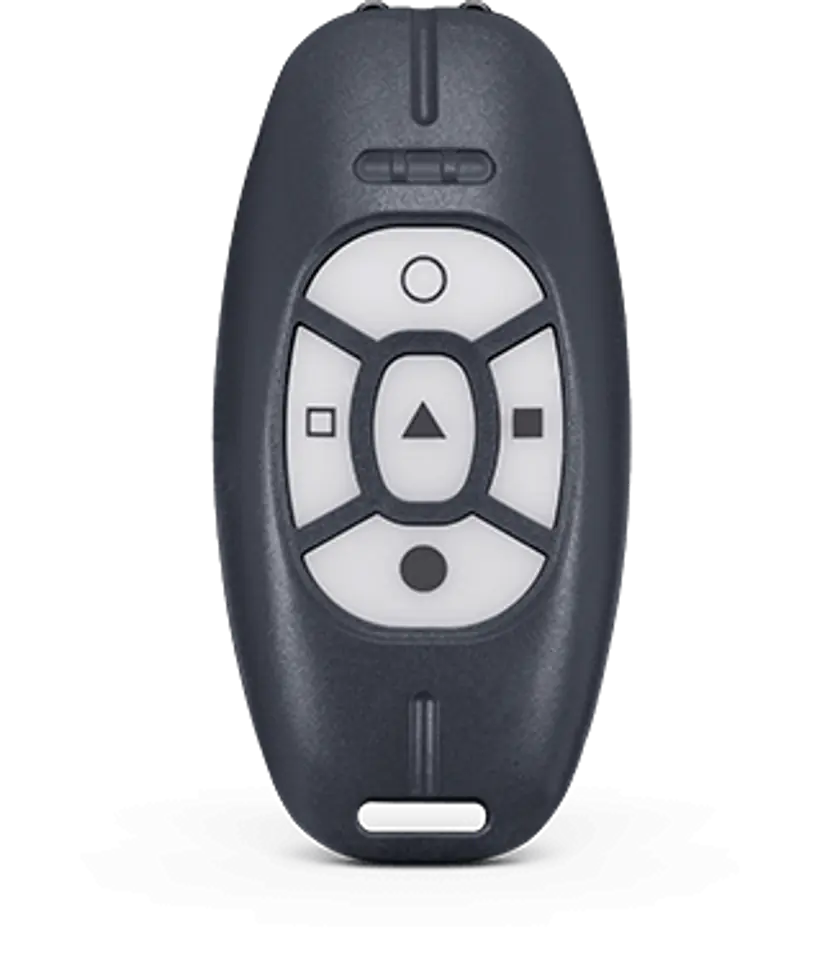

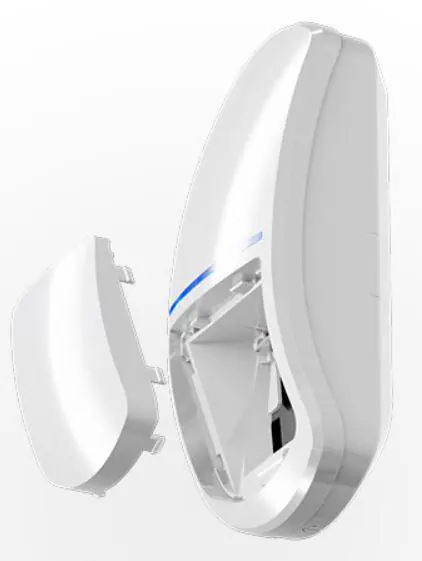

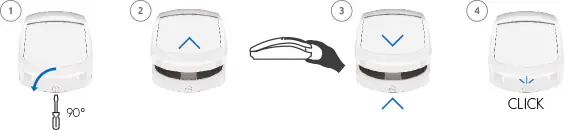

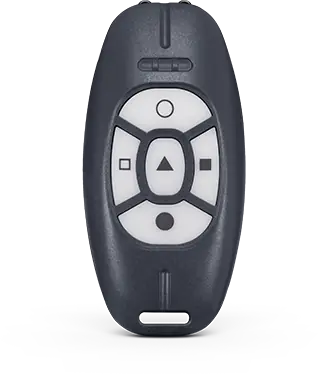

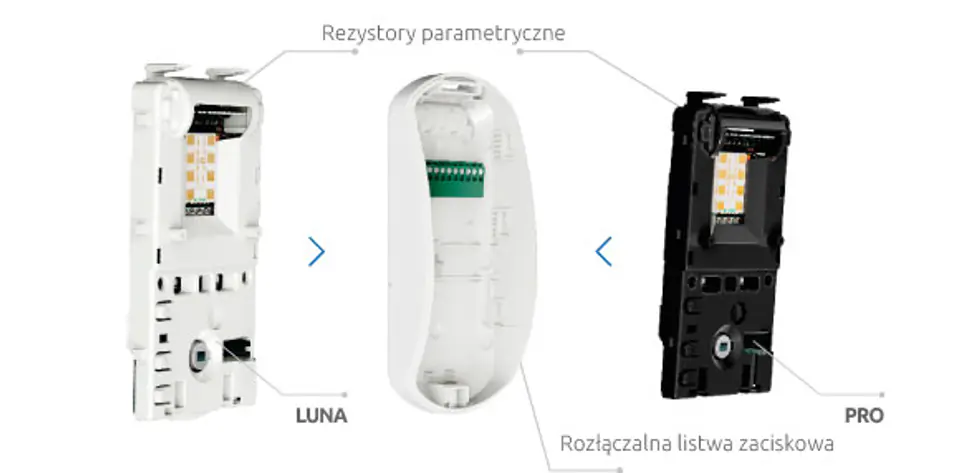

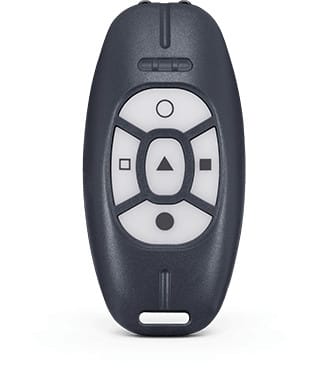

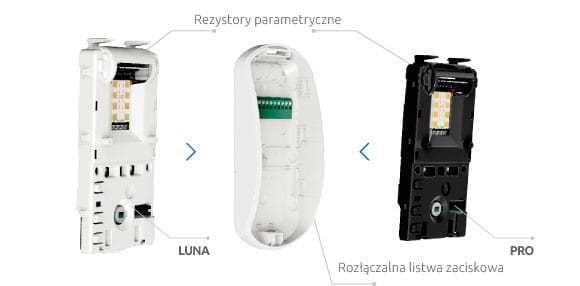

Selected features:: | EN 50130-4, EN50130-5, EN 50131-1, EN 50131-2-2 digital temperature-compensated detection algorithm, providing high resistance to false alarms and repeatability parameters Tamper detection - housing opening, detachment from the ground Remote management Built-in parametric resistors 2EOL: 2 x 1.1kΩ, 2 x 4.7 kΩ, 2 x 5.6 kΩ Approach zone control Remote control (not included) |
Sensitivity adjustment:: | Separate, infinitely variable sensitivity adjustment for each sensor |

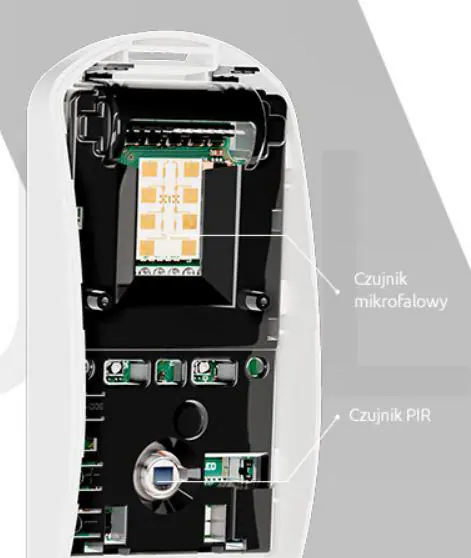

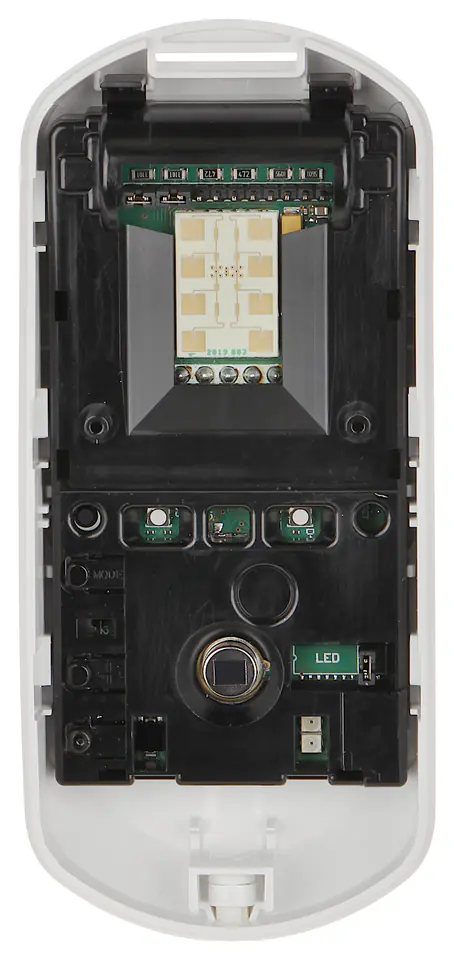

Sensor type:: | Passive infrared (PIR) and microwave (MW) |
Use:: | Internal |
Violation signaling time:: | 2 sec |
Warranty:: | 5 years |
Digital dual detector equipped with PIR and microwave detection path
Included with the detector is a dedicated handle
