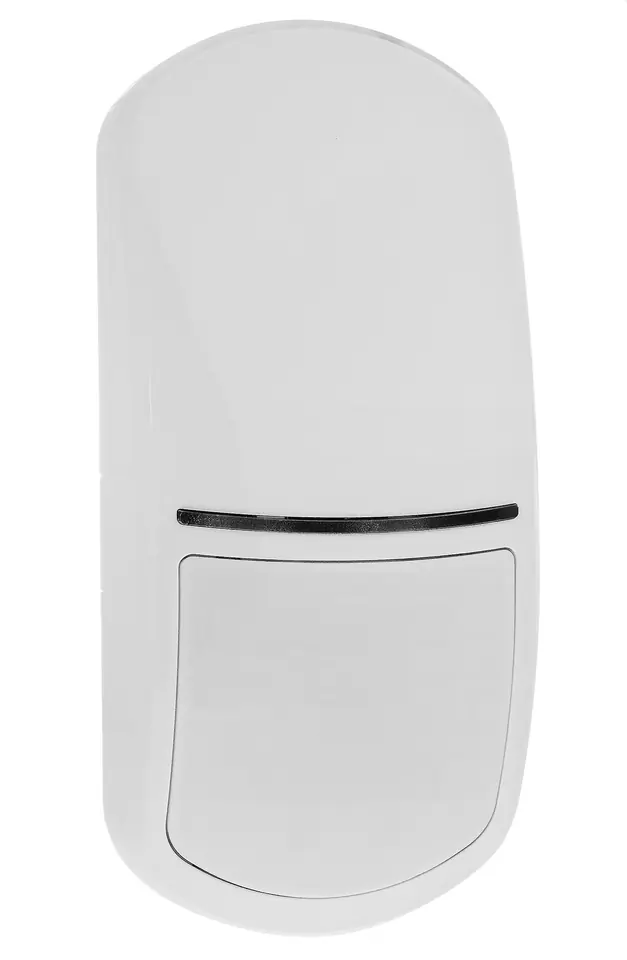

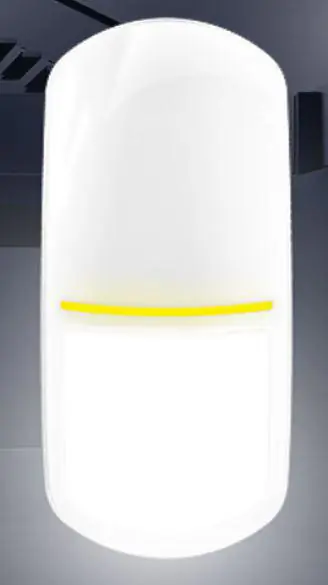

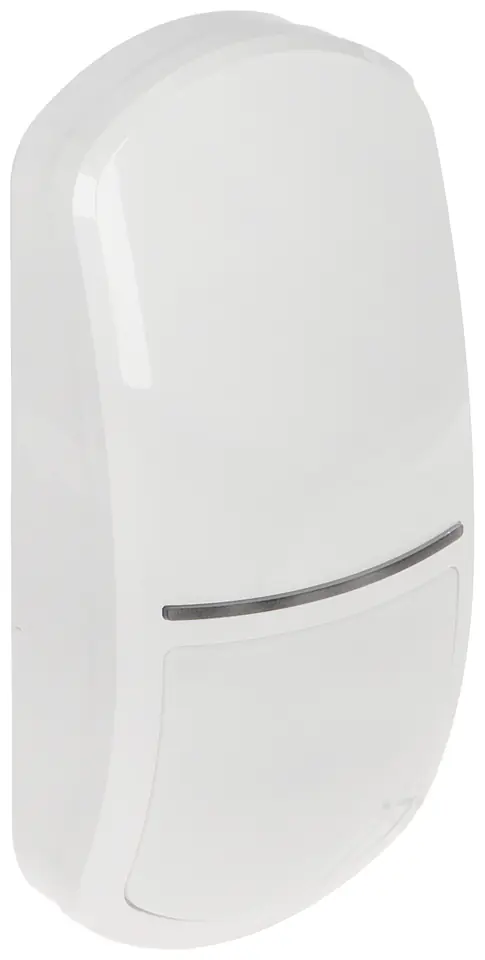

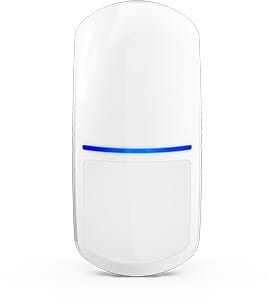

Digital dual motion detector with LED lighting function, animal resistant up to 20 kilograms

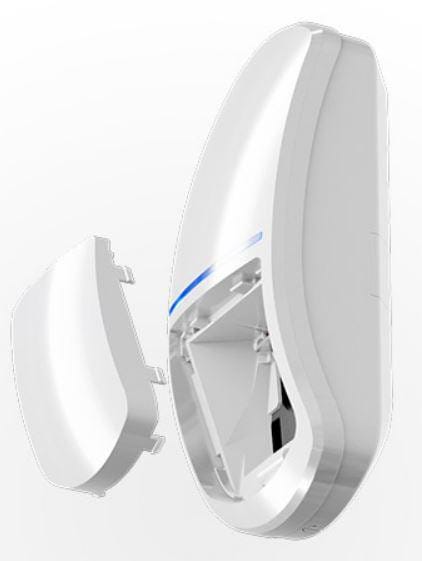

DUAL DETECTOR MICROWAVE + PIR SLIM-DUAL-LUNA-PET SATEL
PLN 183.49
Shipping from warehouse: H7
Estimated shipping: Mon, Dec 1 - Thu, Dec 4
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- SLIM-DUAL-LUNA-PET / 5905033334397
Share this product:
Specification

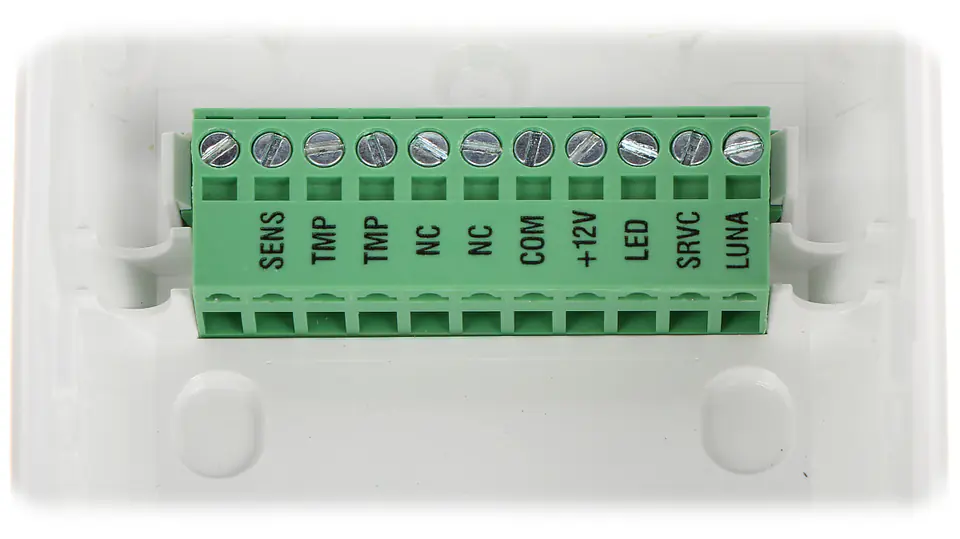

| Alarm output:: | NC, 2EOL / NC - Adjustable jumpers |
|---|---|
| Animal resistance:: | ≤ 20 kg |
| Colour:: | white |
| Detectable movement speed:: | 0.3 ... 3 m/s |
| Detection angle:: | 90 ° |
| Dimensions:: | 137 x 62 x 42 mm |
| Environmental class en 50130-5:: | II |
| Grade:: | EN 50131-2-4 Grade 2 |
| Led signaling:: | Remote on/off led indicator and selection of light color from 7 colors |
| Manufacturer / brand:: | SATEL |
| Maximum load on outputs:: | 40 mA / 24 V DC - Relay output 40 mA / 24 V DC - Tamper-proof, NC |
| Microwave frequency band:: | 24.125 GHz |
| Operating temperature:: | -10 °C ... 55 °C |
| Power:: | 12 V DC / 100 mA (max) |
| Pyroelement:: | quadruple |

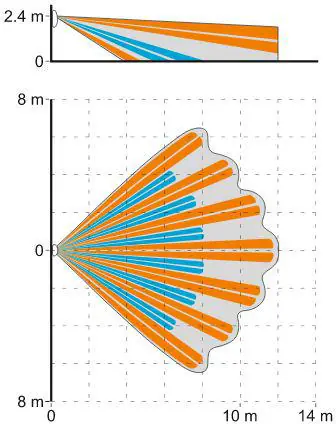

| Range:: | Max. 12 x 13 m |
| Recommended mounting height:: | 2.4 m |
| Scales:: | 0.1 kg |

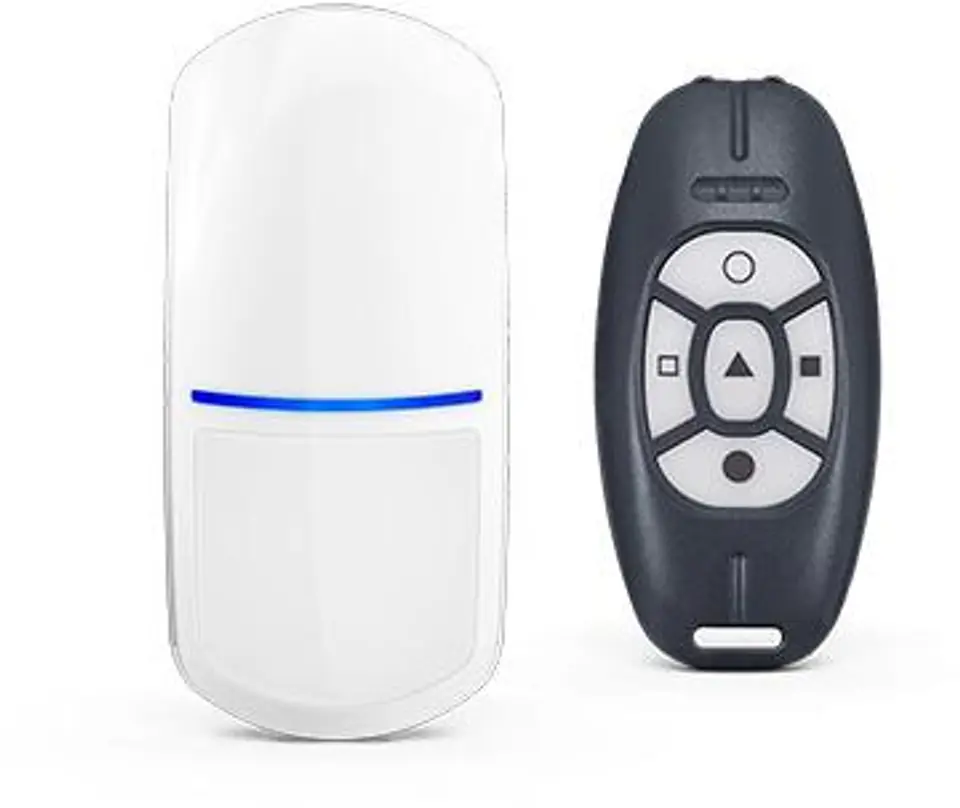

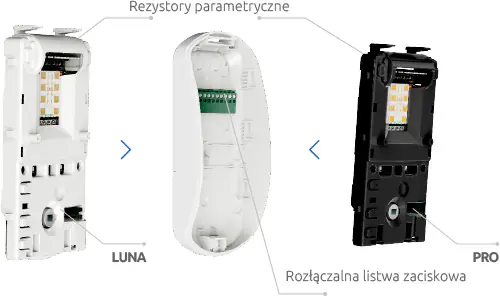

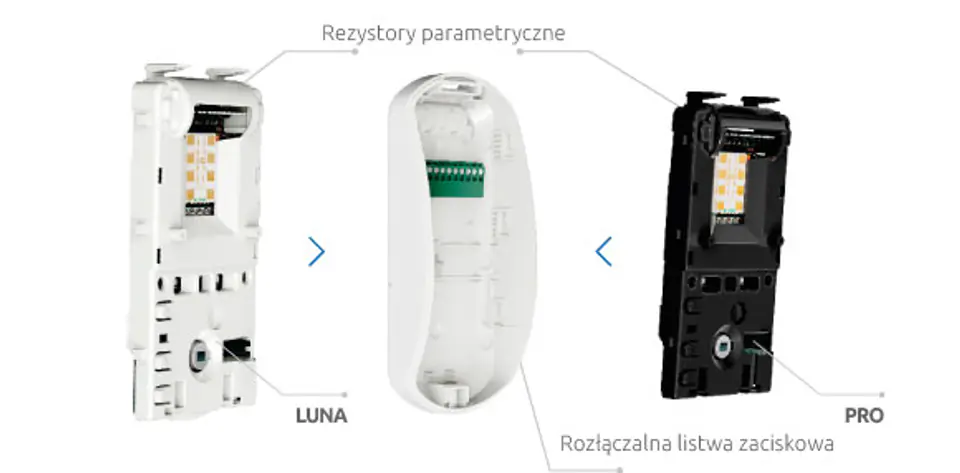

| Selected features:: | LED lighting function Possibility of remote control of lighting or activation of motion lighting Met standards: EN 50131-1, EN 50131-2-4, EN 50130-4, EN50130-5 digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and repeatability of parameters Tamper detection - housing opening, detachment from the ground Remote management Built-in parametric resistors 2EOL: 2 x 1.1 kΩ / 2 x 4.7 kΩ / 2 x 5.6 kΩ |
| Sensitivity adjustment:: | Each sensor can be set to 1 of 16 sensitivity levels |

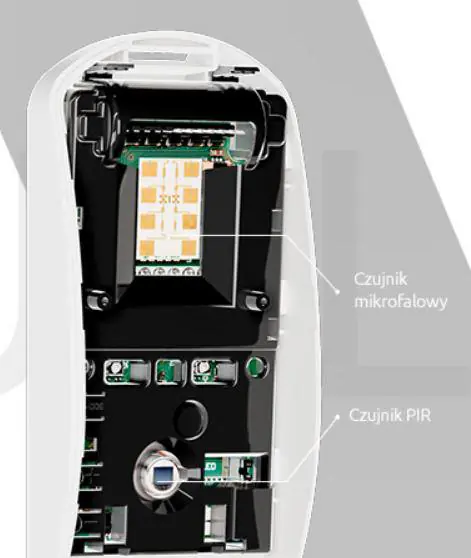

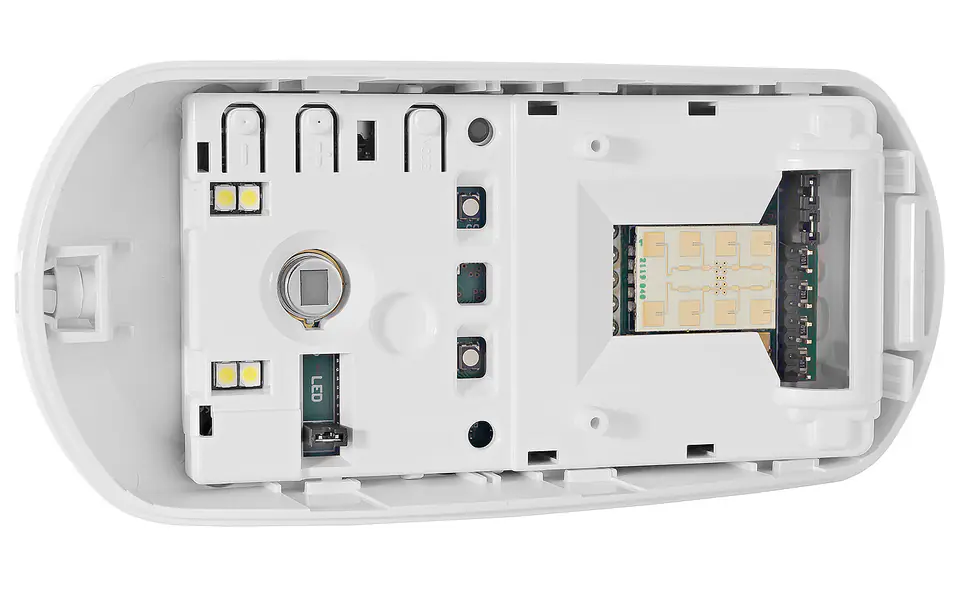

| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Use:: | Internal |
| Violation signaling time:: | 2 sec |
| Warranty:: | 5 years |
