Digital dual detector equipped with PIR and microwave detection pathThe device has extensive modes of operation of PIR + MW sensors
DUAL DETECTOR MICROWAVE + PIR SILVER SATEL
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- SILVER / 5905033335332
Share this product:
Specification
| Detectable movement speed:: | 0.3 ... 3 m/s |
|---|---|
| Dimensions:: | 62 x 136 x 49 mm |
| Manufacturer / brand:: | SATEL |
| Maximum load on outputs:: | 40 mA / 16 V DC |
| Microwave frequency band:: | 10.525 GHz |
| Operating modes:: | Basic Advanced - Response Type Configuration Selection Support 2EOL/NC Configuration Support |
| Operating temperature:: | -30 °C ... 55 °C |
| Power:: | 12 VDC / 25 mA |
| Pyroelement:: | Double |

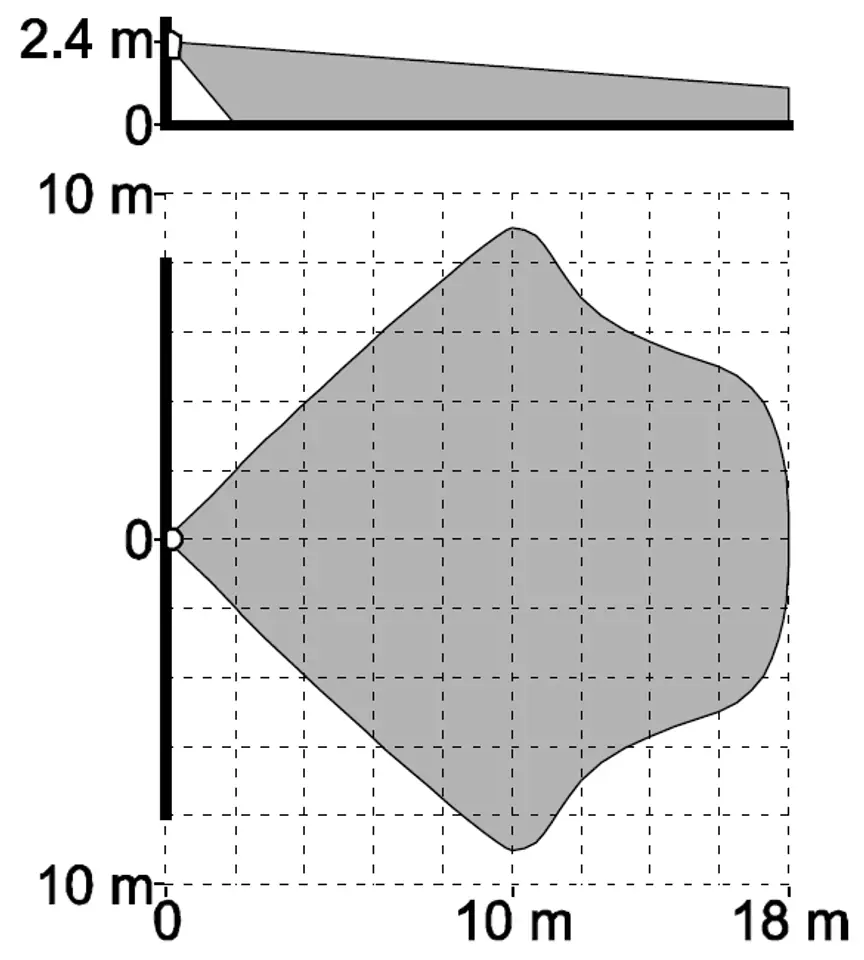

| Range:: | 18 x 18 m |
| Scales:: | 0.12 kg |
| Sensitivity adjustment:: | PIR sensor - Microwave potentiometer (MW) - Potentiometer |
| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Use:: | Internal |
| Violation signaling time:: | 2 sec |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
