Digital dual detector equipped with PIR and microwave detection pathDual infrared and microwave detection technology and advanced digital analysis functions provide a high level of protection against intrusion attempts and reduce the risk of false alarms

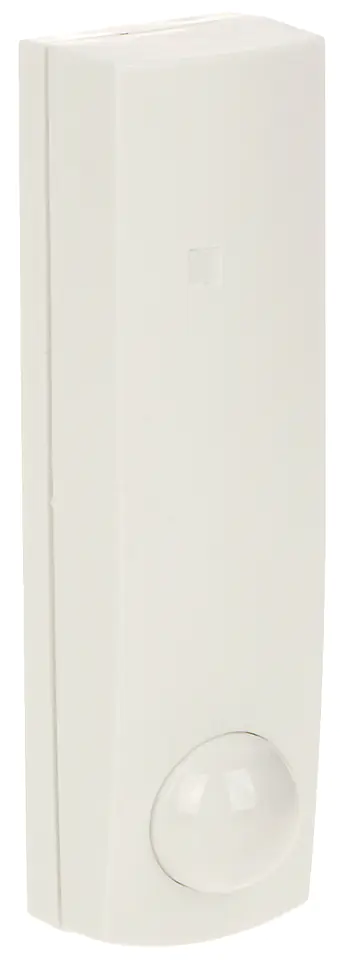

DUAL DETECTOR MICROWAVE + PIR PIR-CRT-MW VIDICON
PLN 151.80 incl. 23% VAT
PLN 123.41 excl. VAT
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- VIDICONW
- Product code:
- PIR-CRT-MW / 5902887073304
Share this product:
Specification
| Alarm outputs: | NC |
|---|---|
| Colour: | white |
| Detection angle: | 4 ° |
| Dimensions: | 37 x 130 x 34 mm |
| Grade: | EN 50131-2-4 Grade 2 |
| Infringement signalling time: | 2 sec |
| Maximum current consumption: | 18 mA / 28 mA (alarm) |
| Maximum output load: | 60 VDC / 0.1 A |
| Operating temperature: | -10 ... 55 °C |
| Power: | 9.5 ... 15 volts DC |
| Producer / brand: | VIDICON |
| Pyroelement: | Double |
| Range: | 3.5 m |
| Scales: | 0.06 kg |

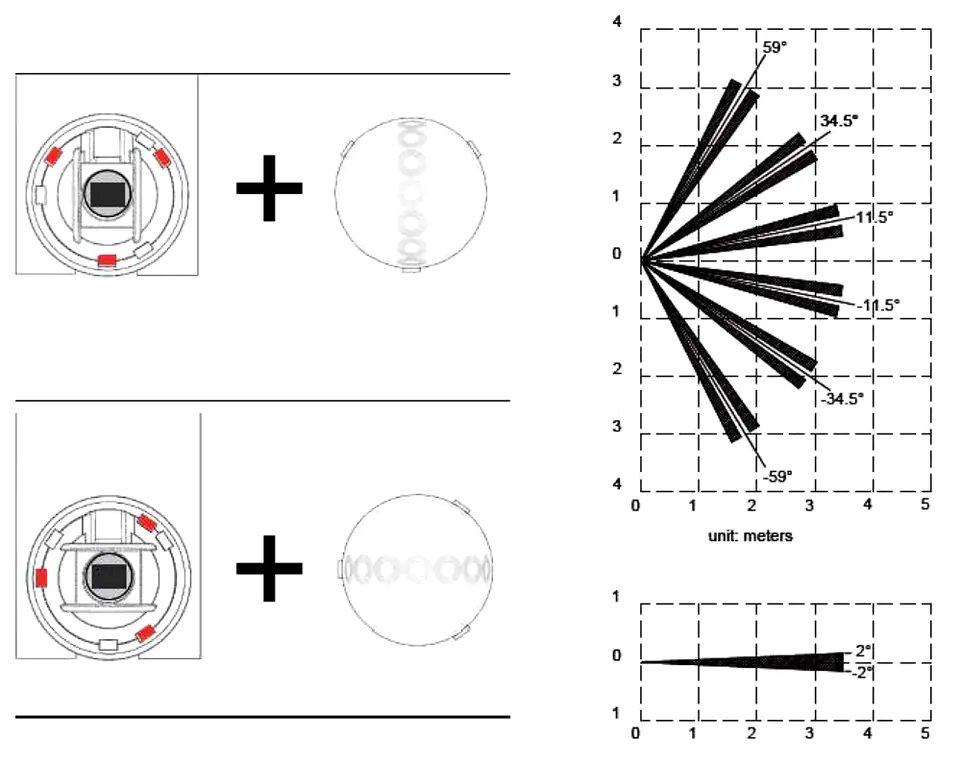

| Selected features: | Digital detector The adjustable lens allows you to set the detector as a horizontal or vertical curtain The detector will enter the alarm state only if both paths: PIR and MW are violated Alarm triggering delay Detection of the direction of movement from which the alarm is to be triggered LED signaling Pulse counter Switch indicating the opening of the TAMPER enclosure Lens - 6 zones in 1 level |
| Sensor type: | Passive infrared (PIR) and microwave (MW) |
| Use: | Internal |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
