Digital dual detector equipped with PIR and microwave detection path
Works with OPT-1 wireless remote control. (Note: remote control must be purchased separately)

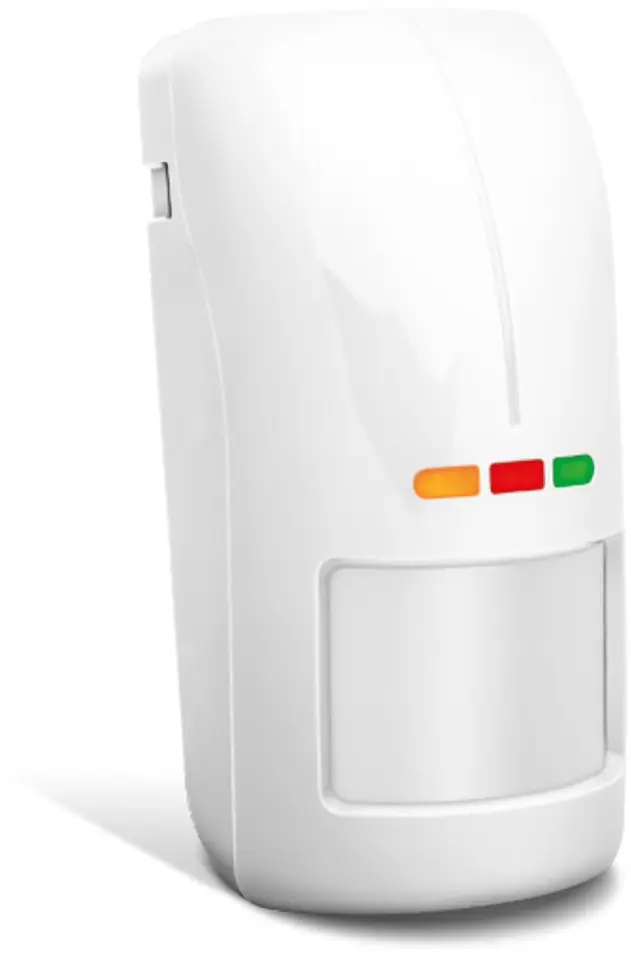

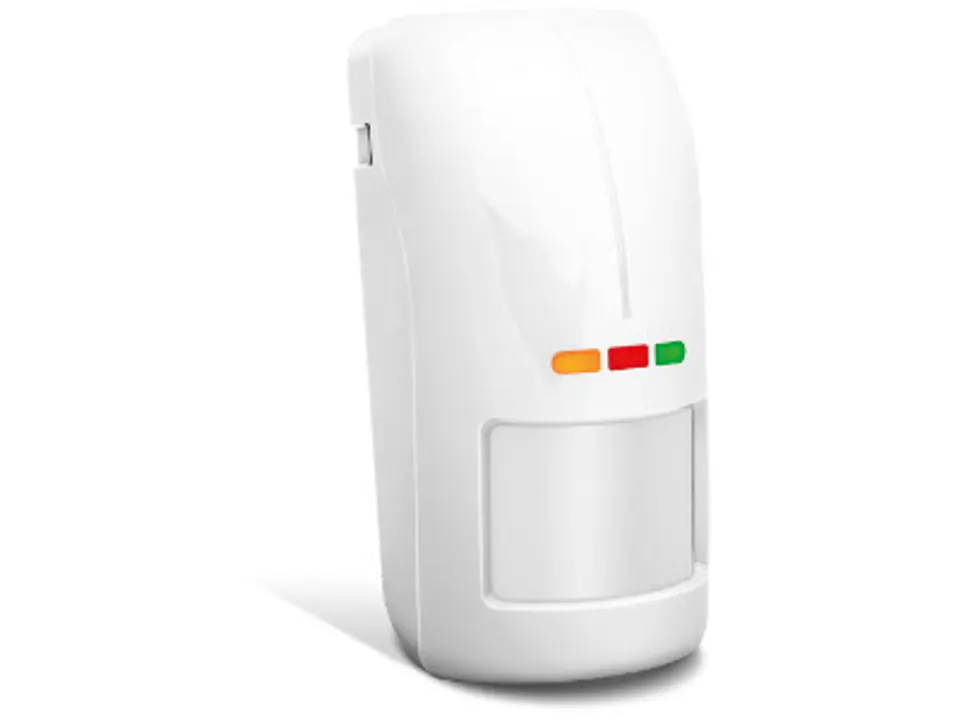

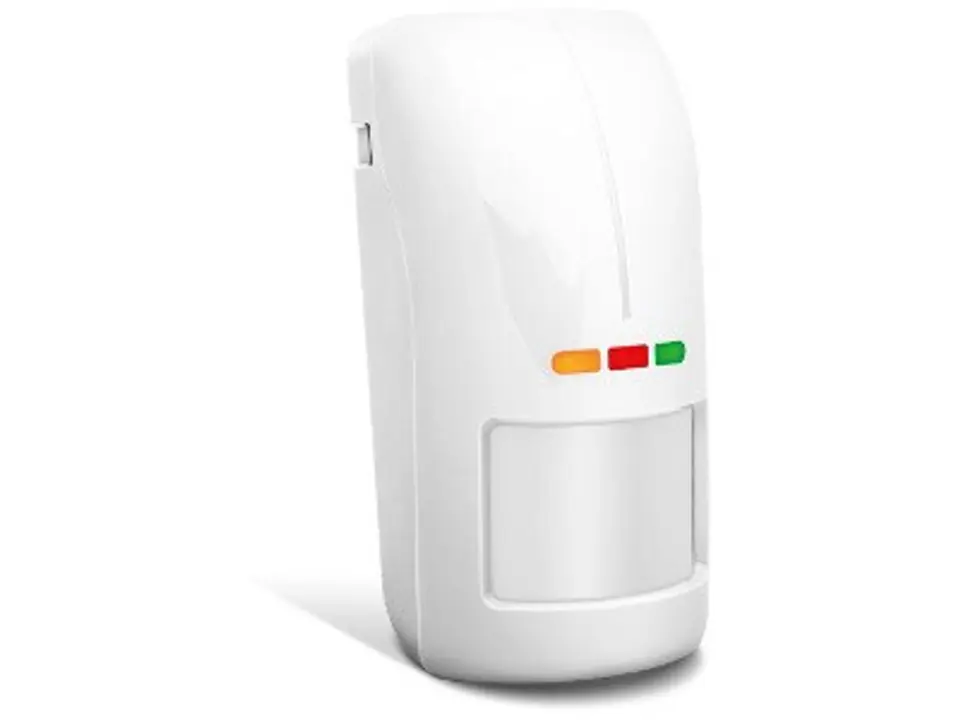

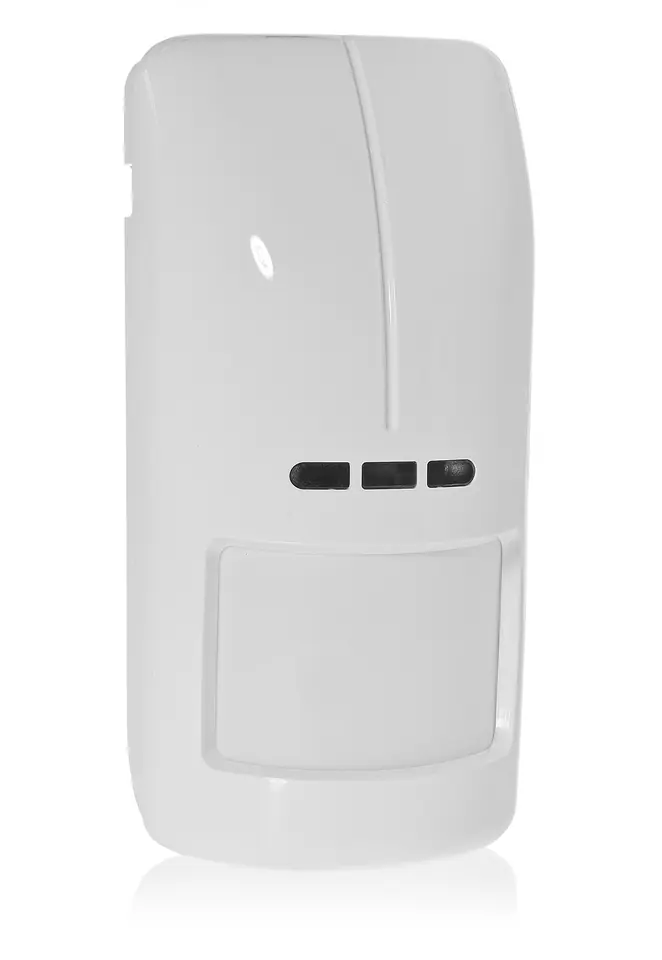

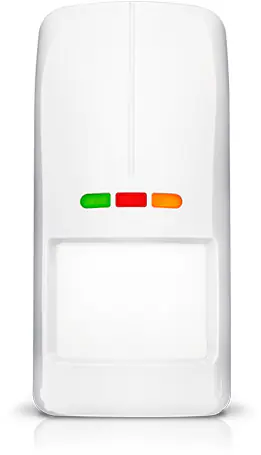

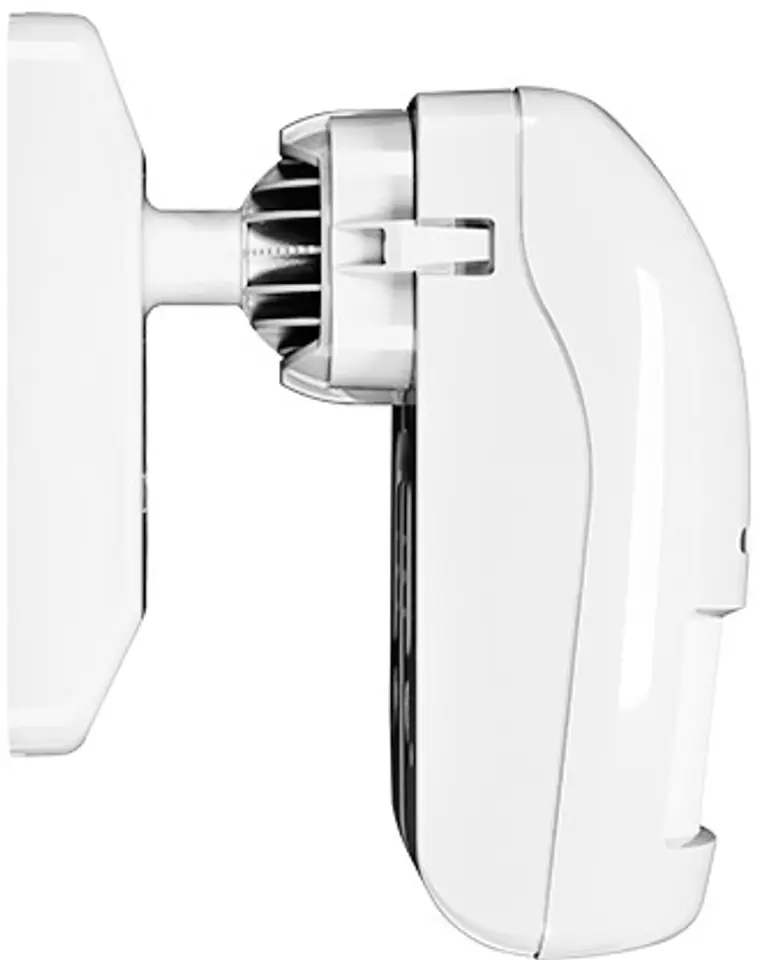

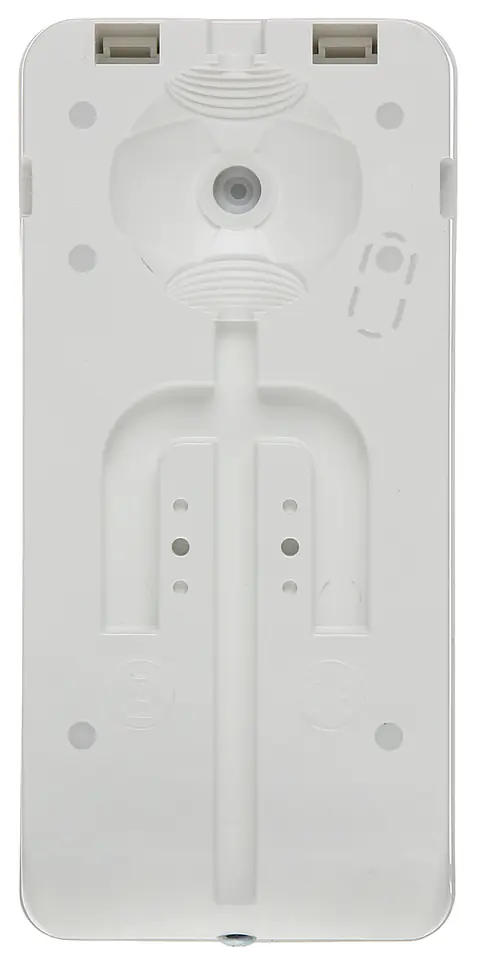

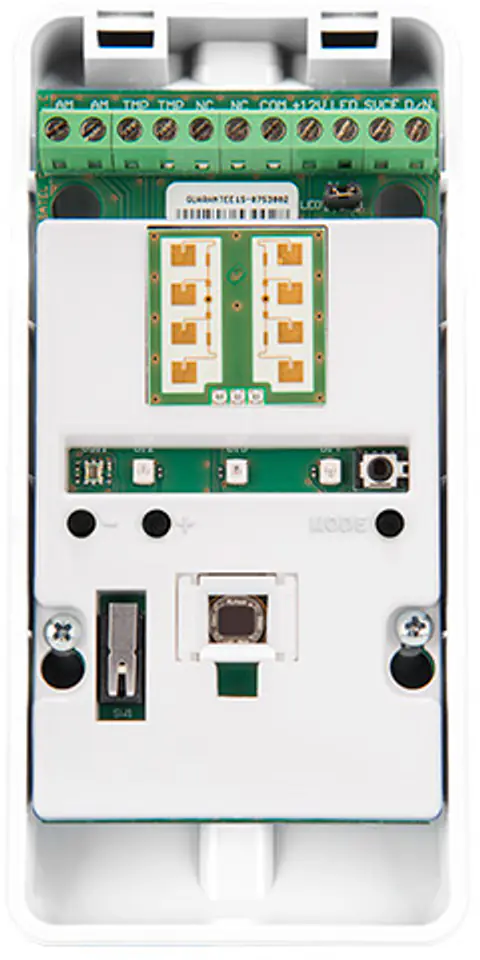

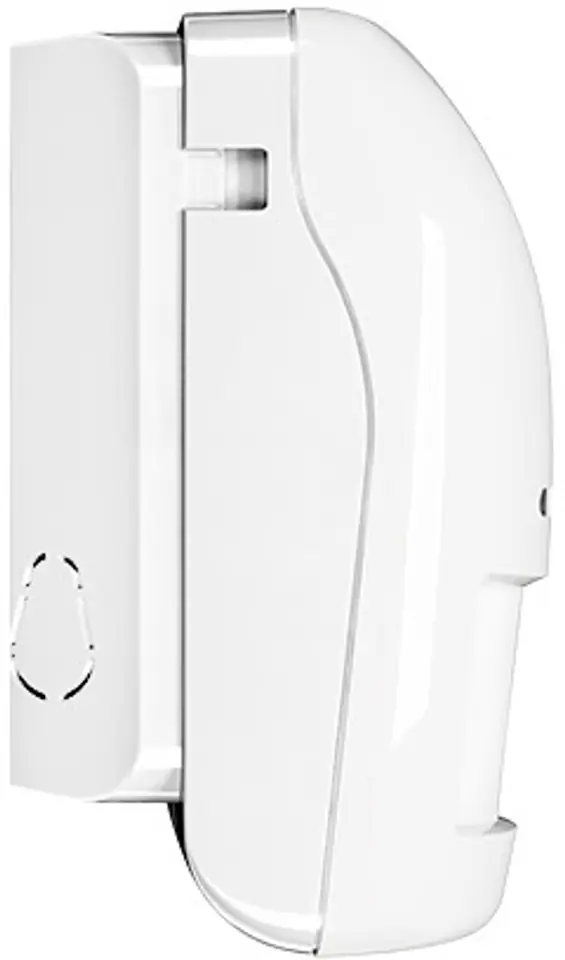

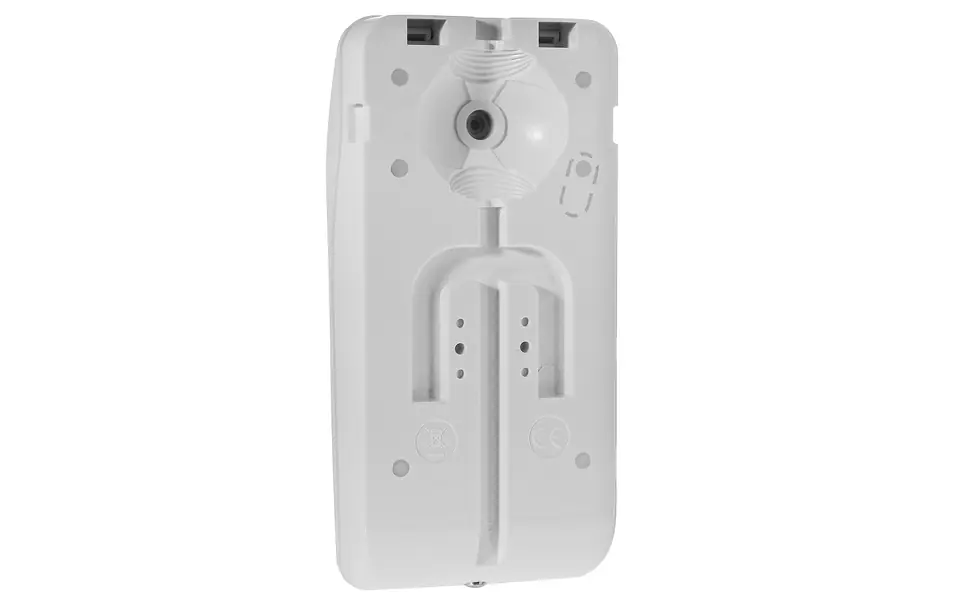

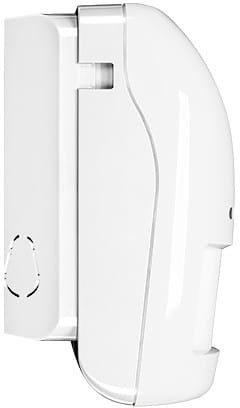

DUAL DETECTOR MICROWAVE + PIR OPAL-PLUS SATEL
PLN 442.06
Shipping from warehouse: H7
Estimated shipping: Mon, Dec 1 - Thu, Dec 4
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- OPAL-PLUS / 5905033334472
Share this product:
Specification
| Alarm output:: | NC |
|---|---|
| Animal resistance:: | ≤ 20 kg |
| Colour:: | white |
| Detectable movement speed:: | 0.3 ... 3 m/s |
| Detection angle:: | 100 ° |
| Dimensions:: | 139 x 65 x 58 mm |
| Environmental class en 50130-5:: | IIIa |
| Grade:: | EN50131-2-2 Grade 2 |
| Led signaling:: | 4 s Green - Sensor MW 2 s Red - Alarm signal 4 s Yellow - PIR sensor |
| Manufacturer / brand:: | SATEL |
| Maximum load on outputs:: | 40 mA / 16 V DC - Relay output 50 mA / 12 V DC - Day/Night Mode, OC |
| Microwave frequency band:: | 24 GHz |
| Operating temperature:: | -40 °C ... 55 °C |
| Power:: | 12 VDC / 20 mA |
| Pyroelement:: | Double |
| Range:: | Max. 12 x 15 m |
| Recommended mounting height:: | 2.4 m |
| Scales:: | 0.178 kg |

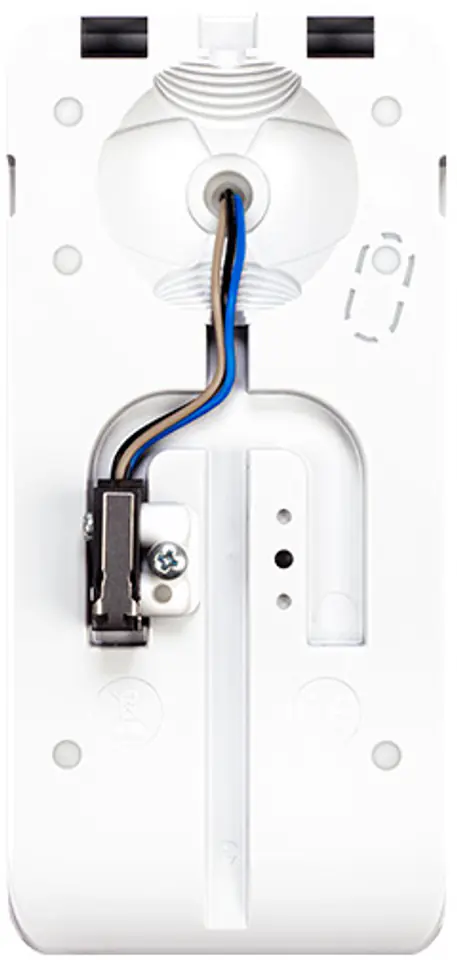

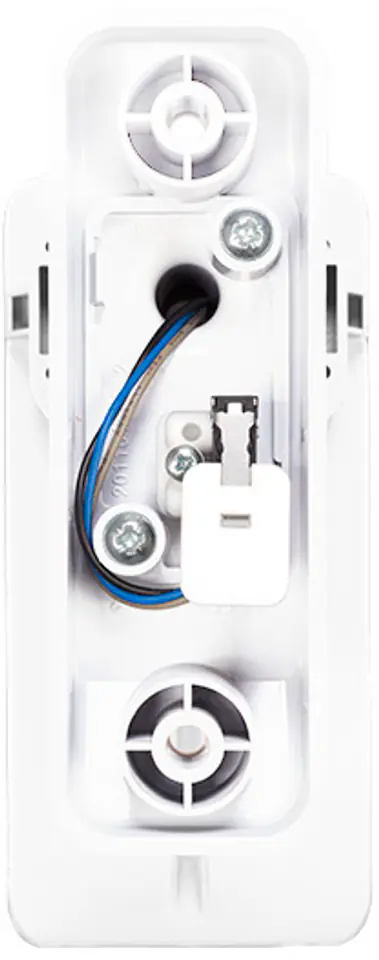

| Selected features:: | Protection class - IP54 EN 50130-4, EN50130-5, EN 50131-1, EN 50131-2-2 digital detection algorithm with temperature compensation, providing high resistance to false alarms and repeatability of parameters Resistance to changes in environmental conditions Control of the approach zone Tamper detection - housing opening, detachment from the ground Twilight sensor - open collector output (OC) Remote management |
| Sensitivity adjustment:: | 16-step - Button control, Remote control |
| Sensor type:: | Passive infrared (PIR) and microwave (MW) |
| Tamper output:: | NC |
| Use:: | External |
| Violation signaling time:: | 2 sec |
| Warranty:: | 2 years |
