Digital dual detector equipped with PIR and microwave detection path
Cooperation with OPT-1 wireless remote control. (Note: remote control must be purchased separately)

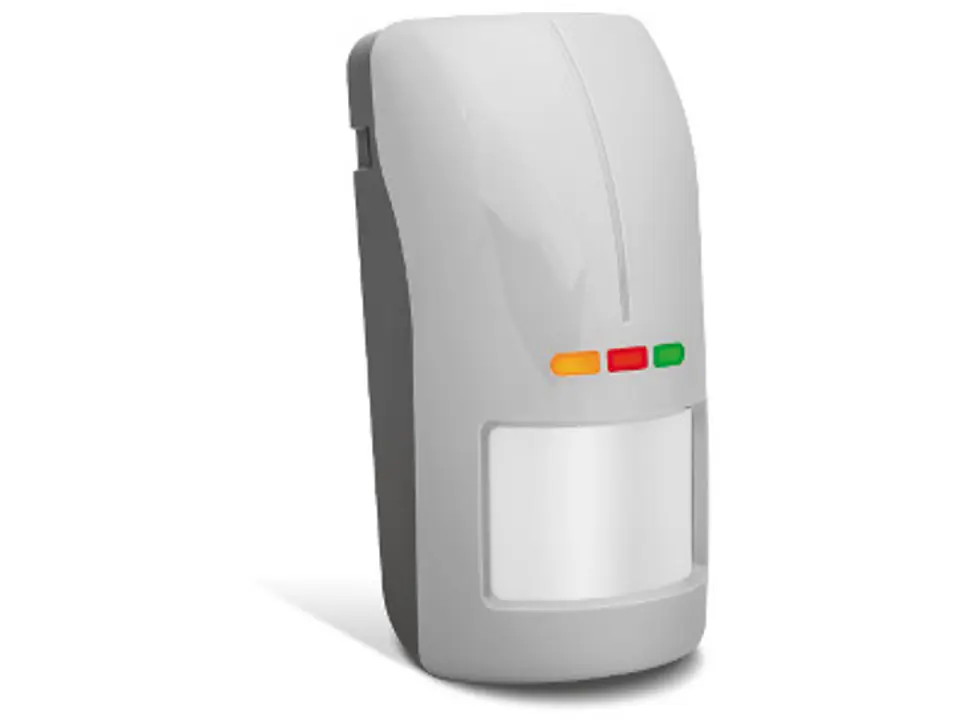

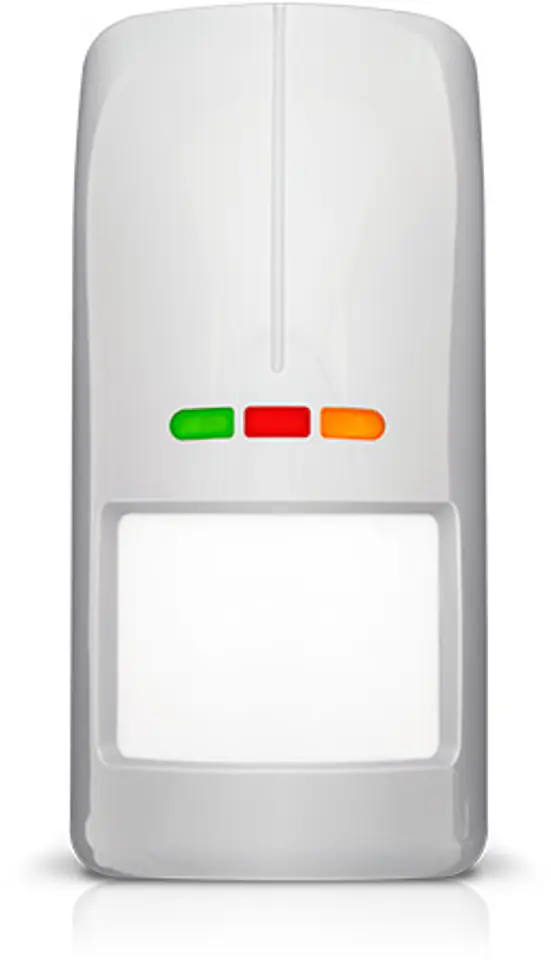

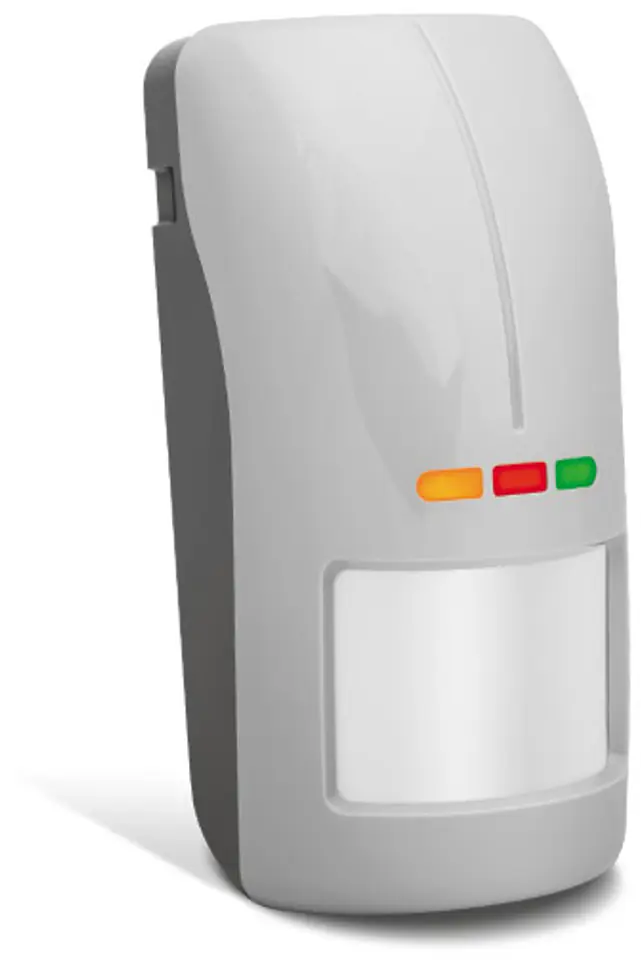

DUAL DETECTOR MICROWAVE + PIR OPAL-PLUS-GY SATEL
PLN 444.35
Shipping from warehouse: H7
Estimated shipping: Mon, May 20 - Tue, May 21
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- OPAL-PLUS-GY / 5905033334458
Share this product:
Specification
| Alarm output: | NC |
|---|---|
| Colour: | Grey |
| Detectable movement speed: | 0.3 ... 3 m/s |
| Detection angle: | 100 ° |
| Dimensions: | 138 x 65 x 58 mm |
| Environmental class en 50130-5: | IIIa |
| Grade: | EN50131-2-2 Grade 2 |
| Infringement signalling time: | 2 sec |
| Led signaling: | 4 s Green - MW sensor 2 s Red - Alarm signaling 4 s Yellow - PIR sensor |
| Maximum output load: | 40 mA / 16 V DC - Relay output 50 mA / 12 V DC - Day/night mode, OC |
| Microwave frequency band: | 24 GHz |
| Operating temperature: | -40 °C ... 55 °C |
| Power: | 12 V DC / 20 mA |
| Producer / brand: | SATEL |
| Pyroelement: | Double |
| Range: | .max. 12 x 15 m |
| Recommended mounting height: | 2.4 m |
| Resistance to animals: | ≤ 20 kg |
| Scales: | 0.172 kg |
| Selected features: | Protection class - IP54 EN 50130-4, EN50130-5, EN 50131-1, EN 50131-2-2 digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and repeatability of parameters Resistance to changes in environmental conditions Approach zone control Tamper detection - enclosure opening, detachment from the mount Twilight sensor - open collector output (OC) Remote management |
| Sensitivity adjustment: | 16-step - Push-button control, Remote control |
| Sensor type: | Passive infrared (PIR) and microwave (MW) |
| Tamper output: | NC |
| Use: | External |
| Warranty: | 2 years |
