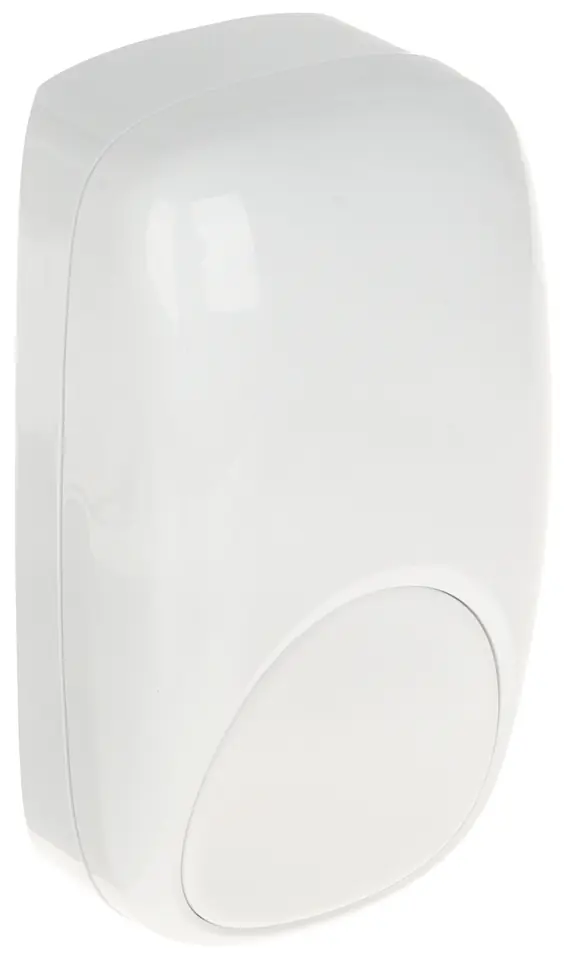

Digital dual detector equipped with PIR and microwave detection path
DUAL DETECTOR MICROWAVE + PIR DT8016AF4 HONEYWELL
€96.81
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 9 - Fri, Dec 12
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Honeywell
- Product code:
- DT8016AF4 / 5902887066481
Share this product:
Specification
| Alarm output: | NC |
|---|---|
| Colour: | white |
| Detection angle: | 75 ° |
| Dimensions: | 119 x 68 x 47 mm |
| Environmental class en 50130-5: | II |
| Grade: | EN 50131-2-4, Grade 3 |
| Infringement signalling time: | 3 sec |
| Led signaling: | LED indicators displaying the operating status of the device |
| Maximum output load: | 30 mA / 25 V DC |
| Microwave frequency band: | 10.525 GHz |
| Operating temperature: | -10 °C ... 55 °C |
| Power: | 9.0 ... 15 V DC / 14 mA (max) |
| Producer / brand: | Honeywell |

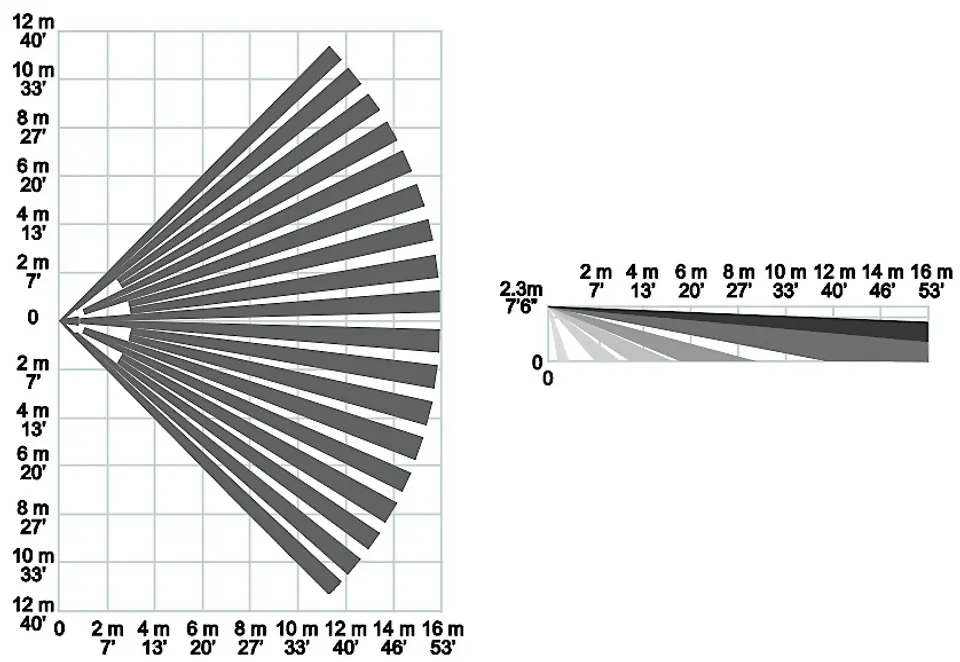

| Range: | .max. 16 x 22 meters |
| Recommended mounting height: | 2.1 ... 2.7 m |
| Scales: | 0.14 kg |

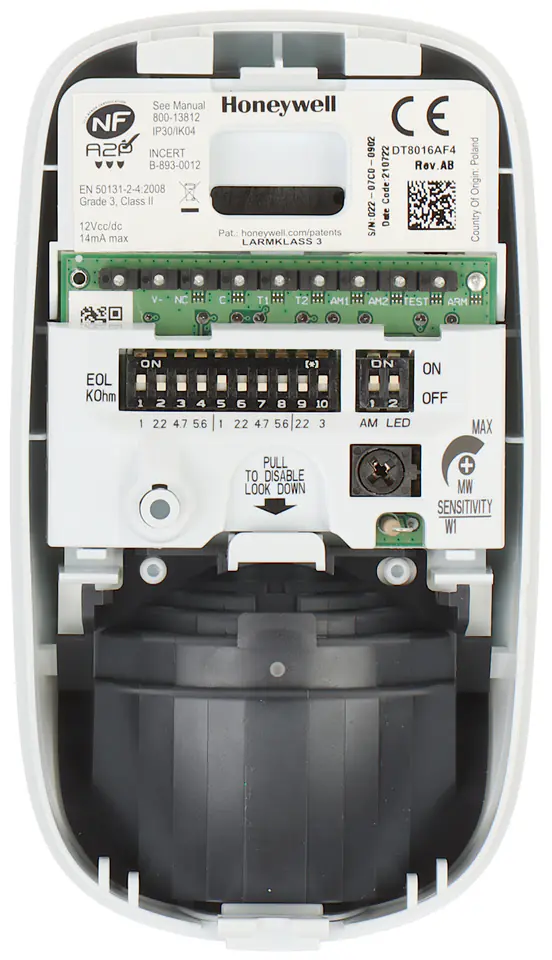

| Selected features: | Tamper detection - enclosure opening, mount detachment Integrated EOL resistors - configuration via DIP switches Approach zone control Mirror optics |
| Sensitivity adjustment: | Infinitely adjustable MW sensor sensitivity using potentiometer |
| Sensor type: | Passive infrared (PIR) and microwave (MW) |
| Use: | Internal |
| Warranty: | 2 years |
