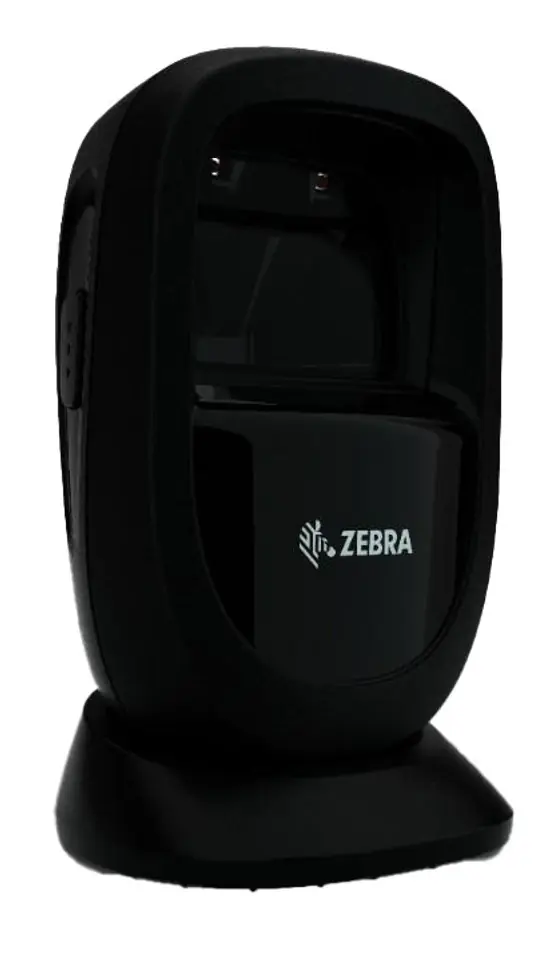

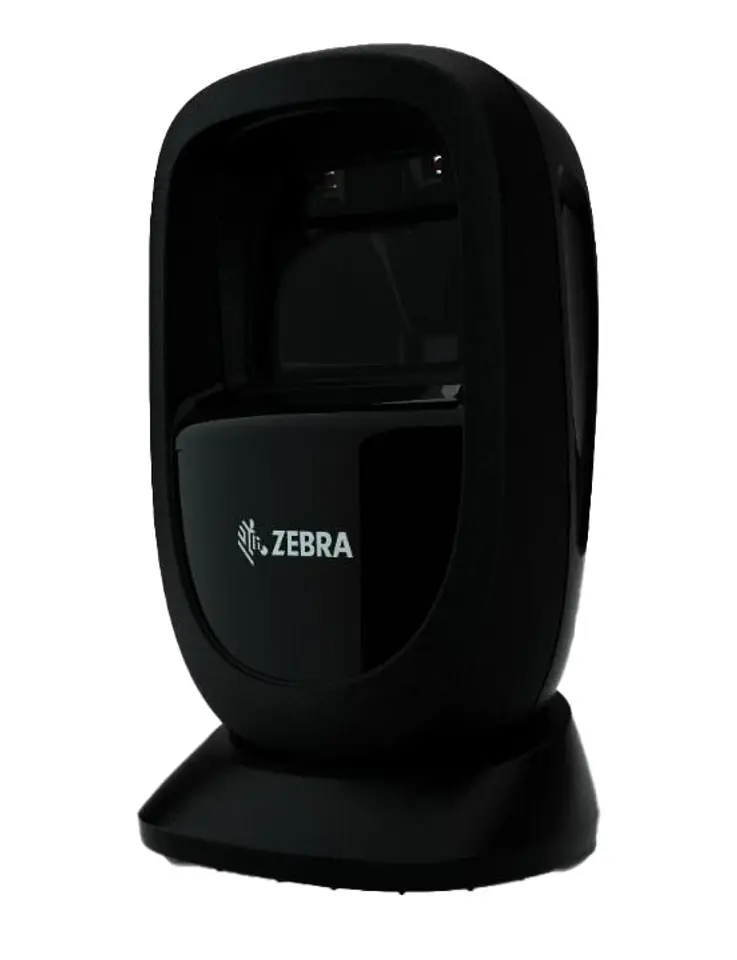

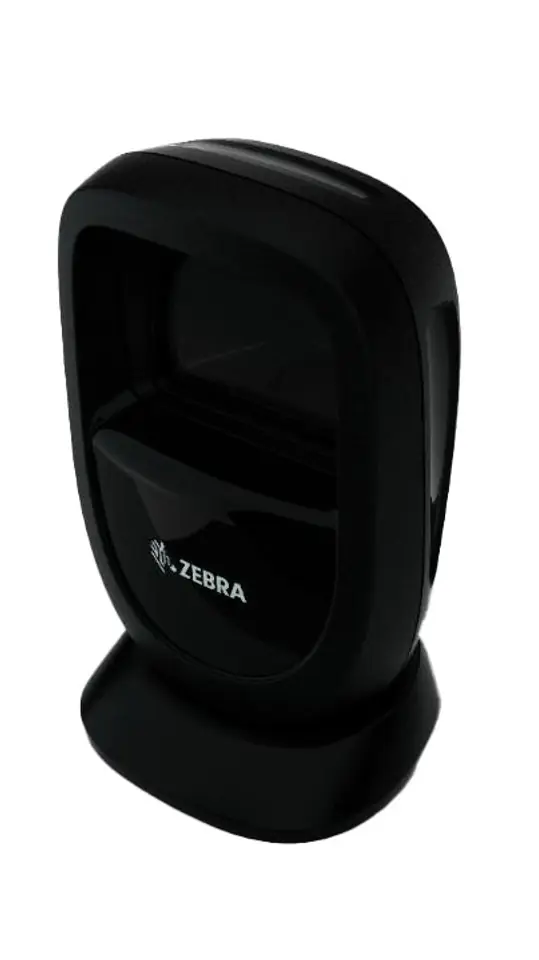

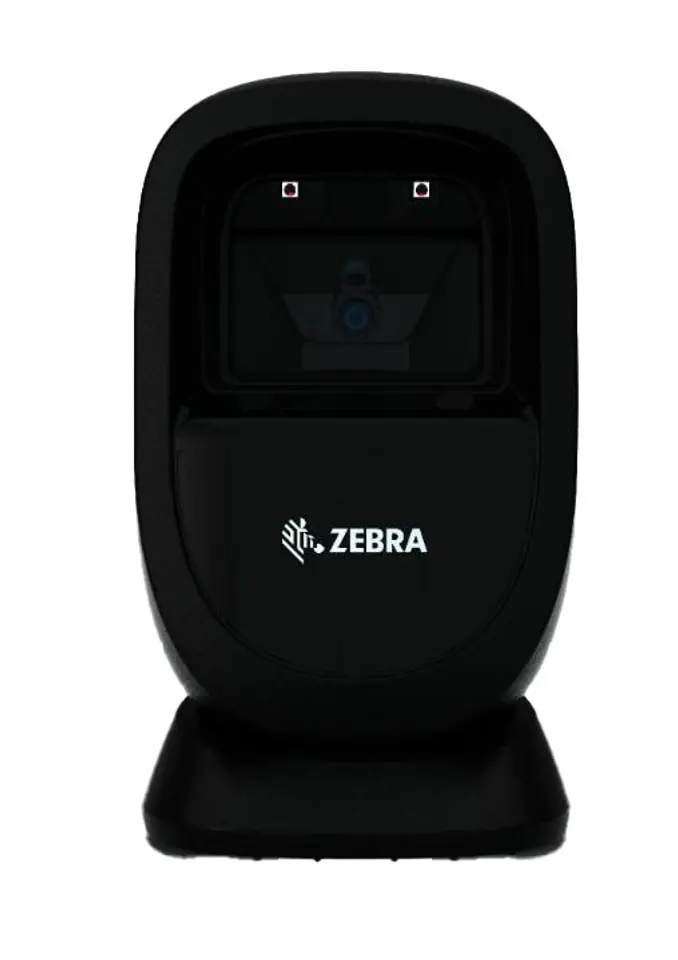

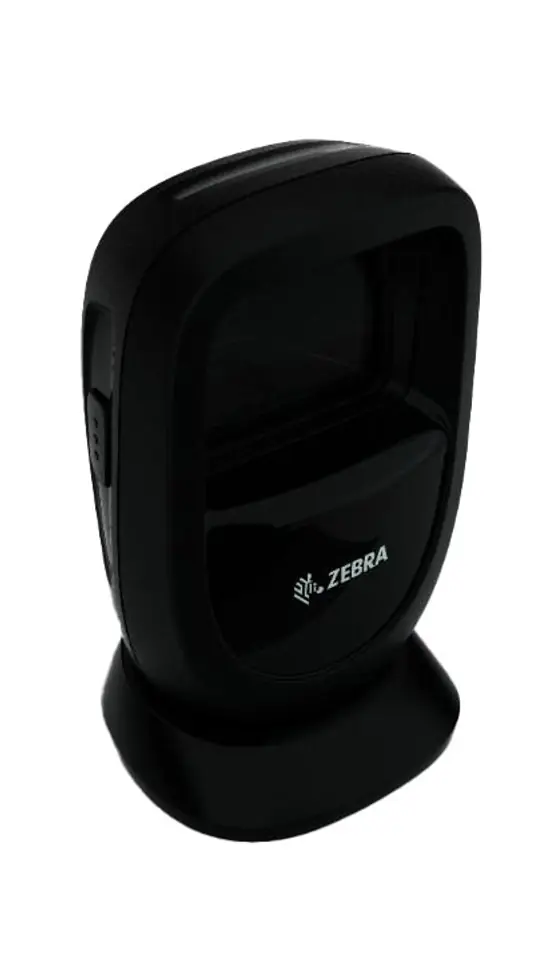

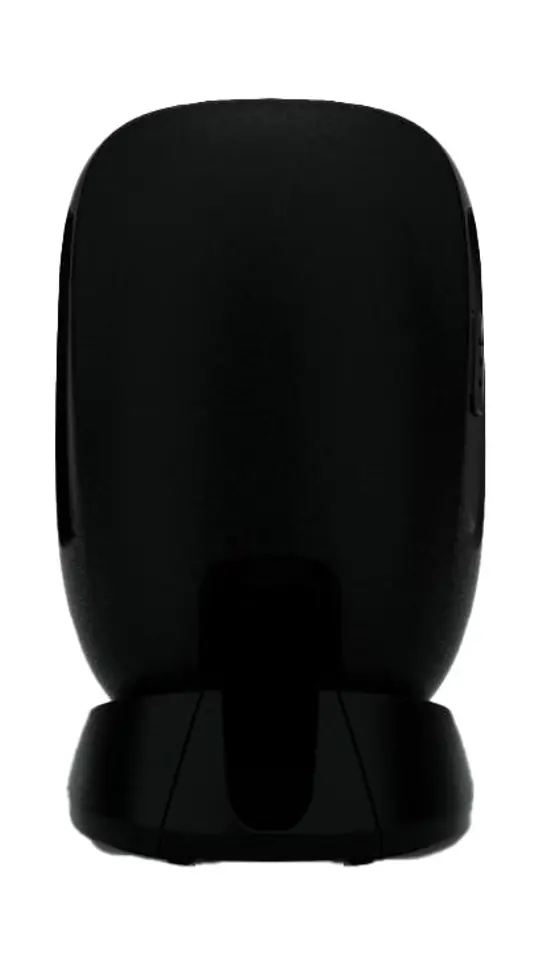

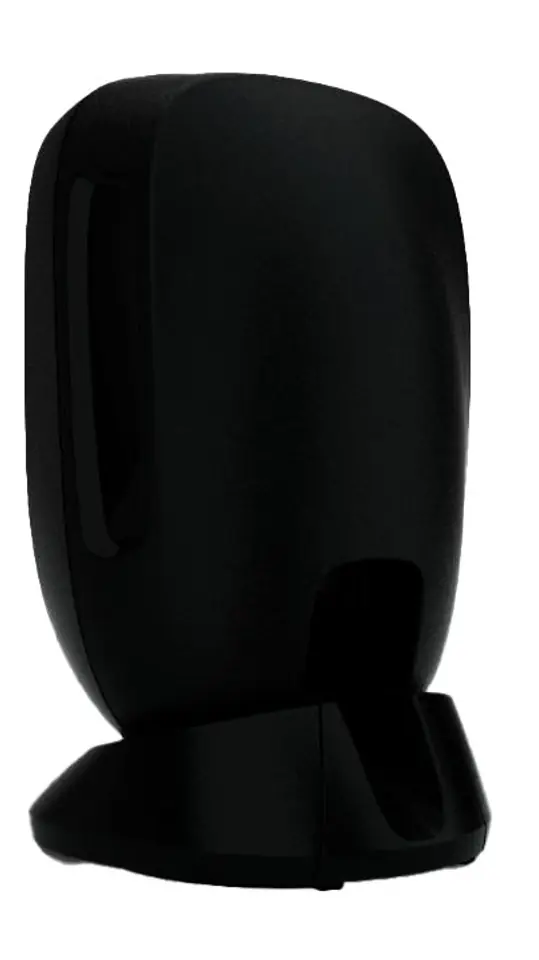

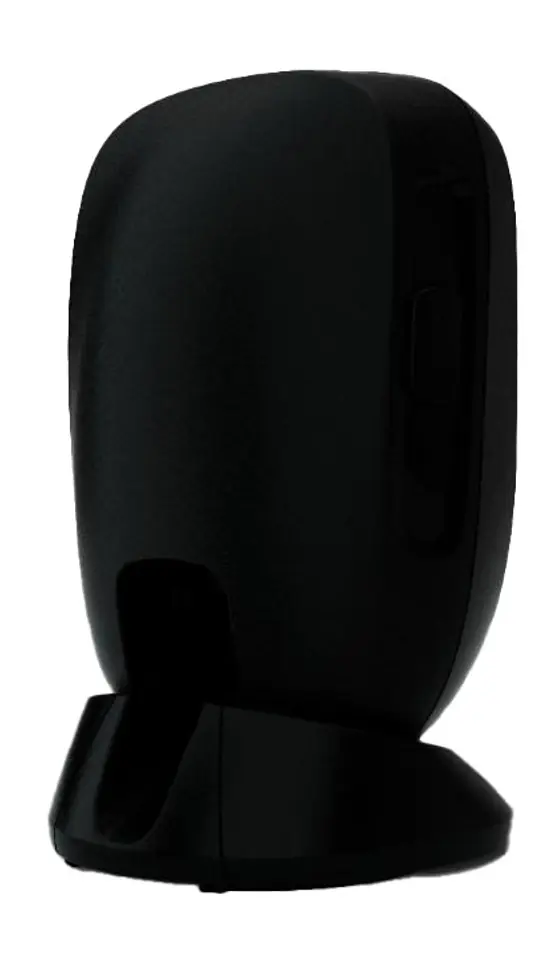

DS9308-SR BLACK SERIAL KIT - EMEA: DS9308-SR00004ZZWW SCANNER, CBA-R01-S07PBR SERIAL CABLE, PWR-WUA5V4W0EU POWER SUPPLY (EU, UK, EMEA,
This product is not available
- Availability:
- expected delivery
- Brand:
- Zebra
- Product code:
- DS9308-SR4R0110AZE / 8596375197947
Share this product:
Specification
| 2d (matrix & stacked) barcodes supported: | Aztec Code, MicroPDF417, Dot Code A, MaxiCode, Data Matrix, Han Xin, Micro QR Code, TLC-39, QR Code |
|---|---|
| Connectivity technology: | Wired |
| Depth: | 83 mm |
| Harmonized system (hs) code: | 84716070 |
| Height: | 145 mm |
| Input voltage: | 5.5 V |
| International protection (ip) code: | IP52 |
| Light levels (direct sunlight): | 0 - 107700 lx |
| Linear (1d) barcodes supported: | MSI, Code 39, Code 93, U.P.C., Code 128, GS1 DataBar, Code 11, EAN-13, Codabar |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 50 °C |
| Optical sensor resolution (w x h): | 1280 x 800 pixels |
| Pitch reading angle: | -60 - 60° |
| Power source type: | USB, RS-232 |
| Product colour: | Black |
| Scanner type: | 1D/2D |
| Sensor type: | LED |
| Standard interfaces: | RS-232, USB |
| Storage temperature (t-t): | -40 - 70 °C |
| Type: | Fixed bar code reader |
| Weight: | 318 g |
| Width: | 86 mm |
| Working distance: | 66 cm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
