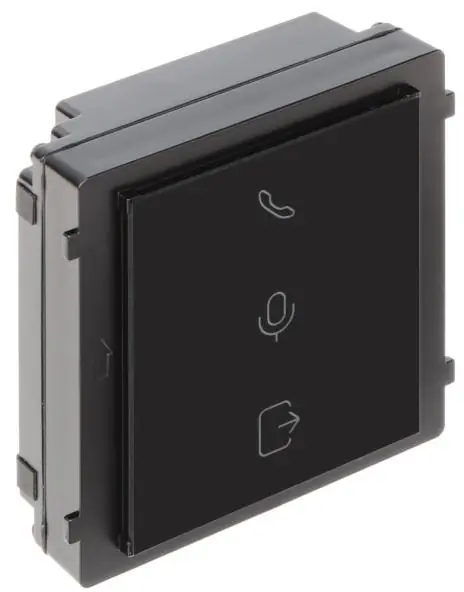

DS-KD-IN Hikvision device status signaling module

Name: DS-KD-IN Hikvision device status signaling module
Brand: HIKVISION
SKU: 922140
Price: 162.13 PLN
Availability: InStock

PLN 162.13

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Tue, May 28 - Fri, May 31

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: DS-KD-IN / 6954273691493

Specification

Case:	Plastic
Colour:	Black
Compatibility:	DS-KD8003-IME1, DS-KD8003-IME2
Dc input voltage:	12 V
Depth:	100 mm
Dimensions:	100 x 98 x 34 mm
Height:	33.7 mm
International protection (ip) code:	IP65
Led signaling:	Make a connection Two-way audio Gate opening
Operating temperature:	-40 °C ... 60 °C
Operating temperature (t-t):	-40 - 55 °C
Package weight:	326 g
Permissible relative ambient humidity:	10 ... 95 % (non-condensing)
Power:	Provided by DS-KD8003-IME1 or DS-KD8003-IME2
Power consumption:	≤ 2 watts
Producer / brand:	Hikvision
Product colour:	Black
Quantity per pack:	1 pc(s)
Sap code:	305301210
Scales:	0.16 kg
Sealing:	IP65
Storage temperature (t-t):	10 - 95 °C
Sustainability certificates:	RoHS, WEEE, REACH
Warranty:	3 years
Weight:	165 g
Width:	98.5 mm

The DS-KD-IN module is designed to work with the DS-KD8003-IME1 or DS-KD8003-IME2 video door phone module. The device is used to visually signal the status of the voice connection of the video door phone with the internal panel and the opening state of the gate

The modules of the DS-KD-xx series are installed in dedicated enclosures of the DS-KD-ACF series (flush-mounted enclosures) and DS-KD-ACW (surface-mounted enclosures)The masking frames attached to the enclosures of both series are made of aluminum

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
