Double-sided screw DIN6379 M10x200mm AMF

€3.79
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Wed, May 1 - Mon, May 6
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
84848 / 4020772084844

Specification

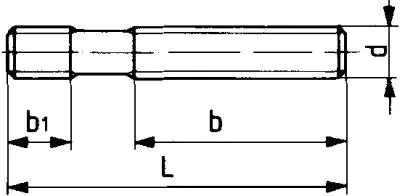

Thread diameter x length:M10 x 200 mm
Thread length b:122 mm
Thread length b1:13 mm

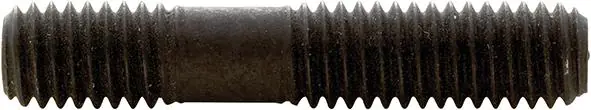

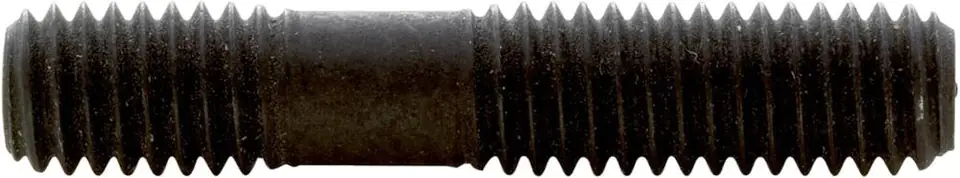

Double-sided screw

Material: rolled thread. Specially designed for fastening, double-sided screws in the length classification are adapted to the normal numbers.
Material: M6–M12 upgraded to strength class 10.9,
M14–M24: improved to strength class 8.8.
Application: for individual use in combination with extension nuts, flange nuts, etc.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
