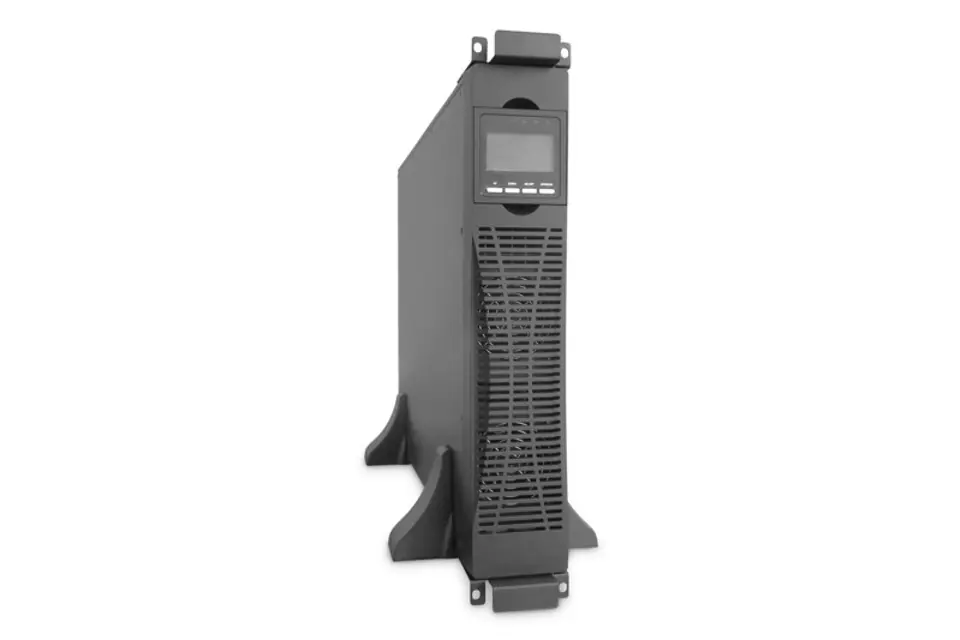

Digitus OnLine UPS OnLine UPS Module DN-170106, 6000VA, 6000W, 2U, 1x USB 2.0 type B, 1x RS232, LCD, LED, Pure Sine Wave, 440x86.5x620mm, 14kg 6000 VA 6000 W
€1,113.22
Shipping from warehouse: K2
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DN-170106 / 4016032473541
Share this product:
Specification
| Battery recharge time: | 8 h |
|---|---|
| Built-in fan: | Yes |
| Charging current: | 1 A |
| Cold start: | Yes |
| Cooling type: | Active |
| Country of origin: | China |
| Crest factor: | 3:1 |
| Depth: | 620 mm |
| Display type: | LCD + LED |
| Eco mode: | Yes |
| Efficiency: | 93.5% |
| Emergency power off (epo): | Yes |
| Emergency power off (epo) connector: | Yes |
| Fan speed control: | Yes |
| Form factor: | Rackmount/Tower |
| Harmonized system (hs) code: | 85078000 |
| Height: | 86.5 mm |
| Hot-swap battery: | Yes |
| Housing material: | Metal |
| Input current total harmonic distortion (thd): | 5% |
| Input frequency: | 45/66 Hz |
| Input operation voltage (max): | 276 V |
| Input operation voltage (min): | 120 V |
| International protection (ip) code: | IP20 |
| Manual: | Yes |
| Noise level: | 55 dB |
| Number of batteries supported: | 20 |
| Number of input phases: | 1 |
| Number of output phases: | 1 |
| Operating temperature (t-t): | 0 - 40 °C |
| Output frequency: | 50/60 Hz |
| Output frequency regulation: | 1 Hz |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 208 V |
| Output power: | 6000 W |
| Output power capacity: | 6 kVA |
| Output voltage regulation: | 5% |
| Output voltage total harmonic distortion (thd): | 5% |
| Overload capacity (1 minute): | 130% |
| Overload capacity (10 minutes): | 110% |
| Package depth: | 765 mm |
| Package volume: | 100682 cm³ |
| Package weight: | 19.2 kg |
| Package width: | 615 mm |
| Power factor: | 0.99 |
| Power plug: | Hardwire |
| Product colour: | Black |
| Rack capacity: | 2U |
| Response time: | 20 ms |
| Rs-232 ports: | 3 |
| Size (imperial): | 48.3 cm (19") |
| Uk trade tariff code: | 85044085 |
| Ups topology: | Double-conversion (Online) |
| Usb 2.0 ports quantity: | 1 |
| Usb port: | Yes |
| Usb port type: | USB Type-B |
| Waveform: | Pure sine |
| Weight: | 14 kg |
| Width: | 440 mm |
