| Ac: | 0.1A - 1000A |
|---|---|
| Ac voltage: | 0.1 V - 750 V |
| Dc voltage: | 0.1 V – 1000 V |
| Direct current: | 0.1A - 1000A |
| Display: | LCD |
| Frequency: | 1 Hz – 400 Hz |
| Measurement category: | CAT IV 600 V |
| Measurement method: | TRUE RMS |
| Memory of measured values: | HOLD, MAX/MIN, PEAK, ZERO |
| Model: | CM 7 |
| Pliers opening: | 53 mm |
| Protection: | IP 30 |
| Resistance: | 0.1 ohm to 400 ohm |
| Transition: | yes |
| Type and number of batteries: | 1 x 6LR61 block battery |

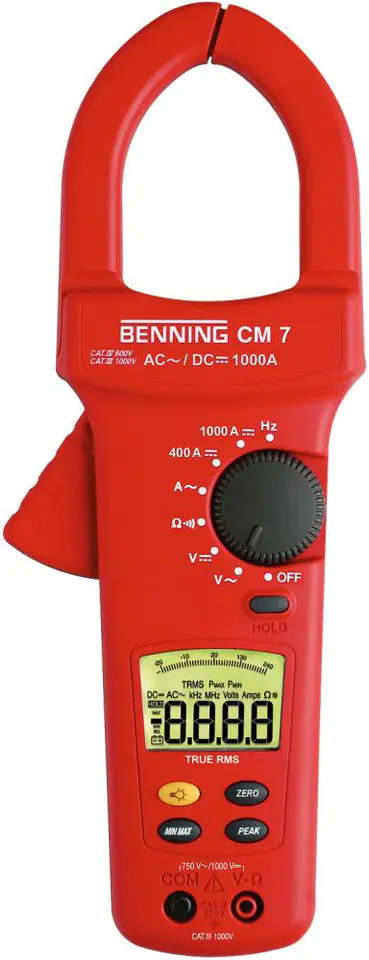

Universal Digital Clamp Meters Mu I Itimeter CM 7
Material: body made of impact- and shatter-resistant plastic, with automatic shutdown.
Application: for safe current measurement in insulated cables, without removing and damaging the insulation.
CM 7 Ideal for current measurements up to 1000 A (AC and DC).
Delivery with compact protective bag, double insulated, safety test lead and battery.
