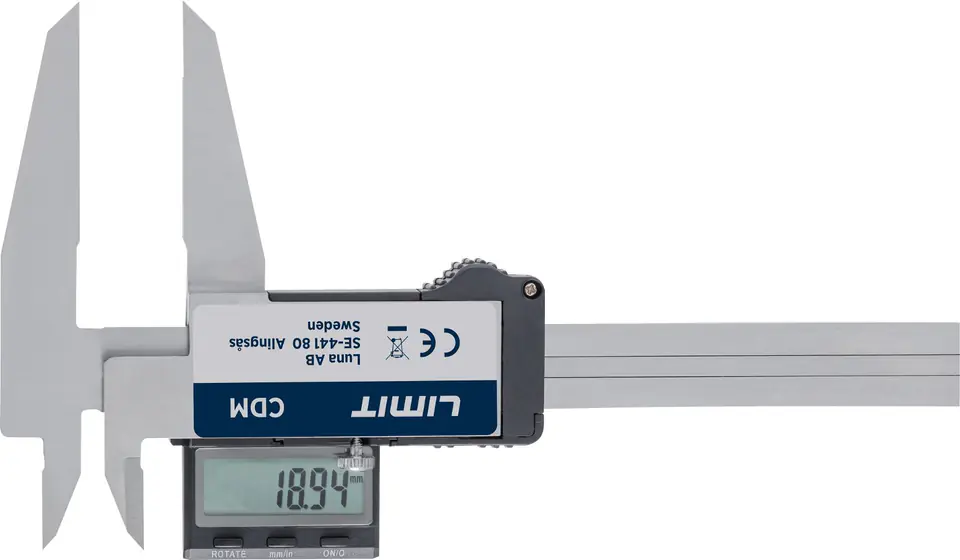

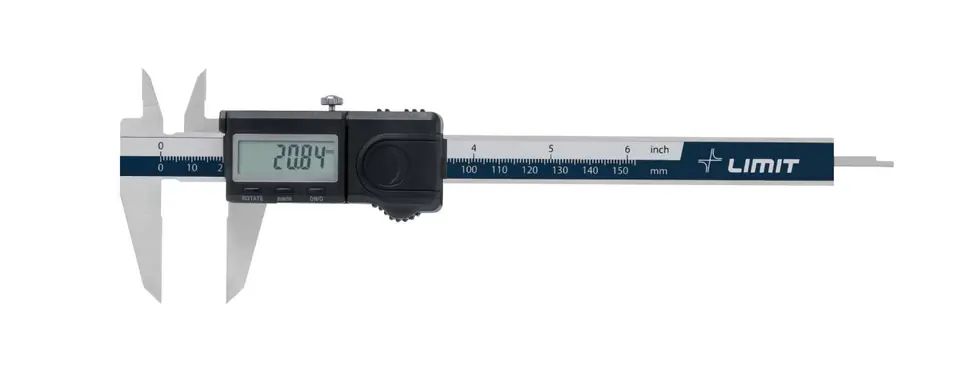

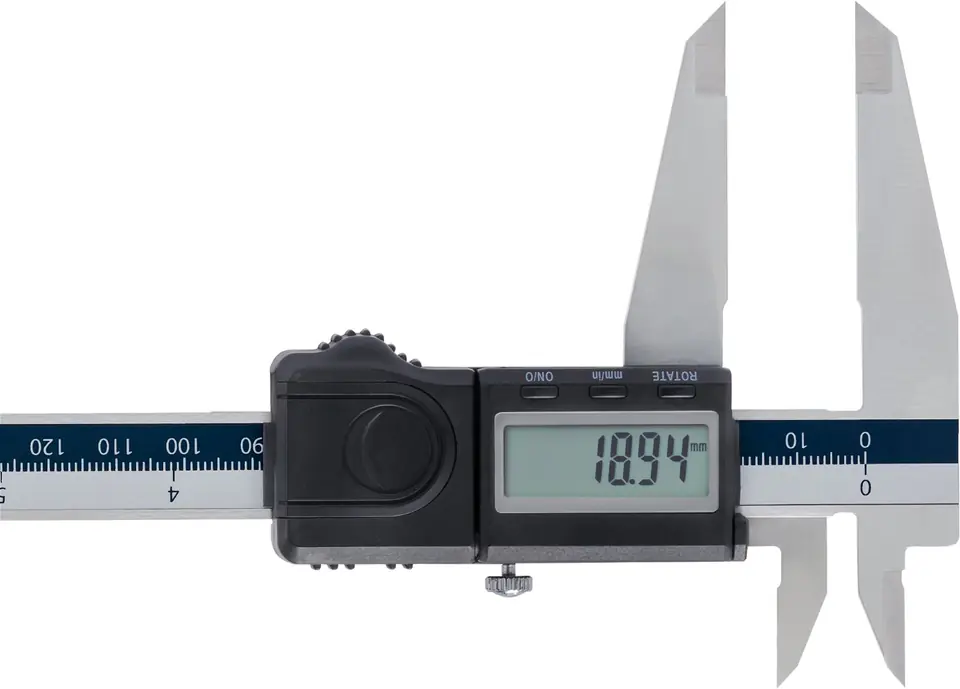

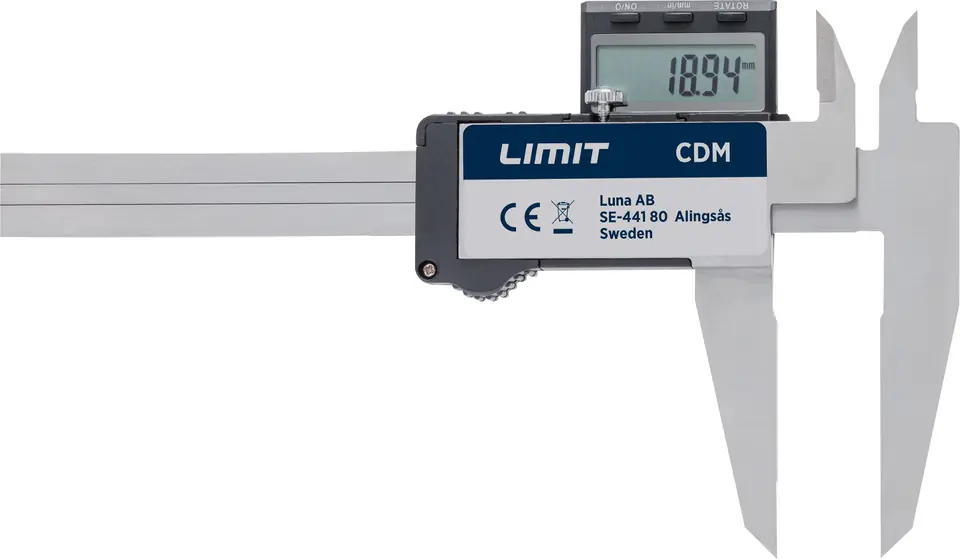

Digital caliper with a unique, movable display. Digital caliper with unique, patented flexible display solution! Thanks to the tilting display, which also has the function of image twisting, the caliper can be used with both the right and left hand, for measurements from above and below. This means that measurements can be read from the display even in the most inconvenient places, e.g. in multi-operation or numerically controlled lathes. With absolute measurement system and instantaneous zero point shift. Stainless, hardened and precisely ground measuring jaws. Jaw thickness of 3.5 to 4 mm ensures high stability. LCD display with clear digits with a height of 7.5 mm. 4-functions. Processor with high update frequency (1.5 measurements/s). Choice of indication in mm or inches. Equipped with a rectangular depth gauge extension and jaws for internal measurements. Made according to DIN 862. Supplied in a pouch, with a quality control certificate. CR2032 type battery is attached.
Digital caliper CDM 150 mm FLEX Limit
This product is not available
- Availability:
- expected delivery
- Brand:
- LIMIT
- Product code:
- 263990103 / 7311662212346
Share this product:
Specification
| Abs function: | yes |
|---|---|
| Accuracy: | ±0.02 mm |
| Arm thickness (mm): | 3.60 |
| Blockade: | locking screw |
| Depth gauge shape: | Rectangular |
| Height of digits/letters (mm): | 7.5000 |
| Item number: | 263990103 |
| Jaw length - inner (mm): | 21.0000 |
| Jaw length - outer (mm): | 40.0000 |
| Measuring length (mm): | 150 |
| Package dimensions (mm): | 31x96x254 |
| Package quantity (pcs): | 1 |
| Repeatability (mm): | ± 0.01 |
| Resolution (inches): | 0.0005 |
| Resolution (mm): | 0.01 |
| Update frequency (m/s): | 1.5000 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
