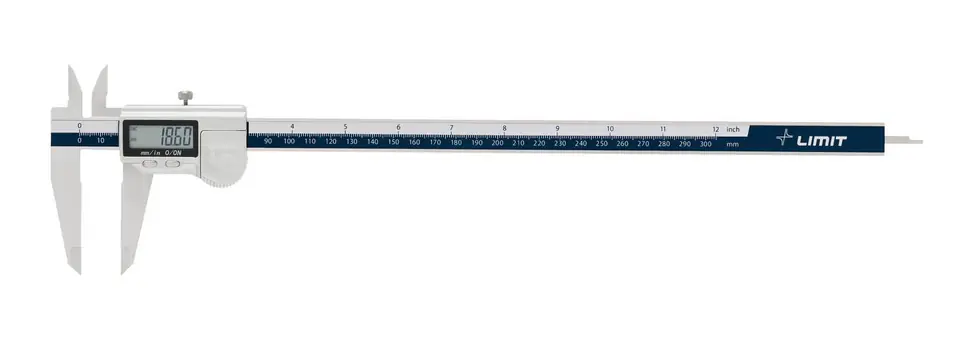

Digital Caliper CDL 300mm IP67 Limit

PLN 1,590.49
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Mar 12 - Mon, Mar 16
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
LIMIT
Product code:
263970303 / 7311662212339

Specification

Abs function:yes
Accuracy:±0.04 mm
Arm thickness (mm):4.00
Blockade:locking screw
Depth gauge shape:Rectangular
Height of digits/letters (mm):9.0000
Ip protection grade:IP 67
Item number:263970303
Jaw length - inner (mm):28.0000
Jaw length - outer (mm):62.0000
Measuring length (mm):300
Package dimensions (mm):30x125x420
Package quantity (pcs):1
Repeatability (mm):± 0.01
Resolution (inches):0.0005
Resolution (mm):0.01
Update frequency (m/s):3.0000

IP67 digital caliper with electronic module, made of metal. IP67 rated dust- and waterproof, providing the best resistance to water, oil and coolants. With absolute measurement system and instantaneous zero point shift. In premium quality, with a strong construction, with special attention to details and finish.

The caliper is characterized by a very soft and smooth movement of the jaw, because the components were ground in several stages. Stainless, hardened and precisely ground measuring jaws. Jaw thickness of 3.5 to 4 mm ensures high stability. LCD display with clear digits with a height of 9 mm. 4-functions. Processor with high update frequency (3 measurements/sec).

Choice of indication in mm or inches. Equipped with a rectangular depth gauge extension and jaws for internal measurements. Made according to DIN 862. Supplied in a pouch, with a quality control certificate. CR2016 type battery attached.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
