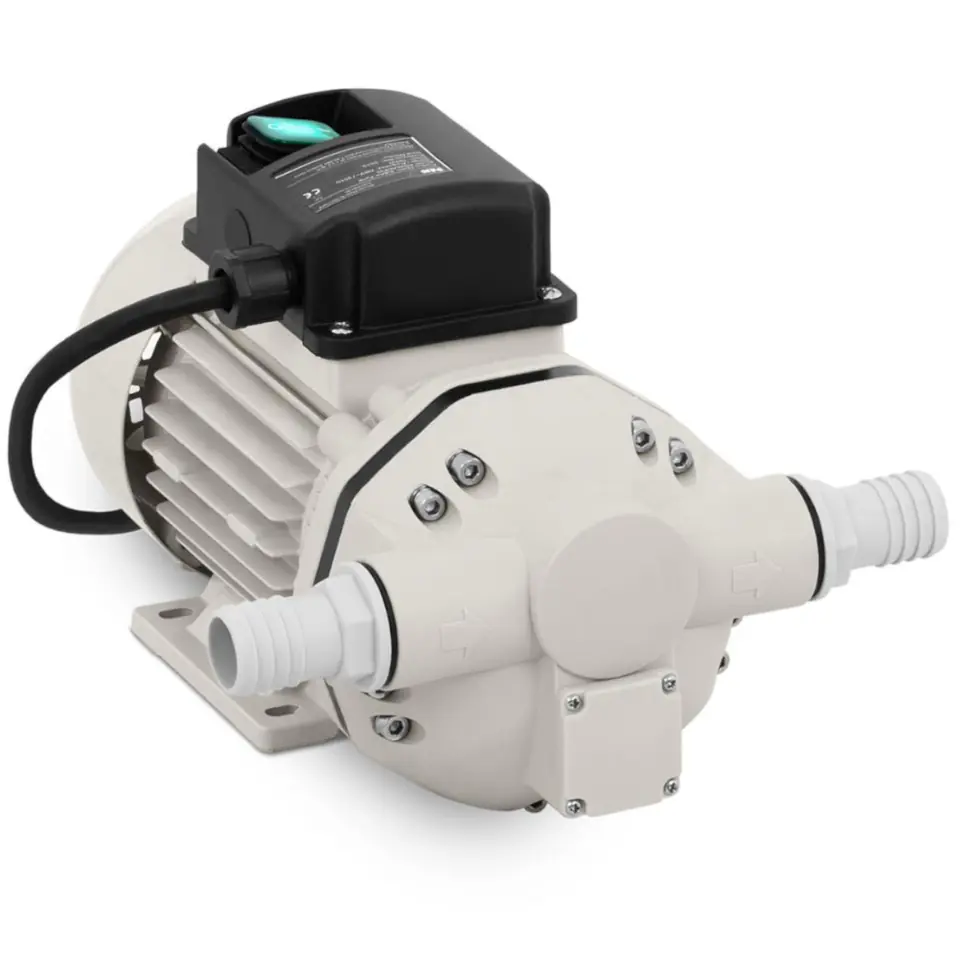

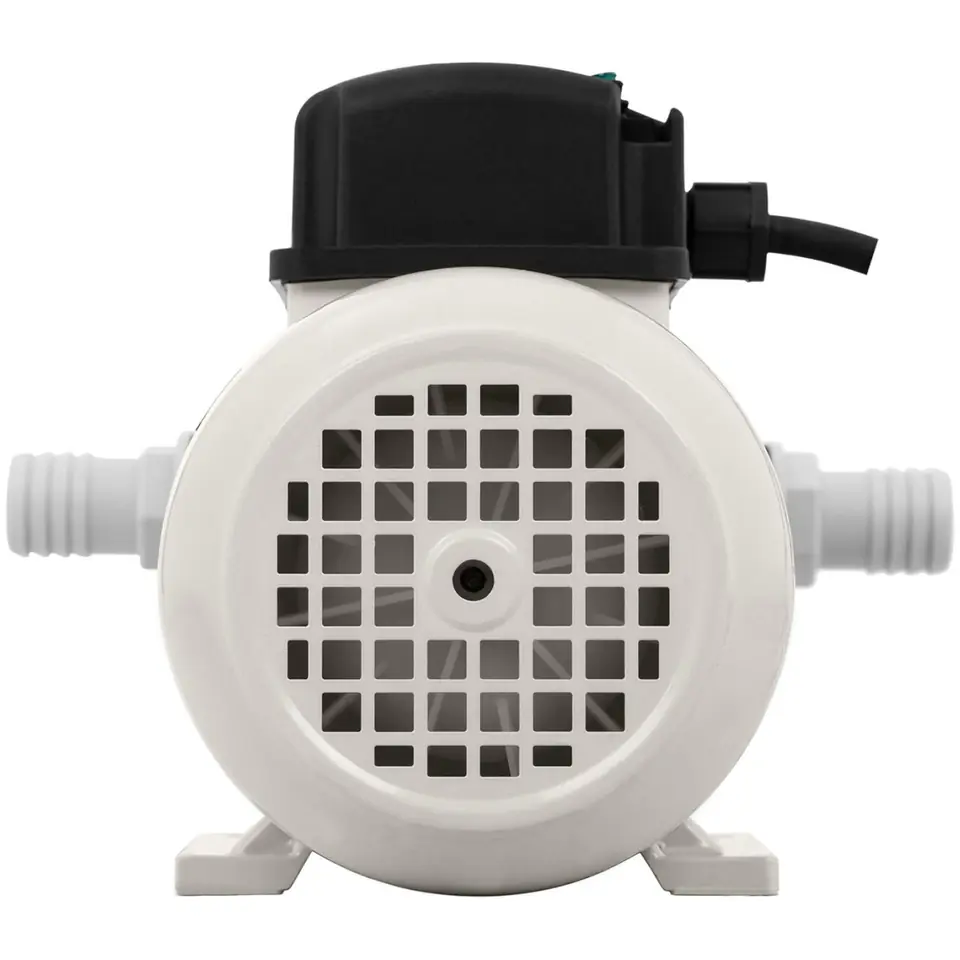

Diaphragm pump for aggressive fuels harmful water liquids 40l/min 2.8 bar

Manufacturer no: 10060825
MSW diaphragm pump designed for fast and safe pumping of aggressive fuels and harmful liquids such as catalytic fluid, urea solution, DEF, sus32, alcohol, ethanol, ammonia or IBC and water. The distributor is great for filling all kinds of vehicles and machines, making it suitable for workshops, garages, stations.
The device uses an electric motor without any dynamic seals, which maintains a stable temperature of the body. The diaphragm pump allows you to pump liquids at a speed of 40 l / min and an operating pressure of 2.8 bar. Possible operation at ambient temperature: -30 to 60C. Self-priming is an operation without the need to fill the inlet channel beforehand. The pump can independently remove the accumulated air from the suction line, so during commissioning it can be located above the water tank. Self-priming devices have a higher level of suction (up to 10 m difference in height) compared to centrifugal ones. The pump will work without damage even after prolonged dry operation.
Product features:

• - Capacity - flow 40 l/min, pressure 2.8 bar,
• - Self-priming - works without the need to re-flood the inlet channel,
• - Wide application - allows you to pump aggressive fuels (urea solution, DEF, sus32, alcohol, ethanol, ammonia, IBC, etc.) and water,
• - Durability - works dry for a long time without damage.

• - Model - MSW-AOP40
• - Catalogue number - 10060825
• - Article status - New
• - Pressure - 2.8 bar
• - Inlet dimensions - 24.4 mm
• - Outlet dimensions - 19.7 mm
• - Voltage - 230 V
• - Power - 550 W
• - Material - Metal
• - Housing material - EPDM
• - Operating temperature - -30 - 60C
• - Rotational speed - 2800 rpm
• - Maximum suction - 5 m
• - Flow rate - 40 l/min
• - Power cord - 1.6 m (including connection part)
• - Dimensions (LxWxH) - 28.5 x 23 x 17 cm
• - Weight - 5.9 kg
• - Shipping dimensions (LxWxH) - 33 x 16 x 20 cm
• - Shipping weight - 6.4 kg

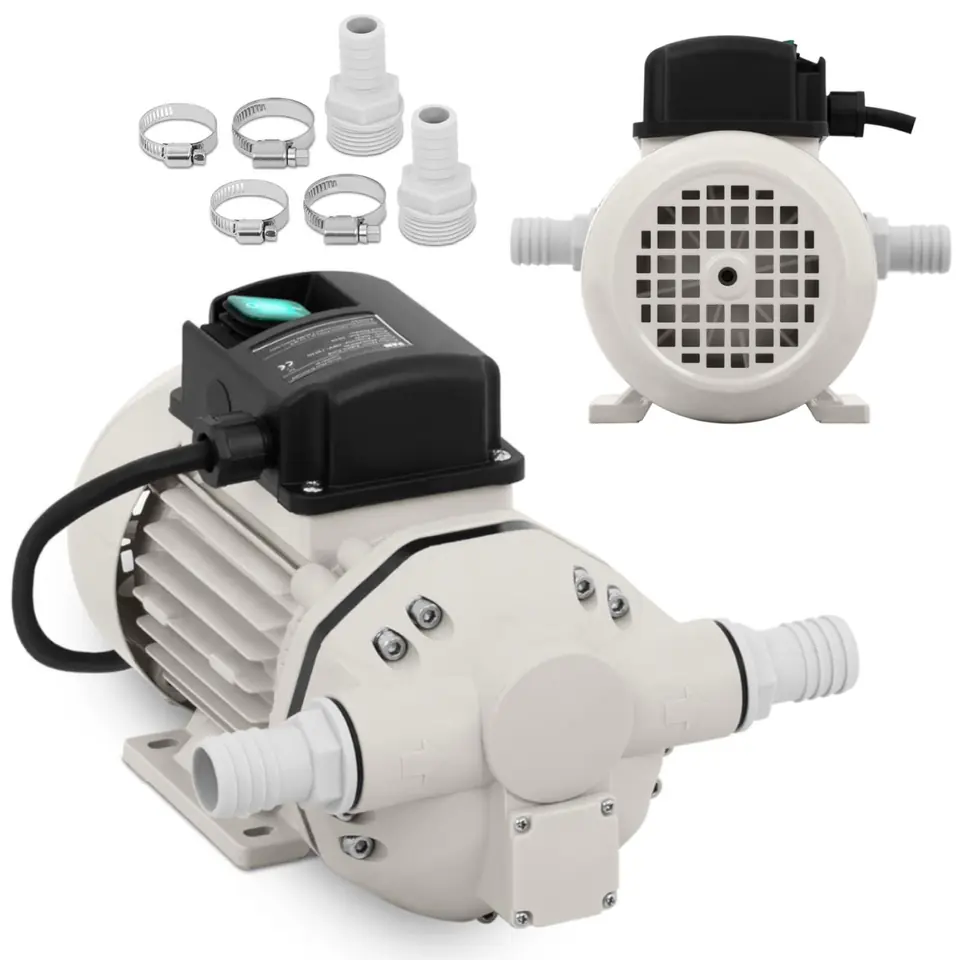

• - Diaphragm pump

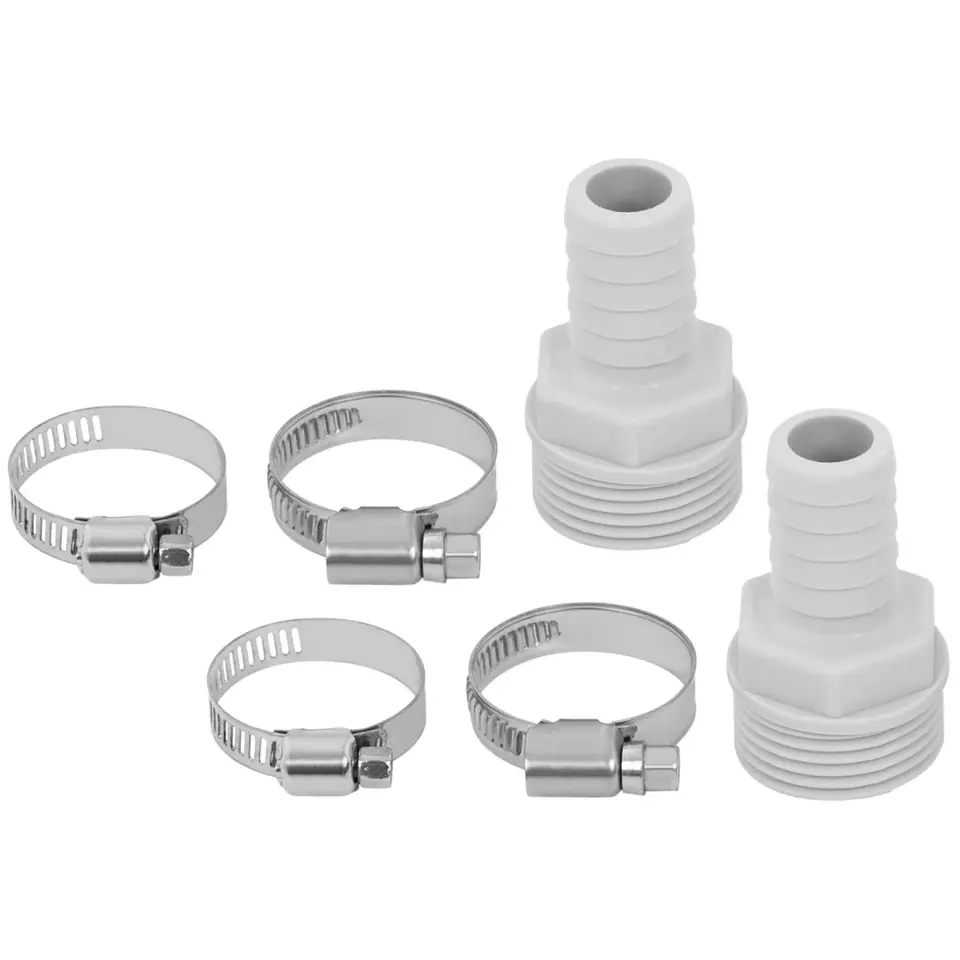

• - Clamp - 2 pcs.
• - Rubber gasket - 2 pcs.
• - Large hose tip - 2 pcs.
• - Small hose tip - 2 pcs.
• - Manual EN
