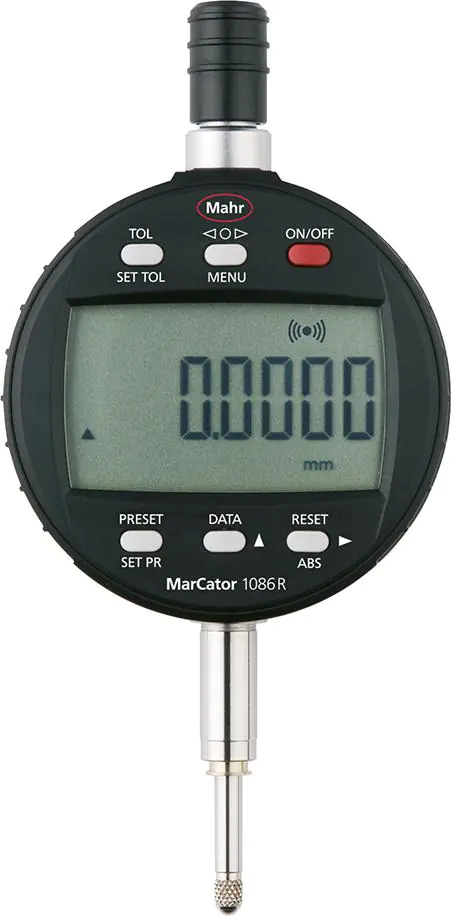

Dial indicator, digital, static
Material: fixing pin and measuring pin made of stainless steel, hardened. Working element and display rotatable 280°. The height of the digits on the LCD display is 11 mm. Mounting pin with a diameter of 8 mm, protective cap on the measuring tip. With RS232, USB and Digimatic data output. Supplied with CR2450 battery, 3V
Functions: on and off, mm/inch switching, button lock for set zero position, no need to reset after switching on (Absolut system), MAX/MIN memory for finding a turning point, entering tolerances, ABS (switching from relative to absolute measurement), changing the counting direction, preset function (preset of the measured value).
Dial indicator,electric,1086 R-HR 12.5 mm 0.5") 0.001 mm MAH
PLN 3,460.60
Shipping from warehouse: B6
Estimated shipping: Mon, Jan 19 - Thu, Jan 22
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Mahr
- Product code:
- 4337697 / 4059192061678
Share this product:
Specification
| Accuracy: | 0.0005 mm |
|---|---|
| Measuring range: | 12.5 mm |
| Ø enclosures: | 60.5 mm |
| Read: | 0.0001 mm |
| Type: | MarCator 1086 R-HR |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
